Toyota Corona FR

1982-01 → 1999-07 · chassis CT14#,RT14#,ST141,TT14#,YT140 · catalogue 261250 · Europe

Discontinued model Data version 2000-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Fender Apron & Dash Panel

22 part groups · 2 illustrations

Illustrations

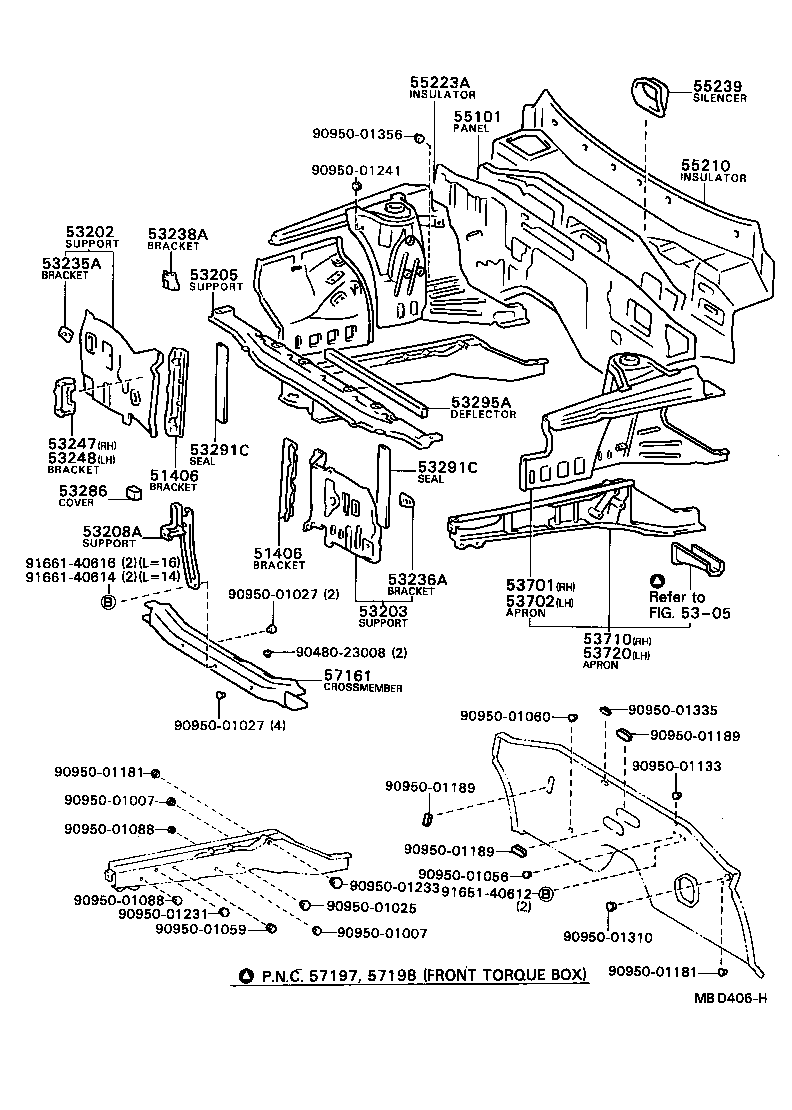

Figure MBD405G MBD405G 1982-01 → — Figure MBD406H MBD406H 1982-01 → —

Part groups

PNCDescription
51406 Bracket Sub-assy, Radiator Support
53202 Support Sub-assy, Radiator, RH
53203 Support Sub-assy, Radiator, LH
53205 Support Sub-assy, Radiator, Upper
53208A Support Sub-assy, Hood Lock
53235A Bracket, Horn Mounting, RH
53236A Bracket, Horn Mounting, LH
53238A Bracket, Hood Bumper Mounting
53247 Bracket, Headlamp Mounting, Inner RH
53248 Bracket, Headlamp Mounting, Inner LH
53286 Cover, Front Bumper Arm Hole
53291C Seal, Radiator Support TO Frame
53295A Deflector, Radiator Upper Air
53701 Apron Sub-assy, Front Fender, RH
53702 Apron Sub-assy, Front Fender, LH
53710 Apron Assy, W/Front Side Member, RH
53720 Apron Assy, W/Front Side Member, LH
55101 Panel Sub-assy, Dash
55210 Insulator Assy, Dash Panel
55223A Insulator, Dash Panel, Outer
55239 Silencer, Steering Column Hole Cover
57161 Crossmember, Front
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
