Toyota Corona FR

1982-01 → 1999-07 · chassis CT14#,RT14#,ST141,TT14#,YT140 · catalogue 261250 · Europe

Discontinued model Data version 2000-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Pan & Lower Back Panel

48 part groups · 8 illustrations

Illustrations

MBD410J 1982-01 → 1985-08

MBD410J 1985-08 → —

MBD410J 1986-12 → —

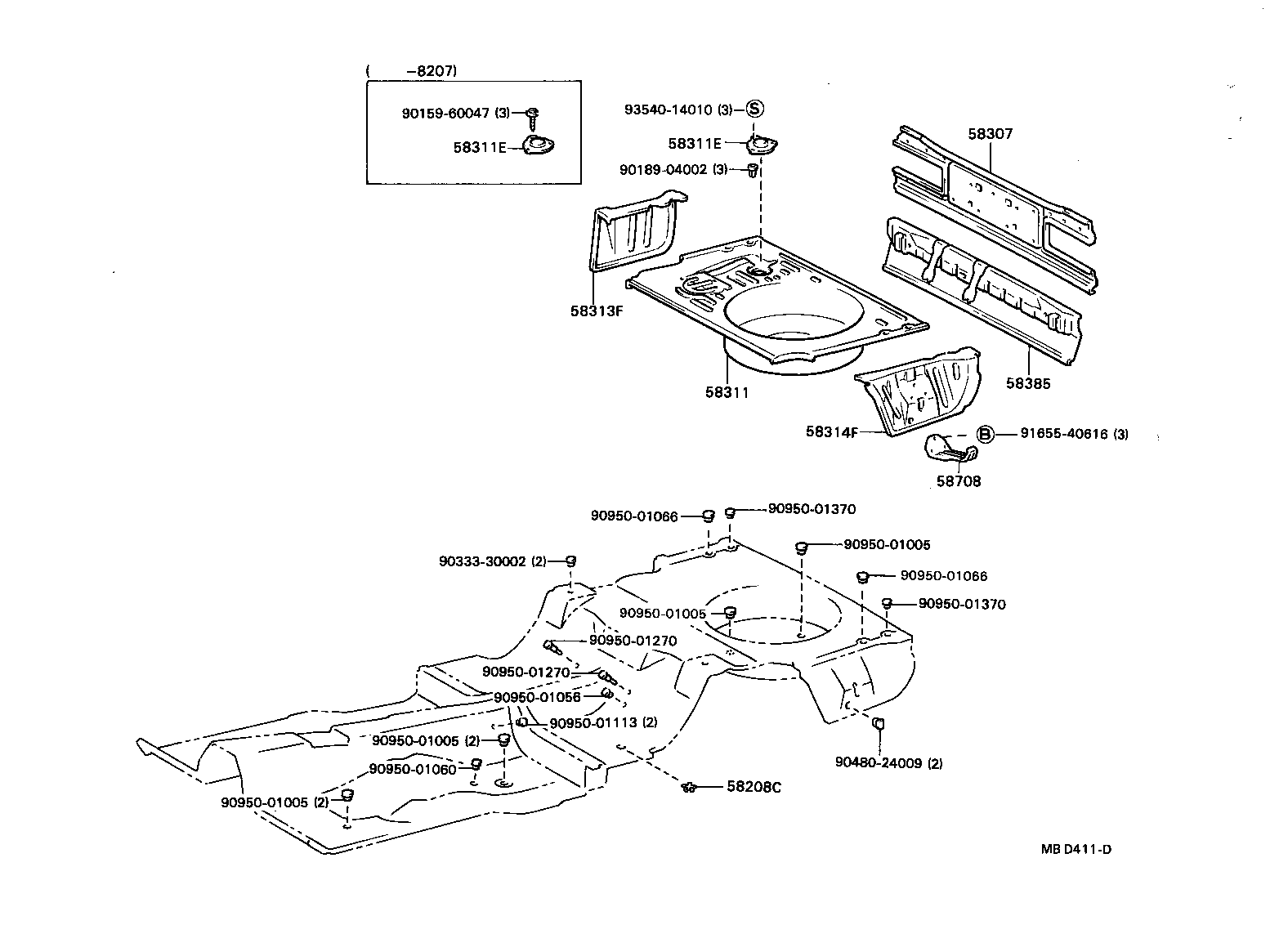

MBD411D 1982-01 → —

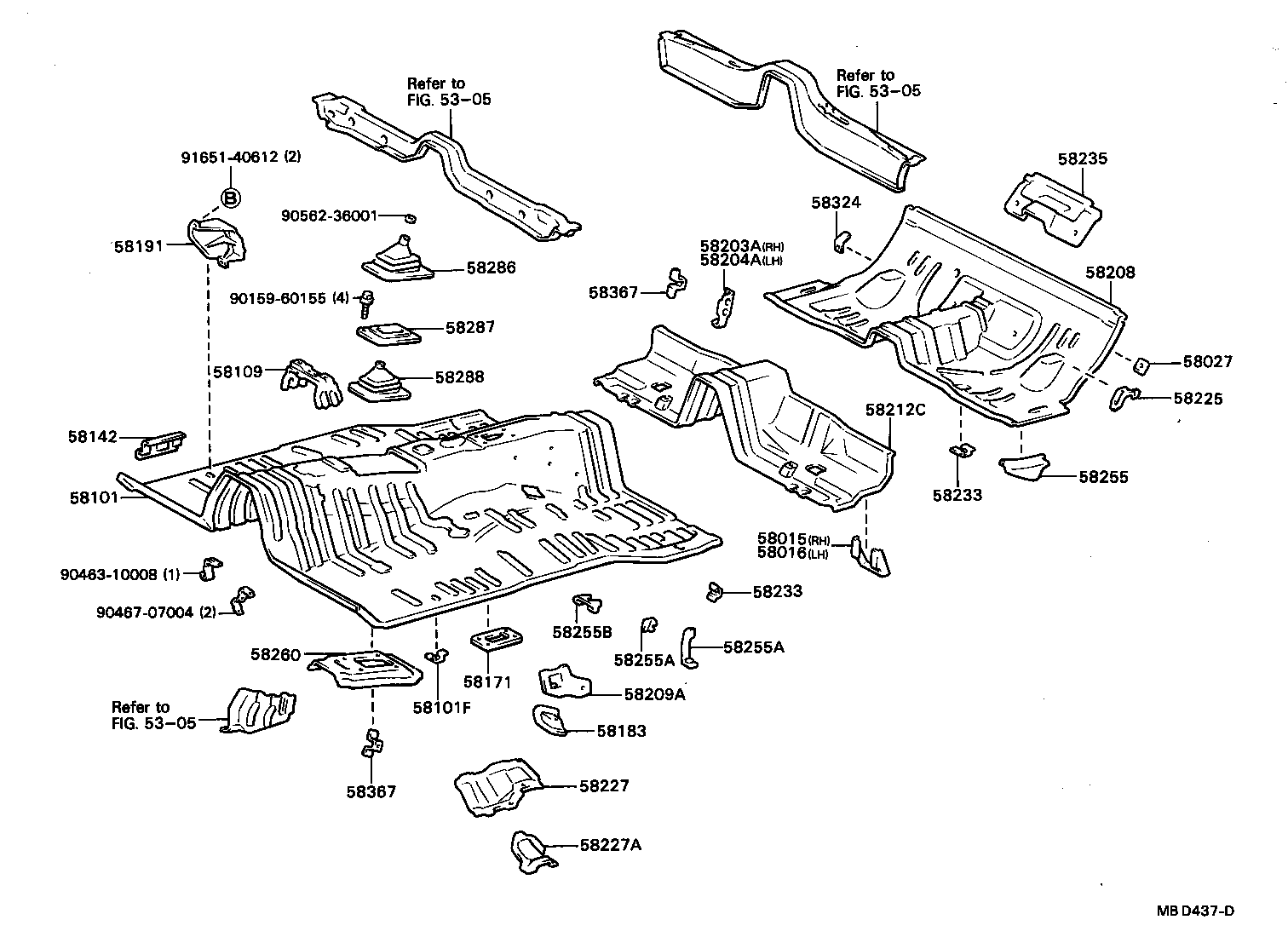

MBD437D 1982-01 → 1985-08

MBD437D 1985-08 → —

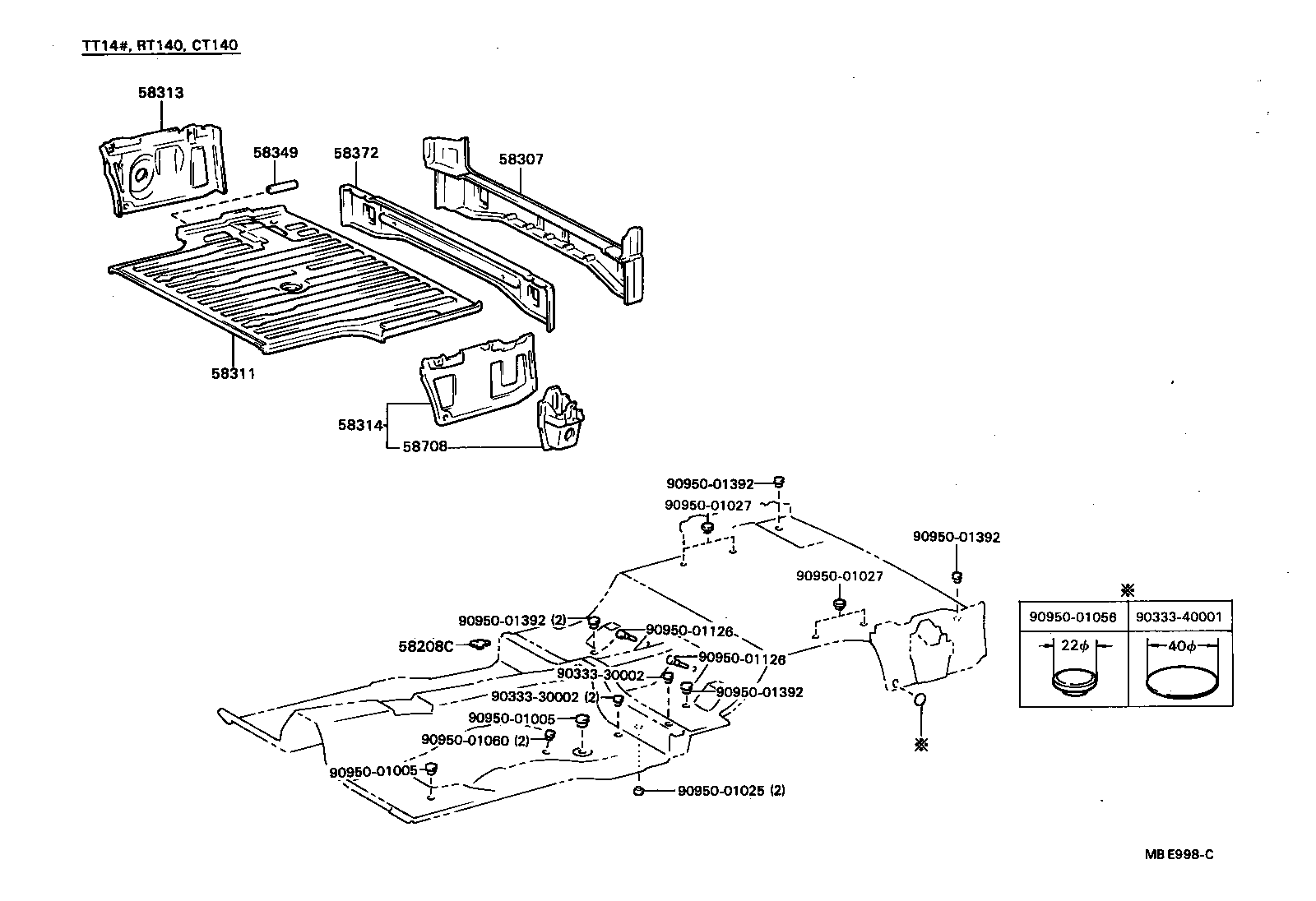

MBE998C 1982-01 → —

Part groups

PNC	Description
52277	Retainer, Rear Suspension Member Lower Stopper, RH
52278	Retainer, Rear Suspension Member Lower Stopper, LH
58015	Reinforcement, Belt Anchor TO Floor Pan, RH
58016	Reinforcement, Belt Anchor TO Floor Pan, LH
58027	Reinforcement, Belt Anchor TO Floor Pan, NO.1
58052D	Extension, Center Floor TO Package Tray
58052E	Extension, Center Floor TO Brace
58101	Pan Sub-assy, Front Floor
58101F	Bracket, Mounting, Floor, NO.1
58109	Bracket Sub-assy, Instrument Panel Brace Mounting
58137	Bracket, Center Floor Heat Insulator, NO.4
58142	Reinforcement, Floor Side Member TO Floor Pan
58171	Reinforcement, Parking Brake Base
58183	Bracket, Front Seat Mounting, Inner
58191	Footrest, Front Floor
58203A	Reinforcement Sub-assy, Center Floor Panel, RH
58204A	Reinforcement Sub-assy, Center Floor Panel, LH
58208	Pan, Center Floor
58208C	Cover, Center Floor Hole
58209A	Reinforcement Sub-assy, Drive Shaft Center Support
58212C	Pan, Center Floor, Front
58225	Holder, Rear Seat Cushion
58227	Plate, Air Guide, Outside
58227A	Plate, Air Guide
58233	Bracket, Exhaust Pipe Mounting
58235	Bracket, Differential Carrier Bumper Mounting
58255	Clamp, Parking Brake Cable, NO.1
58255A	Clamp, Parking Brake Cable, NO.2
58255B	Bracket, Parking Brake Cable Guide, NO.1
58260	Cover Assy, Transmission, Front
58286	Boot, Shift & Select Lever, NO.1
58287	Retainer, Shift Lever Boot
58288	Seal, Shift Lever Boot
58307	Panel Sub-assy, Body Lower Back
58311	Pan, Rear Floor
58311E	Cover, Rear Floor Service Hole
58313	Panel, Rear Floor Side, RH
58313F	Extension, Rear Floor Pan TO Quarter Panel, RH
58314	Panel, Rear Floor Side, LH
58314F	Extension, Rear Floor Pan TO Quarter Panel, LH
58324	Bracket, Flexible Hose
58348	Cover, Rear Absorber Service Hole
58349	Cushion, Rear Floor Side
58367	Bracket, Fuel Tube Clamp
58368C	Bracket, Fuel Tube, NO.3
58372	Panel, Body Lower Back, Inner
58385	Panel, Rear Valance
58708	Carrier Sub-assy, Jack

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
