Toyota Corona FR

1982-01 → 1999-07 · chassis CT14#,RT14#,ST141,TT14#,YT140 · catalogue 261250 · Europe

Discontinued model Data version 2000-01

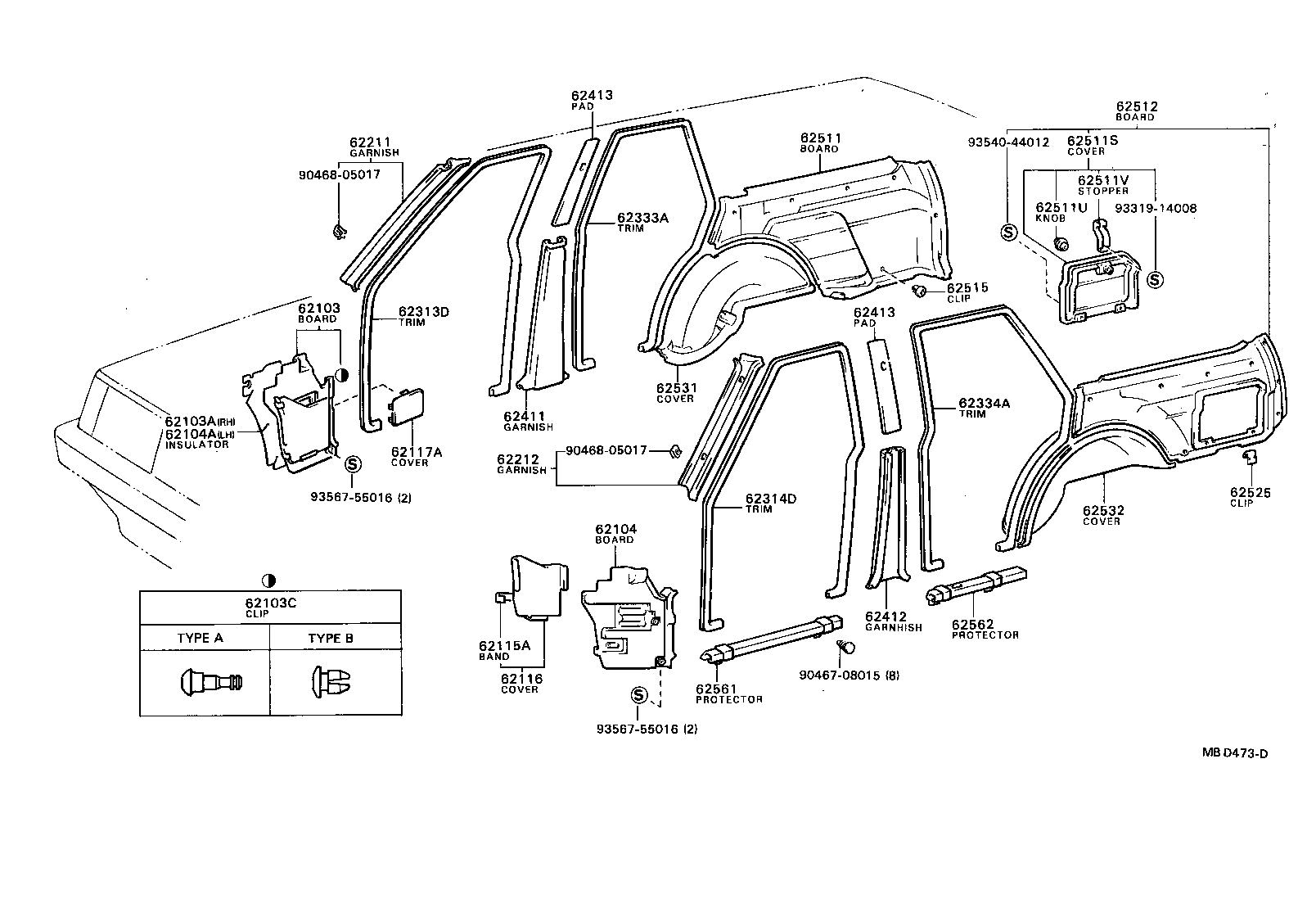

Inside Trim Board & Door Opening Trim Moulding

40 part groups · 2 illustrations

PNC	Description
62103	Board Sub-assy, Cowl Side Trim, RH
62103A	Insulator Sub-assy, Cowl Side, RH
62103C	Clip, Cowl Side Trim Board Set
62104	Board Sub-assy, Cowl Side Trim, LH
62104A	Insulator Sub-assy, Cowl Side, LH
62115A	Band, Cowl Side Trim
62116	Cover, Cowl Side Trim, Lower
62117A	Cover, Cowl Side Trim Service Hole
62211	Garnish, Front Pillar, RH
62212	Garnish, Front Pillar, LH
62313D	Trim, Front Door Opening, RH
62314D	Trim, Front Door Opening, LH
62333A	Trim, Rear Door Opening, RH
62334A	Trim, Rear Door Opening, LH
62411	Garnish, Center Pillar, RH
62411B	Garnish, Center Pillar, Upper RH
62411E	Plug, Hole (FOR SEAT BELT)
62412	Garnish, Center Pillar, LH
62412B	Garnish, Center Pillar, Upper LH
62413	Pad, Center Pillar Garnish
62451	Garnish, Roof Side Inner, RH
62452	Garnish, Roof Side Inner, LH
62475	Pad, Roof Side Inner Garnish
62511	Board, Quarter Inside Trim, RH
62511S	Cover, Quarter Trim Jack
62511U	Knob, Jack Cover
62511V	Stopper, Jack Cover
62512	Board, Quarter Inside Trim, LH
62515	Clip, Quarter Inside Trim
62525	Clip, Rear Body Inside Trim
62531	Cover, Wheel House Trim, RH
62532	Cover, Wheel House Trim, LH
62535	Pad, Quarter Wheel House Trim
62561	Protector, Rocker Panel, Inner Front
62562	Protector, Rocker Panel, Inner Rear
62565	Garnish, Rear Seat Side, RH
62565A	Clip (FOR REAR SEAT SIDE GARNISH)
62566	Garnish, Rear Seat Side, LH
62581C	Garnish, Rear Window Side, RH
62582C	Garnish, Rear Window Side, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
