Toyota Corona FR

1982-01 → 1999-07 · chassis CT14#,RT14#,ST141,TT14#,YT140 · catalogue 261250 · Europe

Discontinued model Data version 2000-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

14 part groups · 3 illustrations

Illustrations

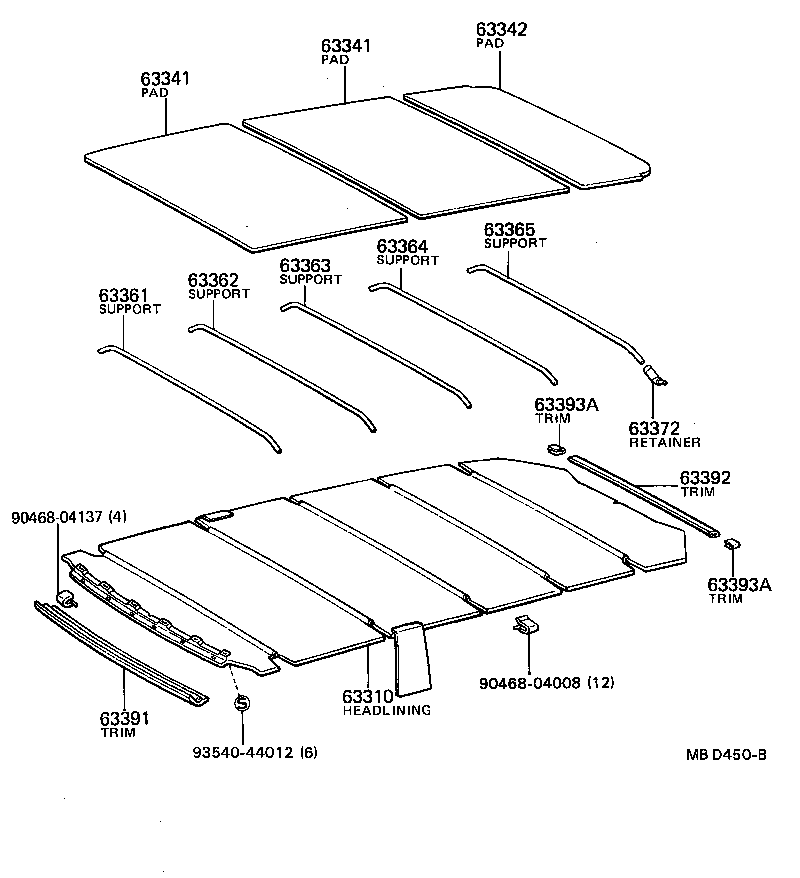

Figure MBD474E MBD474E 1982-01 → 1986-12 Figure MBD450B MBD450B 1982-01 → — Figure MBL480 MBL480 1986-12 → —

Part groups

PNCDescription
63310 Headlining Assy, Roof
63341 Pad, Roof Silencer, NO.1
63342 Pad, Roof Silencer, NO.2
63361 Support, Roof Headlining, NO.1
63362 Support, Roof Headlining, NO.2
63363 Support, Roof Headlining, NO.3
63364 Support, Roof Headlining, NO.4
63365 Support, Roof Headlining, NO.5
63372 Retainer, Headlining Support
63376 Clip, Headlining
63381 Retainer, Headlining, Front
63391 Trim, Roof Headlining, Front
63392 Trim, Roof Headlining, Rear
63393A Trim, Roof Headlining, Side, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
