Toyota Corona FR

1982-01 → 1999-07 · chassis CT14#,RT14#,ST141,TT14#,YT140 · catalogue 261250 · Europe

Discontinued model Data version 2000-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

37 part groups · 8 illustrations

Illustrations

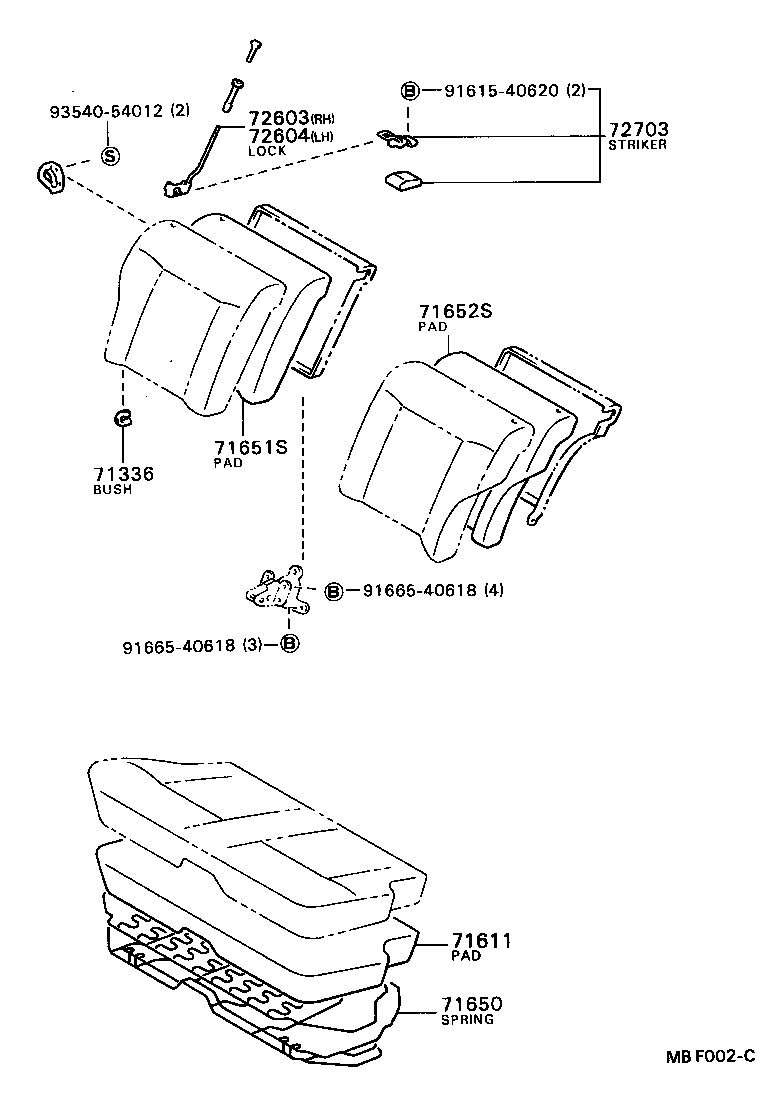

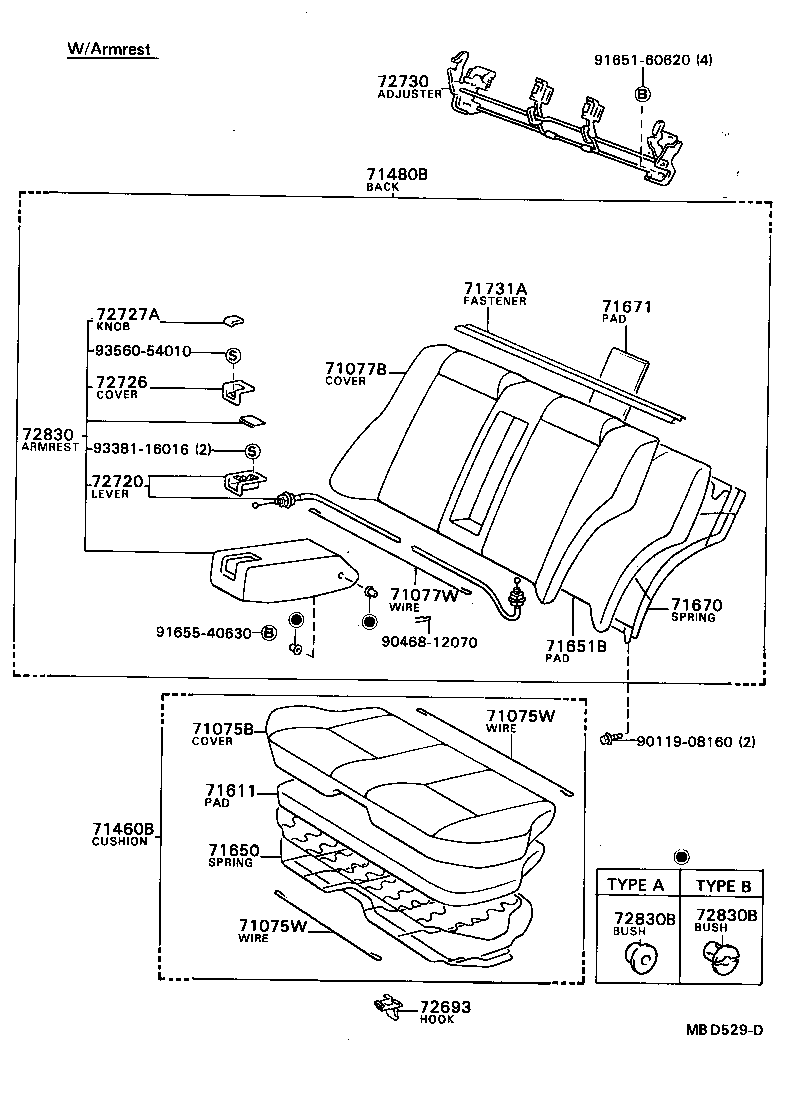

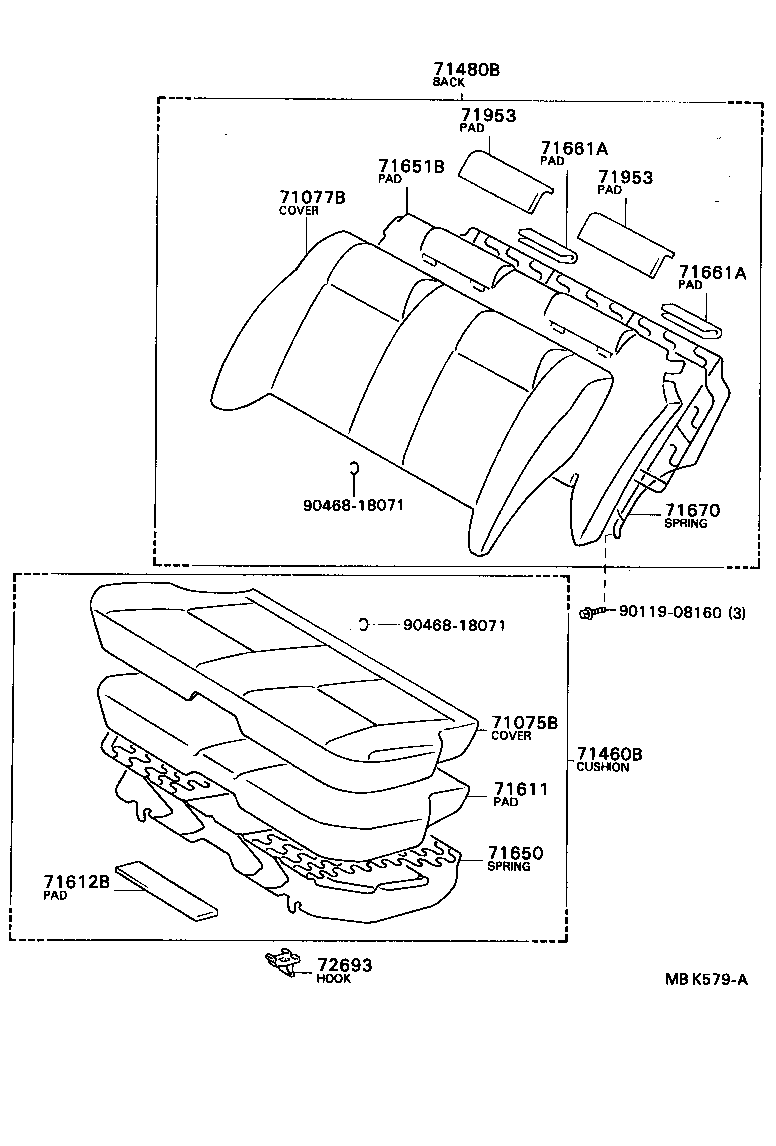

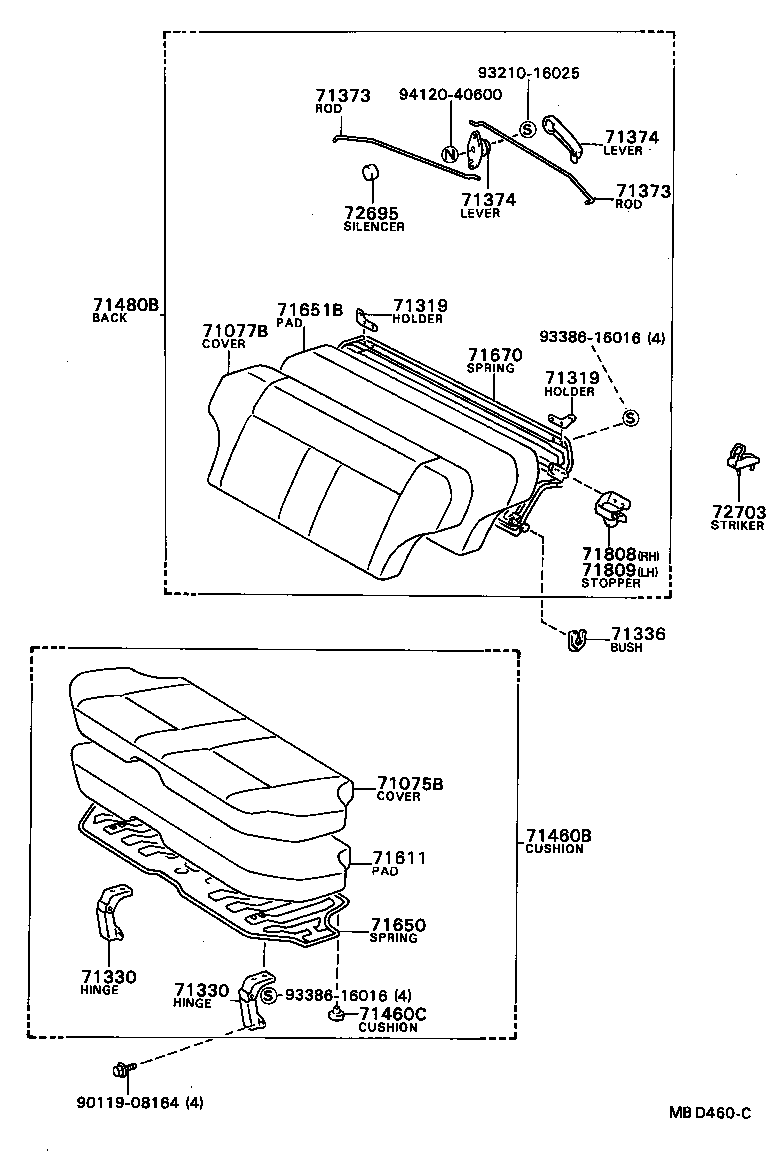

Figure MBD528A MBD528A 1982-01 → 1985-08 Figure MBD528A MBD528A 1985-08 → — Figure MBD529D MBD529D 1982-01 → 1985-08 Figure MBF001 MBF001 1983-04 → 1986-12 Figure MBD460C MBD460C 1982-01 → 1985-08 Figure MBD460C MBD460C 1985-08 → — Figure MBF002C MBF002C 1983-04 → 1986-12 Figure MBK579A MBK579A 1986-01 → —

Part groups

PNCDescription
71075B Cover, Rear Seat Cushion (FOR BENCH TYPE)
71075W Wire, Rear Seat Cushion Cover
71077B Cover, Rear Seatback (FOR BENCH TYPE)
71077W Wire, Rear Seatback Cover
71319 Holder, Rear Seatback
71330 Hinge Assy, Rear Seat Cushion
71336 Bush OR Spacer, Rear Seatback Hinge
71373 Rod, Rear Seatback Locking
71374 Lever, Rear Seatback Rod Control
71460B Cushion Assy, Rear Seat (FOR BENCH TYPE)
71460C Cushion (FOR REAR SEAT CUSHION)
71480B Back Assy, Rear Seat (FOR BENCH TYPE)
71611 Pad, Rear Seat Cushion
71612B Pad, Rear Seat Cushion, B
71650 Spring Assy, Rear Seat Cushion
71651B Pad, Rear Seatback(FOR BENCH TYPE)
71651S Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71661A Pad, Rear Seatback, Upper A
71670 Spring Assy, Rear Seatback(FOR BENCH SEAT)
71671 Pad, Rear Seatback Silencer, A
71731A Fastener, Seat Cover, A (FOR REAR SEAT)
71808 Stopper Sub-assy, Rear Seatback, RH
71809 Stopper Sub-assy, Rear Seatback, LH
71953 Pad, Rear Seat Headrest
72601 Striker Sub-assy, Rear Seat Lock
72603 Lock Sub-assy, Rear Seatback, RH
72604 Lock Sub-assy, Rear Seatback, LH
72693 Hook, Rear Seat Cushion Lock
72695 Silencer, Rear Seatback Lock Control Rod
72703 Striker Sub-assy, Rear Seatback Stopper
72720 Lever Assy, Rear Seat Reclining Control
72726 Cover, Rear Seat Reclining Control Lever
72727A Knob, Rear Seat Reclining Control Lever
72730 Adjuster Assy, Rear Seat Reclining
72830 Armrest Assy, Rear Seat, Center
72830B Bush(FOR REAR SEAT CENTER ARMREST)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
