Toyota Corona FR

1982-01 → 1999-07 · chassis CT14#,RT14#,ST141,TT14#,YT140 · catalogue 261250 · Europe

Discontinued model Data version 2000-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Moulding

12 part groups · 2 illustrations

Illustrations

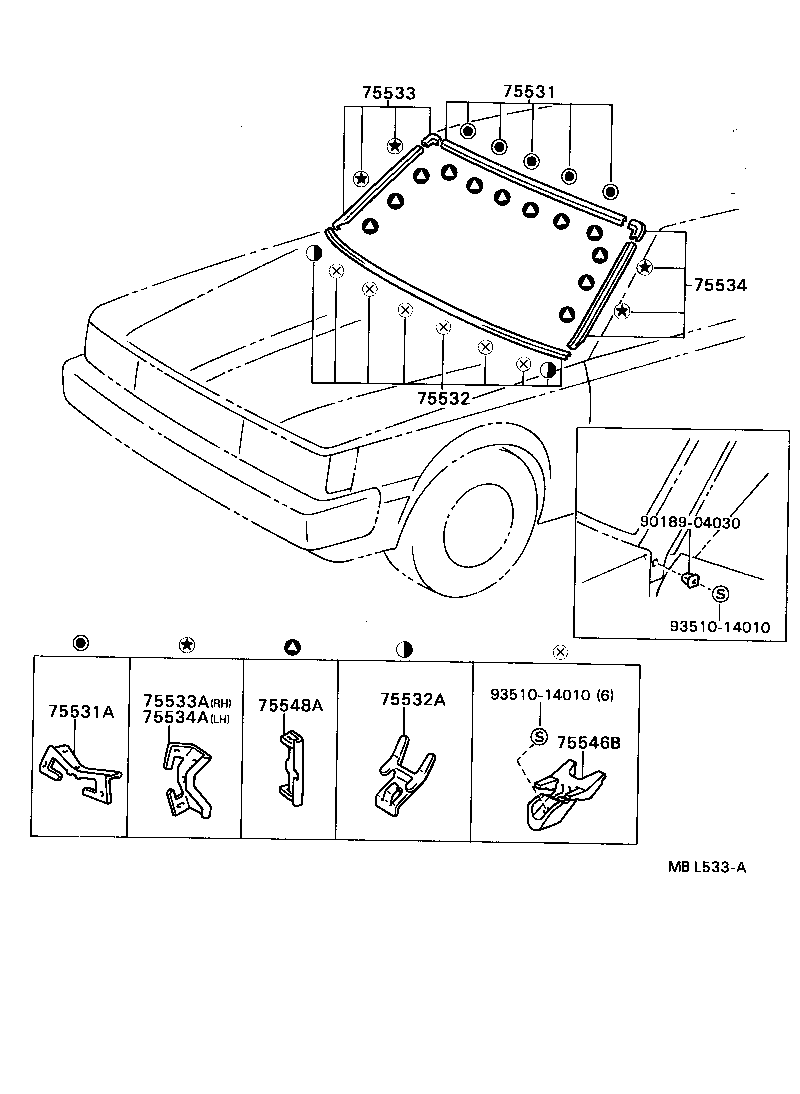

Figure MBD415D MBD415D 1982-01 → 1986-12 Figure MBL533A MBL533A 1986-12 → —

Part groups

PNCDescription
75531 Moulding, Windshield, Outer Upper
75531A Clip, Windshield Moulding Set, NO.1
75532 Moulding, Windshield, Lower
75532A Clip, Windshield Moulding Set
75533 Moulding, Windshield, Outside RH
75533A Clip, Windshield Side Moulding, RH
75534 Moulding, Windshield, Outside LH
75534A Clip, Windshield Side Moulding, LH
75546B Clip, Windshield Outside Moulding, NO.2
75548A Fastener, Windshield Outside Moulding, NO.1
76545 Retainer, Windshield Moulding, RH
76546 Retainer, Windshield Moulding, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
