Rear Moulding

12 part groups · 2 illustrations

Illustrations

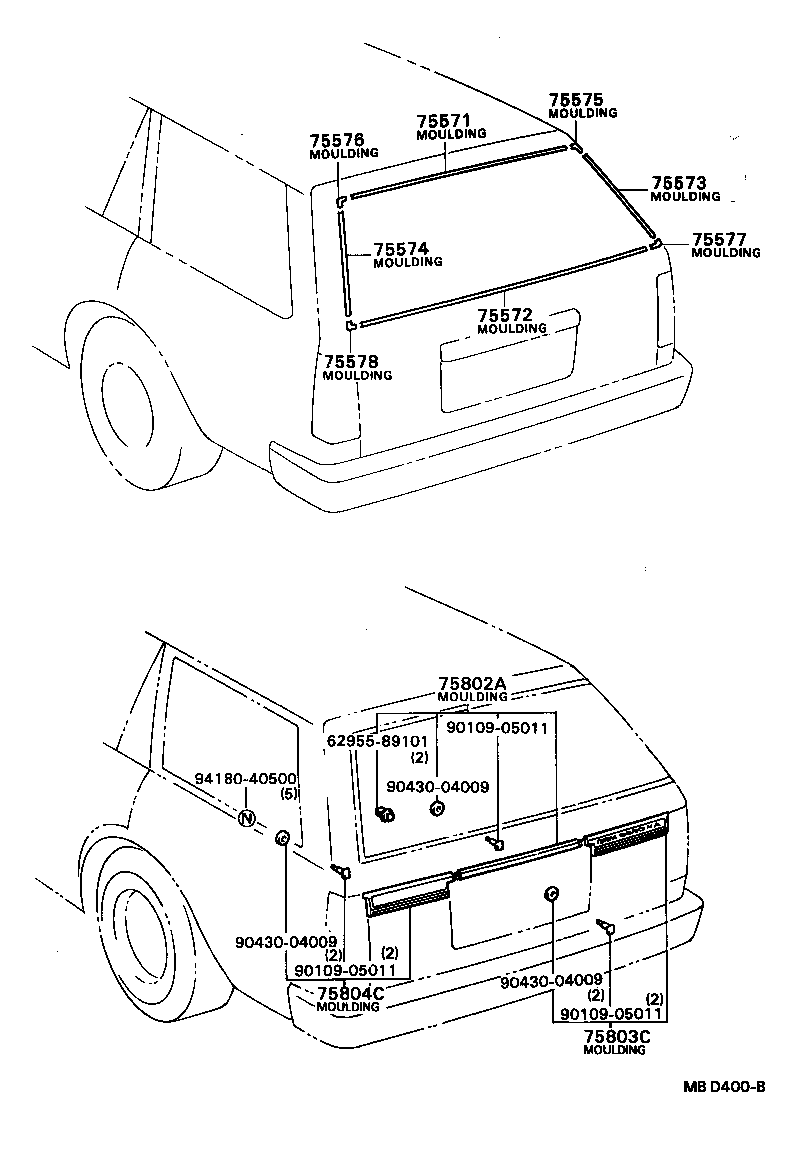

Figure MBD398D MBD398D 1982-01 → — Figure MBD400B MBD400B 1982-01 → —

Part groups

PNCDescription
75082 Panel Sub-assy, Lower Back Finish, Center
75571 Moulding, Back Window, Outside Upper
75572 Moulding, Back Window, Lower
75573 Moulding, Back Window Side, RH
75574 Moulding, Back Window Side, LH
75575 Moulding, Back Window Corner, Upper RH
75576 Moulding, Back Window Corner, Upper LH
75577 Moulding, Back Window Corner, Lower RH
75578 Moulding, Back Window Corner, Lower LH
75802A Moulding Sub-assy, Back Door, Outside Upper
75803C Moulding Sub-assy, Back Door, Outside RH
75804C Moulding Sub-assy, Back Door, Outside LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
