Fuel Tank & Tube

64 part groups · 21 illustrations

Illustrations

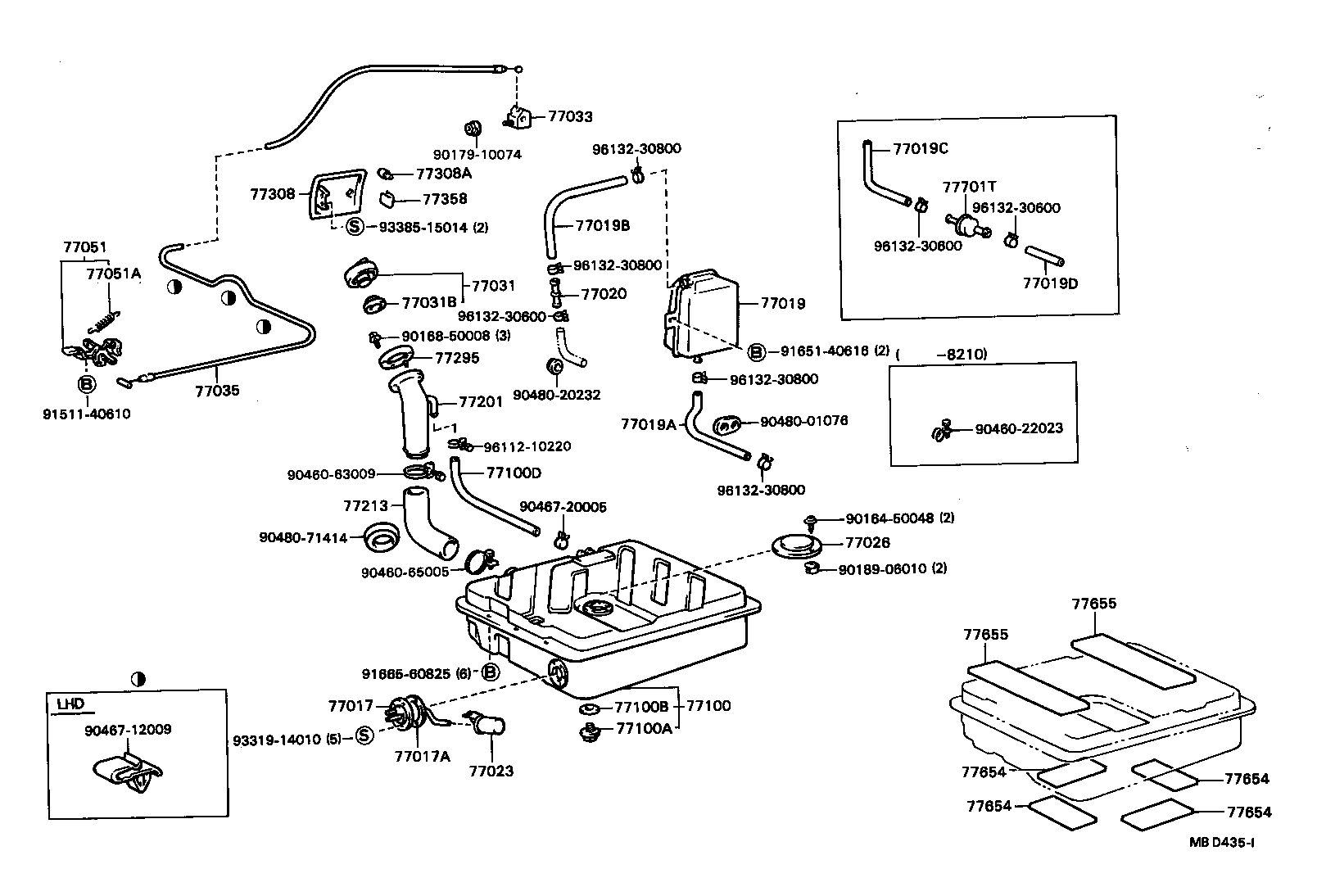

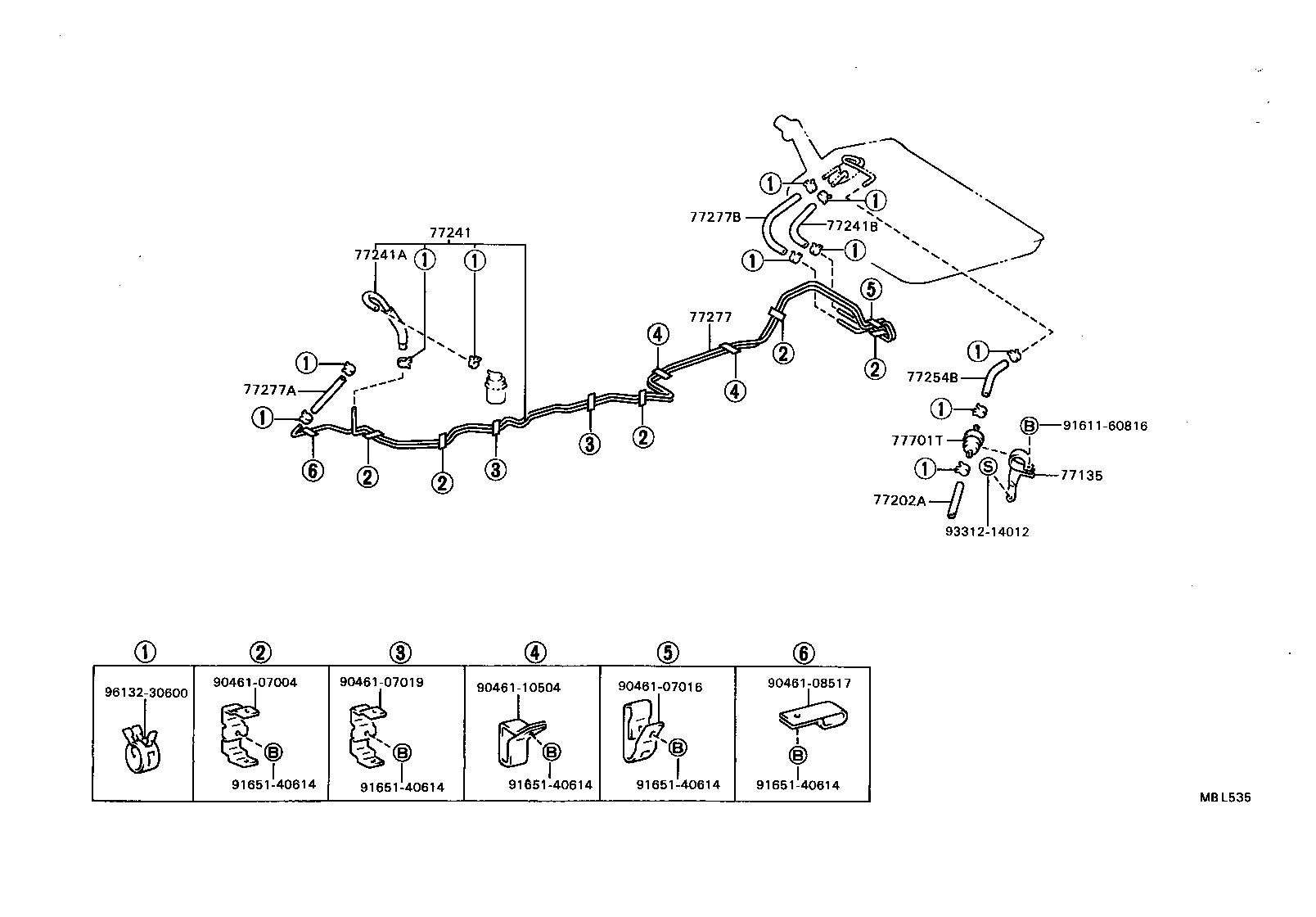

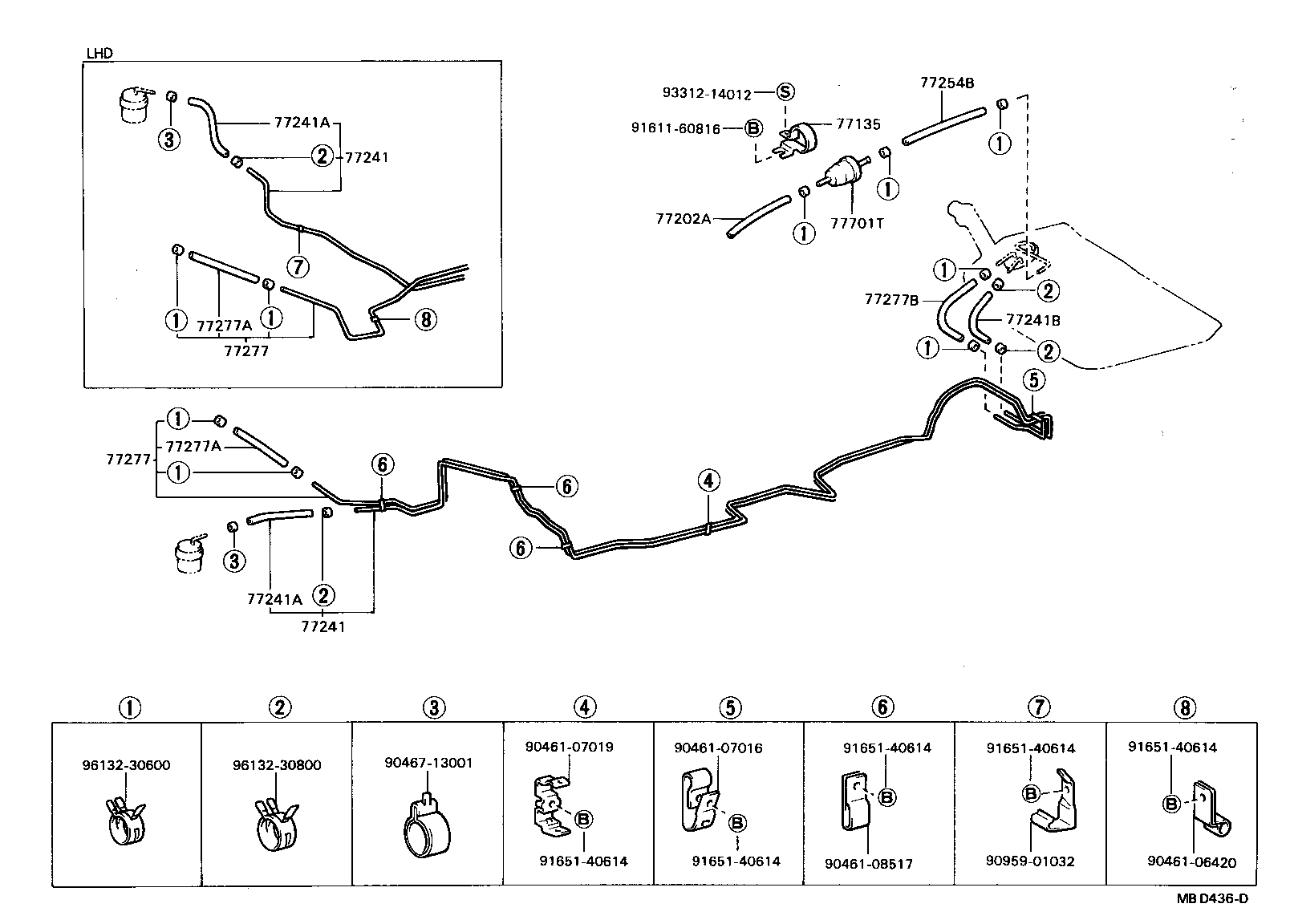

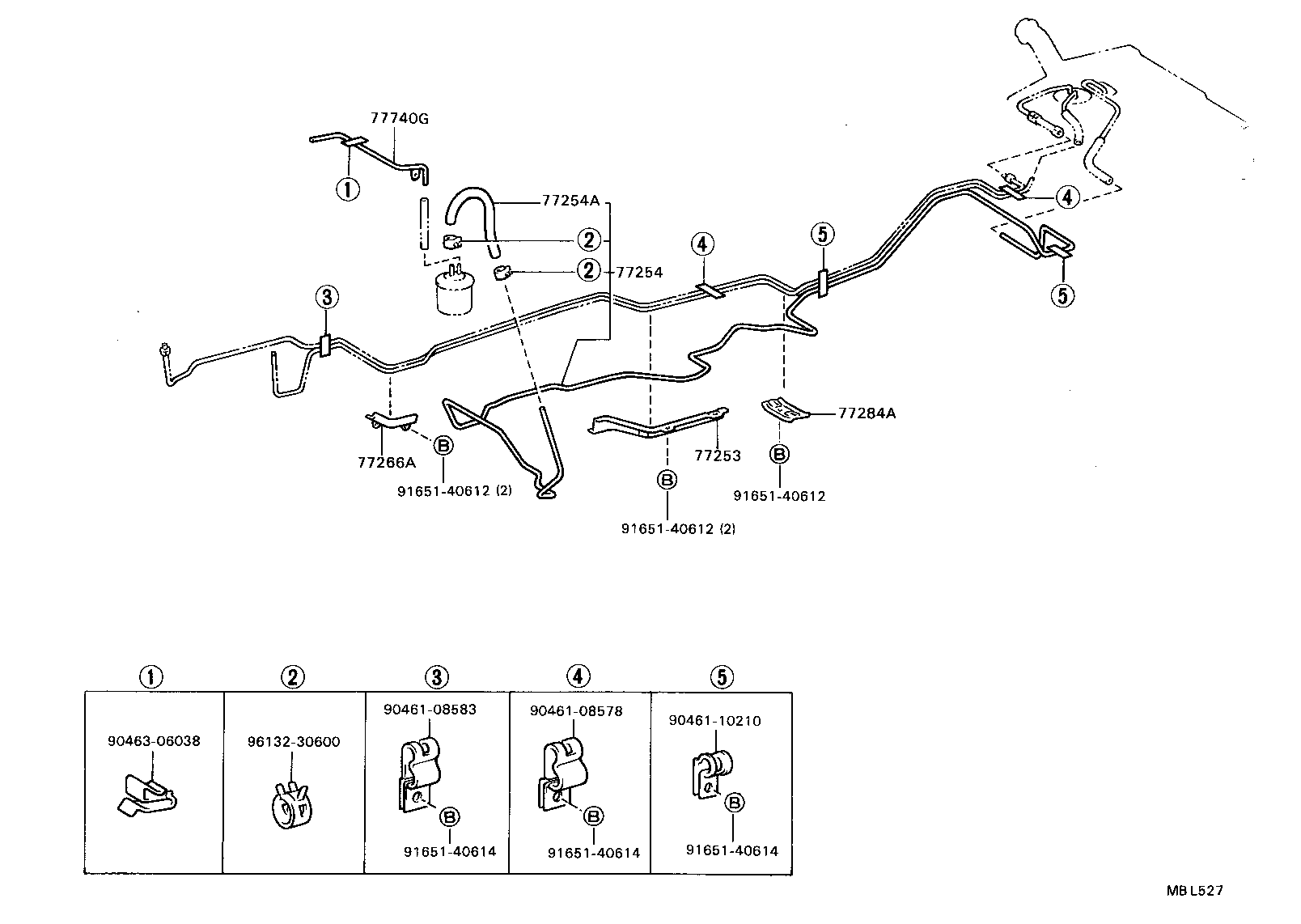

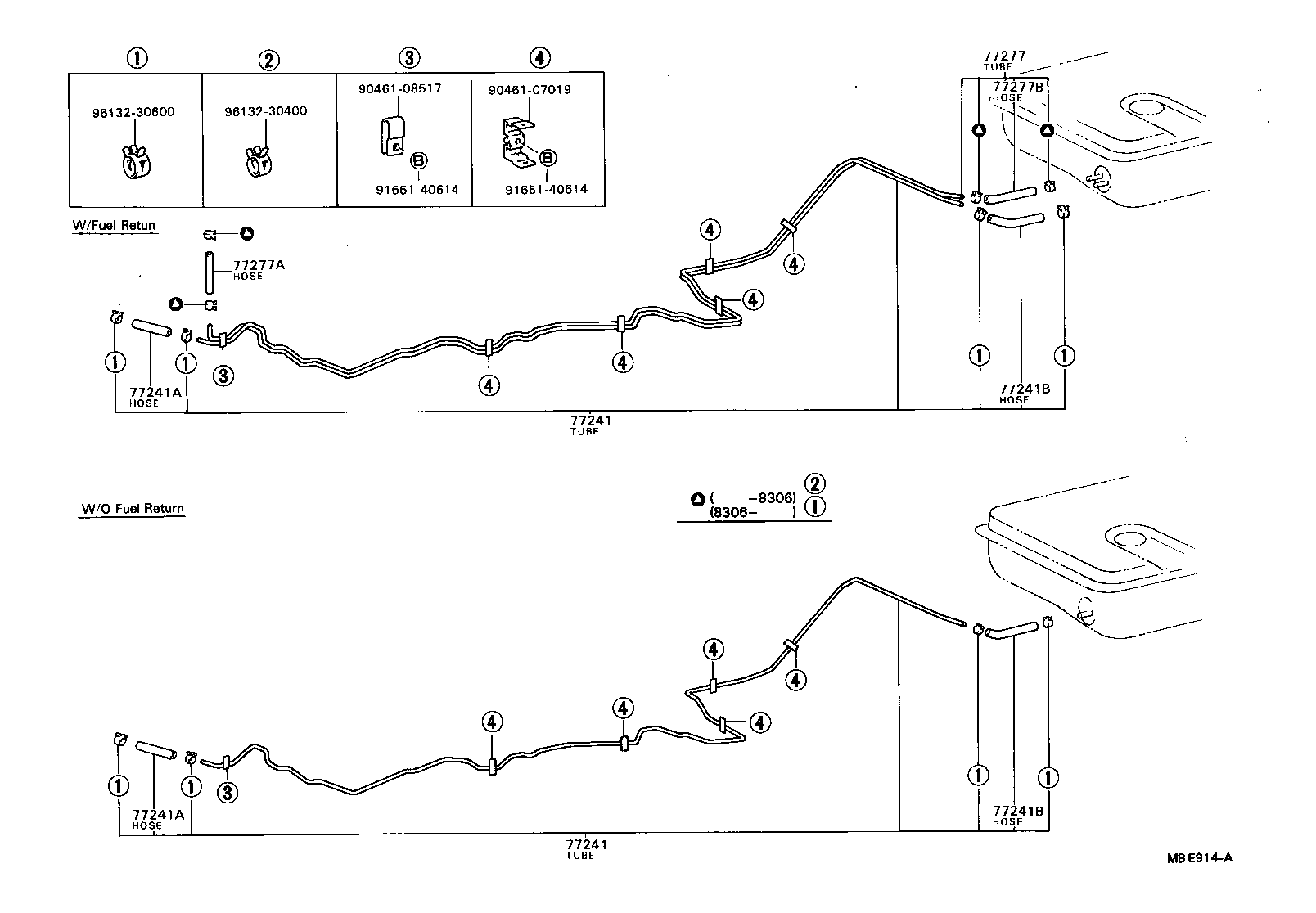

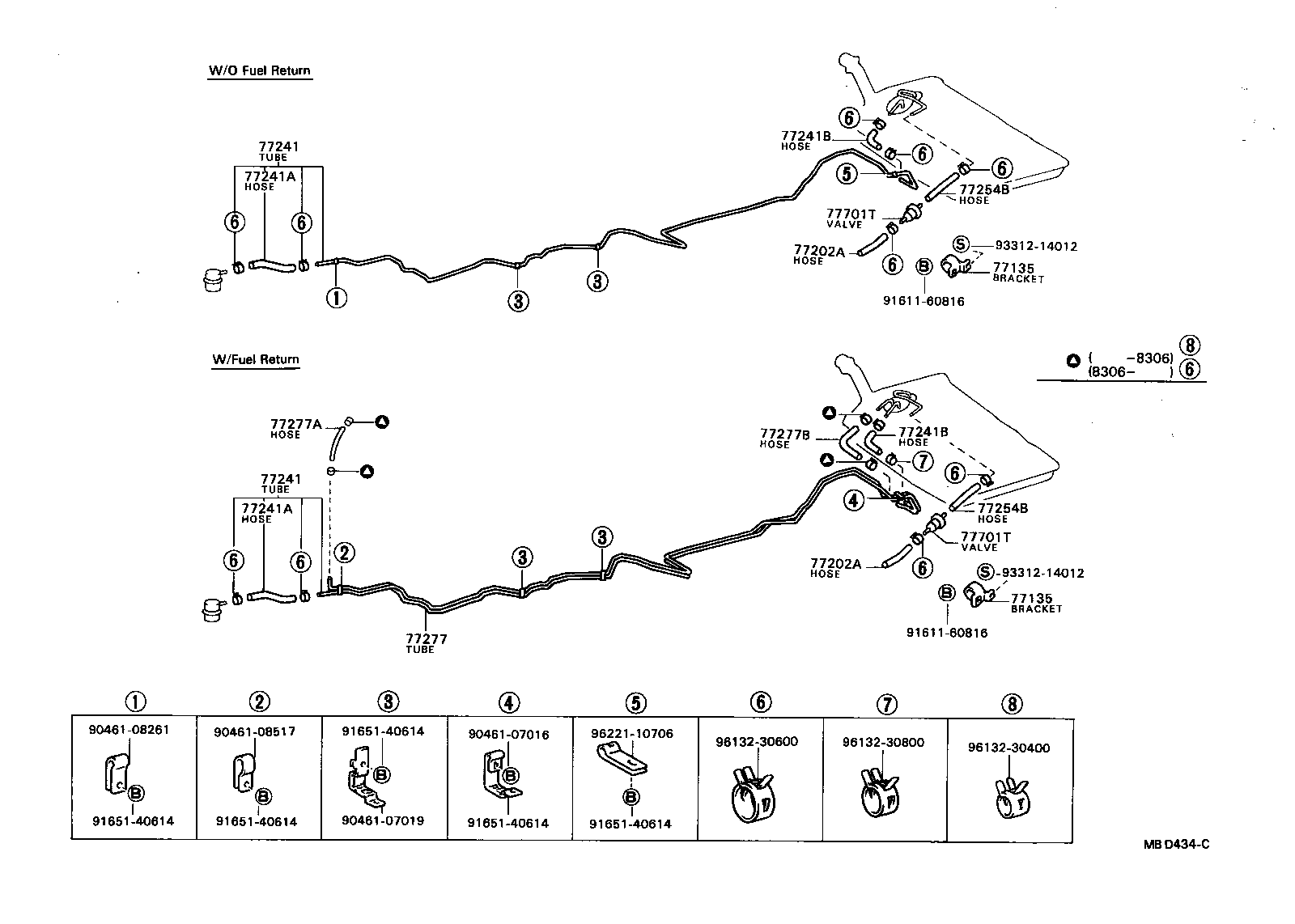

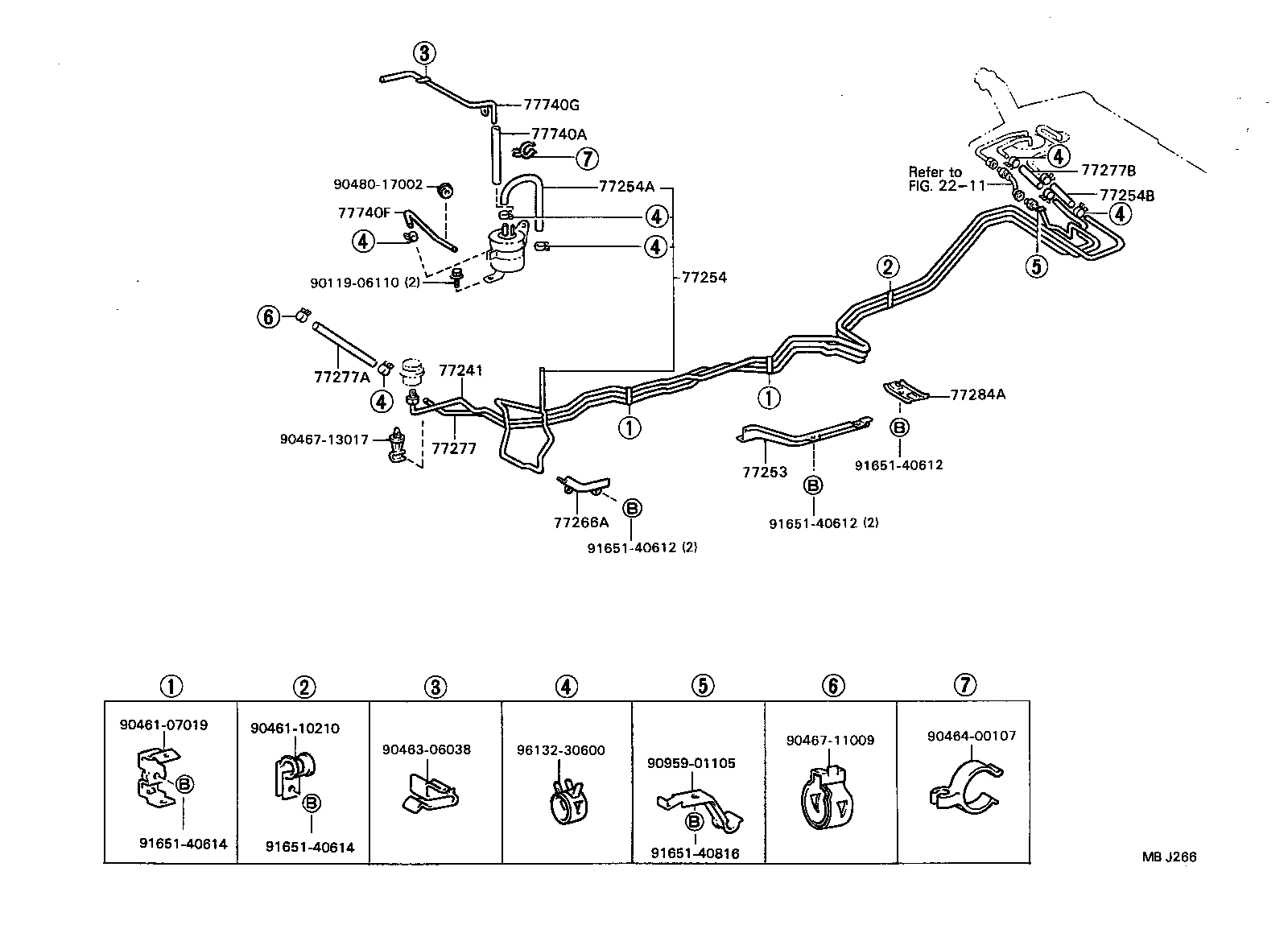

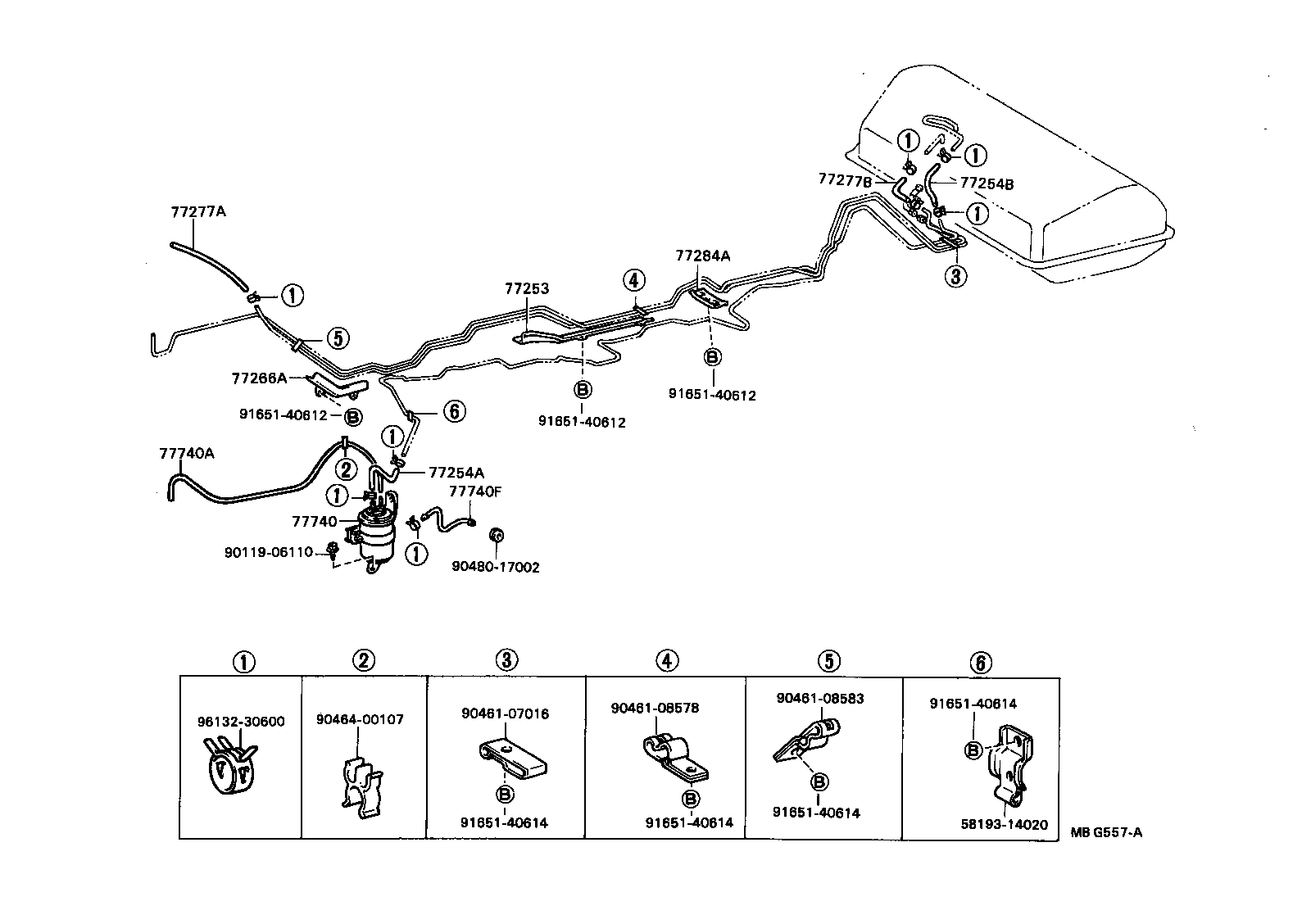

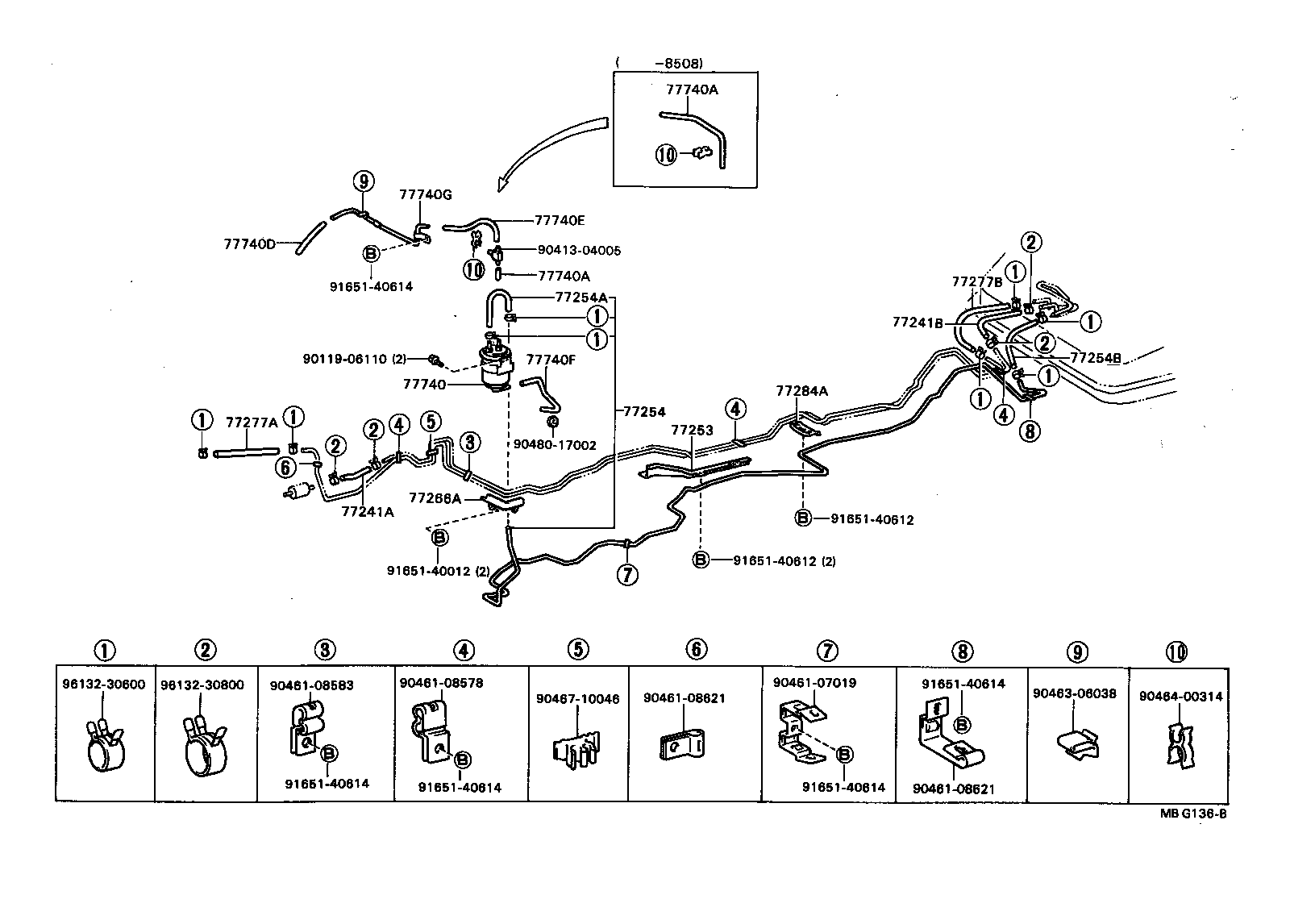

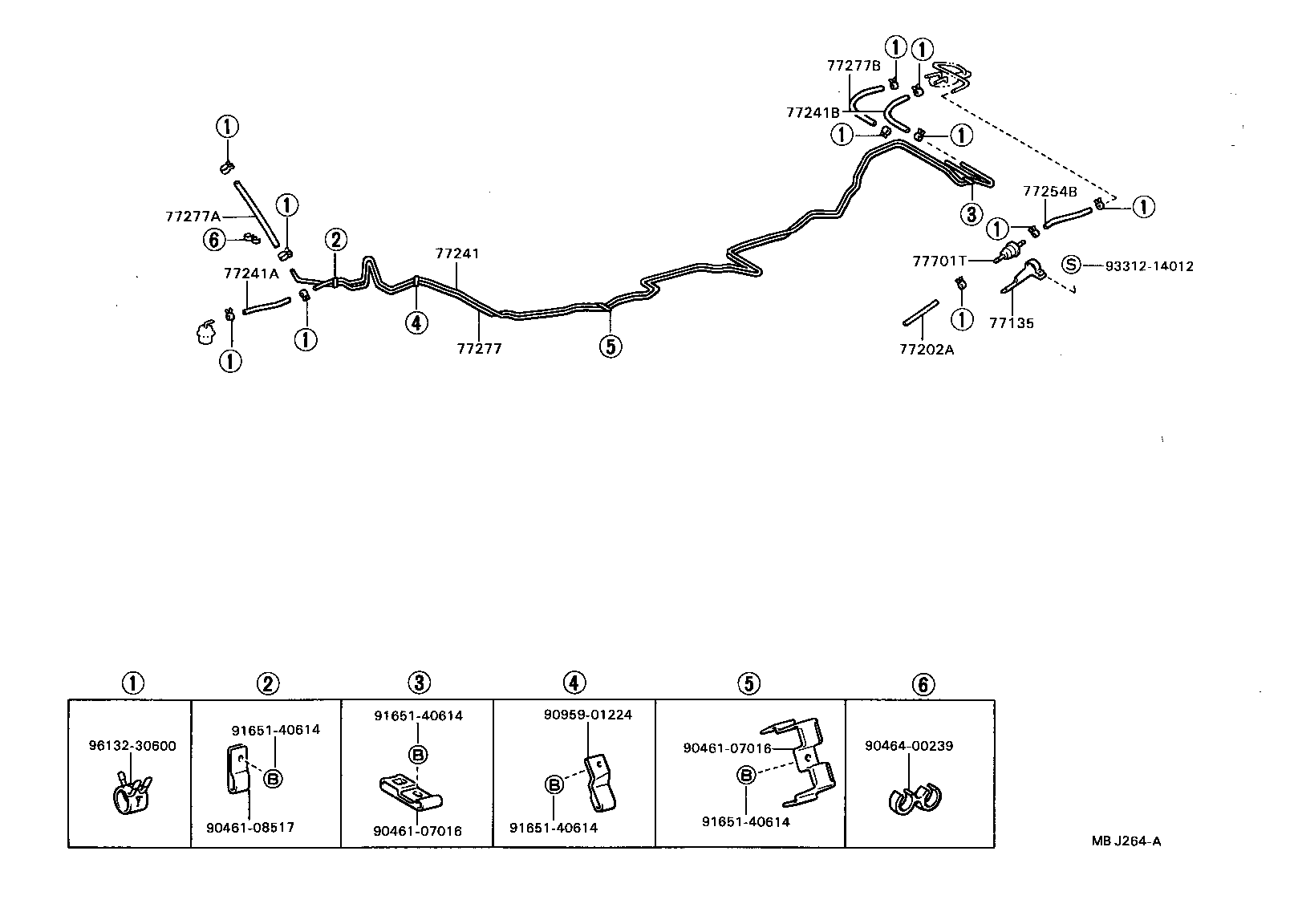

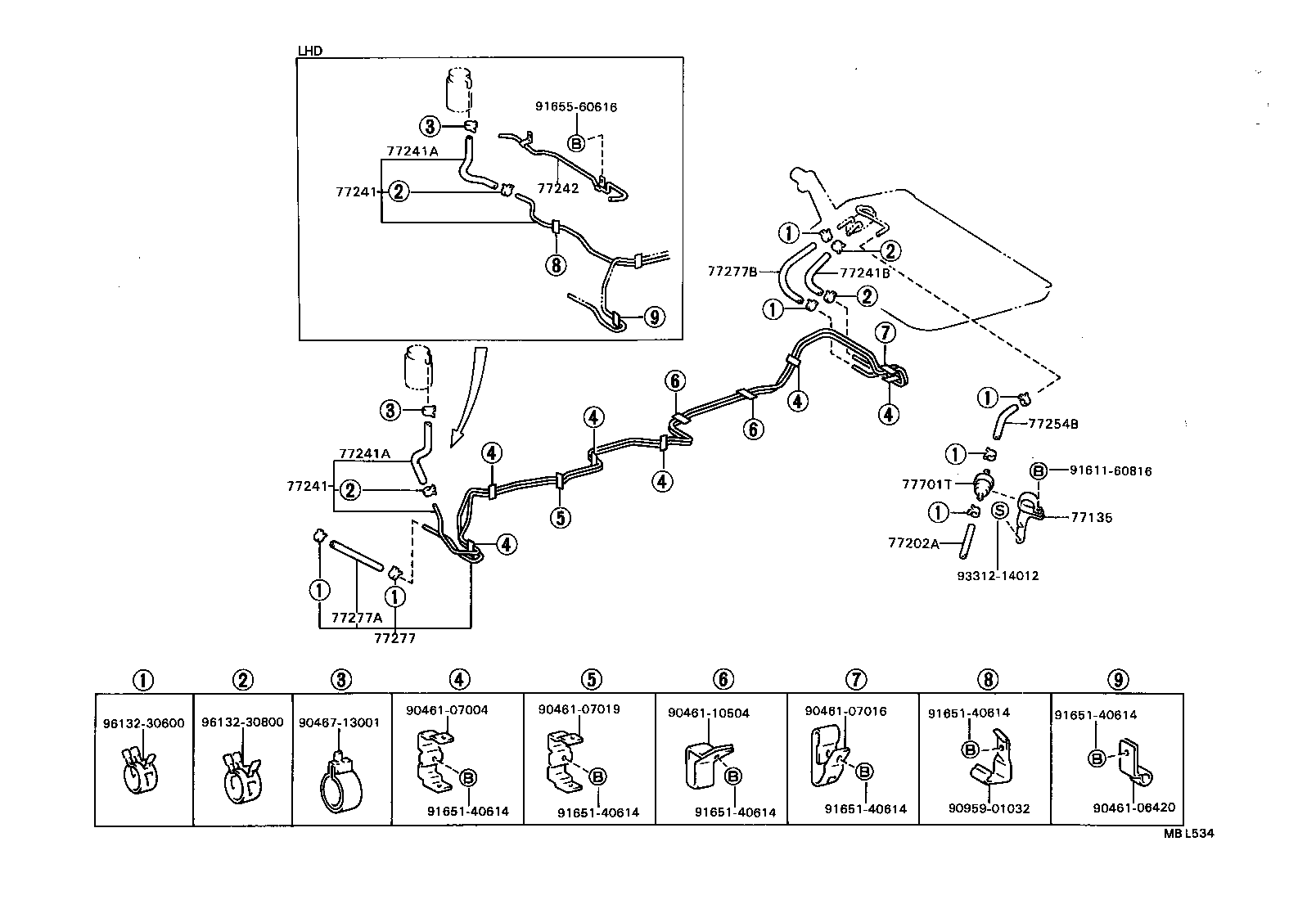

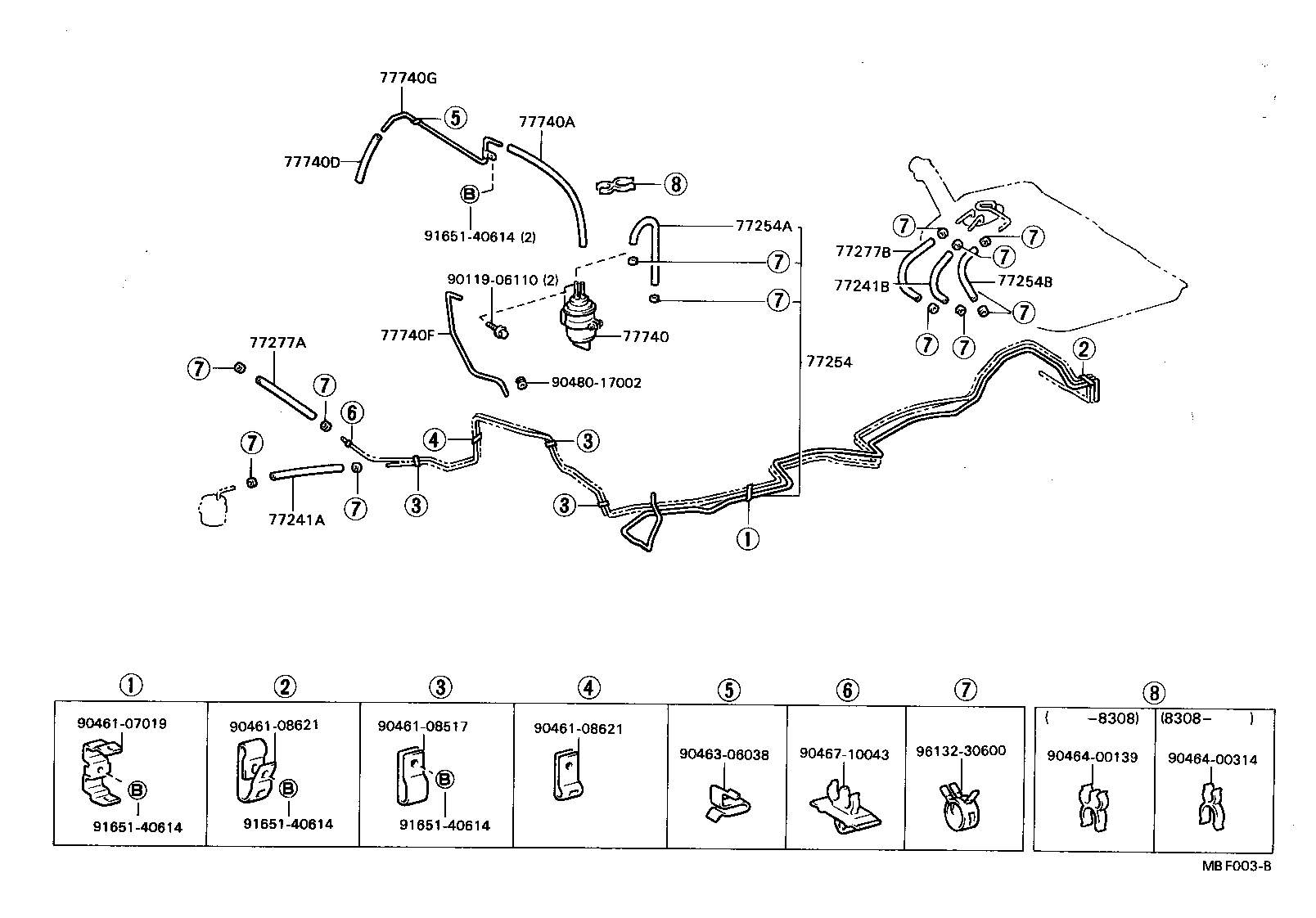

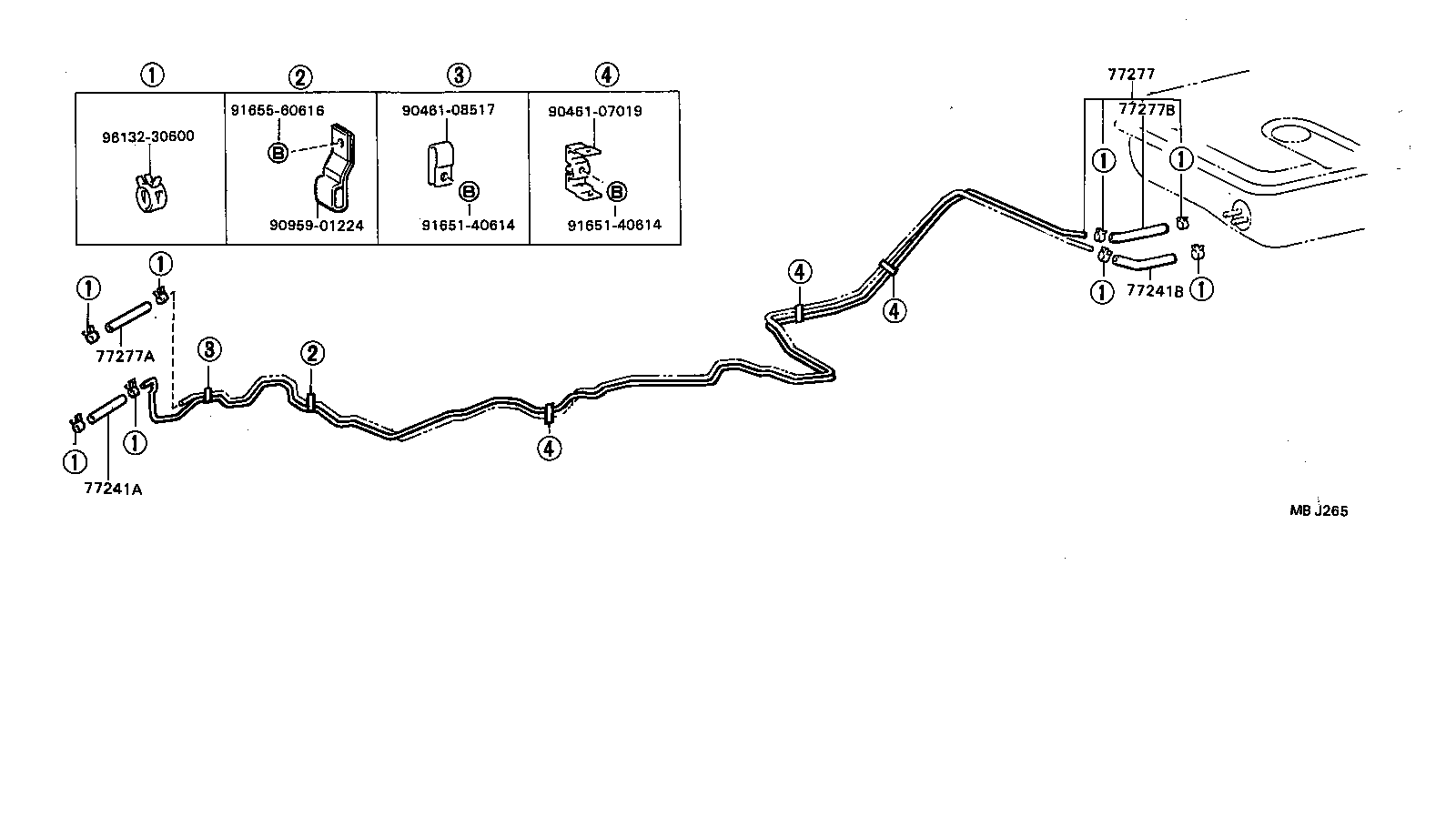

Figure MBD433K MBD433K 1982-01 → 1985-08 Figure MBD433K MBD433K 1982-01 → — Figure MBD433K MBD433K 1985-08 → — Figure MBD433K MBD433K 1986-12 → — Figure MBD435I MBD435I 1982-01 → 1985-08 Figure MBD435I MBD435I 1985-08 → — Figure MBD434C MBD434C 1982-01 → 1985-08 Figure MBE914A MBE914A 1982-01 → 1985-08 Figure MBD436D MBD436D 1982-01 → 1983-12 Figure MBD436D MBD436D 1986-01 → 1986-12 Figure MBL534 MBL534 1986-12 → — Figure MBD511D MBD511D 1982-01 → 1983-10 Figure MBF003B MBF003B 1983-04 → 1983-10 Figure MBG136B MBG136B 1983-10 → 1986-12 Figure MBJ264A MBJ264A 1985-08 → — Figure MBJ265 MBJ265 1985-08 → — Figure MBG557A MBG557A 1984-08 → 1985-08 Figure MBG557A MBG557A 1985-08 → 1986-12 Figure MBJ266 MBJ266 1985-08 → 1986-05 Figure MBL527 MBL527 1986-05 → 1986-12 Figure MBL535 MBL535 1986-12 → —

Part groups

PNCDescription
77017 Tube Sub-assy, Fuel And Evaporation Vent
77017A Gasket, Fuel Tank Vent
77019 Tank Sub-assy, Fuel Expansion
77019A Hose, Fuel, NO.1(FOR FUEL EXPANSION TANK)
77019B Hose, Fuel, NO.2(FOR FUEL EXPANSION TANK)
77019C Hose, Fuel, NO.3(FOR FUEL EXPANSION TANK)
77019D Hose, Fuel, NO.4(FOR FUEL EXPANSION TANK)
77020 Way, 2(FOR FUEL EXPANSION TANK)
77023 Filter Sub-assy, Fuel Suction Tube
77026 Cover Sub-assy, Fuel Sender Gage
77031 Cap Assy, Fuel Tank
77031B Gasket (FOR FUEL TANK CAP)
77033 Lock Sub-assy, Fuel Tank Cap
77035 Cable Sub-assy, Fuel Lid Lock Control
77051 Lever Sub-assy, Fuel Lid Open
77051A Spring, Tension (FOR FUEL LID LEVER)
77100 Tank Assy, Fuel
77100A Plug(FOR FUEL TANK)
77100B Gasket(FOR FUEL TANK)
77100D Hose, Fuel, NO.1(FOR FUEL TANK)
77135 Bracket, Check Valve
77201 Pipe Sub-assy, Fuel Tank Inlet
77201A Hose, Fuel, NO.1(FOR FUEL TANK INLET PIPE)
77202 Tube Sub-assy, Breather
77202A Hose, Fuel, NO.1 (FOR BREATHER TUBE)
77202J Gasket (FOR BREATHER TUBE)
77206 Tube Sub-assy, Fuel Tank Suction
77206A Gasket (FOR FUEL TANK SUCTION TUBE)
77213 Hose, Fuel Tank Sub Inlet
77241 Tube, Fuel Main, NO.1
77241A Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1)
77241B Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1)
77242 Tube, Fuel Main, NO.2
77253 Protector, Fuel Tube, NO.2
77254 Tube, Fuel Emission, NO.1
77254A Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.1)
77254B Hose, Fuel, NO.2 (FOR EMISSION TUBE, NO.1)
77266A Protector, Fuel Tube, NO.1
77277 Tube, Fuel Return, NO.1
77277A Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
77277B Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1)
77284A Protector, Fuel Tube, NO.3
77286 Protector, Fuel Tank Inlet Pipe
77295 Shield, Fuel Filler Pipe
77308 Cover Sub-assy, Fuel Inlet Box
77308A Cushion(FOR FUEL INLET BOX COVER)
77358 Retainer, Fuel Inlet Cushion
77377 Retainer, Fuel Filler Opening Lid Lock
77387 Ring, Fuel Inlet Box
77606E Protector, Fuel Tank, NO.4
77611 Band, Fuel Tank
77611A Pin (FOR FUEL TANK BAND)
77631 Bracket, Fuel Tank, NO.1
77632 Bracket, Fuel Tank, NO.2
77652 Cushion, Fuel Tank, NO.1
77654 Cushion, Fuel Tank, NO.2
77655 Cushion, Fuel Tank, NO.3
77701T Valve, Check (FOR MAIN FUEL TANK)
77740 Canister Assy, Charcoal
77740A Hose, Fuel, NO.1(FOR CHARCOAL CANISTER)
77740D Hose, Fuel, NO.4(FOR CHARCOAL CANISTER)
77740E Hose, Fuel, NO.5(FOR CHARCOAL CANISTER)
77740F Tube, Fuel, NO.1(FOR CHARCOAL CANISTER)
77740G Tube, Fuel, NO.2(FOR CHARCOAL CANISTER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
