Toyota Corona FR

1982-01 → 1999-07 · chassis CT14#,RT14#,ST141,TT14#,YT140 · catalogue 261250 · Europe

Discontinued model Data version 2000-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

26 part groups · 3 illustrations

Illustrations

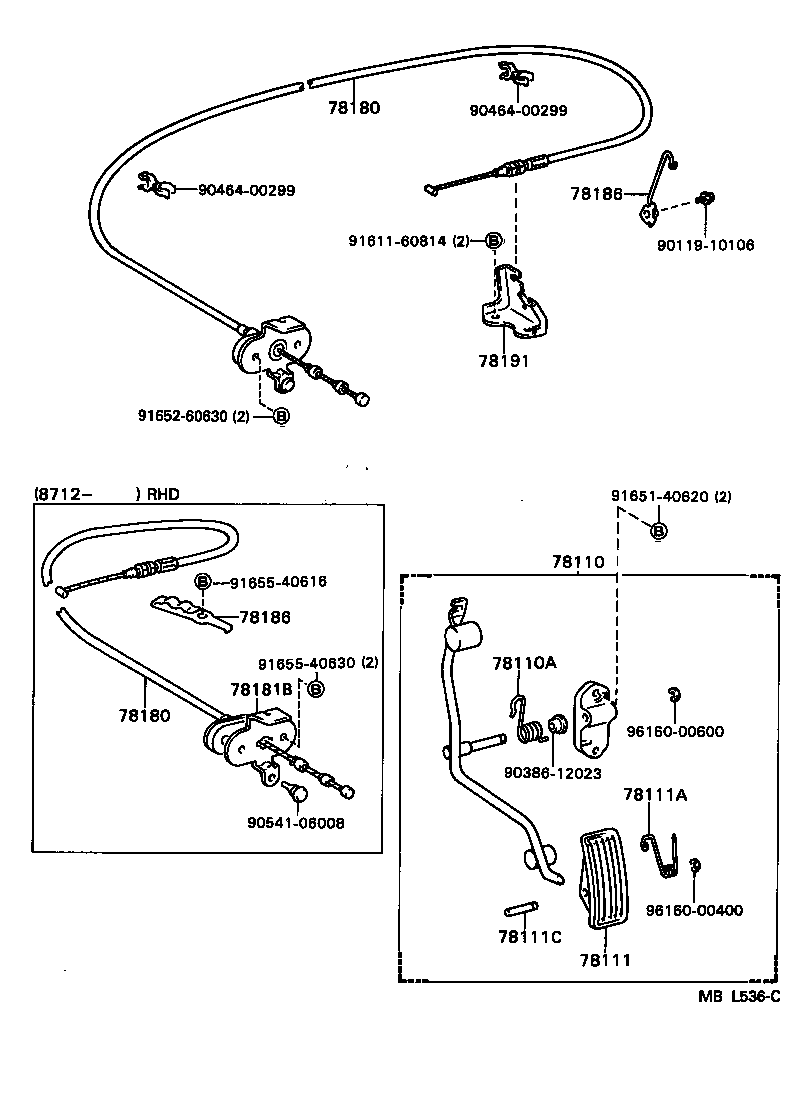

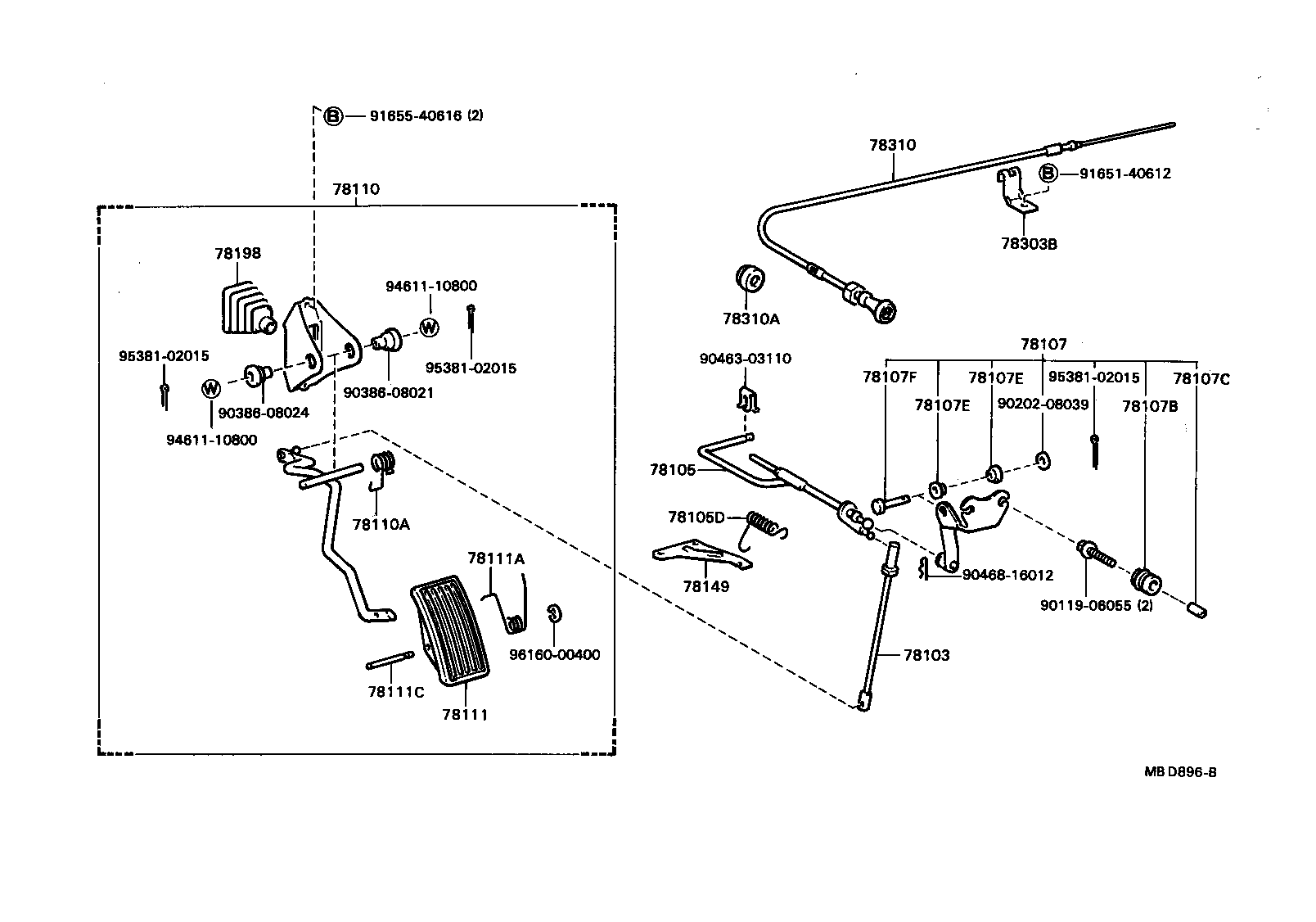

Figure MBD416I MBD416I 1982-01 → — Figure MBD896B MBD896B 1982-06 → 1983-12 Figure MBL536C MBL536C 1986-12 → —

Part groups

PNCDescription
78024 Bracket Sub-assy, Accelerator Control Cable
78103 Rod Sub-assy, Accelerator Connecting, NO.1
78105 Rod Sub-assy, Accelerator Connecting, NO.3
78105D Spring (FOR ACCELERATOR TORQUE ROD)
78107 Bracket Sub-assy, Accelerator Torque Rod
78107B Cushion (FOR ACCELERATOR TORQUE ROD BRACKET)
78107C Spacer (FOR ACCELERATOR TORQUE ROD BRACKET)
78107E Bush (FOR ACCELERATOR TORQUE ROD BRACKET)
78107F Pin, W/Hole (FOR ACCELERATOR TORQUE ROD BRACKET)
78110 Rod Assy, Accelerator Pedal
78110A Spring (FOR ACCELERATOR PEDAL ROD)
78111 Pedal, Accelerator
78111A Spring (FOR ACCELERATOR PEDAL)
78111C Pin (FOR ACCELERATOR PEDAL)
78141A Spring, Tension(FOR ACCELERATOR WIRE RETURN SPRING)
78149 Hook, Accelerator Torque Rod Spring
78180 Wire Assy, Accelerator
78181B Stopper, Accelerator Idle Adjusting
78186 Support, Accelerator Control Cable, NO.1
78187 Bracket, Accelerator Pull Back Spring
78191 Bracket, Accelerator Wire Support
78191B Spring, Tension (FOR ACCELERATOR WIRE SUPPORT BRACKET)
78198 Boot, Accelerator Connecting Rod
78303B Clamp (FOR CHOKE CONTROL CABLE)
78310 Cable Assy, Choke
78310A Grommet, Choke Cable
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
