Toyota Corona FR

1982-01 → 1999-07 · chassis CT14#,RT14#,ST141,TT14#,YT140 · catalogue 261250 · Europe

Discontinued model Data version 2000-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

33 part groups · 8 illustrations

Illustrations

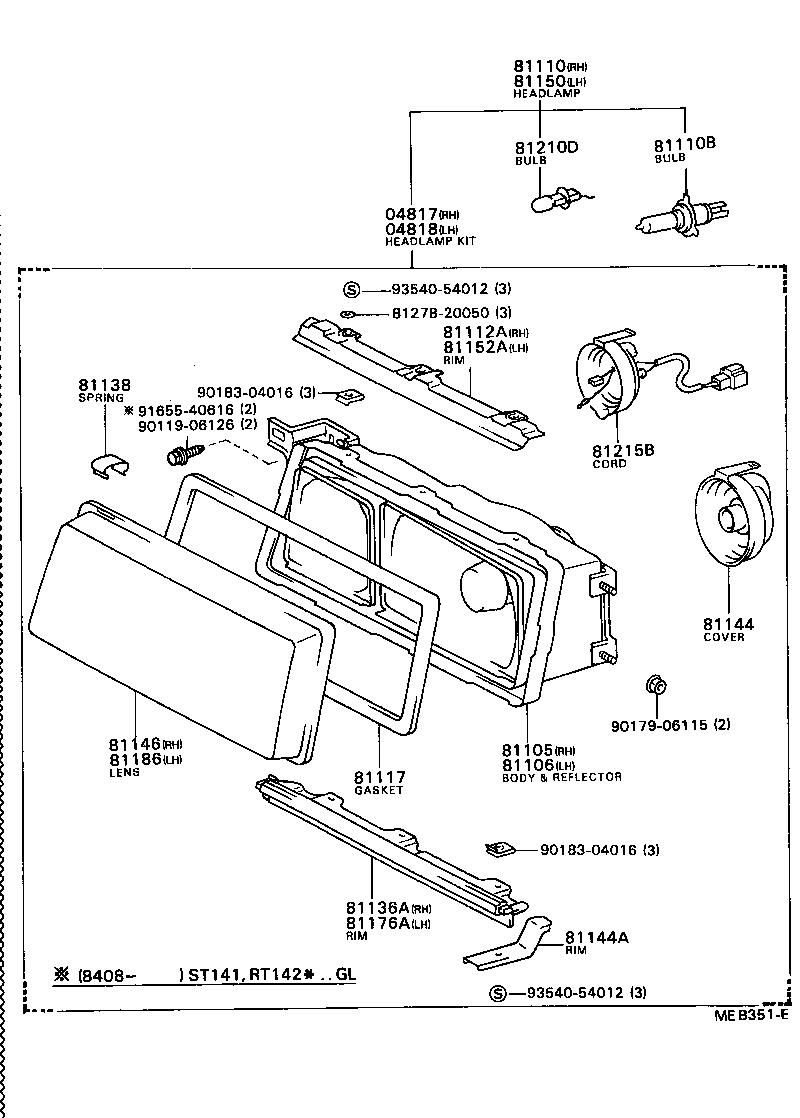

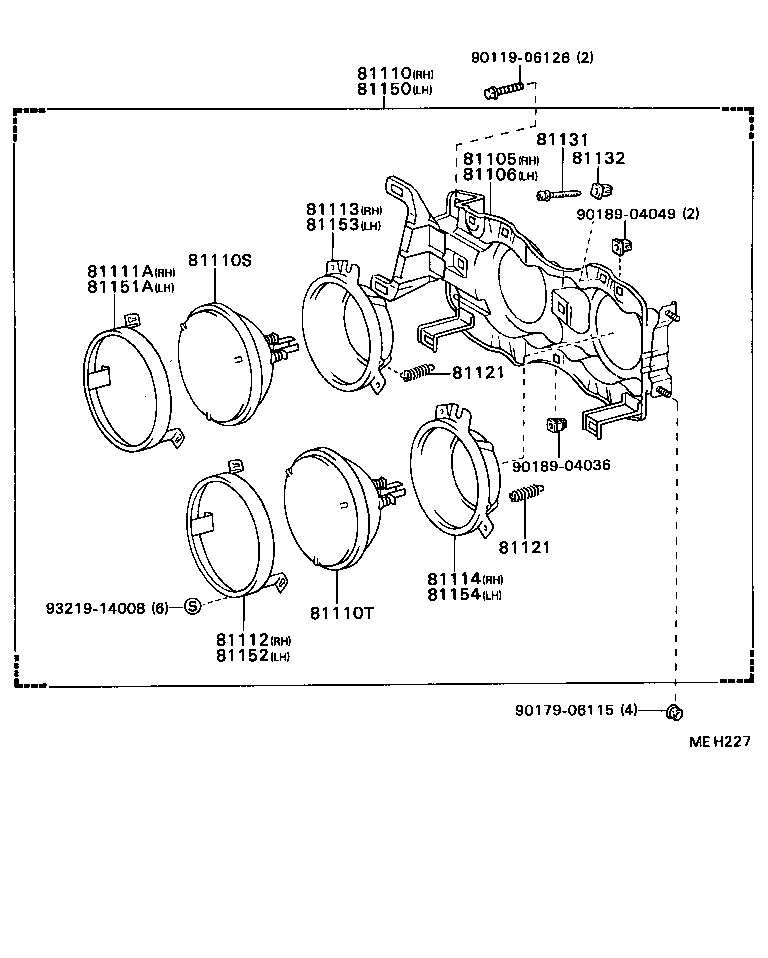

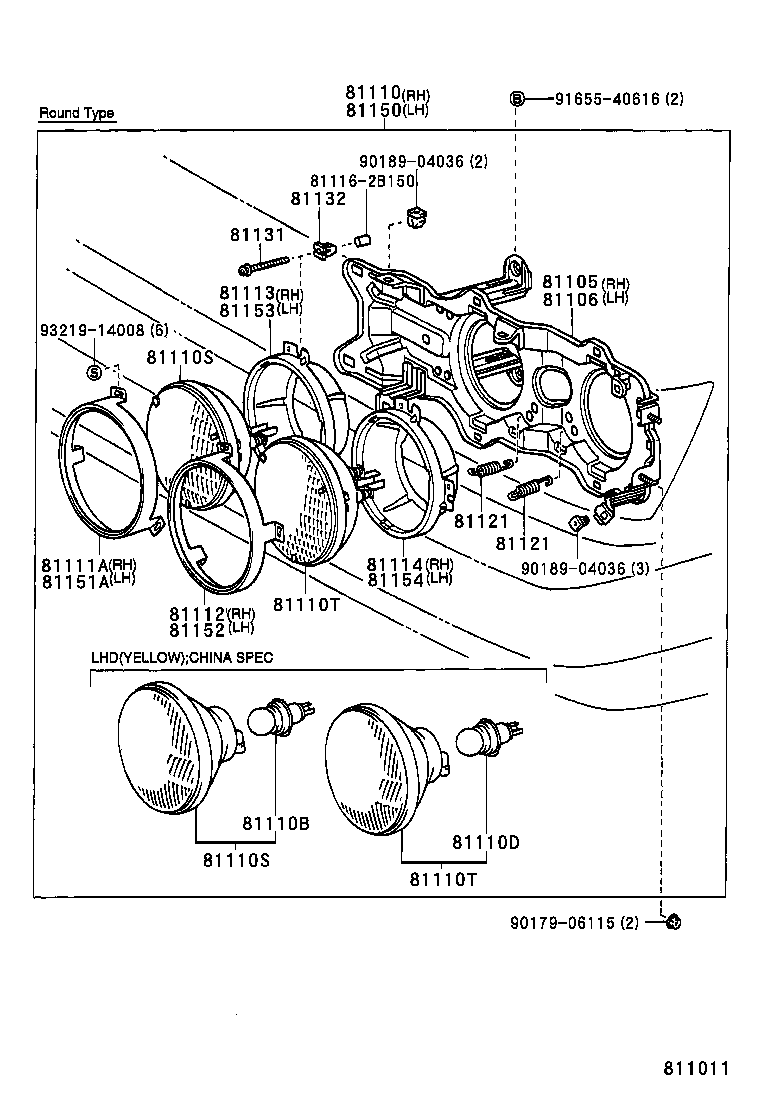

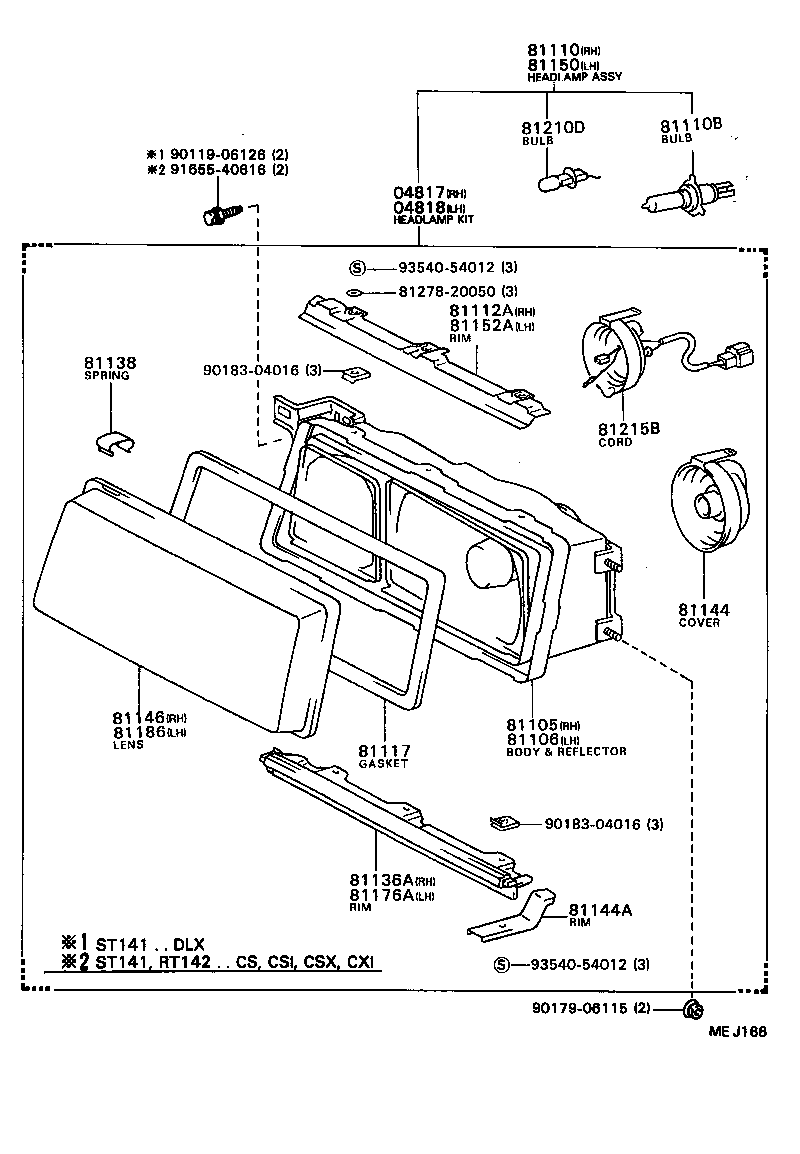

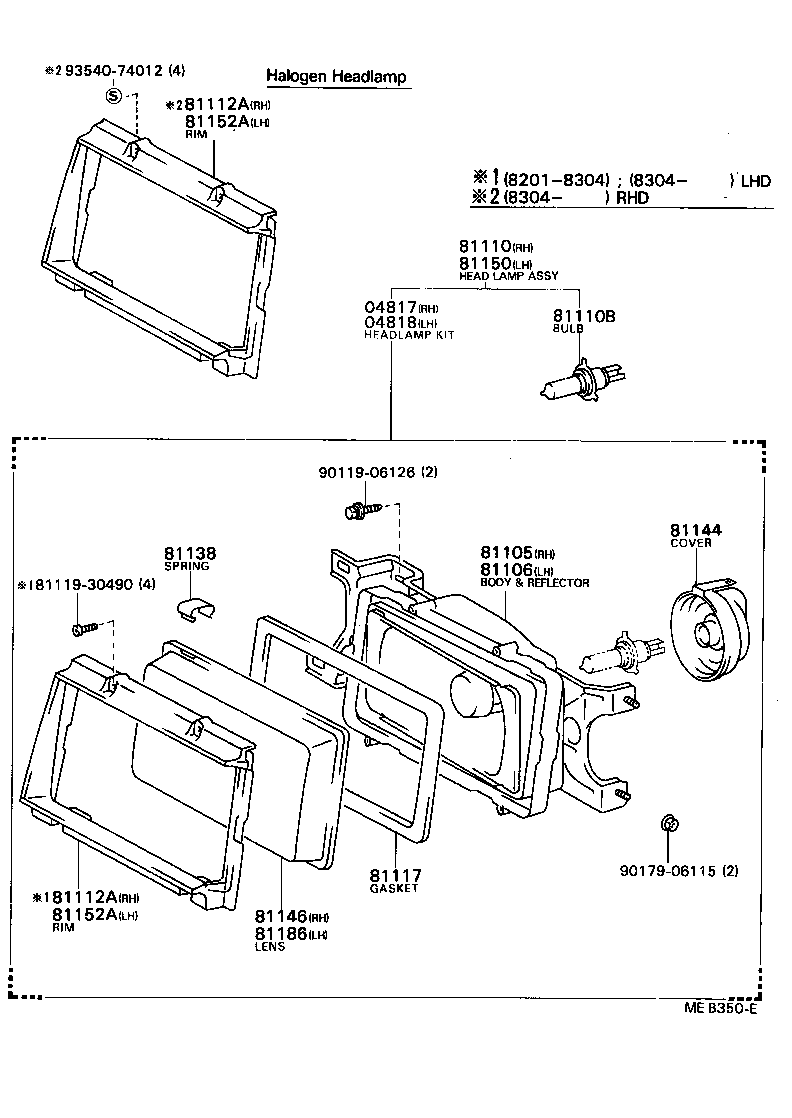

Figure MED896A MED896A 1982-01 → 1985-08 Figure MEB350E MEB350E 1982-01 → 1985-08 Figure MEB350E MEB350E 1985-08 → 1986-12 Figure MEB351E MEB351E 1982-01 → 1985-08 Figure MEJ166 MEJ166 1985-08 → — Figure MEH227 MEH227 1986-01 → 1986-12 Figure 811011 811011 1986-12 → — Figure MEJ199B MEJ199B 1986-12 → —

Part groups

PNCDescription
04817 Headlamp Kit, W/O Sealed Beam, RH
04818 Headlamp Kit, W/O Sealed Beam, LH
81105 Housing Sub-assy, Headlamp, RH
81106 Housing Sub-assy, Headlamp, LH
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81110D Bulb(FOR HEADLAMP, NO.2)
81110S Sealed Beam Unit, NO.1
81110T Sealed Beam Unit, NO.2
81111A Ring, Sealed Beam Retaining, NO.1 RH
81112 Ring, Sealed Beam Retaining, NO.2 RH
81112A Rim, Headlamp, RH
81113 Ring, Sealed Beam Mounting, NO.1 RH
81114 Ring, Sealed Beam Mounting, NO.2 RH
81117 Packing, Headlamp Housing
81121 Spring, Headlamp Tension
81131 Screw, Headlamp Adjusting
81132 Nut, Headlamp Self Locking
81136A Rim, Headlamp, RH
81138 Spring, Headlamp
81144 Cover, Headlamp, NO.1
81144A Rim, Headlamp Fitting
81146 Lens, Headlamp, RH
81150 Headlamp Assy, LH
81151A Ring, Sealed Beam Retaining, NO.1 LH
81152 Ring, Sealed Beam Retaining, NO.2 LH
81152A Rim, Headlamp, LH
81153 Ring, Sealed Beam Mounting, NO.1 LH
81154 Ring, Sealed Beam Mounting, NO.2 LH
81176A Rim, Headlamp, LH
81186 Lens, Headlamp, LH
81210D Bulb, Fog Lamp
81215B Cord, Fog Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
