Toyota Corona FR

1982-01 → 1999-07 · chassis CT14#,RT14#,ST141,TT14#,YT140 · catalogue 261250 · Europe

Discontinued model Data version 2000-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Turn Signal Lamp

12 part groups · 2 illustrations

Illustrations

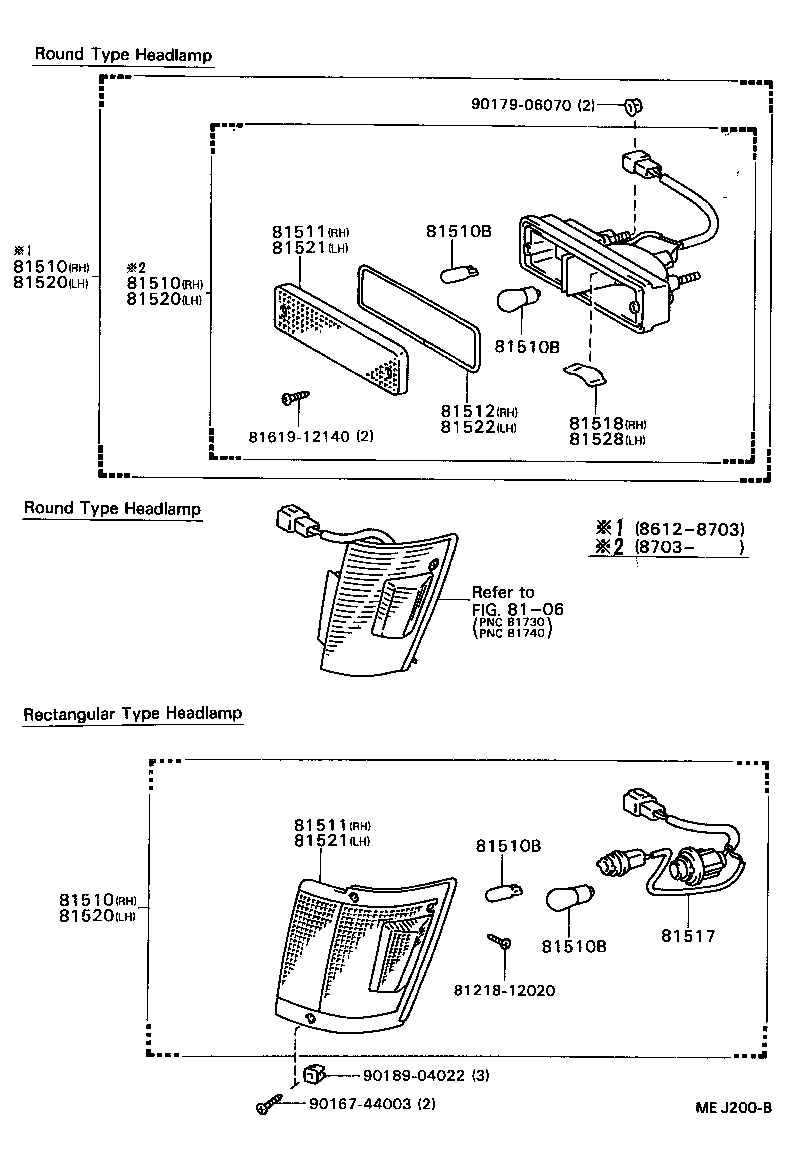

Figure MEB368C MEB368C 1982-01 → 1986-12 Figure MEJ200B MEJ200B 1986-12 → —

Part groups

PNCDescription
81510 Lamp Assy, Front Turn Signal, RH
81510B Bulb (FOR FRONT TURN SIGNAL LAMP)
81511 Lens, Front Turn Signal Lamp, RH
81512 Gasket, Front Turn Signal Lamp Lens, RH
81513 Bracket, Front Turn Signal Lamp, RH
81517 Socket, Front Turn Signal Lamp
81518 Shade, Front Turn Signal Lamp, RH
81520 Lamp Assy, Front Turn Signal, LH
81521 Lens, Front Turn Signal Lamp, LH
81522 Gasket, Front Turn Signal Lamp Lens, LH
81523 Bracket, Front Turn Signal Lamp, LH
81528 Shade, Front Turn Signal Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
