Toyota Corona FR

1982-01 → 1999-07 · chassis CT14#,RT14#,ST141,TT14#,YT140 · catalogue 261250 · Europe

Discontinued model Data version 2000-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

46 part groups · 11 illustrations

Illustrations

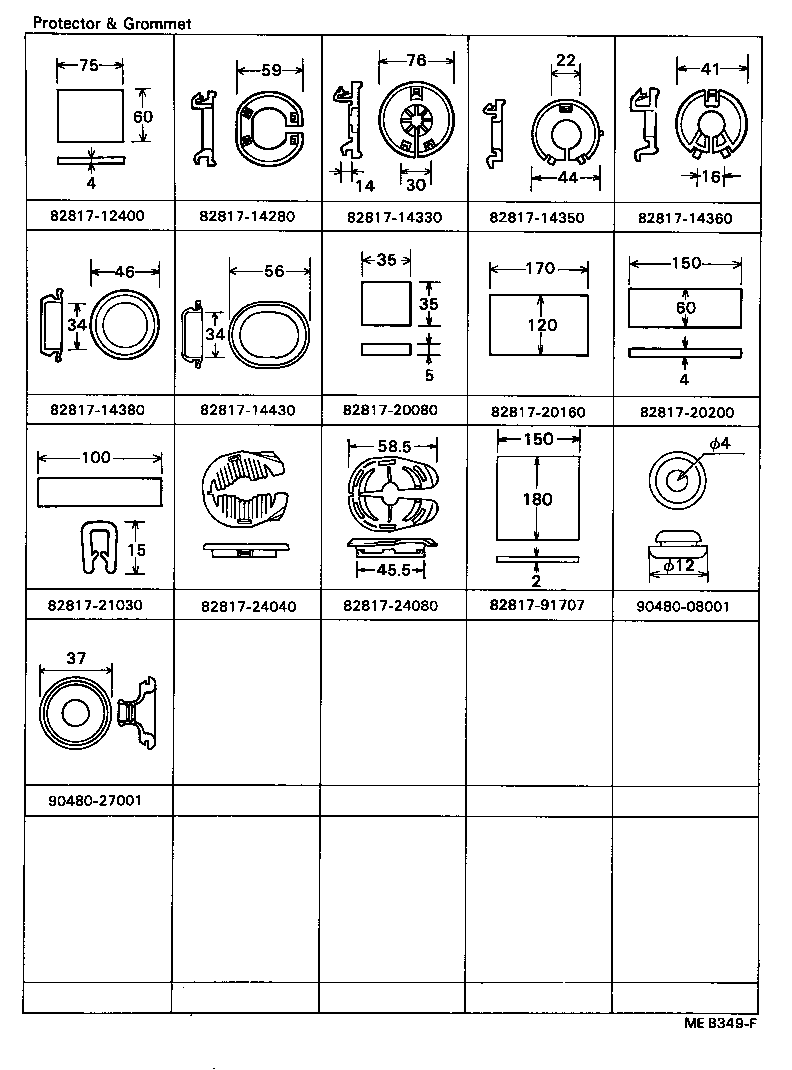

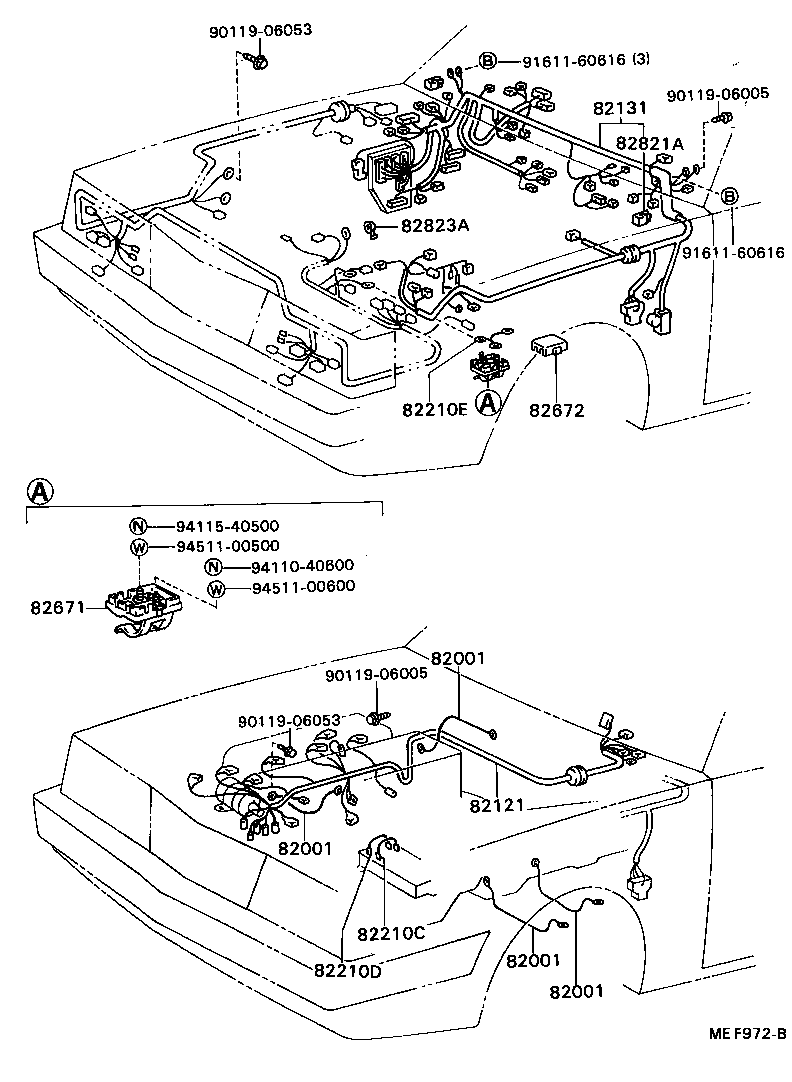

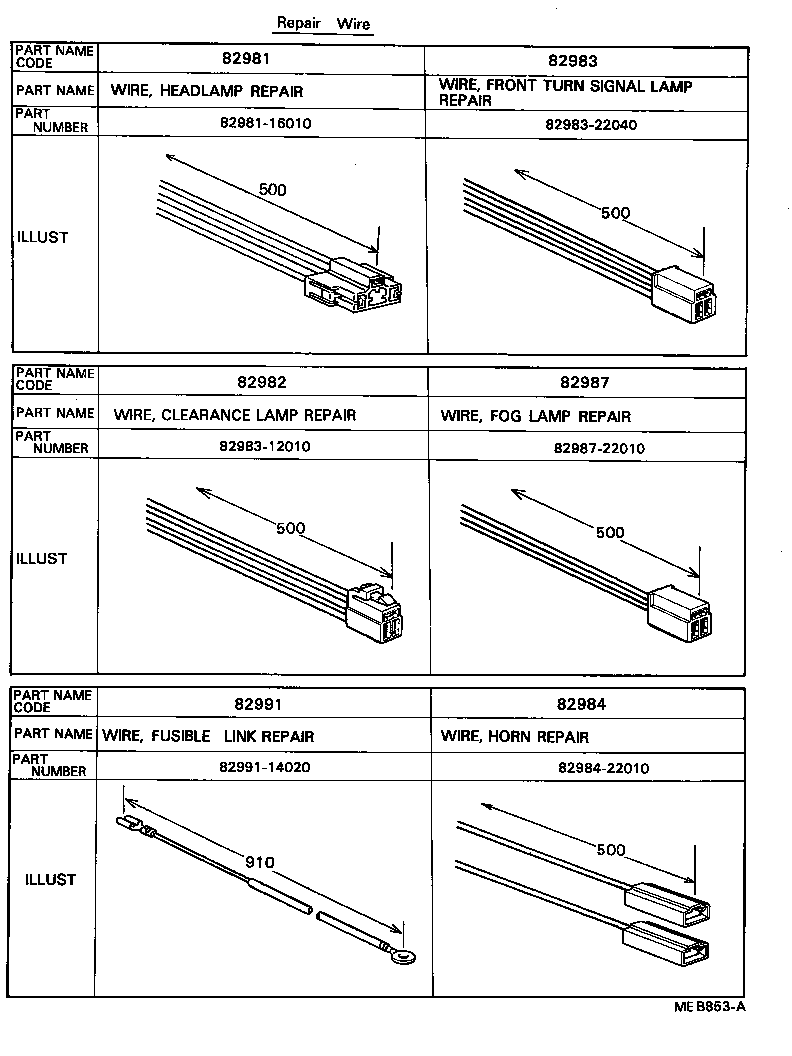

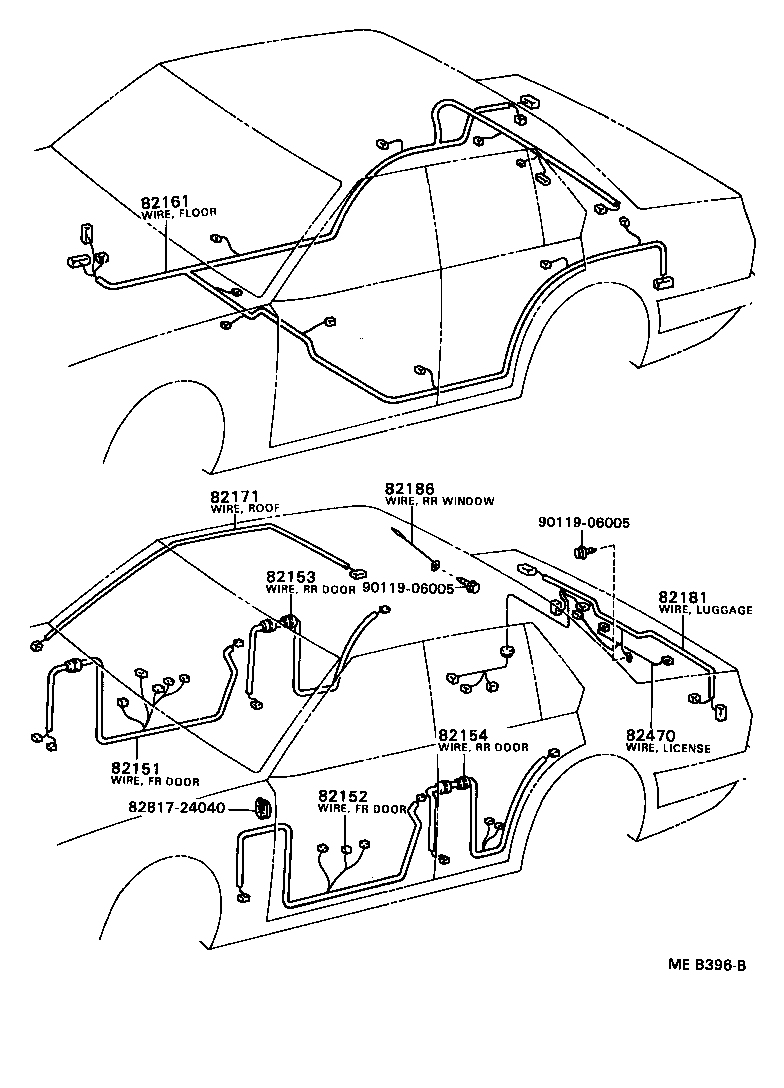

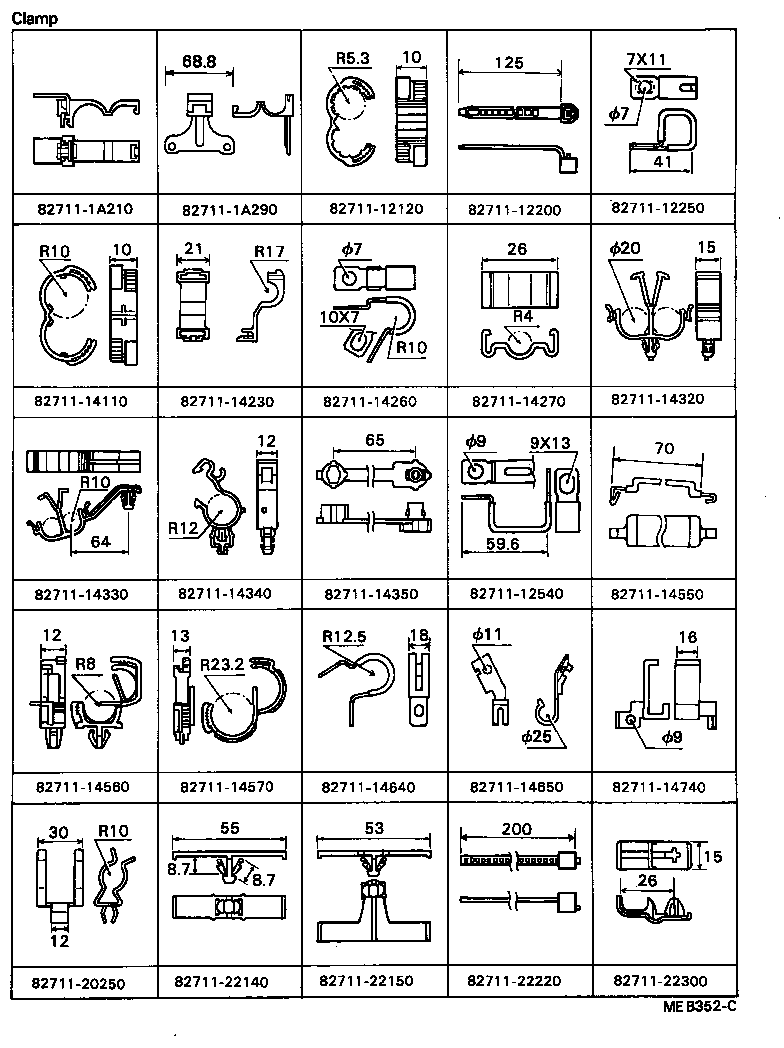

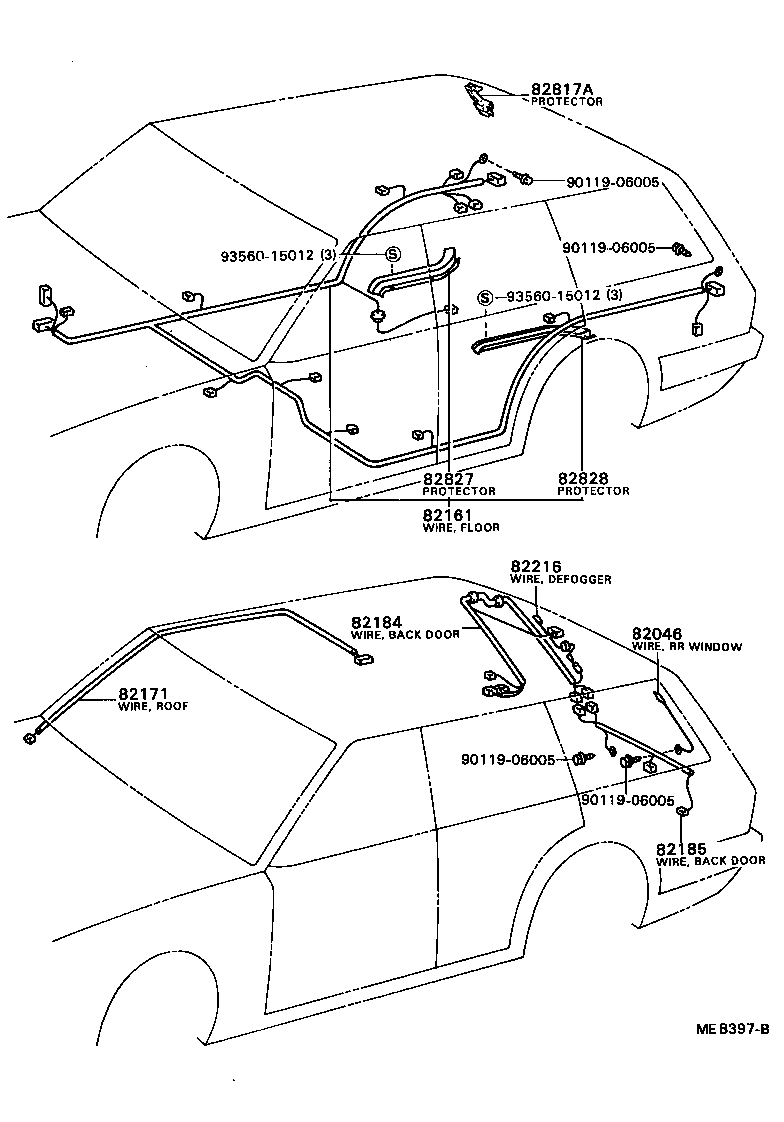

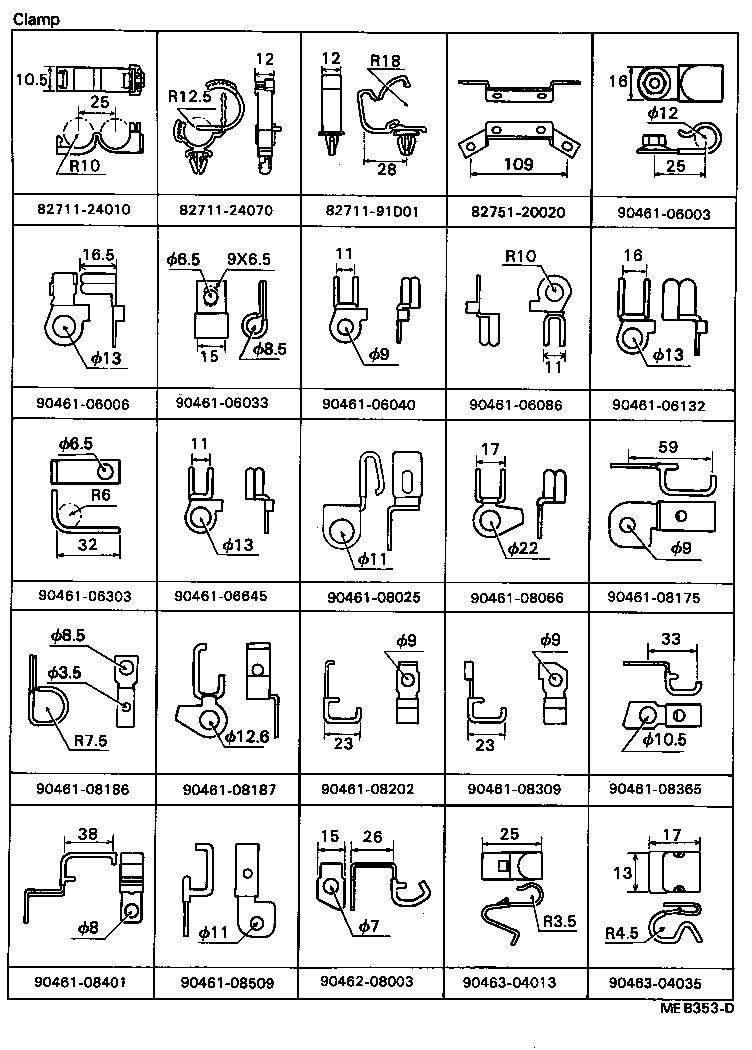

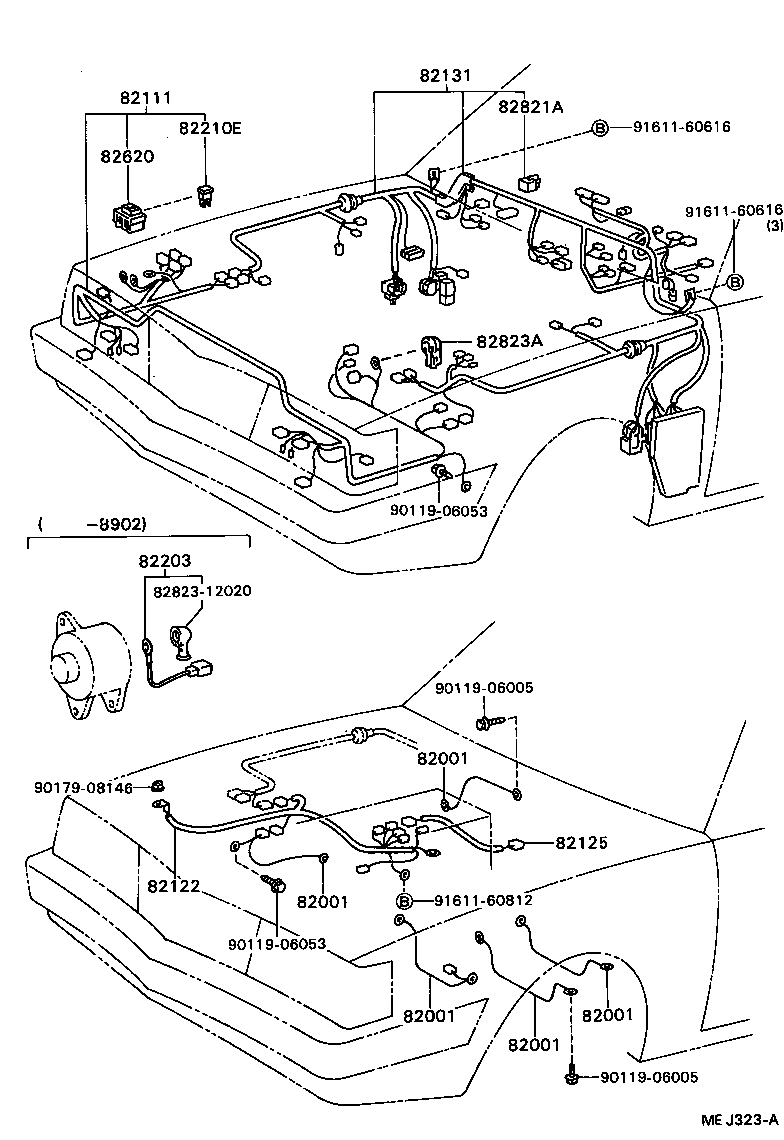

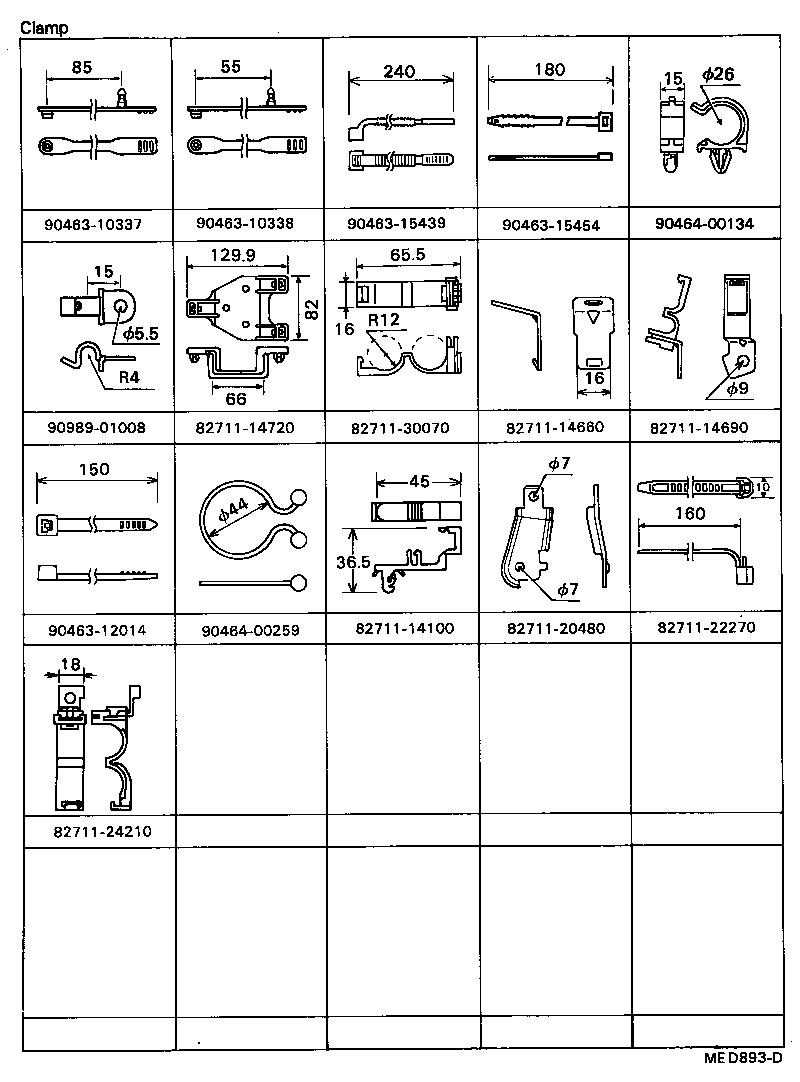

Figure MEB395G MEB395G 1982-01 → — Figure MEF972B MEF972B 1984-08 → 1986-12 Figure MEJ323A MEJ323A 1986-12 → — Figure MEB396B MEB396B 1982-01 → — Figure MEB397B MEB397B 1982-01 → — Figure MEB853A MEB853A 1982-01 → — Figure MEB349F MEB349F 1982-01 → — Figure MED892A MED892A 1982-01 → — Figure MEB352C MEB352C 1982-01 → — Figure MEB353D MEB353D 1982-01 → — Figure MED893D MED893D 1982-01 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82011 Wiring Assy, Brake Warning System
82046 Wire Sub-assy, Rear Window Defogger Earth
82111 Wire, Engine Room Main
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82125 Wire, Transmission
82131 Wire, Cowl
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82171 Wire, Roof, NO.1
82181 Wire, Luggage Room, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82203 Wire Sub-assy, Alternator
82210C Fusible Link
82210D Fusible Link
82210E Fusible Link
82216 Wire, Rear Window Defogger
82219 Wire, Thermo Sensor
82223 Wire, Switch
82241C Wire, Relay
82345 Diode
82470 Wire Assy, License Lamp Feed
82620 Block Assy, Fusible Link
82670 Block Assy, Junction, NO.1
82671 Block, Junction
82672 Cover, Junktion Block
82817A Protector, Wiring Harness, NO.2
82821A Cover, Connector
82823 Cap, Terminal, NO.1
82823A Cap, Terminal, NO.2
82827 Protector, Rear Floor Side Harness, RH
82828 Protector, Rear Floor Side Harness, LH
82981 Wire, Headlamp Repair
82982 Wire, Clearance Lamp Repair
82983 Wire, Front Turn Signal Lamp Repair
82984 Wire, Horn Repair
82987 Wire, Fog Lamp Repair
82991 Wire, Fusible Link Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
