Toyota Corona FR

1982-01 → 1999-07 · chassis CT14#,RT14#,ST141,TT14#,YT140 · catalogue 261250 · Europe

Discontinued model Data version 2000-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

11 part groups · 4 illustrations

Illustrations

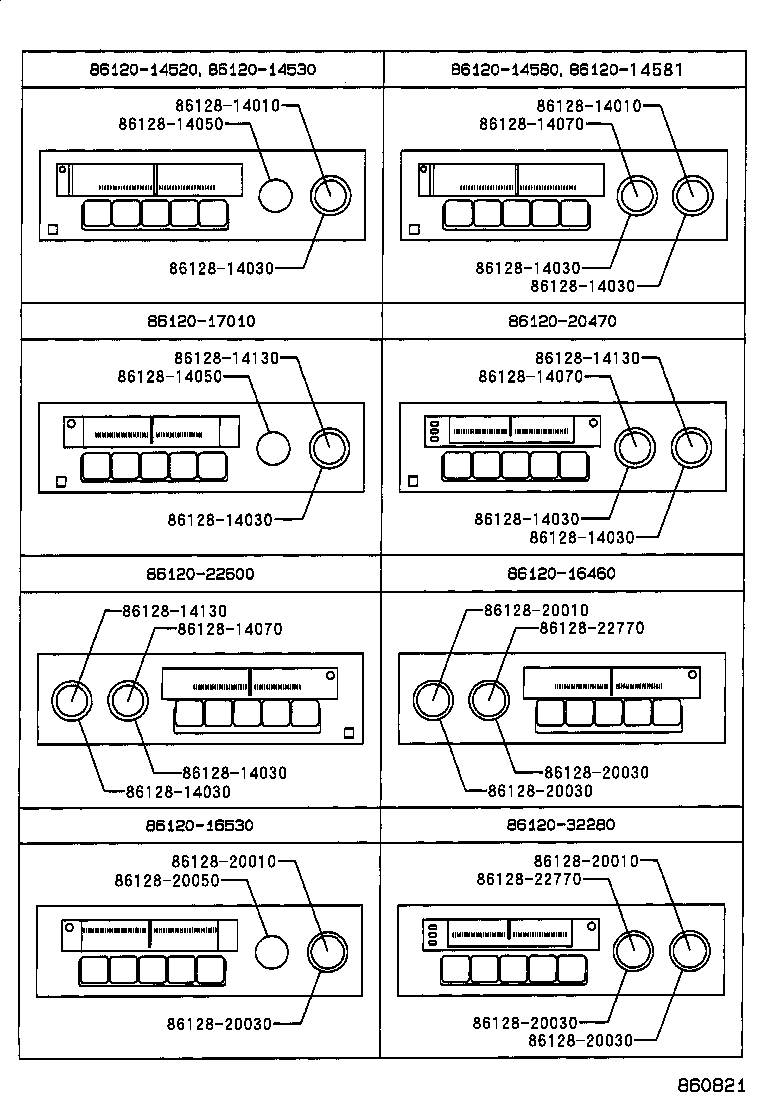

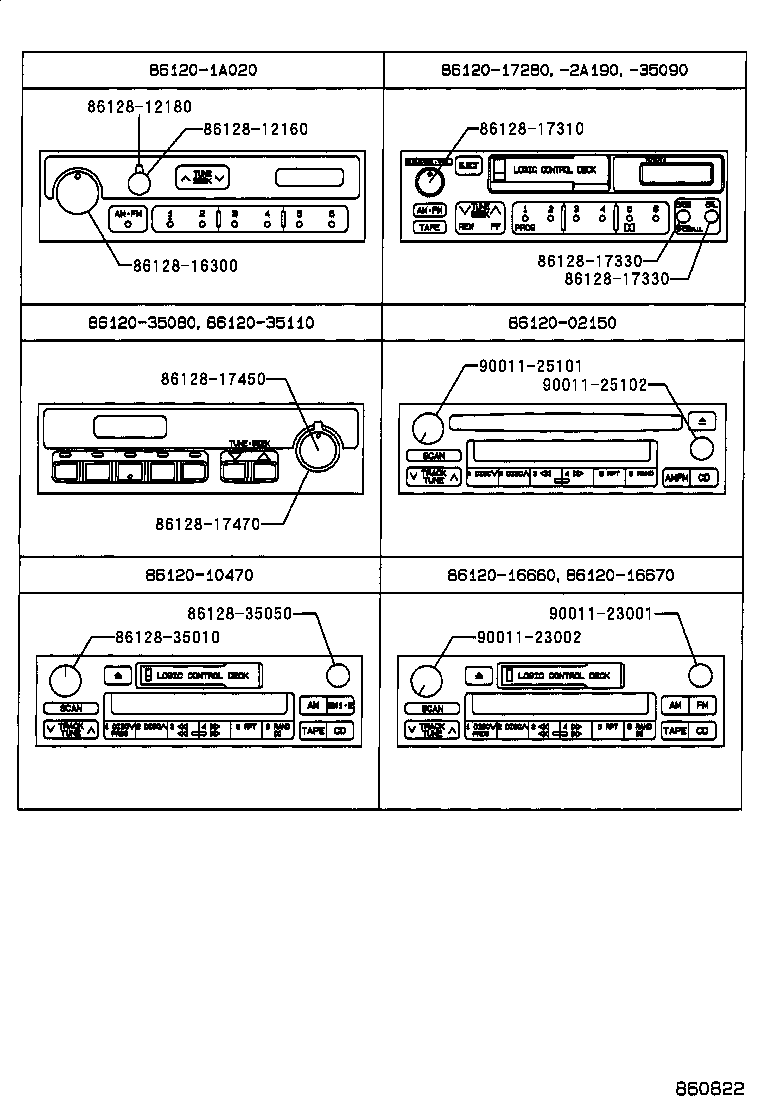

Figure 860819 860819 1982-01 → 1992-08 Figure 860820A 860820A 1992-08 → — Figure 860821 860821 1982-01 → 1992-08 Figure 860822 860822 1992-08 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86011C Filter, Noise
86120 Receiver Assy, Radio
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86260 Tape Player Assy
86260A Knob, Tape Player Volume
86260B Knob, Tape Player Tone
86260C Knob, Tape Player Balance
86270A Disc Player Assy
86280 Amplifier Assy, Stereo Component
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
