Toyota Corona FR

1982-01 → 1999-07 · chassis CT14#,RT14#,ST141,TT14#,YT140 · catalogue 261250 · Europe

Discontinued model Data version 2000-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Heater Unit & Blower

10 part groups · 2 illustrations

Illustrations

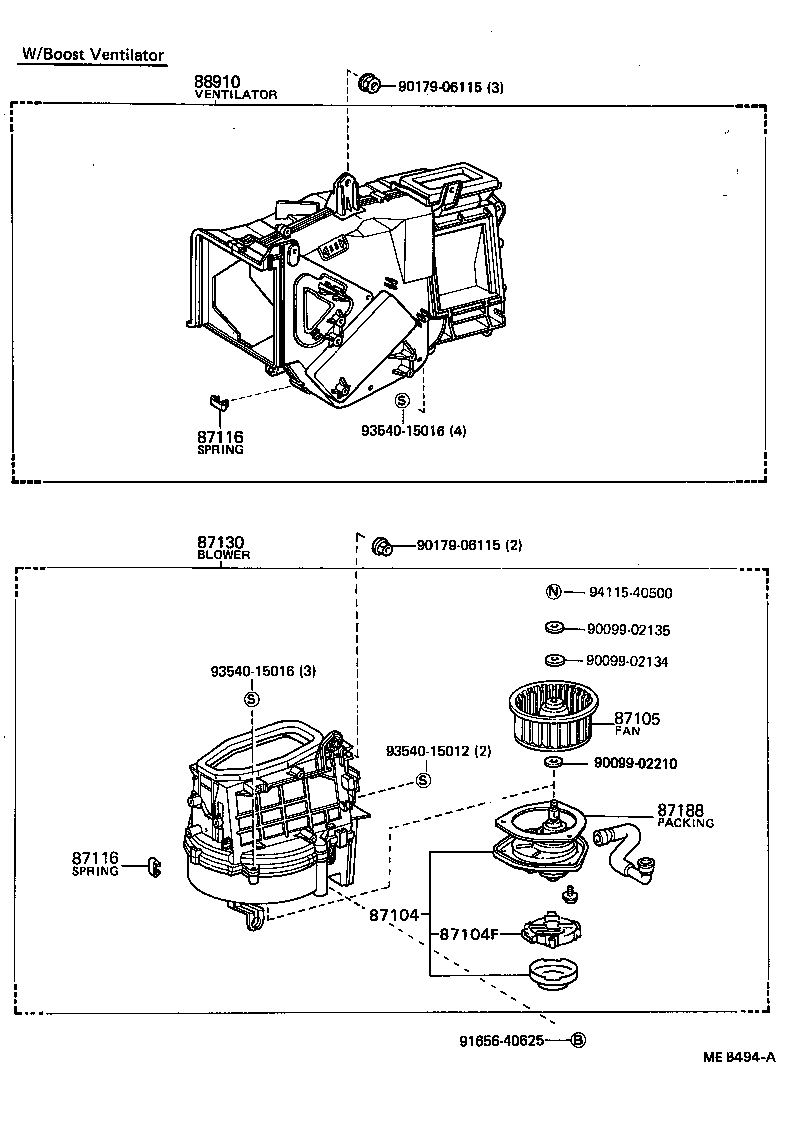

Figure MEB386C MEB386C 1982-01 → — Figure MEB494A MEB494A 1982-01 → —

Part groups

PNCDescription
87104 Motor Sub-assy, Heater Blower
87104F Brush, Heater Blower Motor
87105 Fan Sub-assy, Heater Blower
87107 Unit Sub-assy, Heater Radiator
87116 Spring, Heater Case Fastening
87130 Blower Assy, Heater, Front
87150 Radiator Assy, Heater
87173B Protector, Heater
87188 Packing, Heater Blower Motor
88910 Ventilator Assy, Boost
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
