Toyota Corona FR

1982-01 → 1999-07 · chassis CT14#,RT14#,ST141,TT14#,YT140 · catalogue 261250 · Europe

Discontinued model Data version 2000-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

17 part groups · 5 illustrations

Illustrations

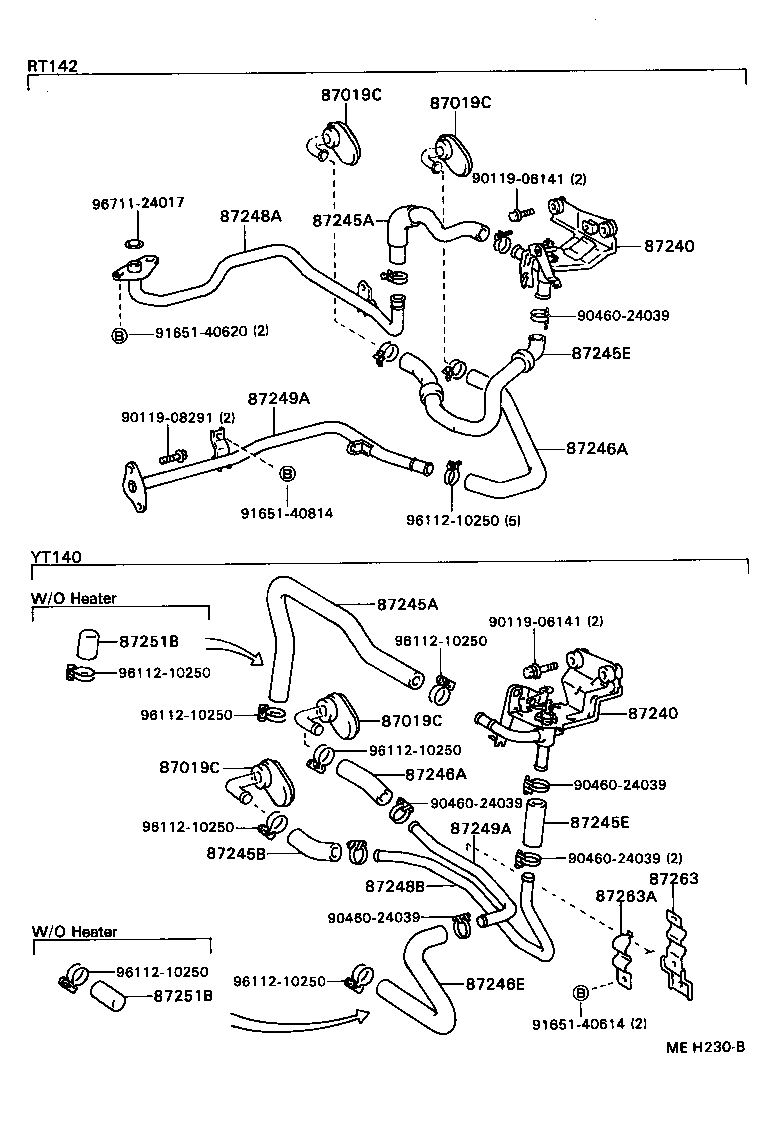

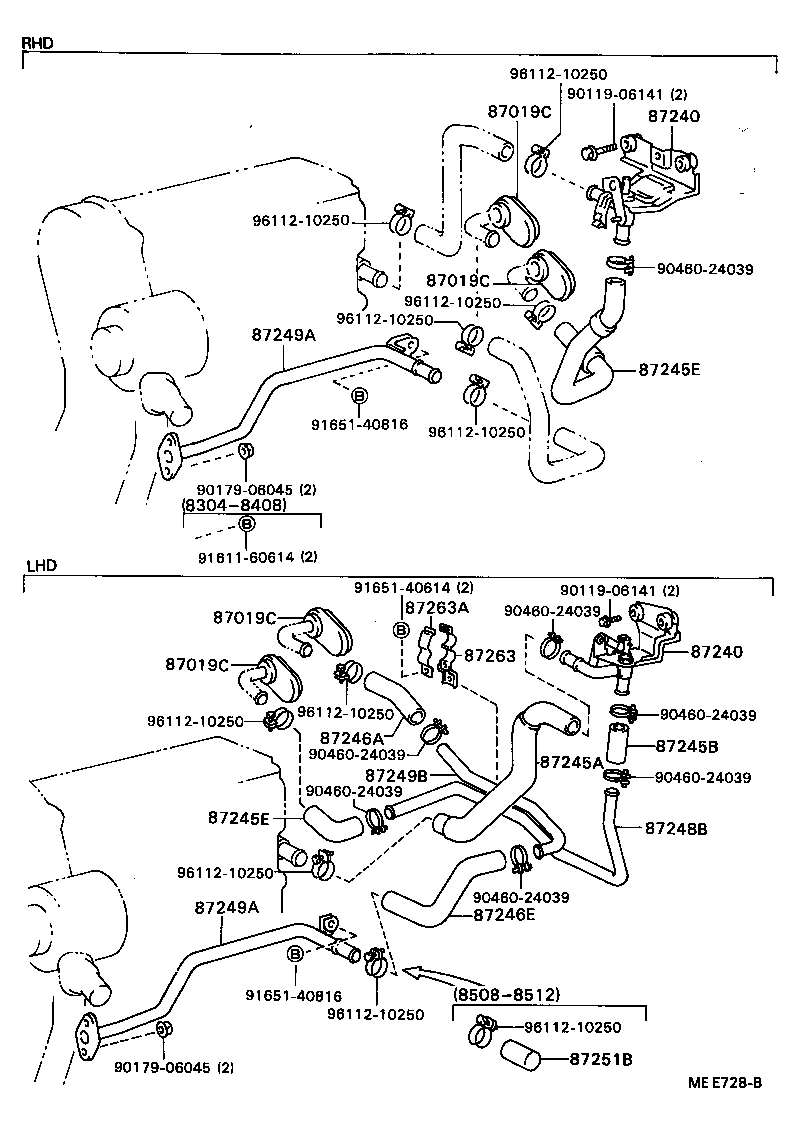

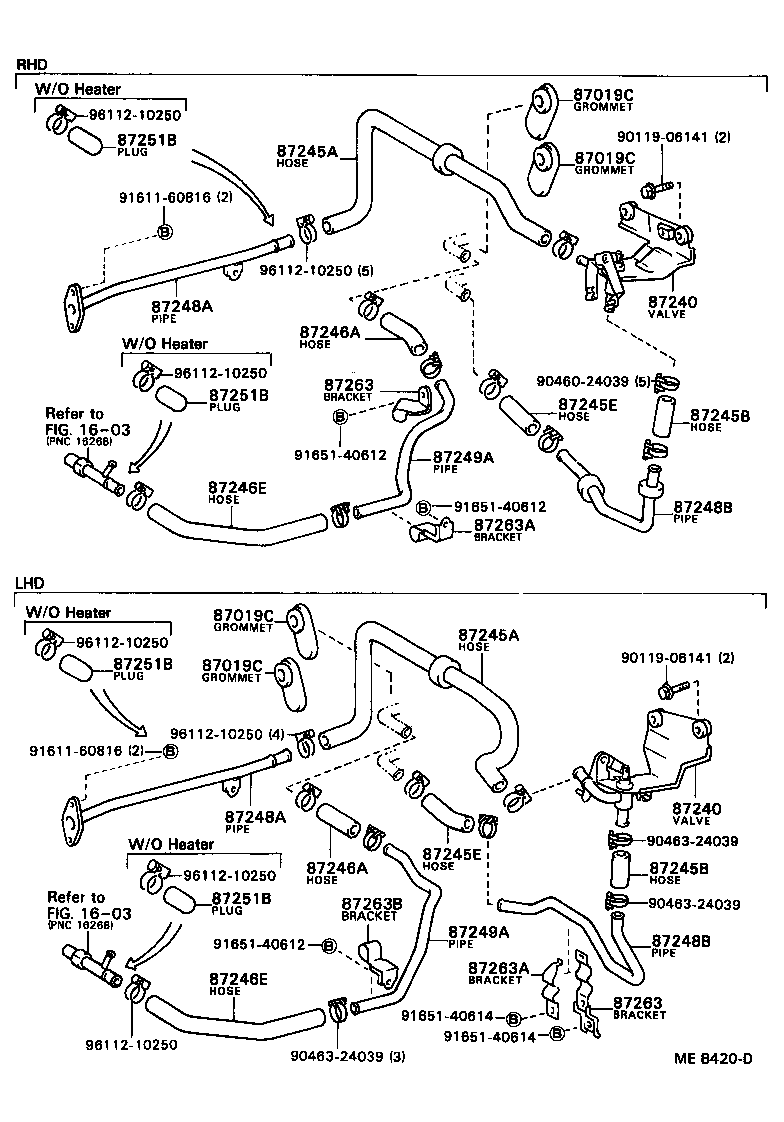

Figure MEB419E MEB419E 1982-01 → 1985-08 Figure MEE728B MEE728B 1983-04 → — Figure MEH230B MEH230B 1984-08 → — Figure MEB420D MEB420D 1982-01 → 1983-12 Figure MEB420D MEB420D 1986-01 → —

Part groups

PNCDescription
87019C Grommet, Heater Hose
87205 Joint OR Union, Front Heater Hose Through OR Inlet Valve
87240 Valve Assy, Heater Water
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245E Hose, Heater Water, Inlet E
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87246E Hose, Heater Water, Outlet E
87248A Pipe, Heater Water Inlet, A
87248B Pipe, Heater Water Inlet, B
87249A Pipe, Heater Water Outlet, A
87249B Pipe, Heater Water Outlet, B
87251B Plug, Heater Water
87263 Bracket, Heater Water Pipe, NO.1
87263A Bracket, Heater Water Pipe, NO.2
87263B Bracket, Heater Water Pipe, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
