Toyota Corona FR

1982-01 → 1999-07 · chassis CT14#,RT14#,ST141,TT14#,YT140 · catalogue 261250 · Europe

Discontinued model Data version 2000-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Vacuum Piping

4 part groups · 3 illustrations

Illustrations

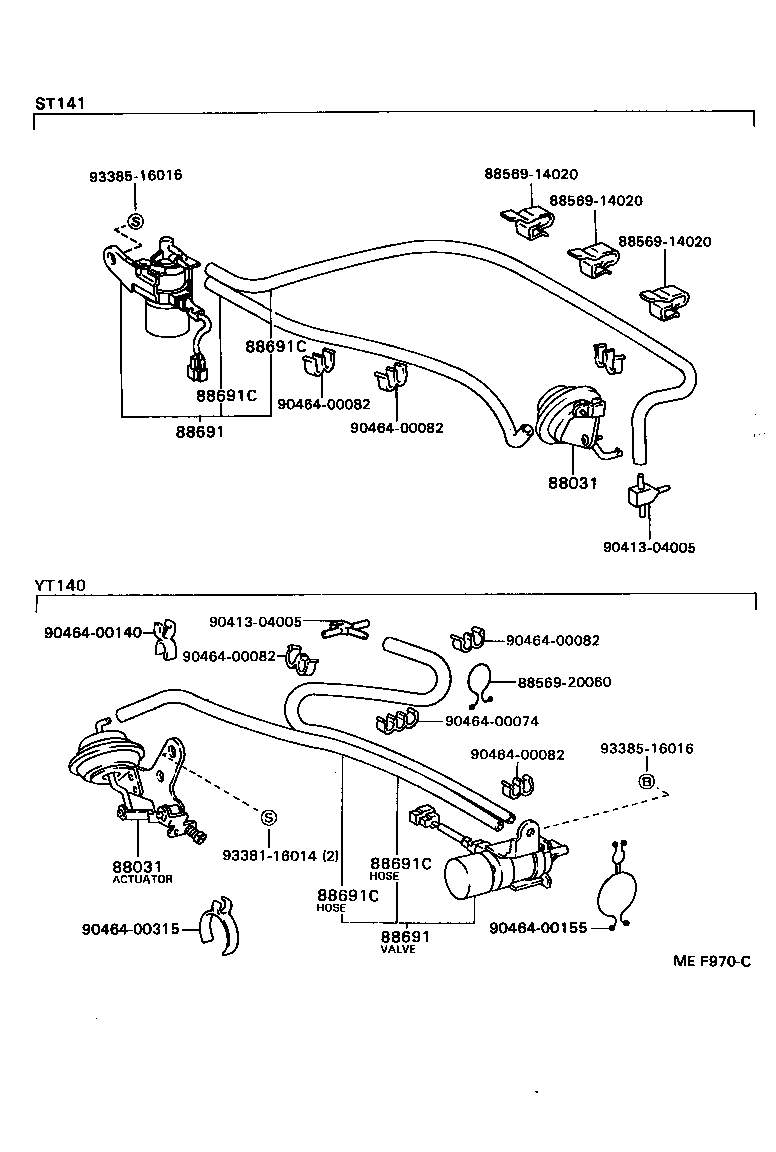

Figure MEB653D MEB653D 1982-01 → 1985-08 Figure MEB653D MEB653D 1986-01 → — Figure MEF970C MEF970C 1985-08 → —

Part groups

PNCDescription
88031 Actuator Set, Idle-up
88031N Bracket, Idle-up Actuator
88691 Valve, Magnet (FOR IDLE UP DEVICE)
88691C Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
