Toyota GT86/86

2012-04 → 2016-07 · chassis ZN6 · catalogue 264210 · Europe

Supported model Data version 2017-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Crankshaft & Piston

20 part groups · 3 illustrations

Illustrations

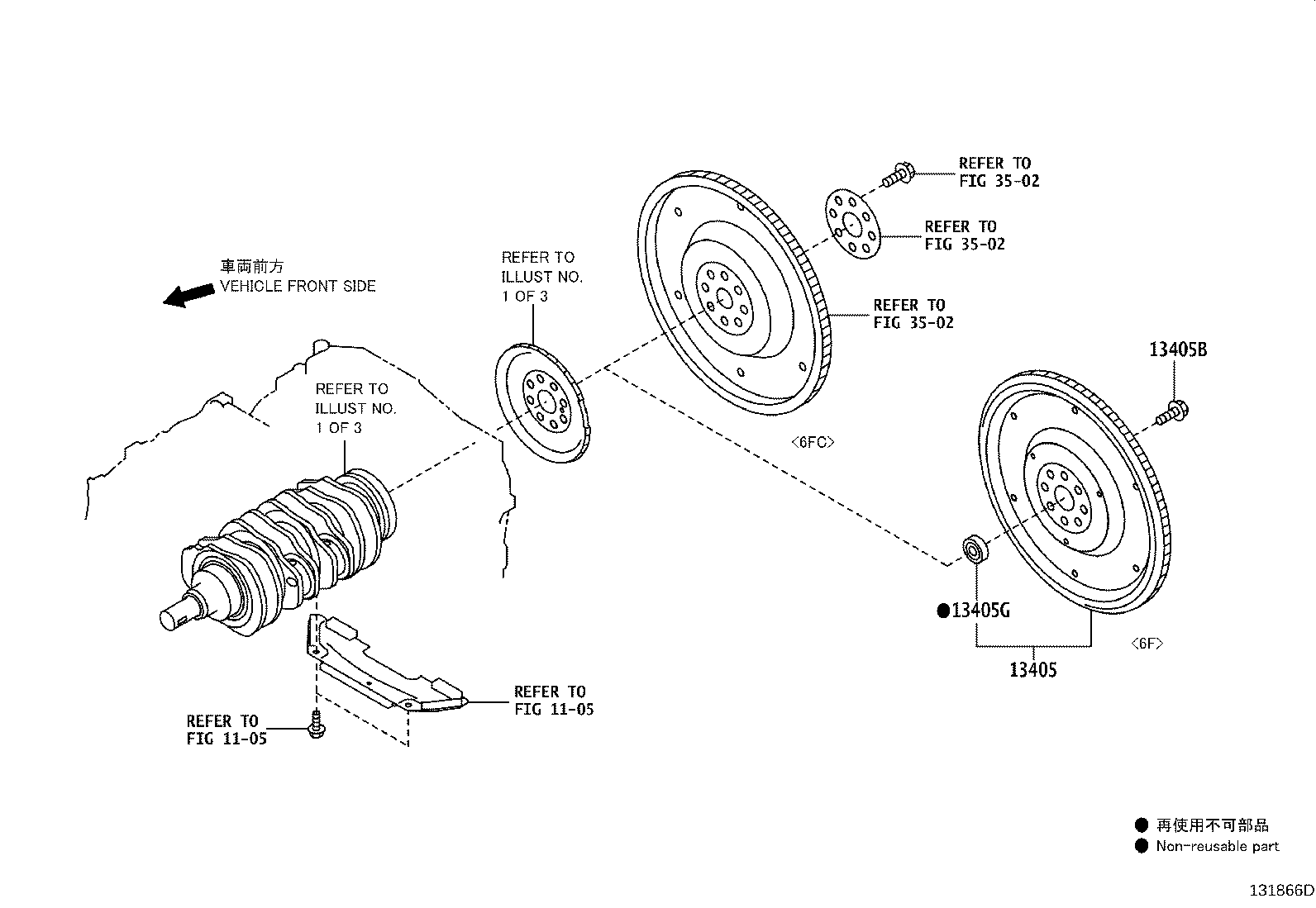

Figure 131878F 131878F 2012-04 → — Figure 131965 131965 2012-04 → — Figure 131866D 131866D 2012-04 → —

Part groups

PNCDescription
11702 Bearing Set, Crankshaft
11711 Bearing, Crankshaft
13011 Ring Set, Piston
13041 Bearing, Connecting Rod
13101 Piston Sub-assy, W/Pin
13101A Ring, Hole Snap(FOR PISTON PIN)
13201 Rod Sub-assy, Connecting
13265 Bolt, Connecting Rod
13301 Piston Sub-assy, W/Pin, LH
13405 Flywheel Sub-assy
13405B Bolt, Flywheel Setting
13405G Bearing, Flyeel
13411 Crankshaft
13471 Pulley, Crankshaft
13471C Bolt(FOR CRANKSHAFT PULLEY SET)
13471G Ring, O(FOR CRANKSHAFT PULLEY)
13471P Spacer(FOR CRANKSHAFT PULLEY)
13521 Gear OR Sprocket, Crankshaft Timing
13521A Key(FOR CRANKSHAFT TIMING GEAR)
19315 Plate, Crank Angle Sensor, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
