Toyota GT86/86

2012-04 → 2016-07 · chassis ZN6 · catalogue 264210 · Europe

Supported model Data version 2017-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

17 part groups · 6 illustrations

Illustrations

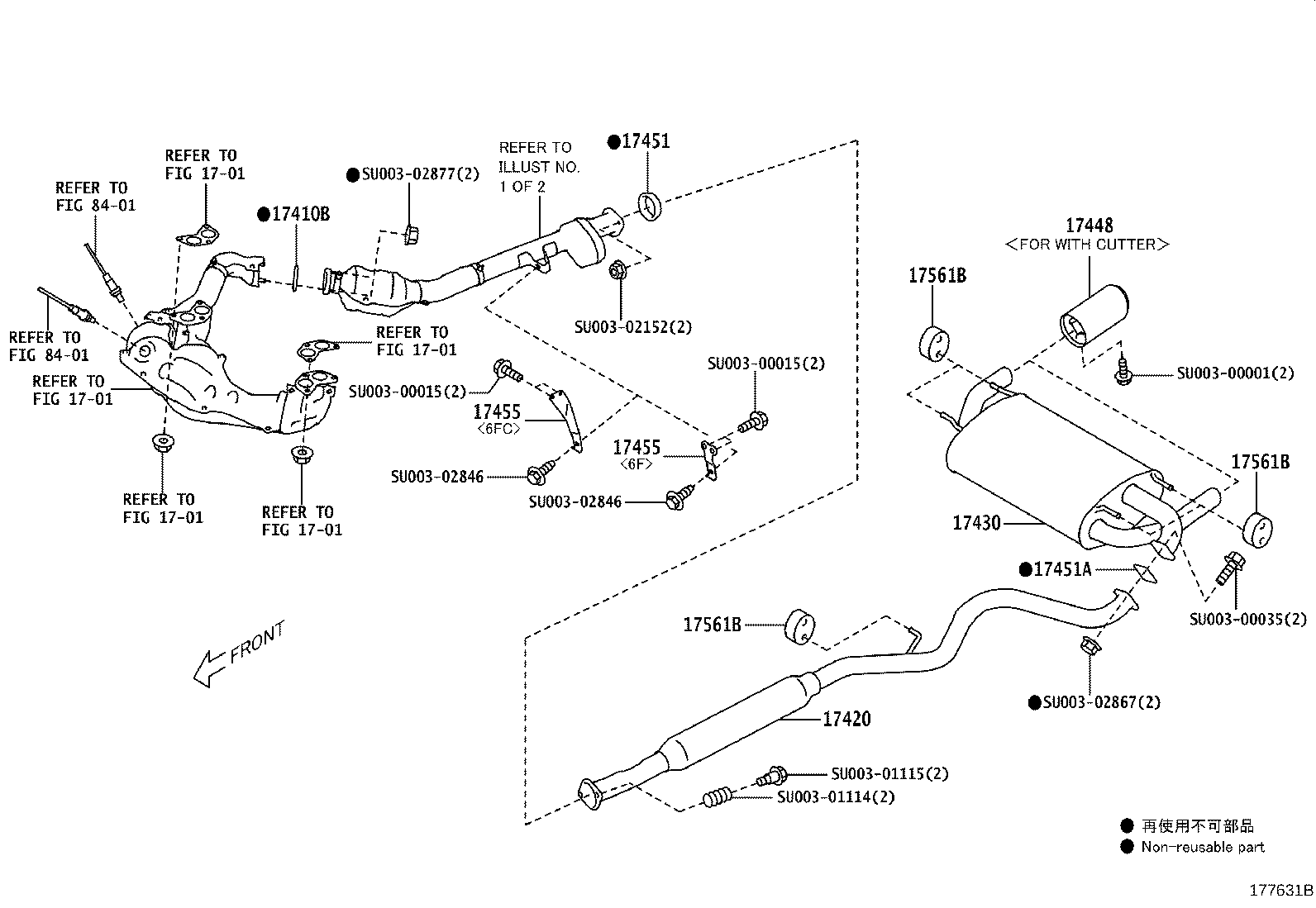

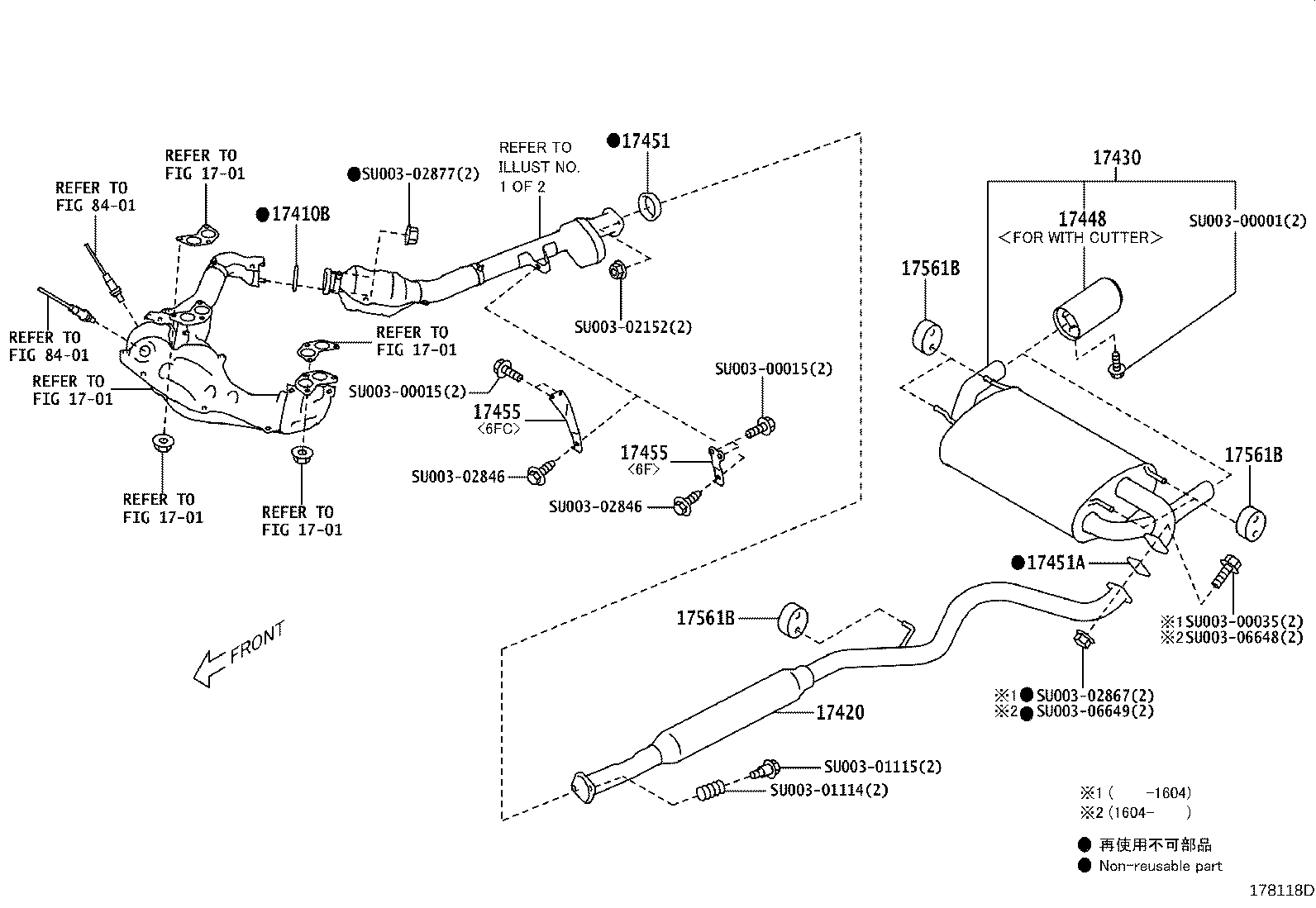

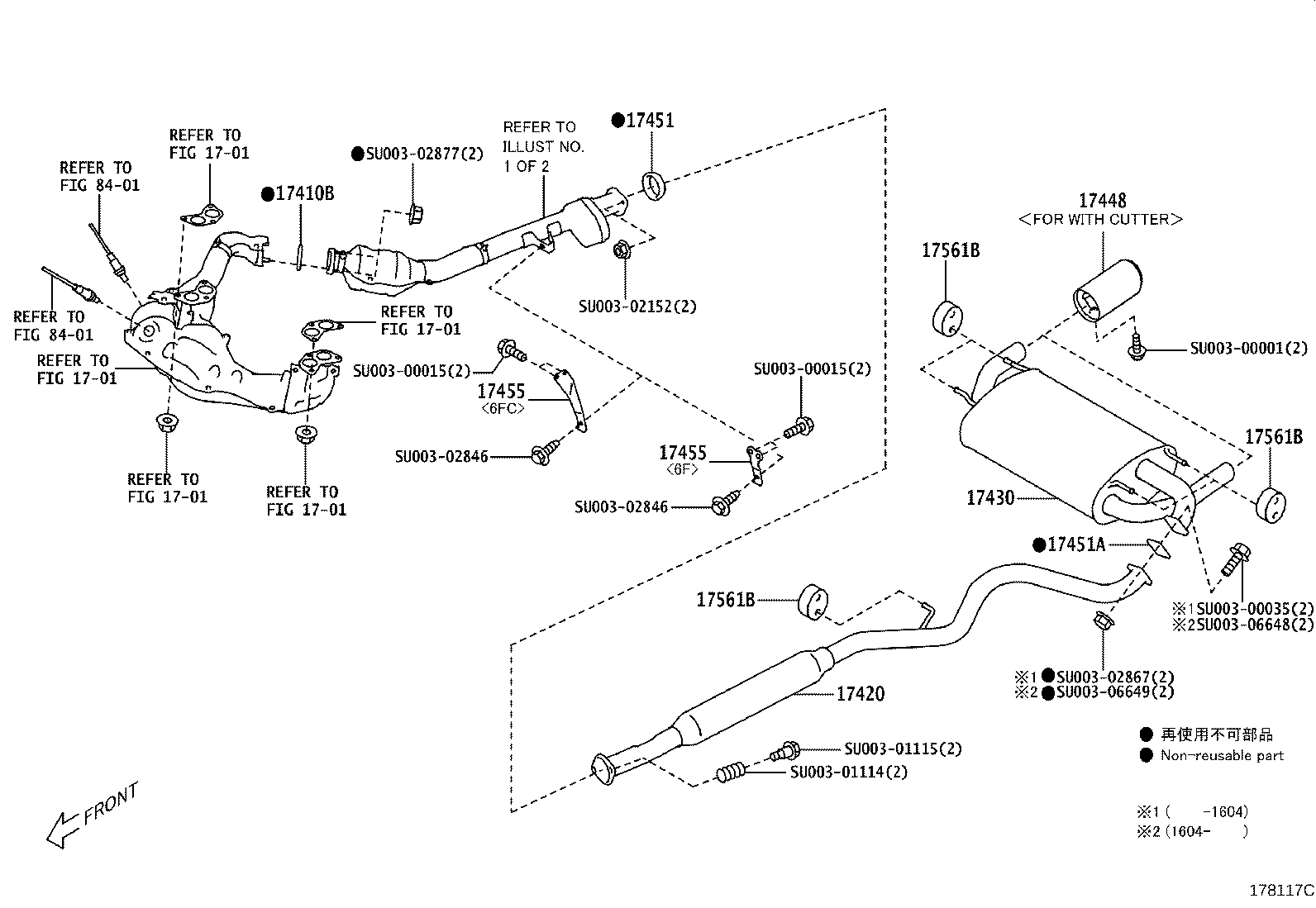

Figure 177614C 177614C 2012-04 → — Figure 177631B 177631B 2012-04 → 2013-08 Figure 177631B 177631B 2012-12 → 2013-09 Figure 178117C 178117C 2013-08 → — Figure 178117C 178117C 2013-09 → — Figure 178118D 178118D 2013-08 → —

Part groups

PNCDescription
17401 Pipe Sub-assy, Exhaust, Front
17410 Pipe Assy, Exhaust, Front
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17430 Pipe Assy, Exhaust, Tail
17448 Baffle, Tailpipe
17451 Gasket, Exhaust Pipe
17451A Gasket, Exhaust Pipe, NO.2
17455 Bracket, Exhaust Pipe
17551 Insulator, Exhaust Pipe Heat, NO.1
17552 Insulator, Exhaust Pipe Heat, NO.2
17553 Insulator, Exhaust Pipe Heat, NO.3
17554 Insulator, Exhaust Pipe Heat, Front
17555 Insulator, Exhaust Pipe Heat, NO.5
17556 Insulator, Exhaust Pipe Heat, NO.6
17557 Insulator, Exhaust Pipe Heat, NO.7
17561B Support, Exhaust Pipe, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
