Toyota GT86/86

2012-04 → 2016-07 · chassis ZN6 · catalogue 264210 · Europe

Supported model Data version 2017-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Starter

17 part groups · 2 illustrations

Illustrations

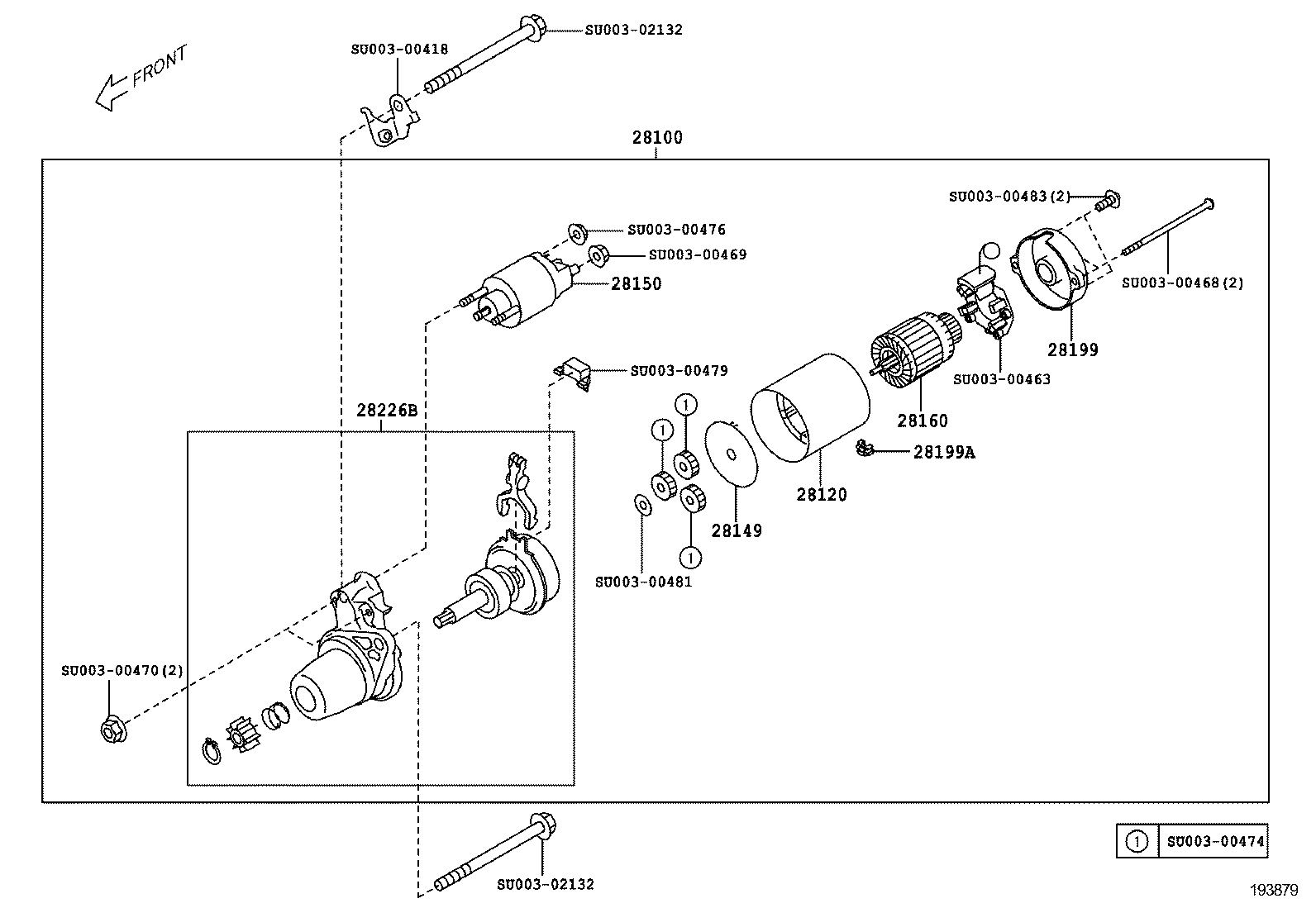

Figure 193878A 193878A 2012-04 → — Figure 193879 193879 2012-04 → —

Part groups

PNCDescription
28011 Clutch Sub-assy, Starter
28100 Starter Assy
28110 Housing Assy, Starter Drive
28113 Lever, Starter Pinion Drive
28120 Yoke Assy, Starter
28140 Holder Assy, Starter Brush
28149 Plate, Starter
28150 Switch Assy, Magnet Starter
28160 Armature Assy, Starter
28160A Bearing, Starter Armature
28160B Bearing, Starter Armature, NO.2
28199 Cover, Starter
28199A Protector, Dust Starter
28209 Shaft Sub-assy, Starter
28226B Starter Kit, Repair Service
28252 Gear, Starter Idle
28256 Gear, Starter Internal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
