Toyota GT86/86

2012-04 → 2016-07 · chassis ZN6 · catalogue 264210 · Europe

Supported model Data version 2017-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

9 part groups · 7 illustrations

Illustrations

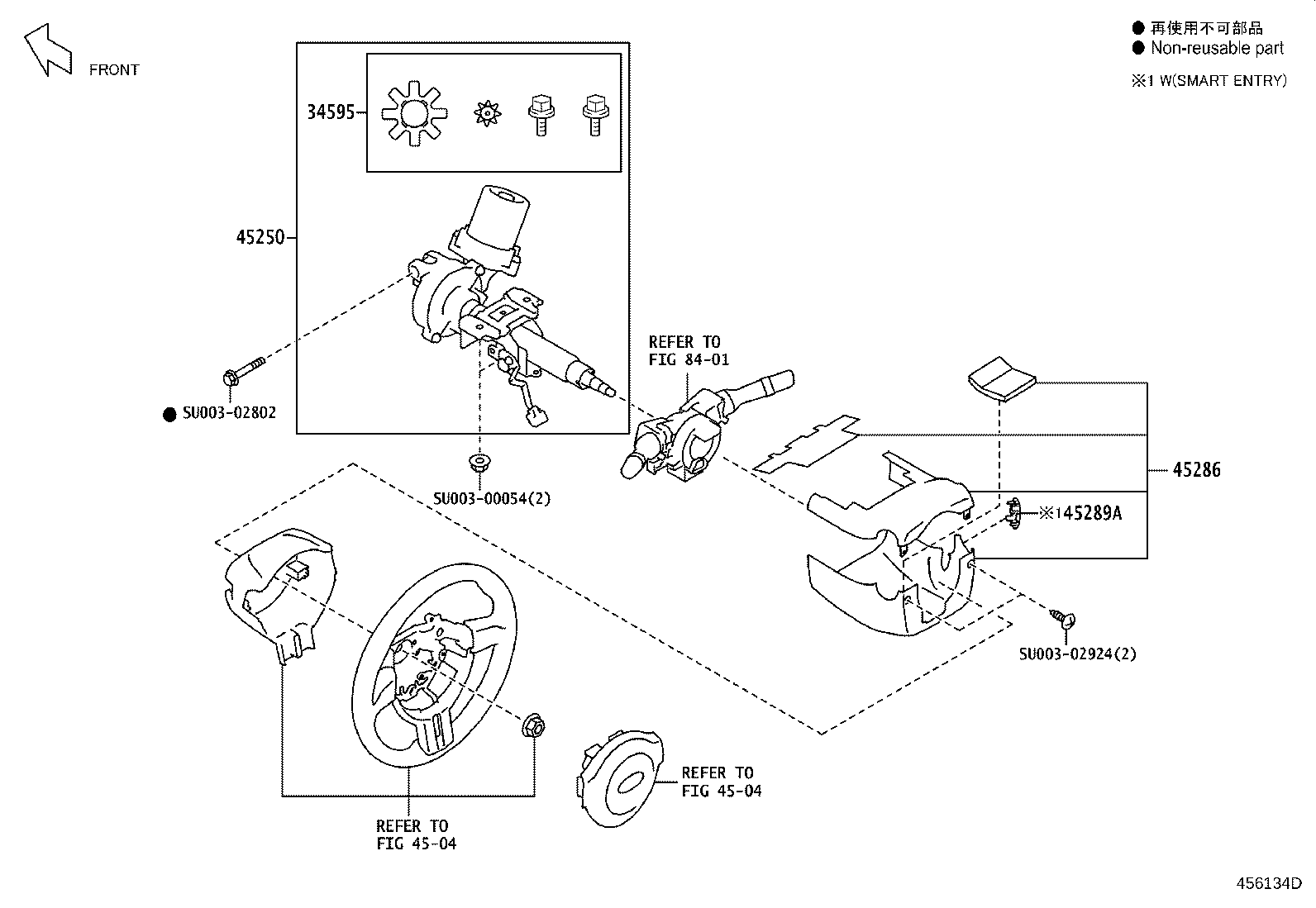

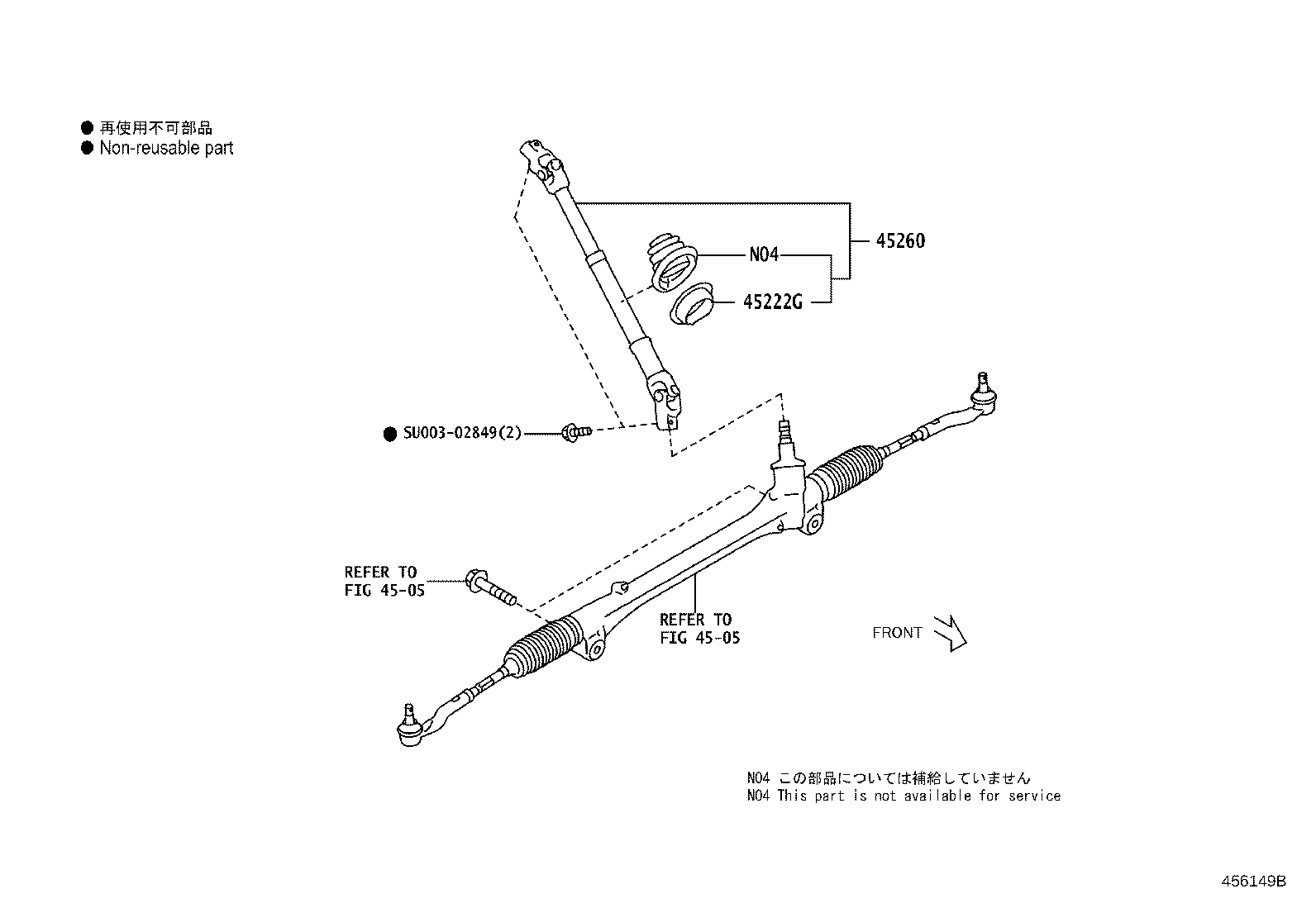

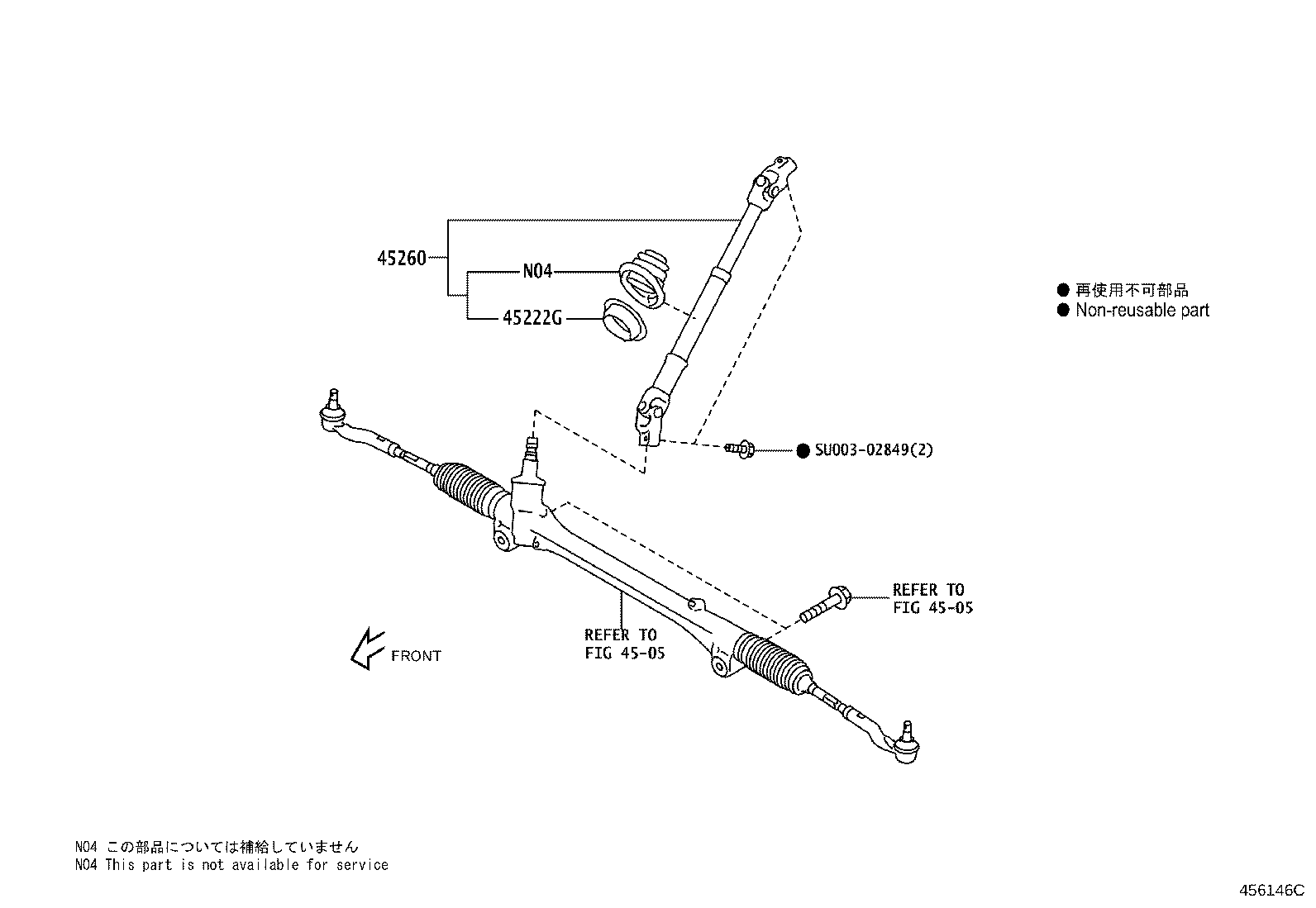

Figure 456152C 456152C 2012-04 → — Figure 456134D 456134D 2012-04 → — Figure 456146C 456146C 2012-04 → — Figure 456149B 456149B 2012-04 → — Figure 456153C 456153C 2012-04 → — Figure 456153C 456153C 2013-07 → 2015-05 Figure 456154C 456154C 2012-04 → —

Part groups

PNCDescription
34595 Repair Kit, Damper
45020A Actuator Assy, Steering Lock
45222G Clip, Dust Cover
45250 Column Assy, Steering
45260 Shaft Assy, Steering Intermediate, NO.2
45280A Bracket Assy, Steering Column, Upper
45286 Cover, Steering Column
45289A Support, Steering Column Cover
45897 Bolt, Steering Lock Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
