Brake Booster & Vacuum Tube

6 part groups · 2 illustrations

Illustrations

Figure 478261C

478261C 2012-04 → —

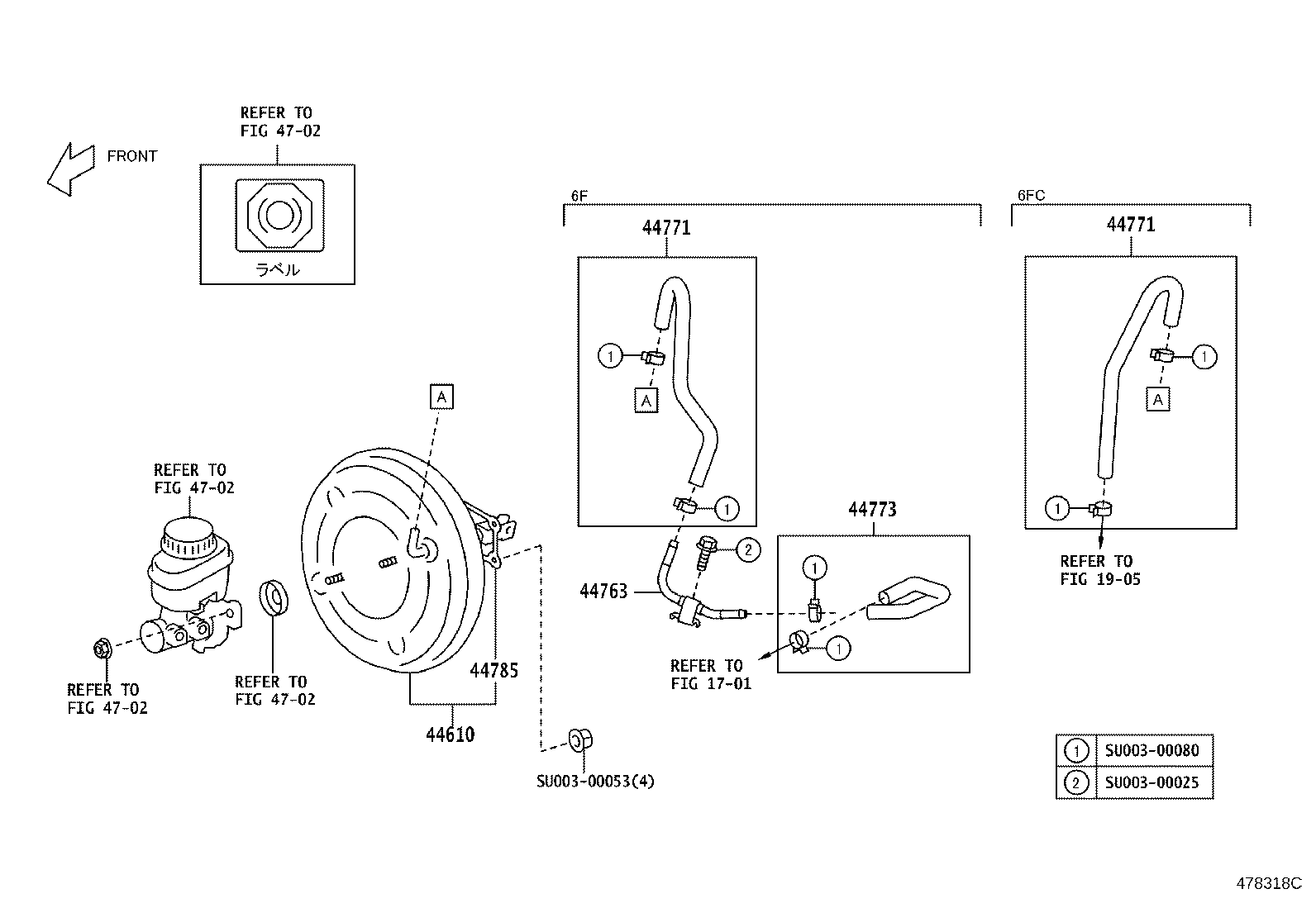

Figure 478318C

478318C 2012-04 → —

Part groups

PNC	Description
44610	Booster Assy, Brake
44763	Tube, Booster Vacuum
44771	Hose, Vacuum Tube Connector
44773	Hose, Vacuum, NO.2
44785	Gasket, Brake Booster
47288C	Label, Fluid Mark

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
