Toyota GT86/86

2012-04 → 2016-07 · chassis ZN6 · catalogue 264210 · Europe

Supported model Data version 2017-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Package Tray Panel & Luggage Compartment Mat

24 part groups · 3 illustrations

Illustrations

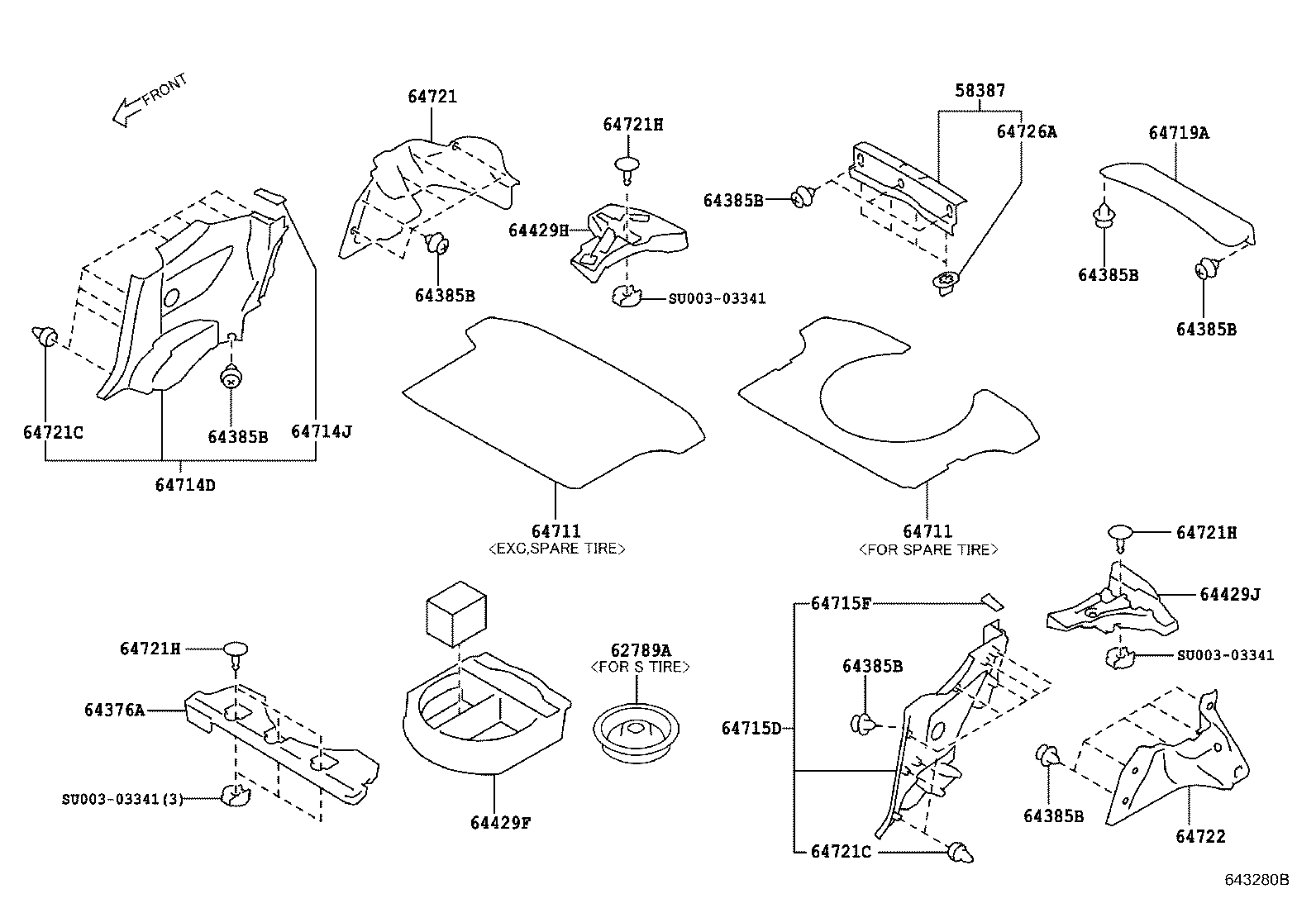

Figure 643066A 643066A 2012-04 → — Figure 643086 643086 2012-04 → — Figure 643280B 643280B 2012-04 → —

Part groups

PNCDescription
58387 Plate, Rear Floor Finish
62789A Spacer
64330 Panel Assy, Package Tray Trim
64330A Clip(FOR PACKAGE TRAY TRIM PANEL)
64330J Clip(FOR PACKAGE TRAY TRIM PANEL)
64332 Cover, Package Tray Trim
64376A Spacer, Package Tray Trim, NO.2
64385B Clip
64429F Box, Luggage Compartment Trim
64429H Tray, Luggage Compartment Side
64429J Tray, Luggage Compartment Side
64711 Mat, Luggage Compartment Floor
64714D Cover, Luggage Compartment Trim, Side, RH
64714J Cover, Deck Side Trim, RH
64715D Cover, Luggage Compartment Trim, Side, LH
64715F Cover, Deck Side Trim, LH
64719A Cover, Luggage Compartment Door
64721 Cover, Luggage Compartment Trim, Inner RH
64721C Clip(LUGGAGE COMPARTMENT)
64721H Clip(LUGGAGE COMPARTMENT)
64722 Cover, Luggage Compartment Trim, Inner LH
64726A Clip, Luggage Trim, Rear
71295 Plate, Rear Seatback, Upper RH
71296A Plate, Rear Seatback, Upper LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
