Toyota GT86/86
2012-04 → 2016-07 · chassis ZN6 · catalogue 264210 · Europe
Supported model
Data version 2017-01
Fuel Tank & Tube
71 part groups · 8 illustrations
Part groups
| PNC | Description |
|---|---|
| 23220A | Pump Assy, Fuel W/Filter |
| 23225A | Spacer, Fuel Pump |
| 23280J | Regulator Assy, Fuel Pressure |
| 23280K | Ring, O(FOR FUEL PRESSURE REGULATOR) |
| 77020A | Tube Assy, Fuel Suction W/Pump & Gage |
| 77023 | Filter Sub-assy, Fuel Suction Tube |
| 77023B | Filter Sub-assy, Fuel Suction Tube, NO.2 |
| 77024A | Plate Sub-assy, Fuel Suction |

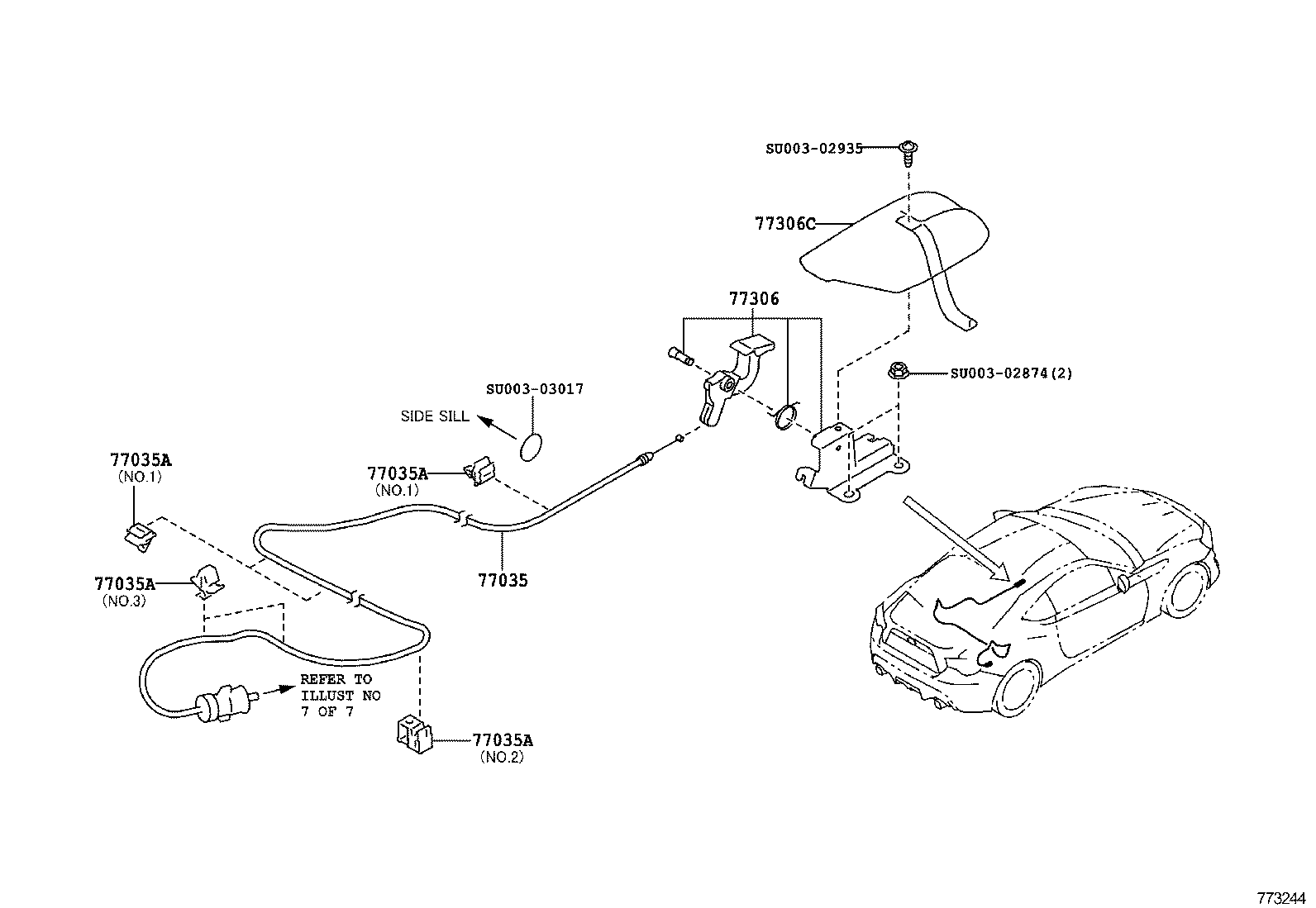

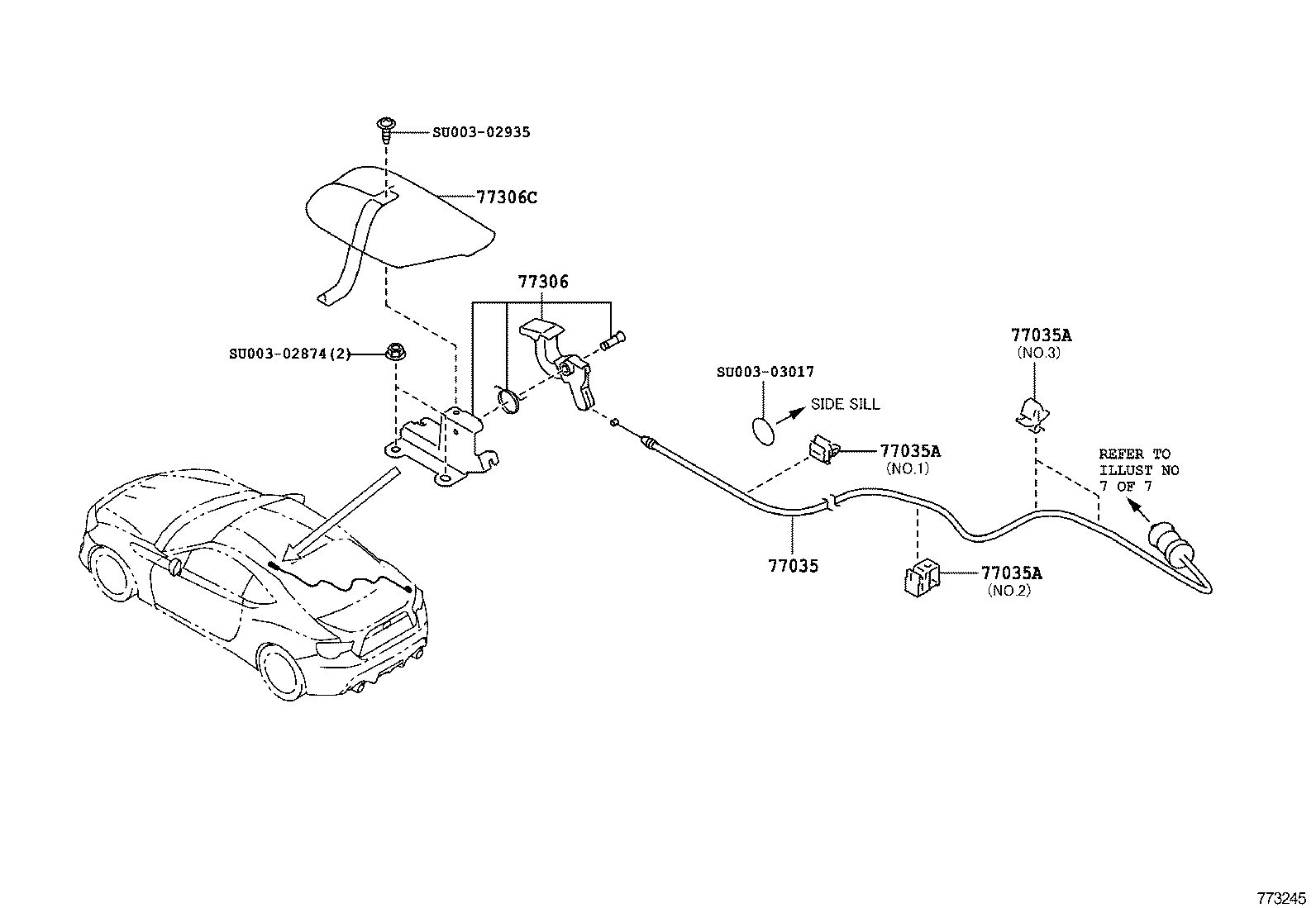

| 77035 | Cable Sub-assy, Fuel Lid Lock Control |
| 77035A | Clamp (FOR FUEL LID LOCK CONTROL CABLE) |
| 77100 | Tank Assy, Fuel |
| 77131C | Sub-tank, Fuel, NO.1 |
| 77144 | Retainer, Fuel Pump Gauge |
| 77166 | Cushion, Fuel Tank Protector |
| 77169A | Gasket, Fuel Suction Tube Set |
| 77197A | Clamp, Evaporation Vent Tube, NO.2 |

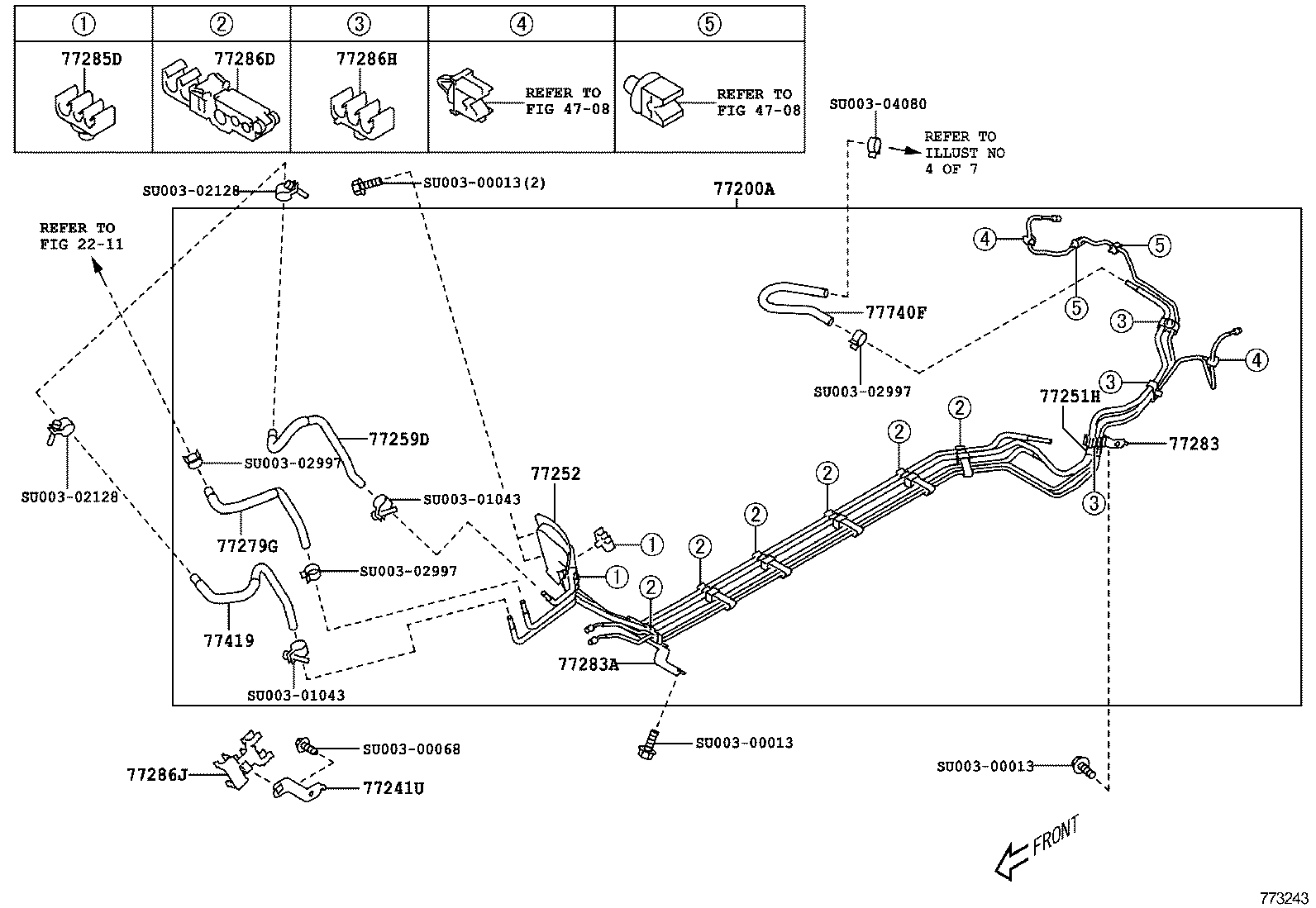

| 77200A | Pipe Assy, Center |
| 77201E | Pipe Sub-assy, Fuel Tank Filler |
| 77202 | Tube Sub-assy, Breather |
| 77202A | Hose, Fuel, NO.1 (FOR BREATHER TUBE) |
| 77202B | Hose, Fuel, NO.2 (FOR BREATHER TUBE) |
| 77202K | Clamp (FOR BREATHER HOSE) |
| 77203C | Bracket, Fuel Pump |
| 77204C | Tube Sub-assy, Fuel Tank Main, NO.2 |
| 77209F | Tube Sub-assy, Fuel Tank Main |
| 77211B | Clamp (FOR FUEL FILLER PIPE) |
| 77213B | Hose, Fuel Tank TO Filler Pipe |
| 77216A | Support, Fuel Tank Filler Pipe, NO.1 |
| 77216B | Support, Fuel Tank Filler Pipe, NO.2 |
| 77216C | Support, Fuel Tank Filler Pipe NO.3 |
| 77226A | Tube, Fuel Tank Breather, NO.6 |
| 77229C | Clamp, Breather Tube |
| 77231A | Connector, Fuel Tank Breather Tube |
| 77241U | Bracket, Fuel Clamp |
| 77248A | Holder, Fuel Tank Filler Pipe Cover |
| 77251H | Cushion, Fuel Main Tube |
| 77252 | Protector, Fuel Tube |
| 77259D | Hose, Fuel, NO.1 |
| 77279G | Hose, Fuel, NO.2 |
| 77283 | Bracket, Fuel Tube |
| 77283A | Bracket, Fuel Tube Clamp, NO.1 |
| 77285D | Clamp, Fuel Tube, NO.1 |
| 77286D | Clamp, Fuel Tube, NO.2 |
| 77286H | Clamp, Fuel Tube, NO.3 |
| 77286J | Clamp, Fuel Tube, NO.4 |
| 77290 | Shield Assy, Fuel Tank Filler Pipe |
| 77291A | Shield, Fuel Tank Filler Pipe |
| 77306 | Lever Sub-assy, Fuel Lid Lock Open |
| 77306C | Cover, Handle |
| 77310A | Cap Assy, Fuel Tank |
| 77350 | Lid Assy, Fuel Filler Opening |
| 77366 | Spring, Fuel Filler Opening Lid Hinge |
| 77391A | Ring, Fuel Inlet Box |
| 77404 | Hose Sub-assy, Fuel Tank Vent |
| 77419 | Hose, Fuel, NO.3 |

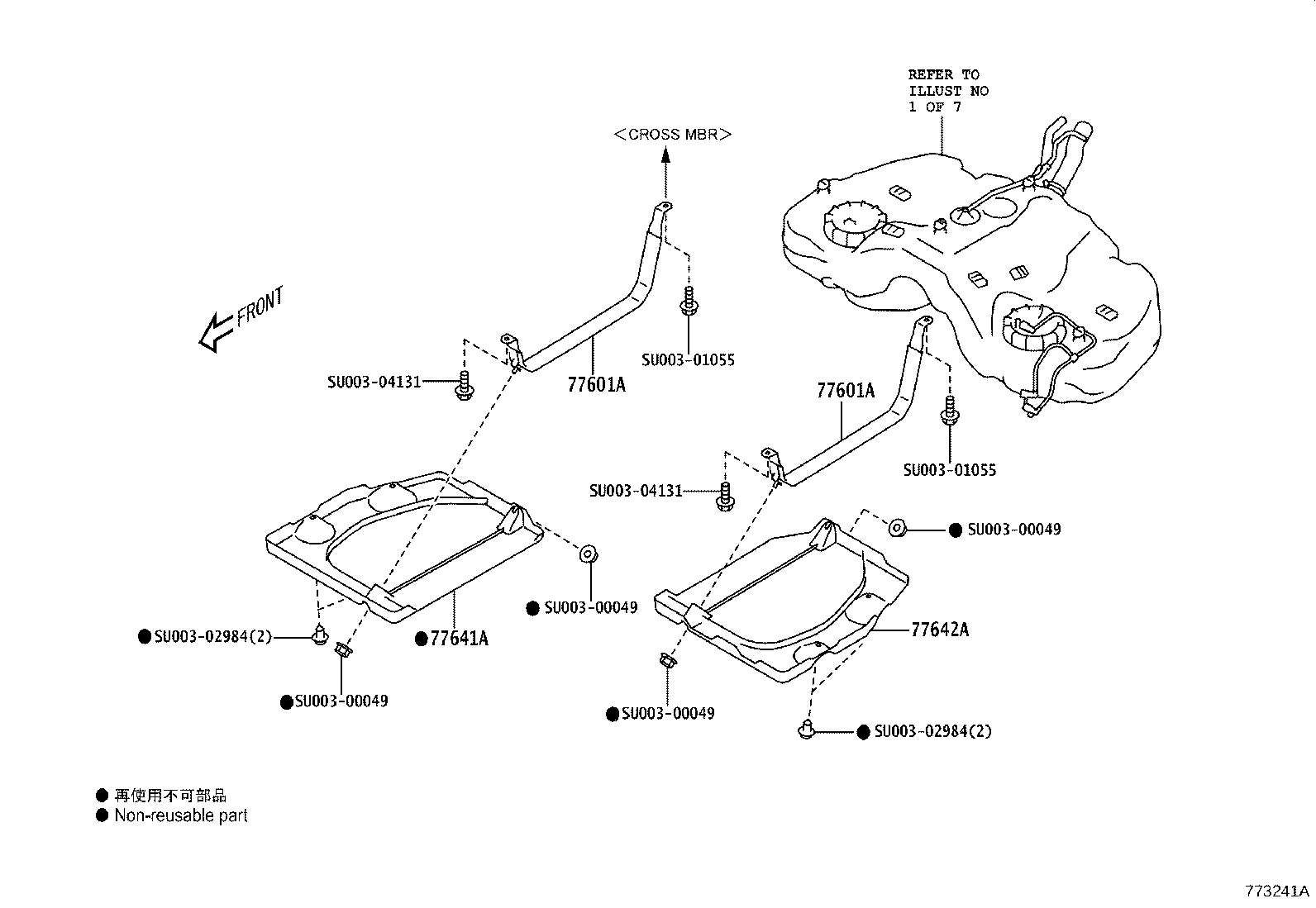

| 77601A | Band Sub-assy, Fuel Tank, NO.1 |
| 77606 | Protector Sub-assy, Fuel Tank, NO.1 |
| 77641A | Protector, Fuel Tank, NO.1 |
| 77642A | Protector, Fuel Tank, NO.2 |
| 77651A | Cushion, Fuel Tank, NO.1 |
| 77652A | Cushion, Fuel Tank, NO.2 |
| 77652C | Spring, Fuel Pump |
| 77701A | Hose, Fuel, NO.1 (FOR BREATHER VALVE) |
| 77701B | Hose, Fuel, NO.2 (FOR BREATHER VALVE) |
| 77720H | Valve Assy, Fuel Outlet |

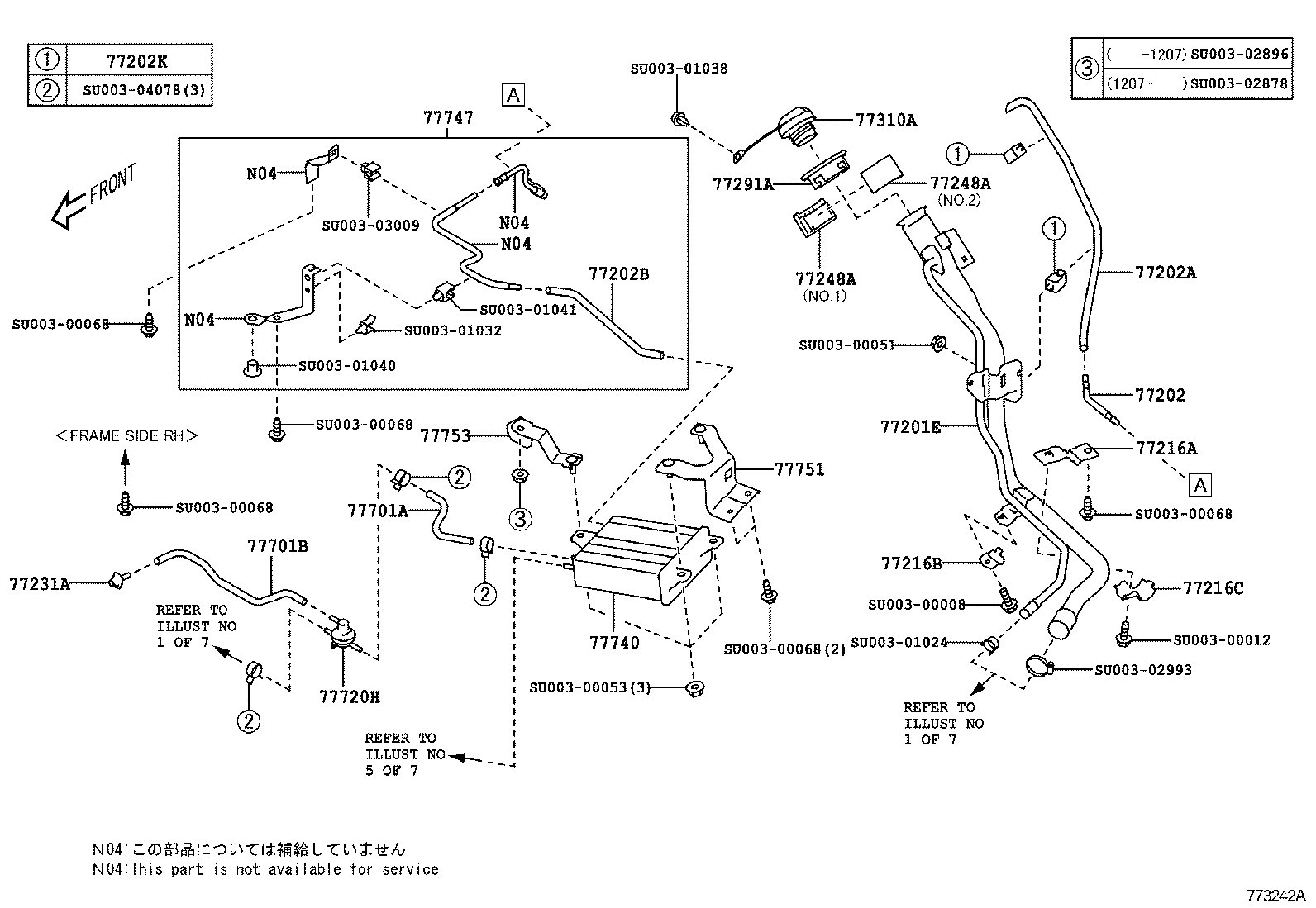

| 77740 | Canister Assy, Charcoal |
| 77740F | Tube, Fuel, NO.1(FOR CHARCOAL CANISTER) |
| 77747 | Pipe, Charcoal Canister, NO.1 |
| 77751 | Bracket, Charcoal Canister Base |
| 77753 | Bracket, Charcoal Canister, NO.3 |
| 77785 | Harness, Fuel Pump |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
