Toyota GT86/86

2012-04 → 2016-07 · chassis ZN6 · catalogue 264210 · Europe

Supported model Data version 2017-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wireless Door Lock

7 part groups · 5 illustrations

Illustrations

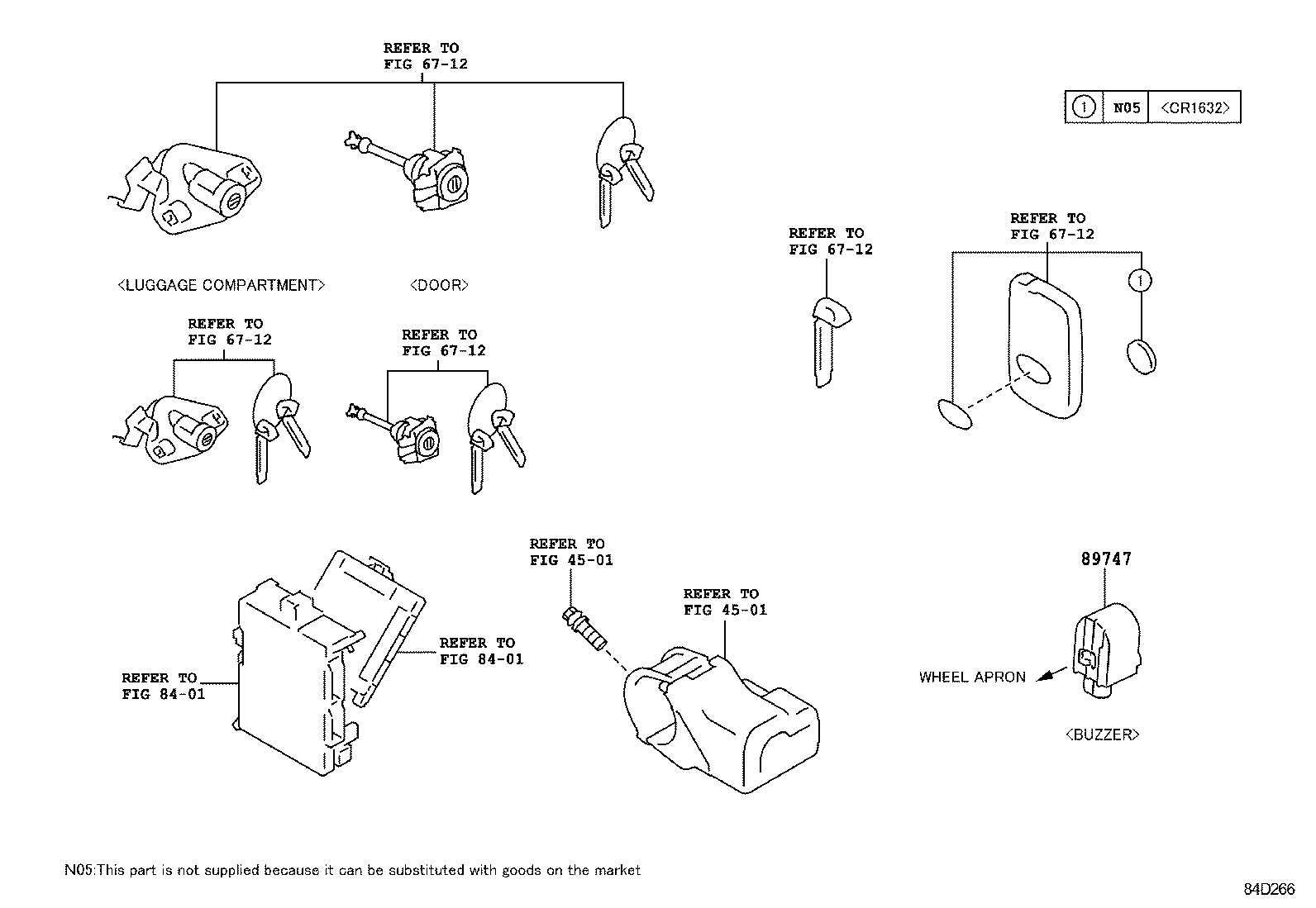

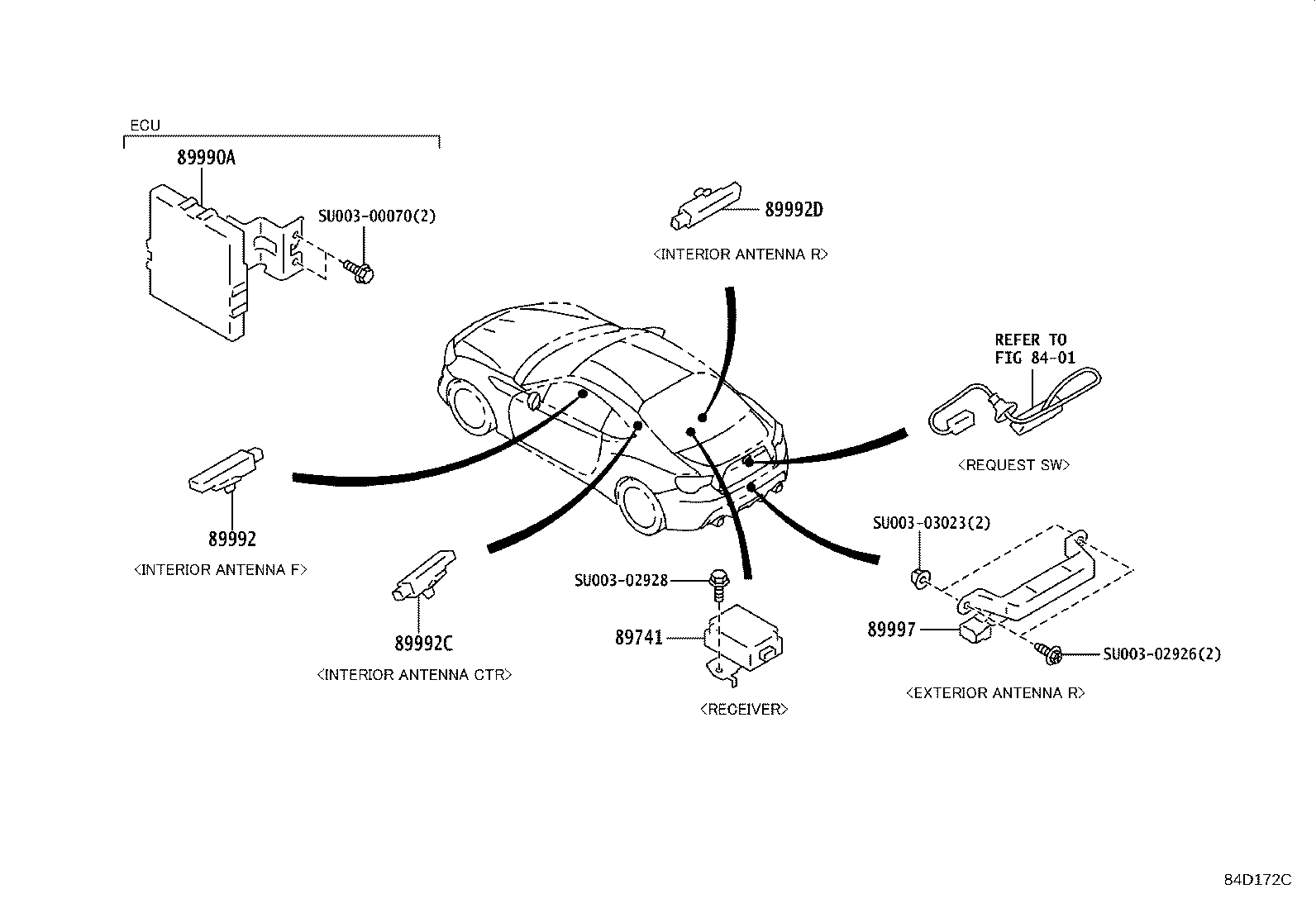

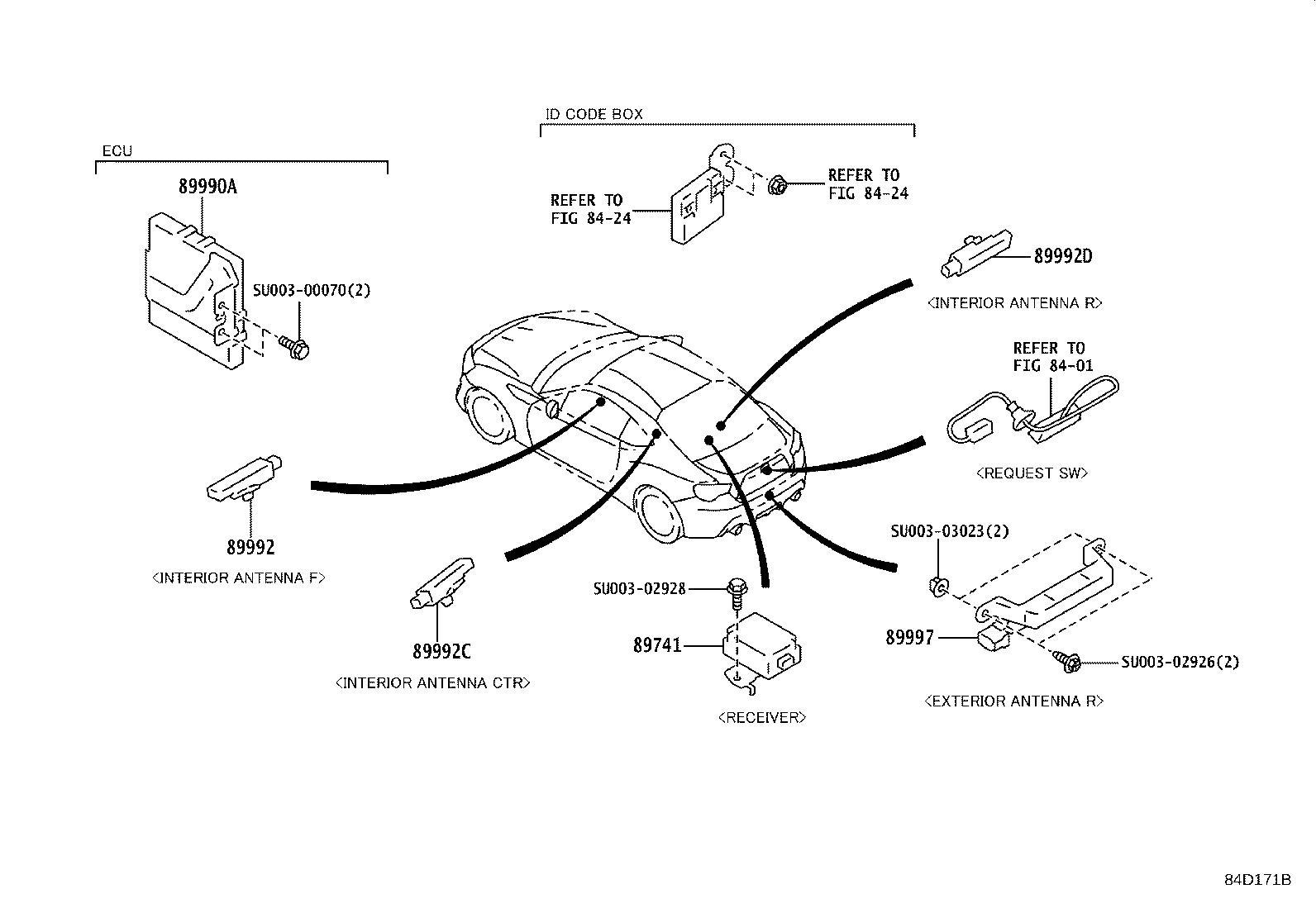

Figure 84D170 84D170 2012-04 → — Figure 84D170 84D170 2013-07 → 2015-05 Figure 84D266 84D266 2012-04 → — Figure 84D171B 84D171B 2012-04 → — Figure 84D172D 84D172D 2012-04 → —

Part groups

PNCDescription
89741 Receiver, Door Control
89747 Buzzer, Wireless Door Lock
89990A Computer Assy, Smart Key
89992 Oscillator, Indoor Electrical Key
89992C Oscillator, Indoor Electrical Key, NO.2
89992D Oscillator, Indoor Electrical Key, NO.3
89997 Antenna, Electrical Key
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
