Factory parts data · Europe

Toyota GT86/86

2012-04 → 2016-07 · chassis ZN6 · catalogue 264210 · Europe

Supported model Data version 2017-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

3 part groups · 2 illustrations

Illustrations

864979 2012-04 → —

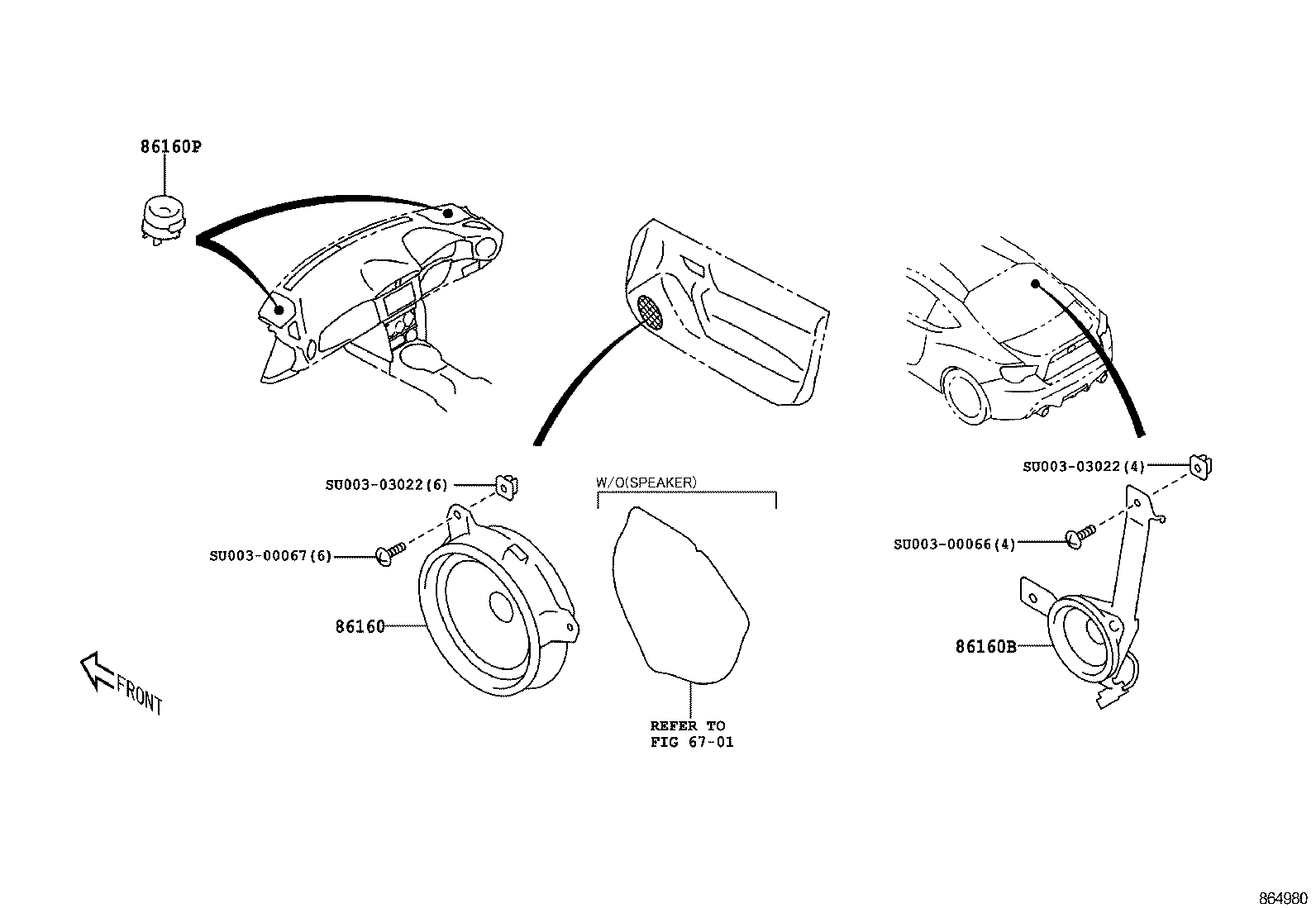

864980 2012-04 → —

Part groups

PNC	Description
86160	Speaker Assy, Front NO.1
86160B	Speaker Assy, Rear
86160P	Speaker Assy, Front NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
