Toyota 86
2016-08 → present · chassis ZN6 · catalogue 264220 · Europe
Supported model
Data version 2019-04
Cylinder Block
25 part groups · 5 illustrations
Part groups

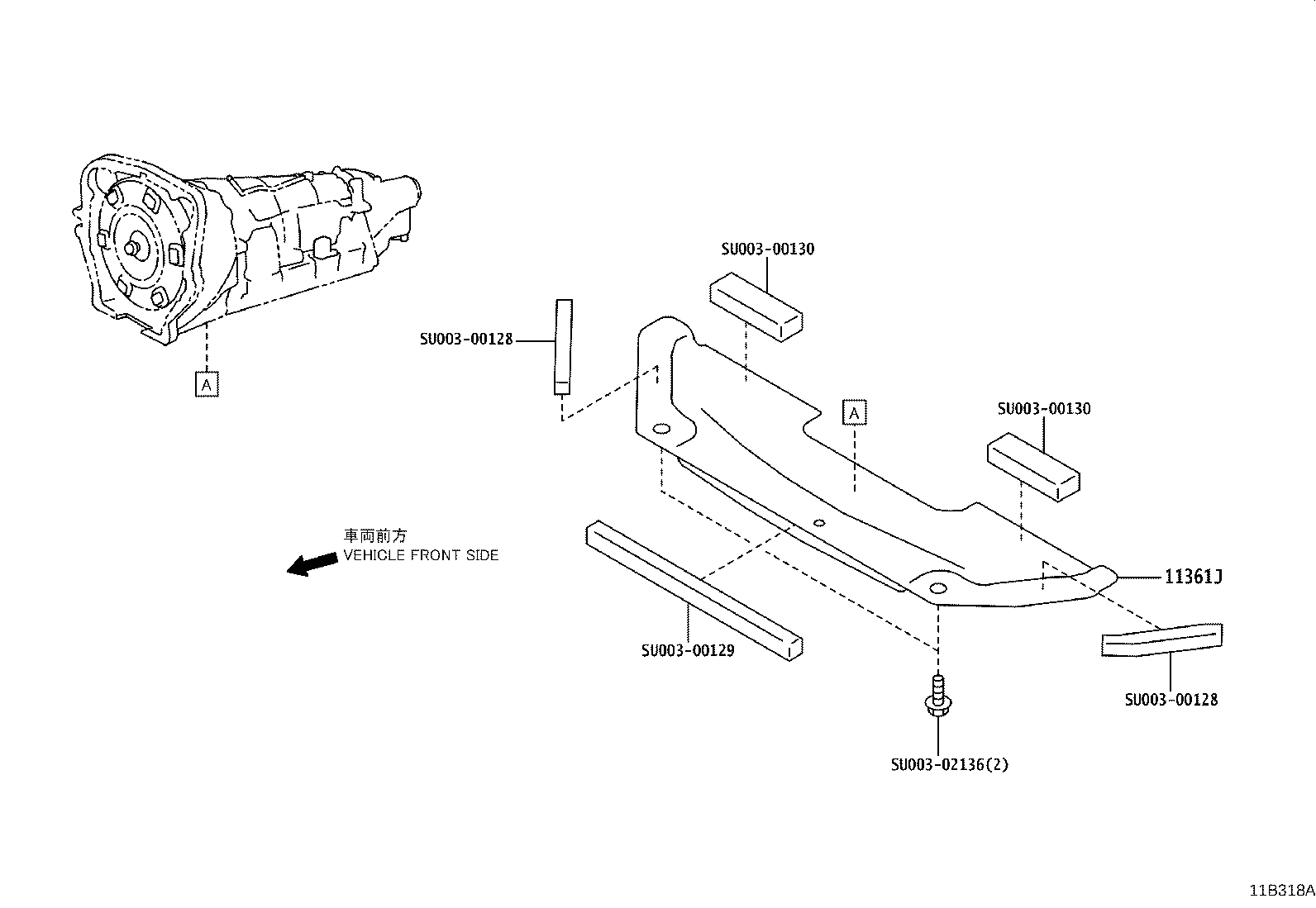

| PNC | Description |
|---|---|
| 11271J | Plate, Cylinder Block |
| 11361J | Cover, Flywheel Housing Under |

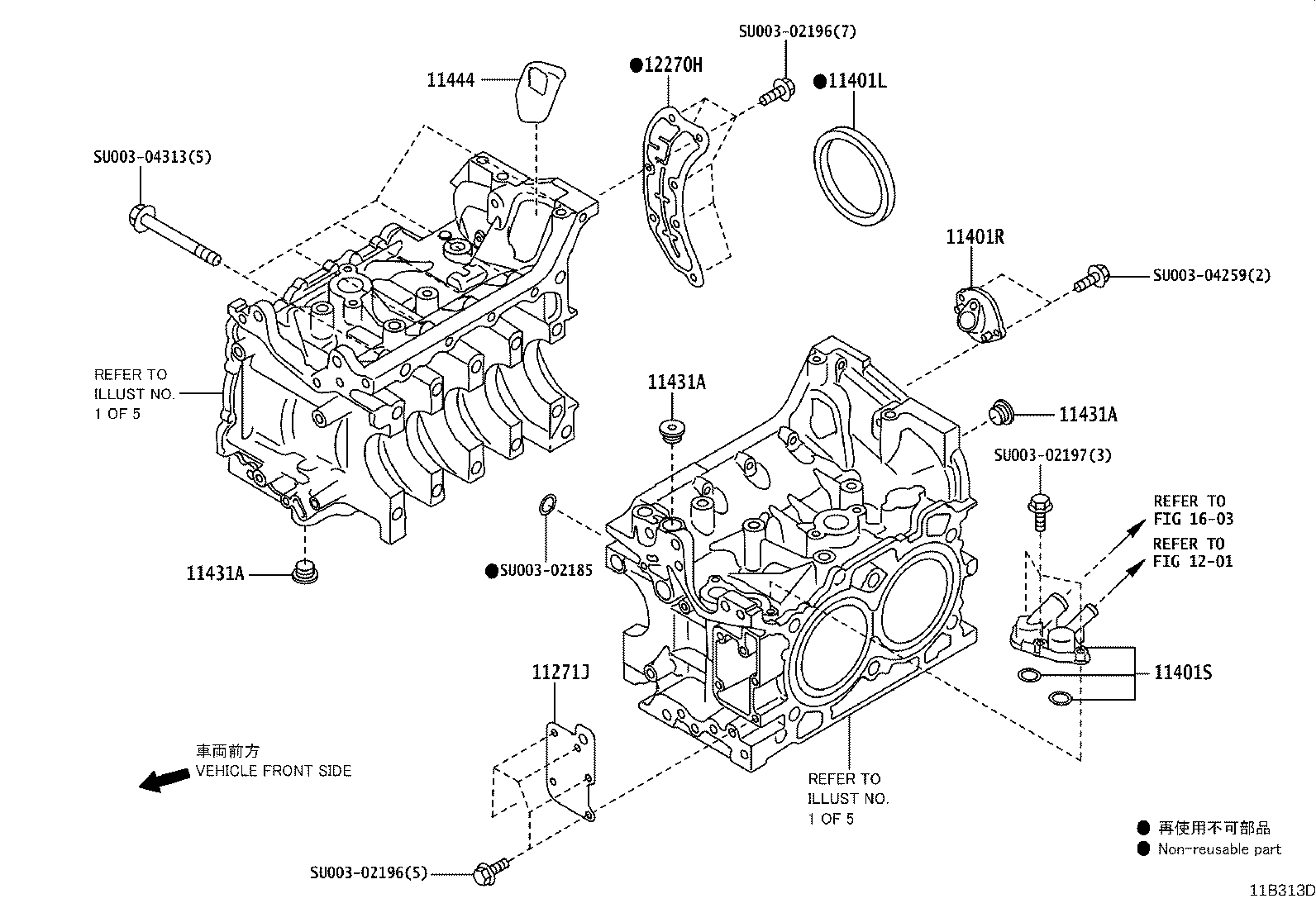

| 11401 | Block Sub-assy, Cylinder |
| 11401A | Plug(FOR CYLINDER BLOCK BLIND) |
| 11401G | Sensor, Crank Position |
| 11401L | Seal, Engine Rear Oil |
| 11401R | Holder Assy, Crankshaft Sensor |
| 11401S | Connector, Pcv Hose |
| 11416 | Bolt(FOR CRANKSHAFT BEARING CAP SET) |
| 11431A | Plug, Tight, NO.1(FOR CYLINDER BLOCK) |
| 11434B | Pin, Straight(FOR CLUTCH HOUSING SET) |
| 11434C | Pin, Straight (FOR CYLINDER HEAD SET) |
| 11444 | Plug, Hole |
| 11452 | Guide, Oil Level Gage |
| 11452B | Ring, O(FOR OIL LEVEL GAGE GUIDE) |

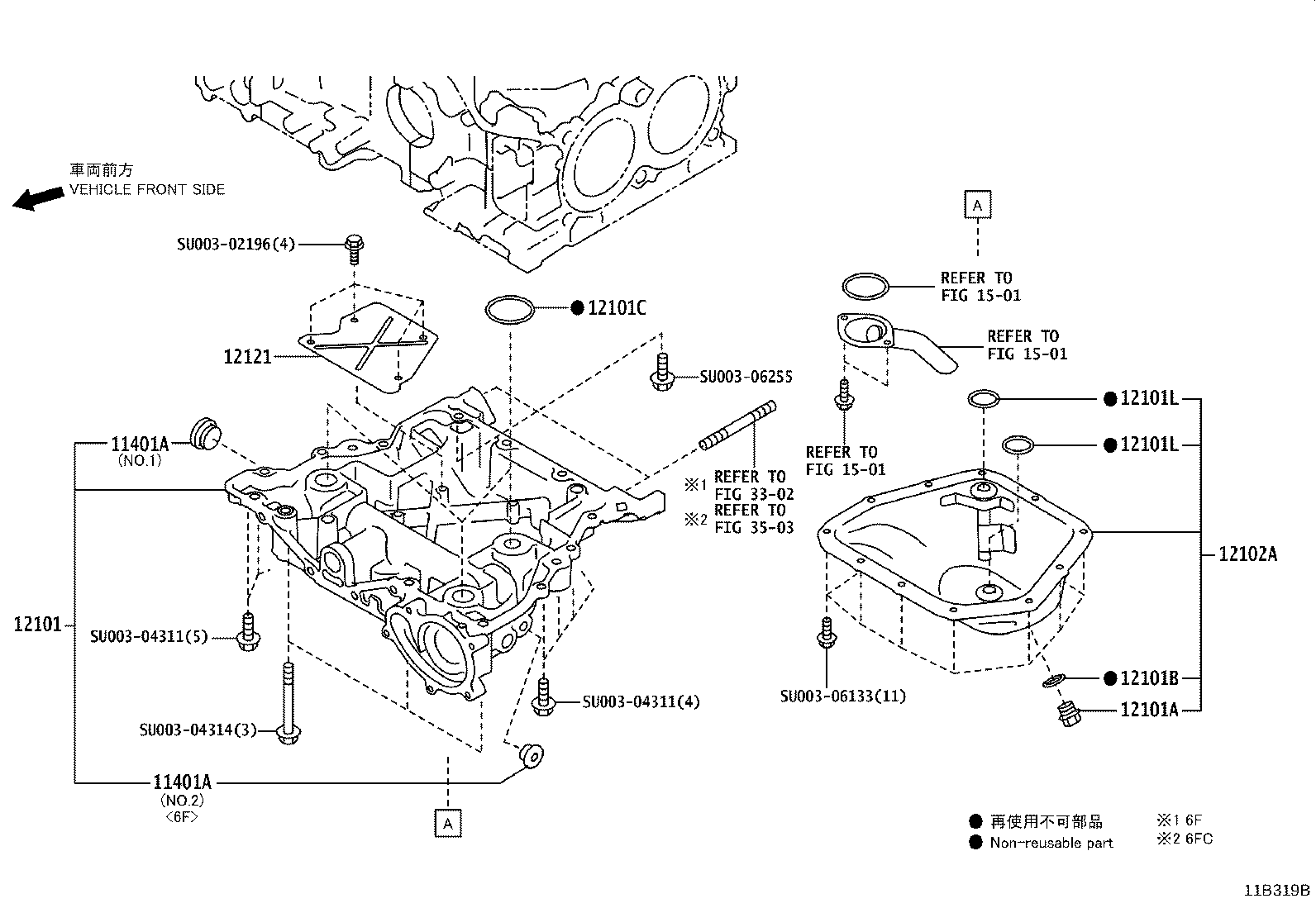

| 12101 | Pan Sub-assy, Oil |
| 12101A | Plug(FOR OIL PAN DRAIN) |
| 12101B | Gasket(FOR OIL PAN DRAIN PLUG) |
| 12101C | Ring, O(FOR OIL PAN) |
| 12101L | Gasket NO.1(FOR OIL PAN) |
| 12102A | Pan Sub-assy, Oil, NO.2 |
| 12121 | Plate, Oil Pan Baffle, NO.1 |
| 12270H | Cover, Oil Separator |

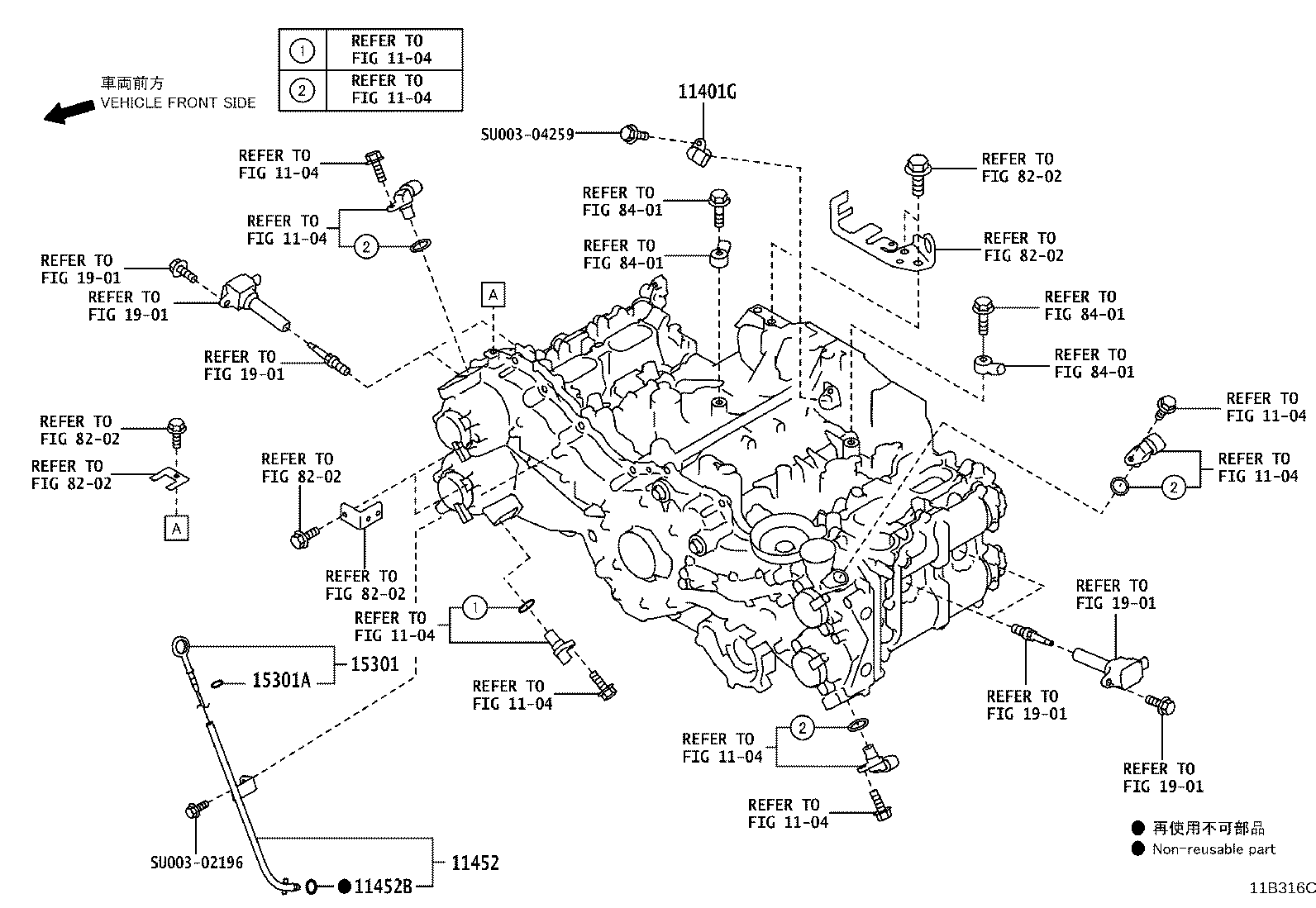

| 15301 | Gage Sub-assy, Oil Level |
| 15301A | Ring, O(FOR OIL LEVEL GAGE) |
