Toyota 86
2016-08 → present · chassis ZN6 · catalogue 264220 · Europe
Supported model
Data version 2019-04
Crankshaft & Piston
21 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 11702 | Bearing Set, Crankshaft |
| 11711 | Bearing, Crankshaft |
| 13011 | Ring Set, Piston |
| 13041 | Bearing, Connecting Rod |
| 13101 | Piston Sub-assy, W/Pin |
| 13101A | Ring, Hole Snap(FOR PISTON PIN) |
| 13201 | Rod Sub-assy, Connecting |
| 13201A | Bush(FOR CONNECTING ROD SMALL END) |
| 13265 | Bolt, Connecting Rod |
| 13301 | Piston Sub-assy, W/Pin, LH |

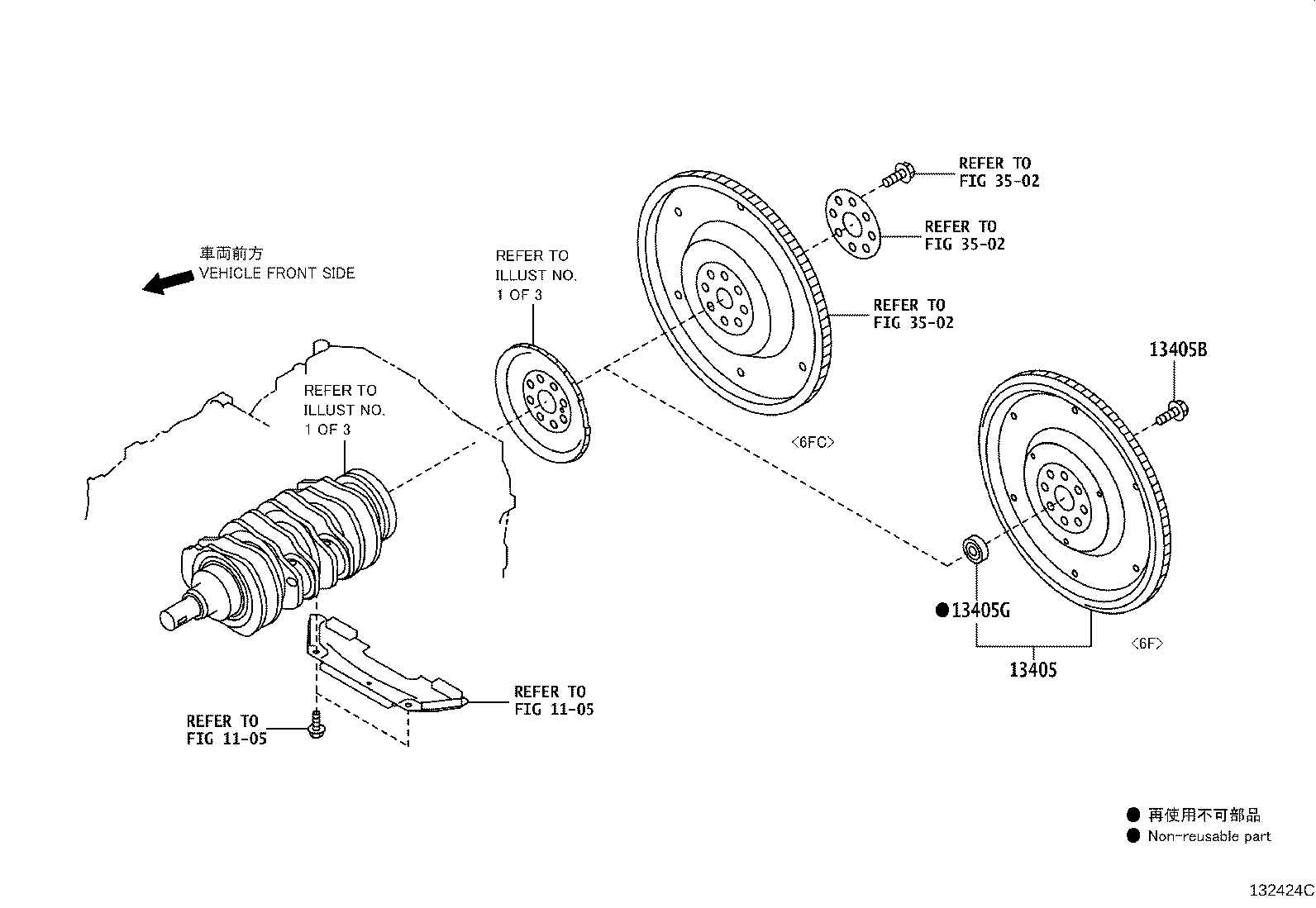

| 13405 | Flywheel Sub-assy |
| 13405B | Bolt, Flywheel Setting |
| 13405G | Bearing, Flyeel |
| 13411 | Crankshaft |
| 13471 | Pulley, Crankshaft |
| 13471C | Bolt(FOR CRANKSHAFT PULLEY SET) |
| 13471G | Ring, O(FOR CRANKSHAFT PULLEY) |
| 13471P | Spacer(FOR CRANKSHAFT PULLEY) |
| 13521 | Gear OR Sprocket, Crankshaft Timing |
| 13521A | Key(FOR CRANKSHAFT TIMING GEAR) |
| 19315 | Plate, Crank Angle Sensor, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
