Toyota 86

2016-08 → present · chassis ZN6 · catalogue 264220 · Europe

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

11 part groups · 3 illustrations

Illustrations

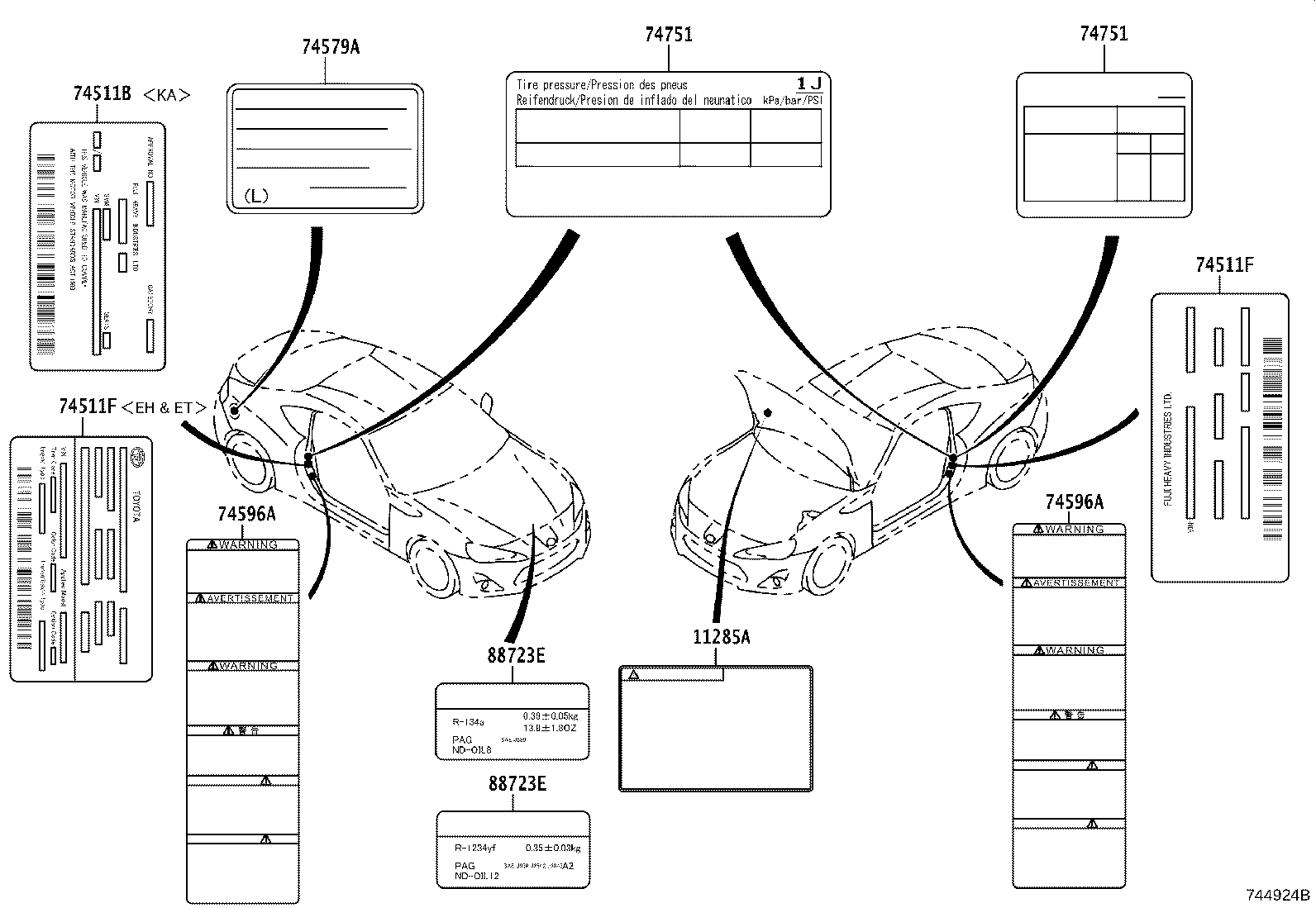

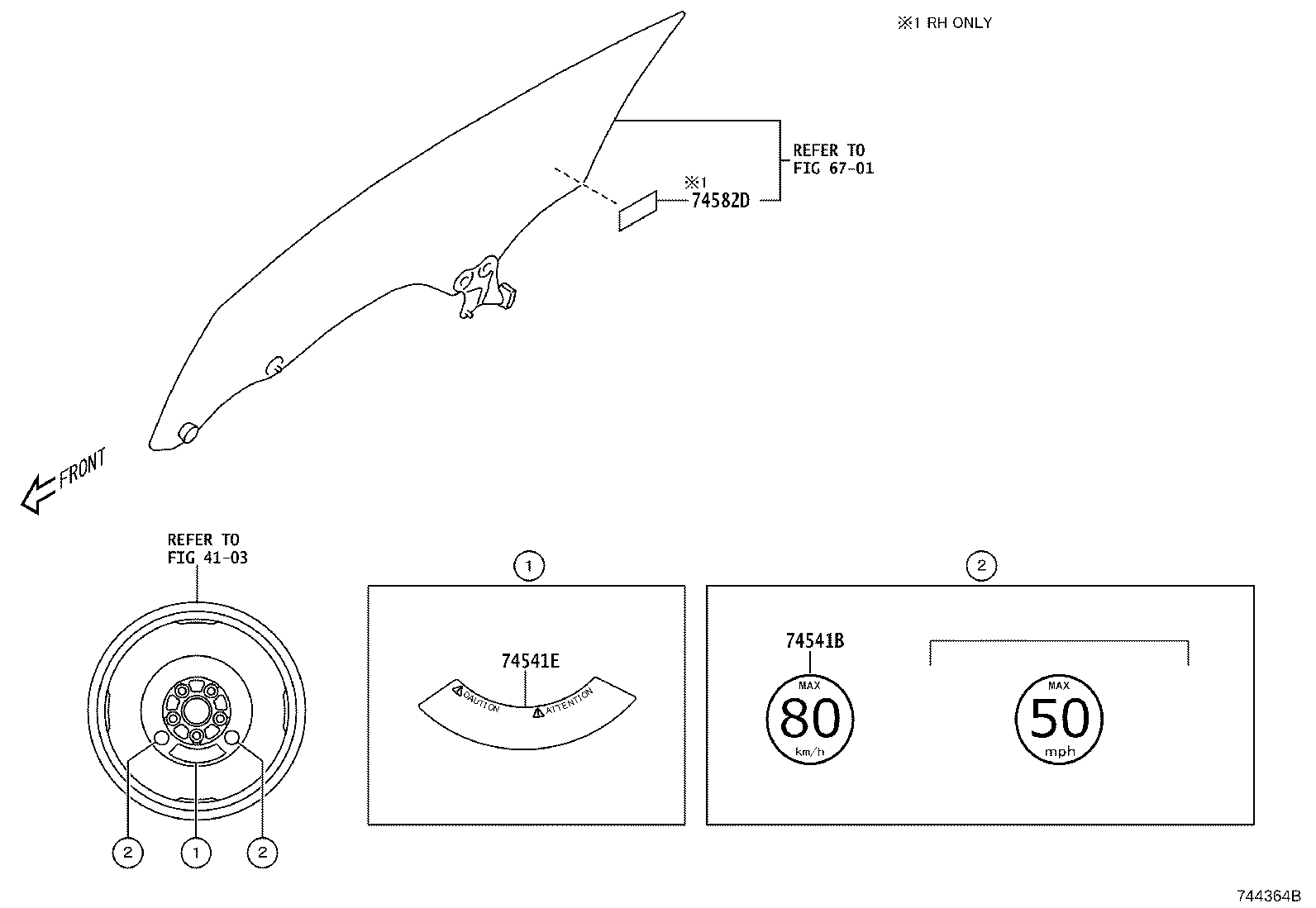

Figure 745901 745901 2016-08 → — Figure 744924B 744924B 2016-08 → — Figure 744364B 744364B 2016-08 → —

Part groups

PNCDescription
11285A Label, Coolant System Notice
16793B Label, Cooling Fan Information
74511B Plate, Name
74511F Label, Name (IDENTIFICATION LASER LABEL)
74541B Plate, Compact Spare Tire Caution
74541E Plate, Compact Spare Tire Caution
74579A Label, Unleaded Fuel Information
74582D Label, Safety Caution
74596A Label, Side Airbag Caution
74751 Label, Tire Pressure Information
88723E Label, Cooler Service Caution
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
