Toyota 86

2016-08 → present · chassis ZN6 · catalogue 264220 · Europe

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

14 part groups · 21 illustrations

Illustrations

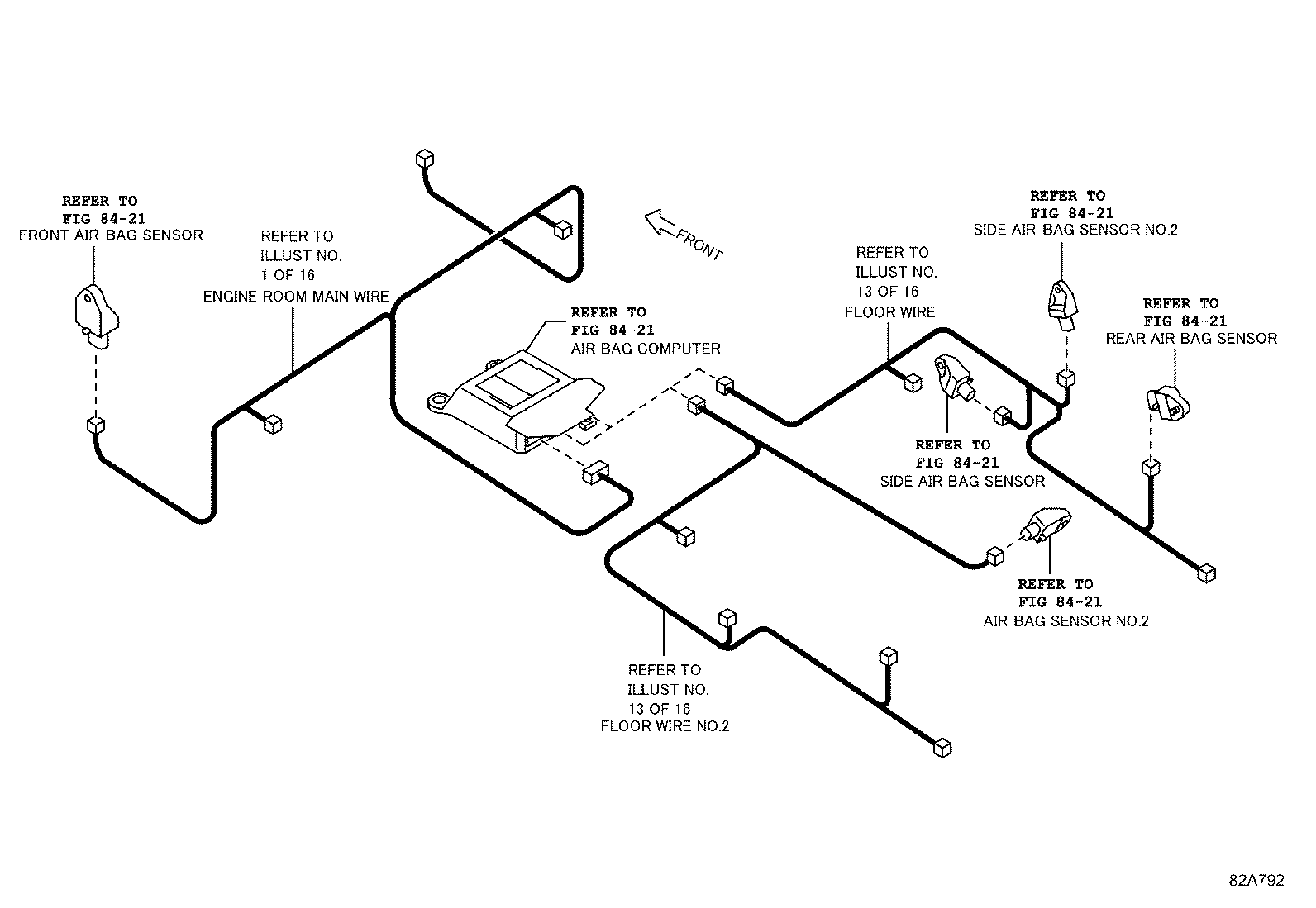

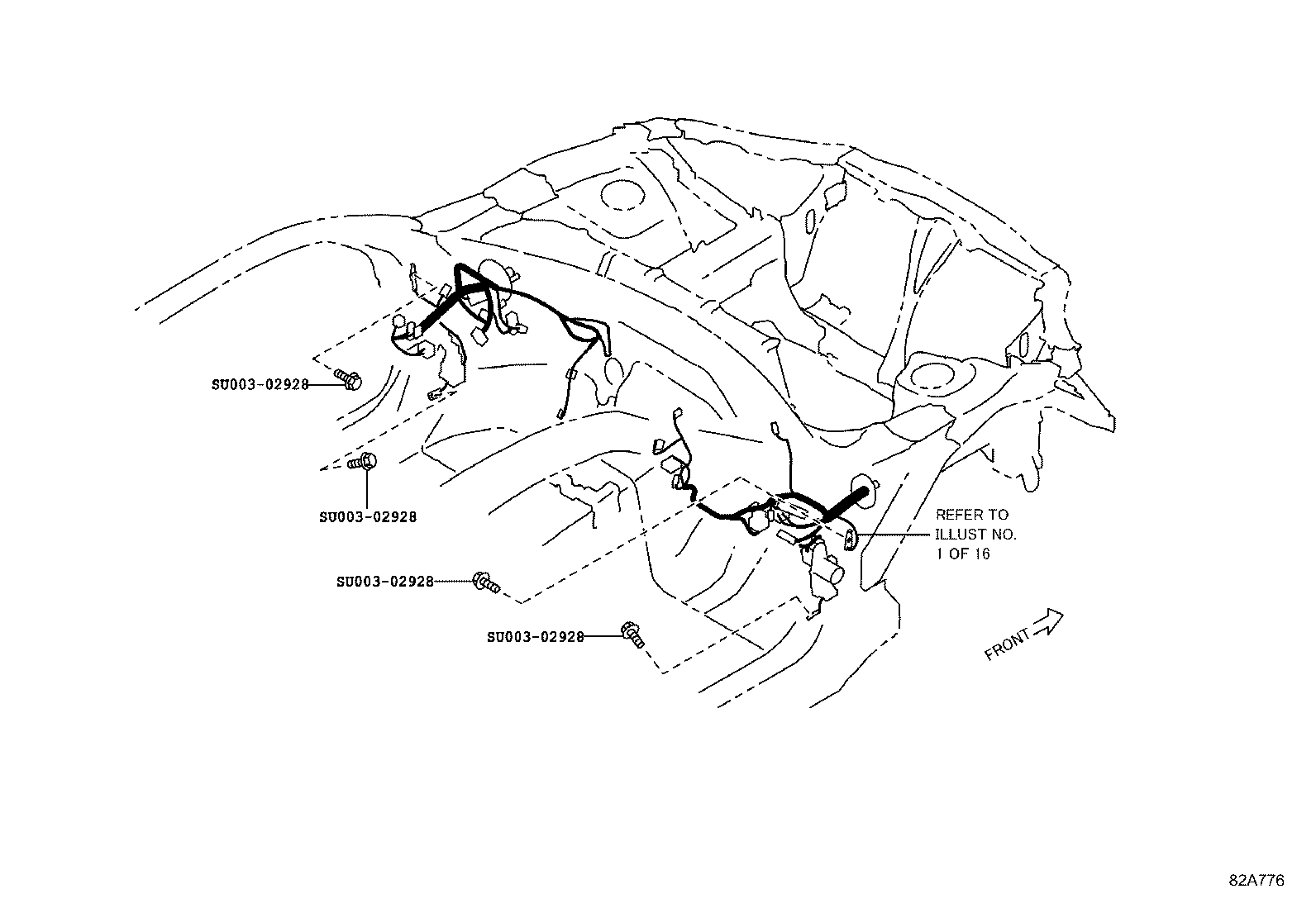

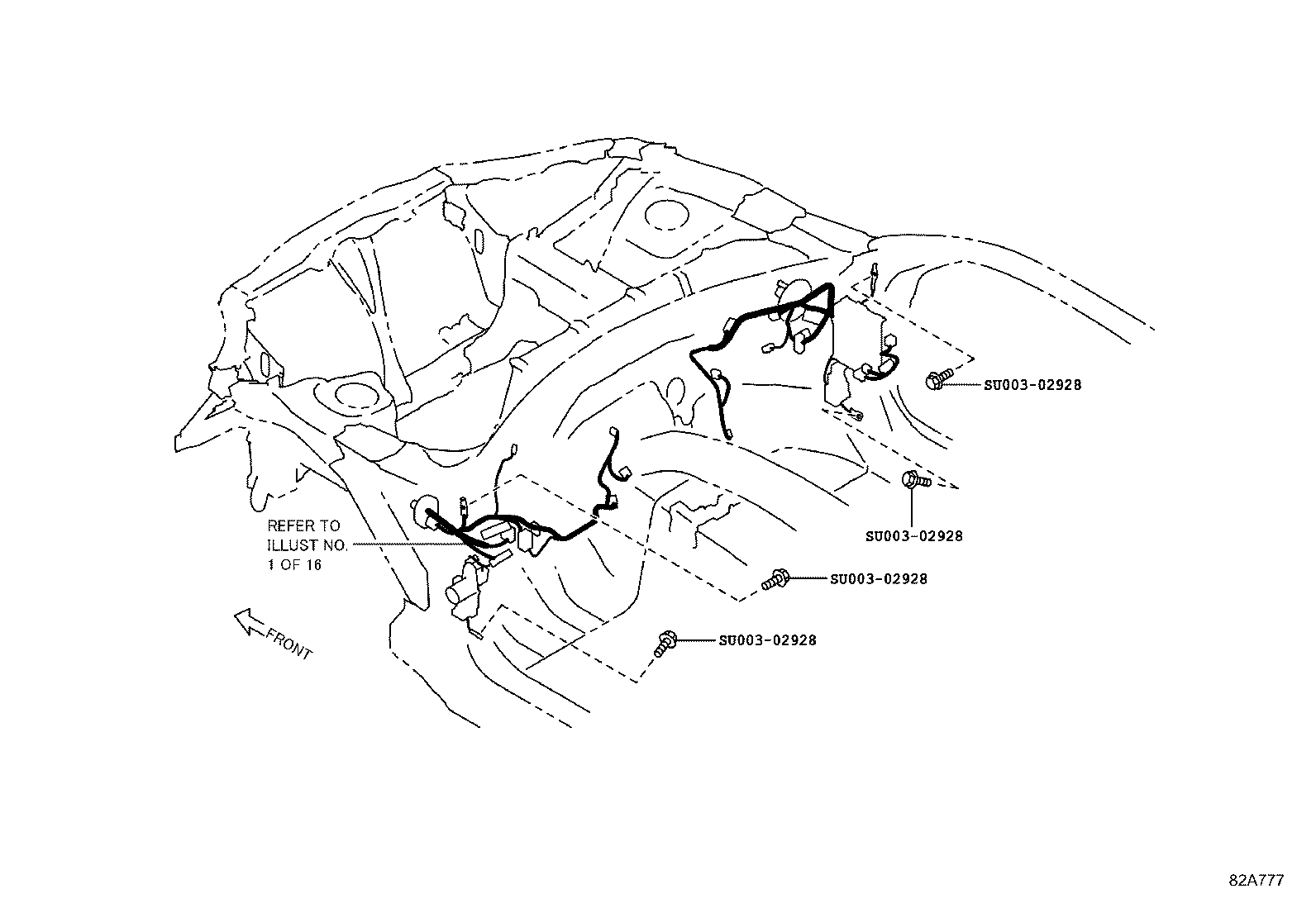

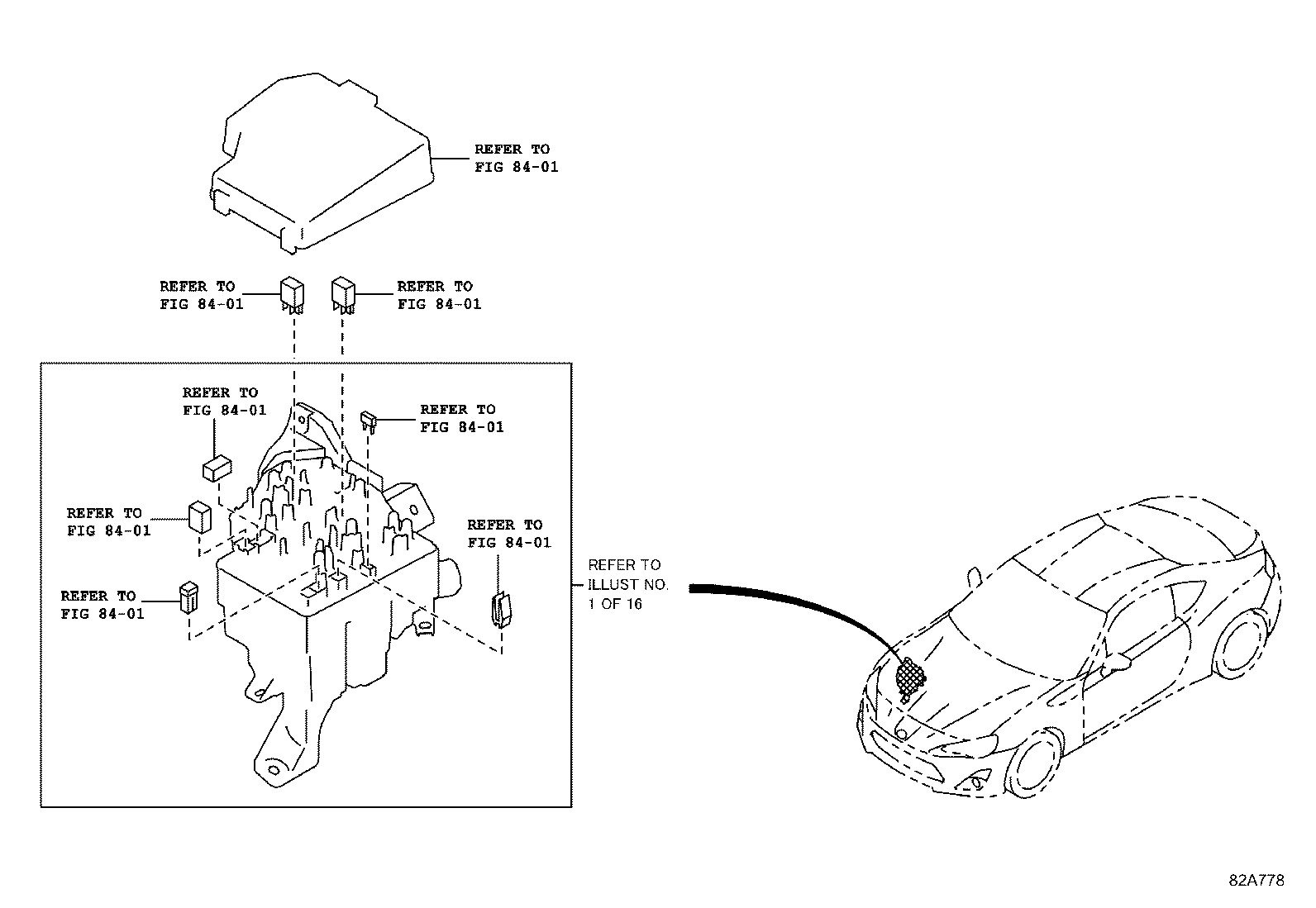

Figure 82A774 82A774 2016-08 → — Figure 82A775 82A775 2016-08 → — Figure 82A776 82A776 2016-08 → — Figure 82A777 82A777 2016-08 → — Figure 82A778 82A778 2016-08 → — Figure 82A779 82A779 2016-08 → — Figure 82A780A 82A780A 2016-08 → — Figure 82A836 82A836 2016-08 → — Figure 82A781 82A781 2016-08 → — Figure 82A782 82A782 2016-08 → — Figure 82A783 82A783 2016-08 → — Figure 82A784 82A784 2016-08 → — Figure 82A785 82A785 2016-08 → — Figure 82A786 82A786 2016-08 → — Figure 82A787 82A787 2016-08 → — Figure 82A788 82A788 2016-08 → — Figure 82A789 82A789 2016-08 → — Figure 82A790 82A790 2016-08 → — Figure 82A791 82A791 2016-08 → — Figure 82A792 82A792 2016-08 → — Figure 82A793 82A793 2016-08 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82001C Cable, Bond, NO.2

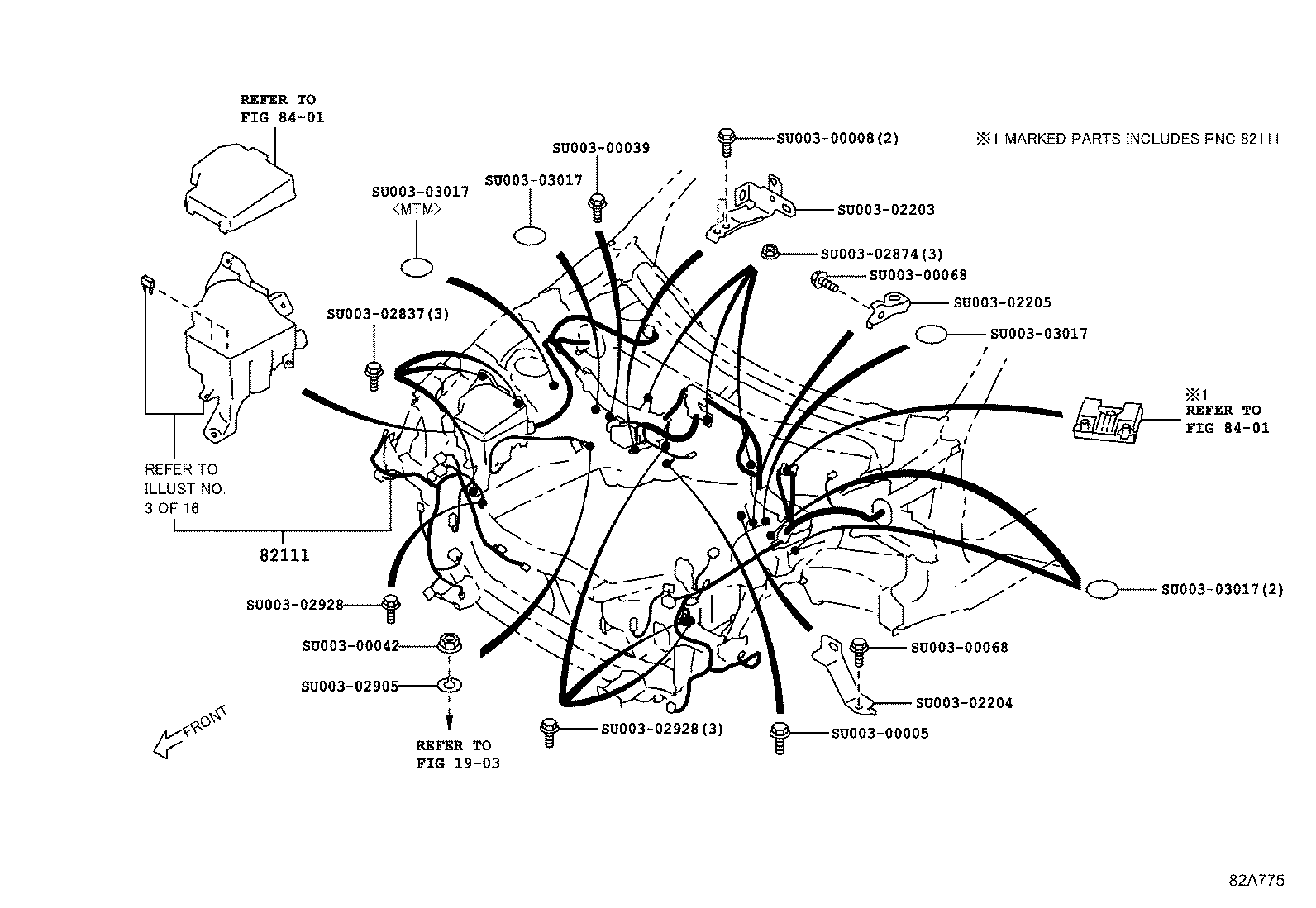

82111 Wire, Engine Room Main

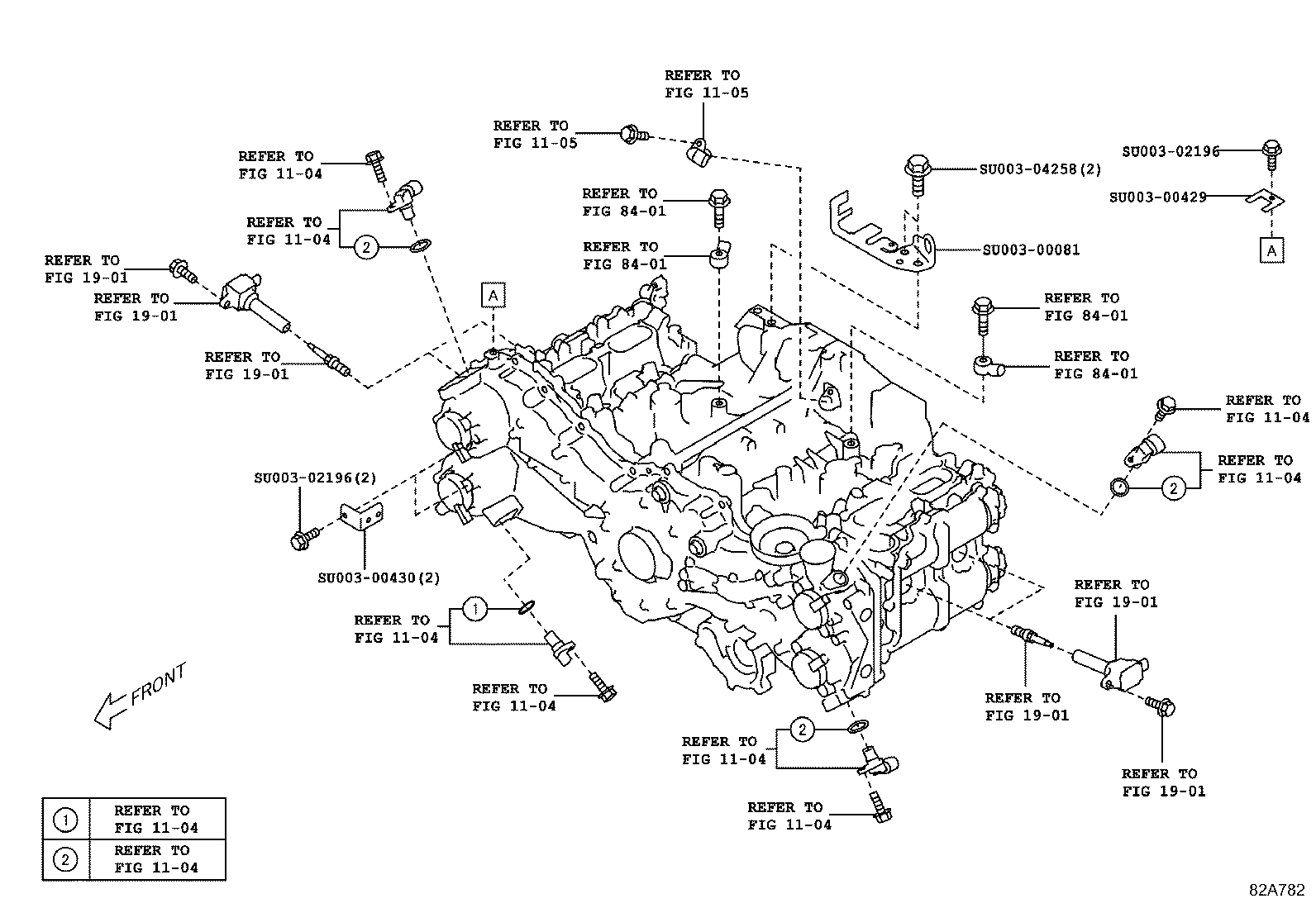

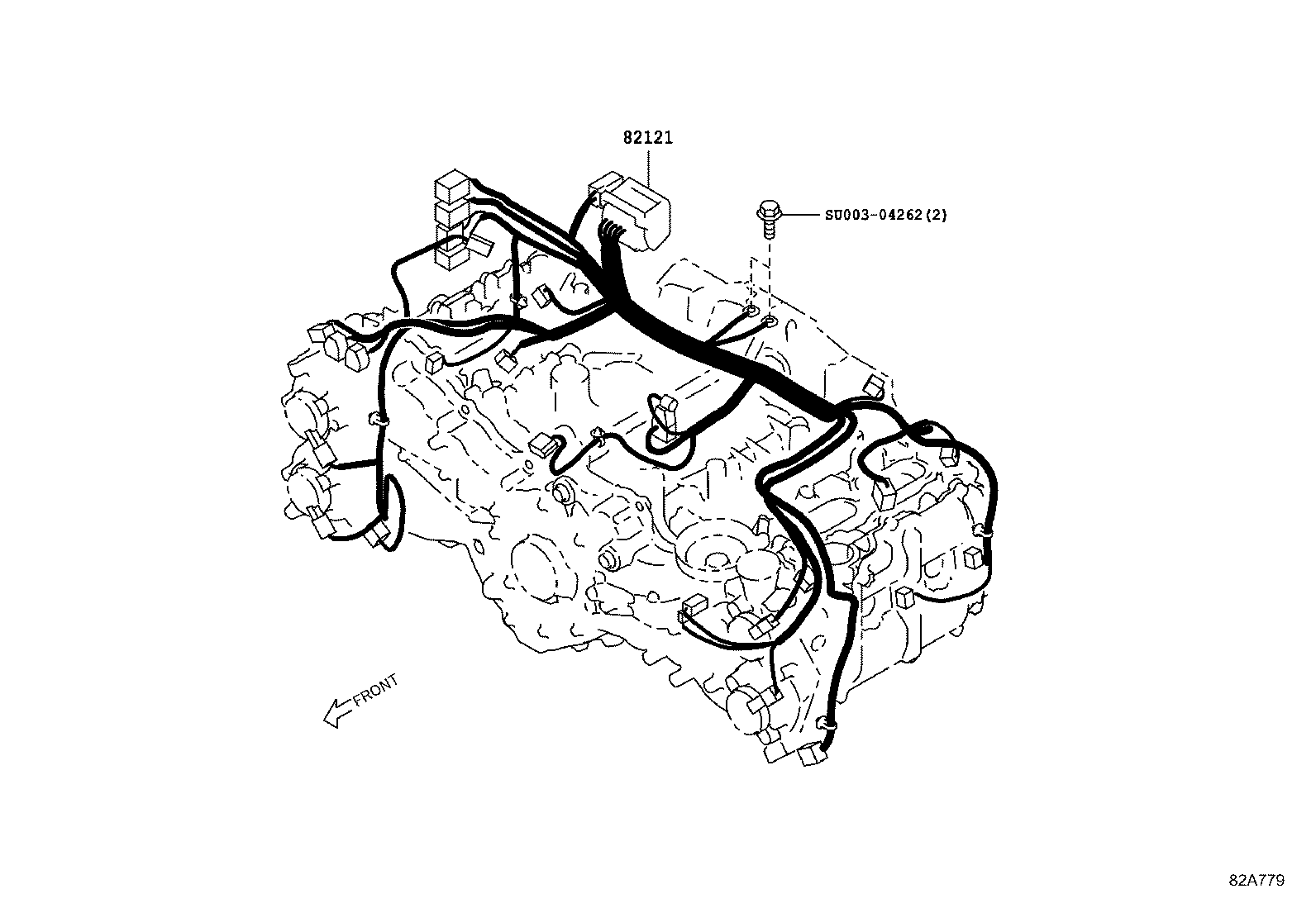

82121 Wire, Engine

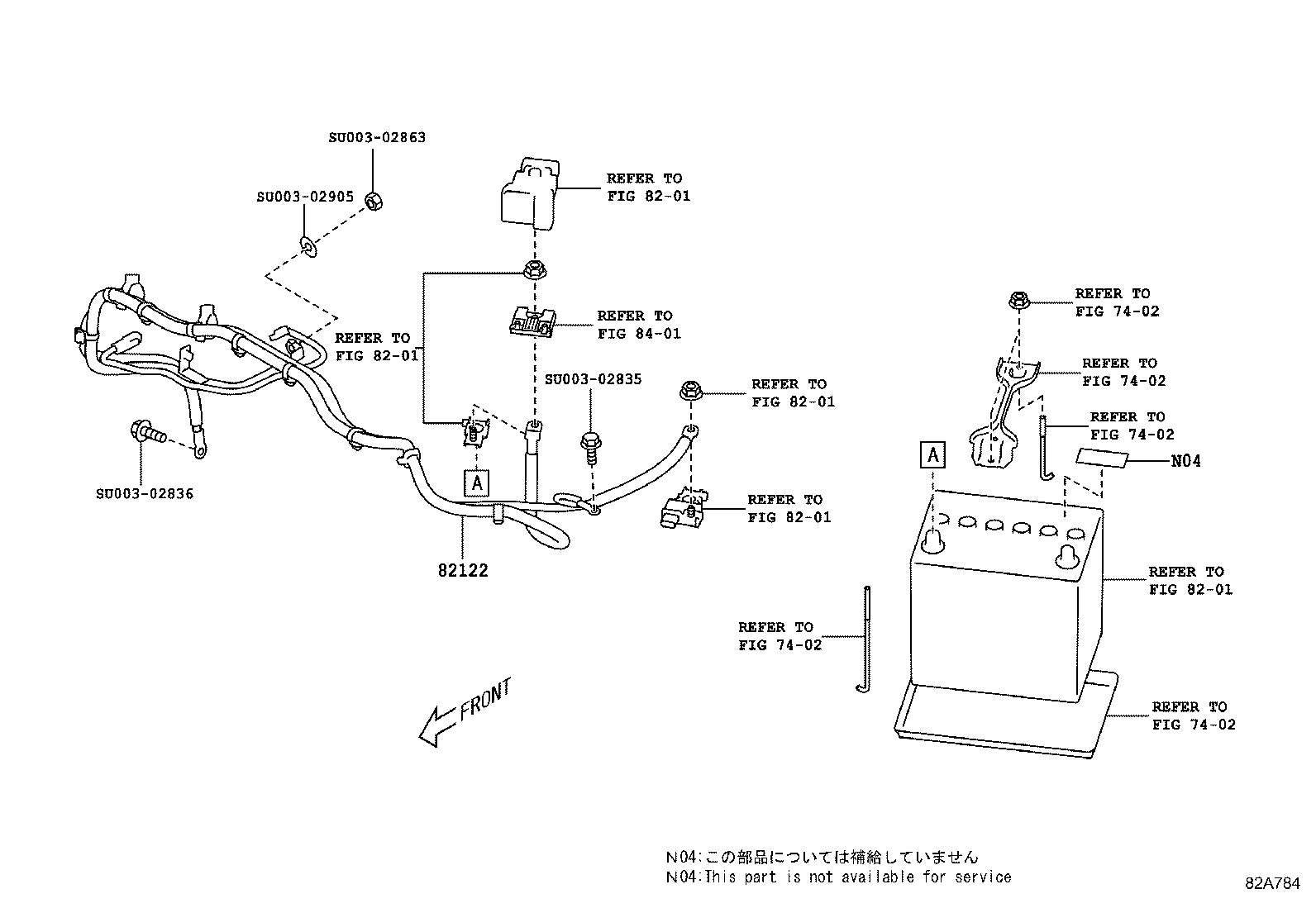

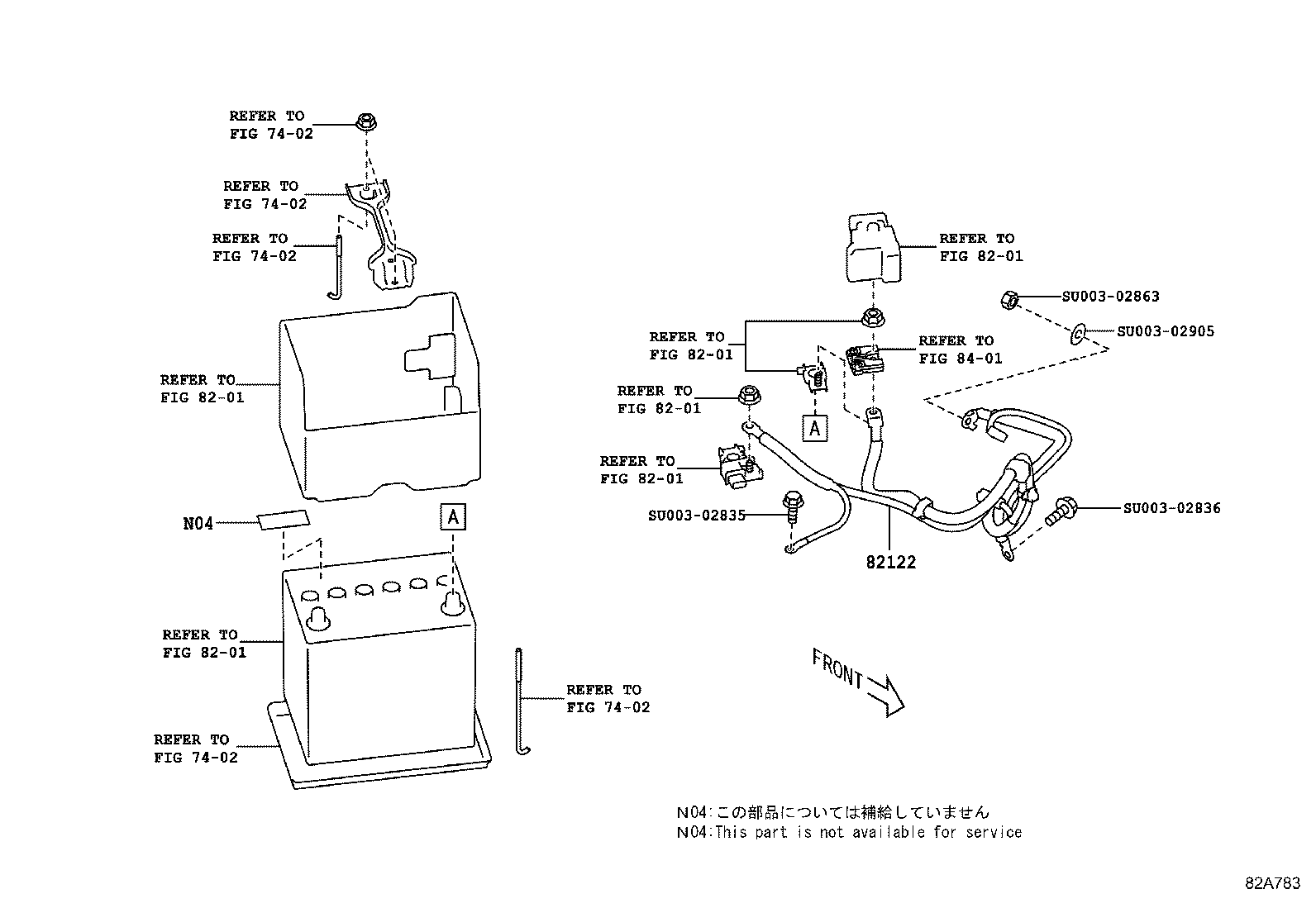

82122 Wire, Engine, NO.2

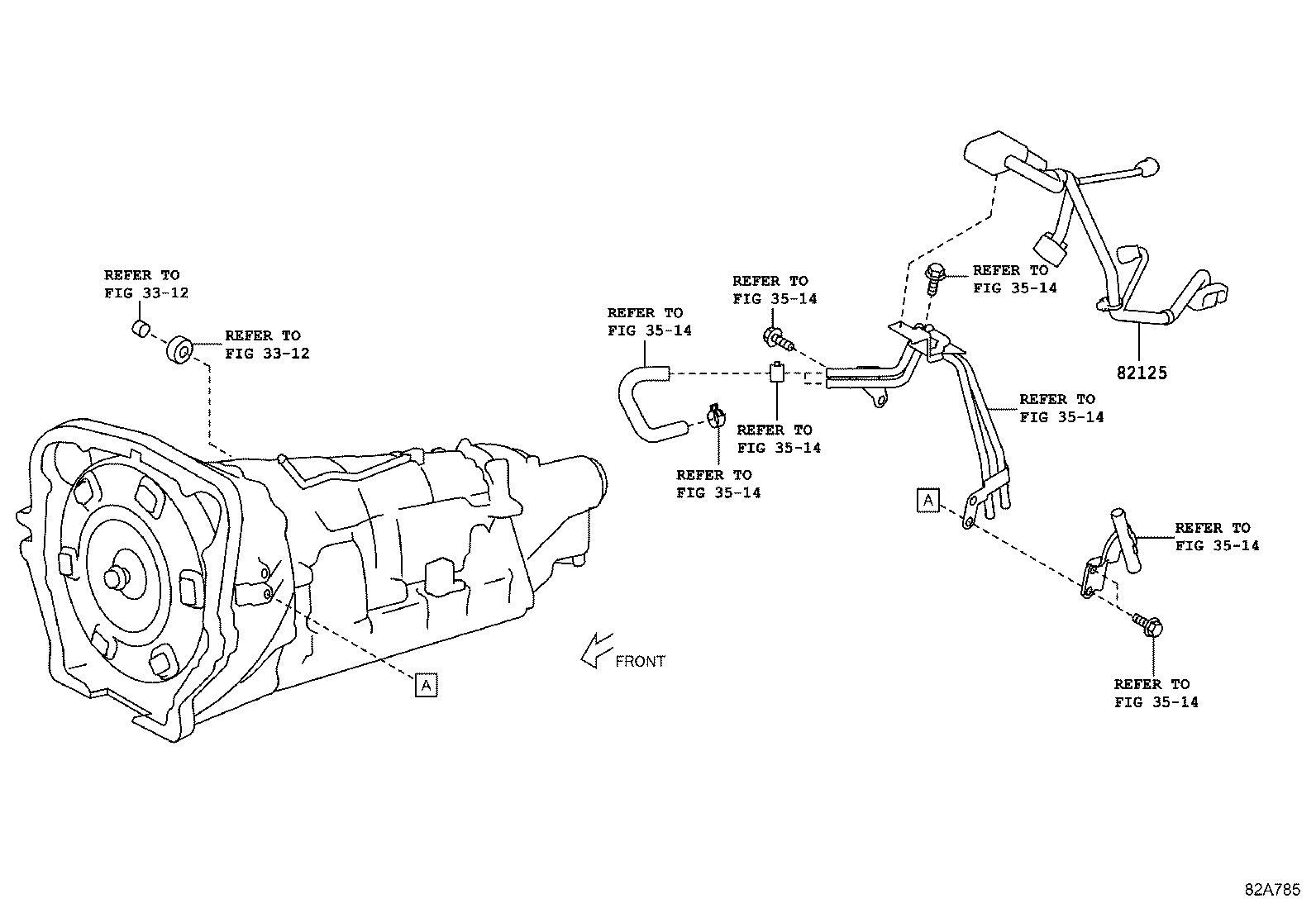

82125 Wire, Transmission

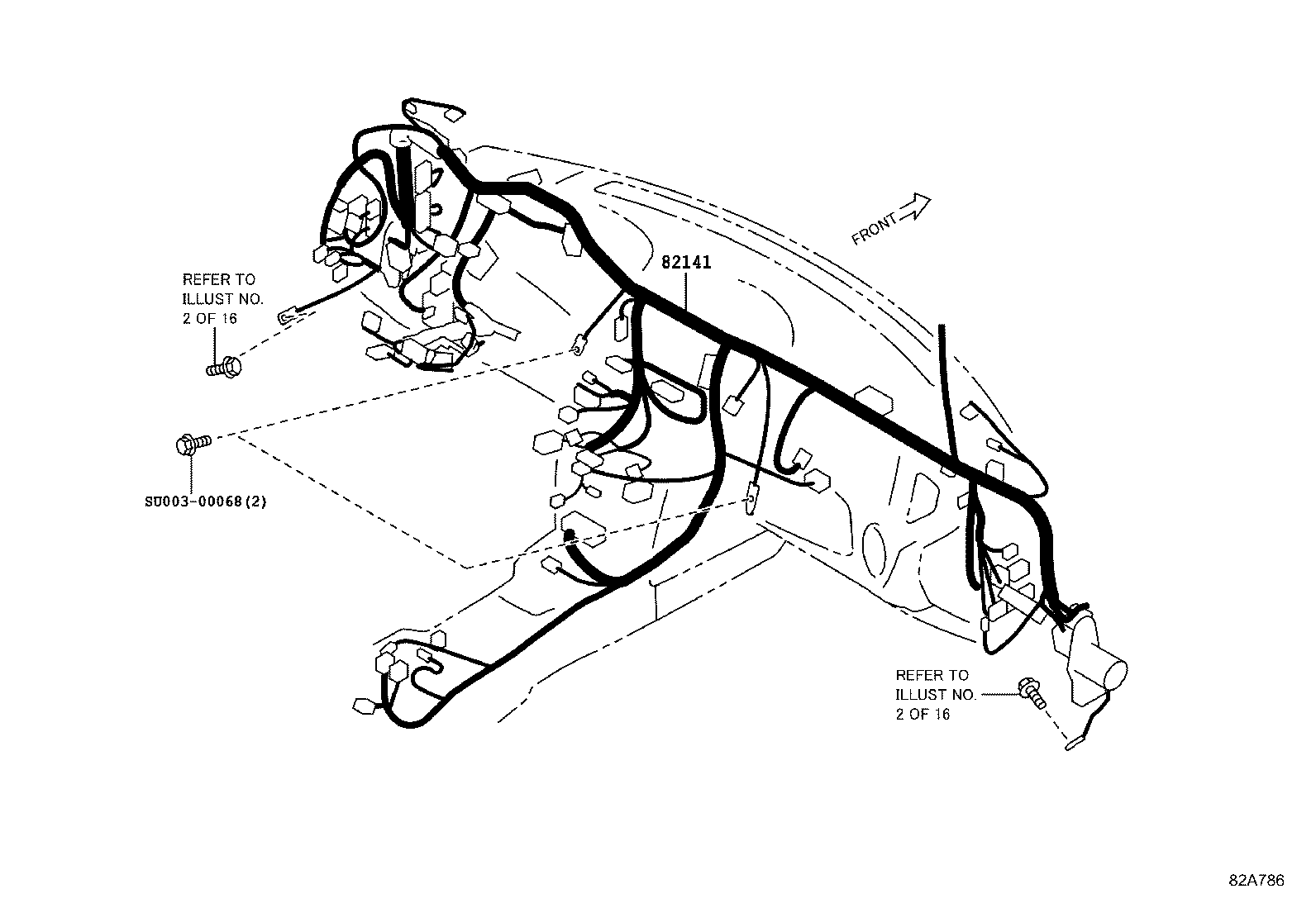

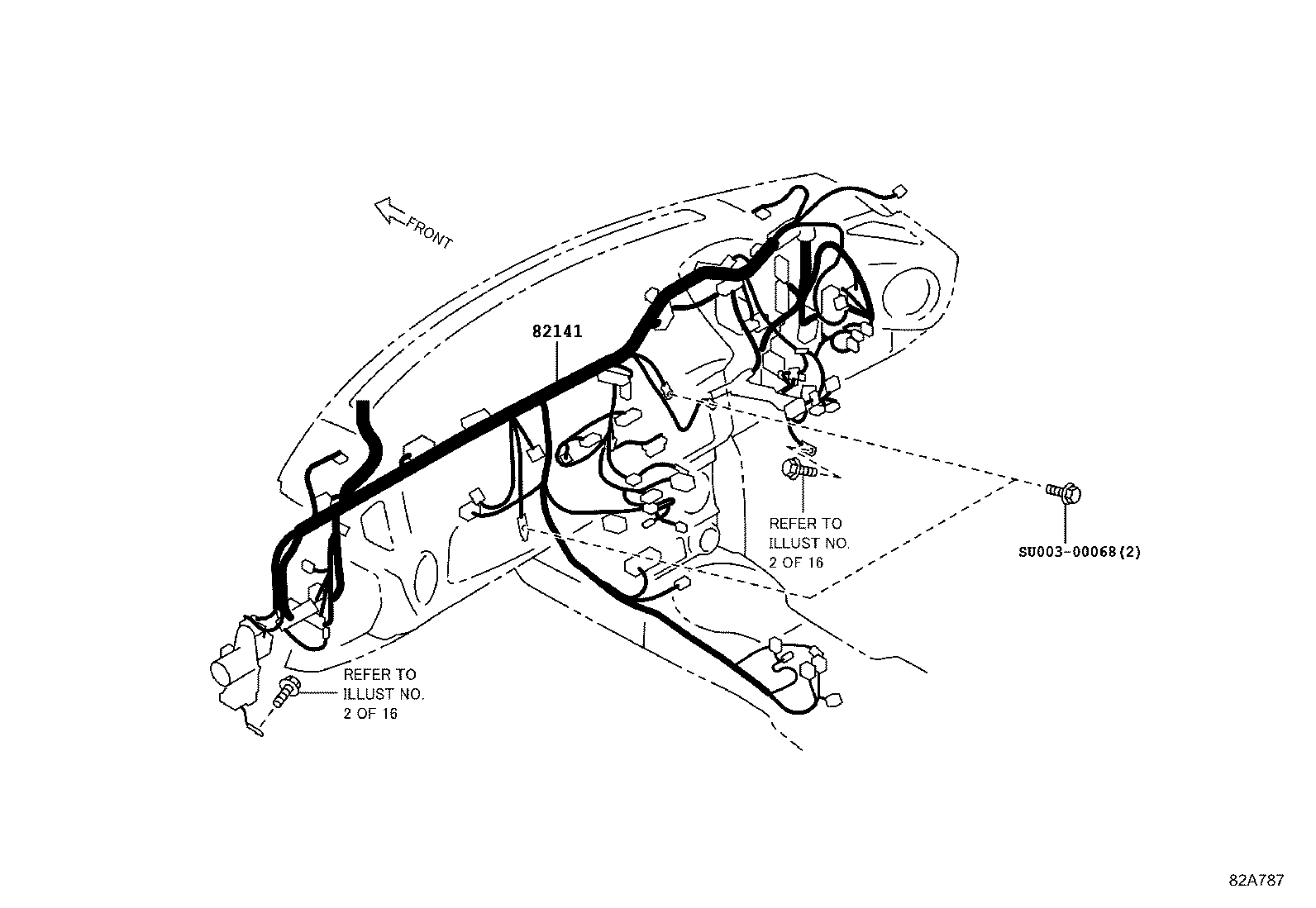

82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH

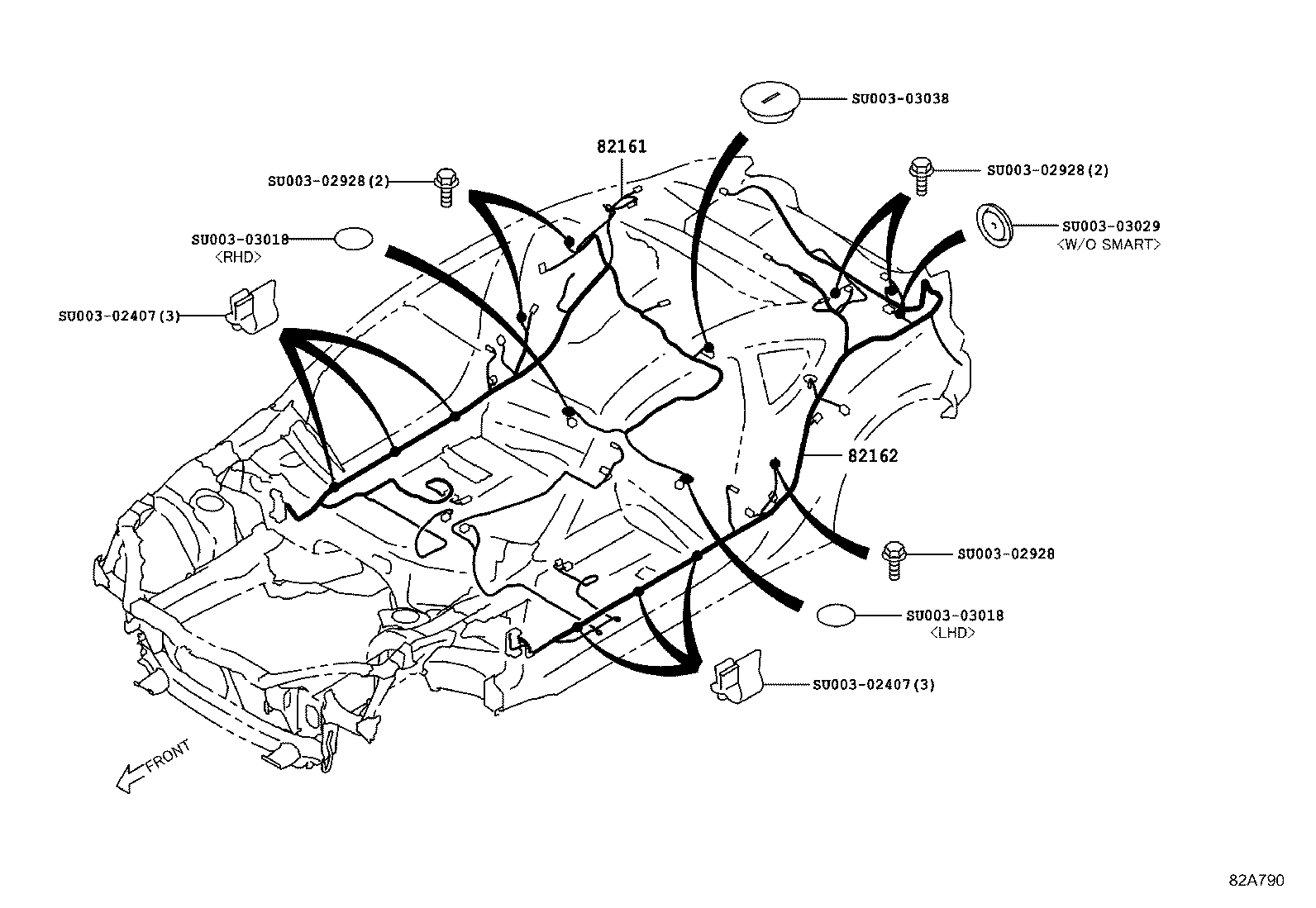

82161 Wire, Floor
82162 Wire, Floor, NO.2

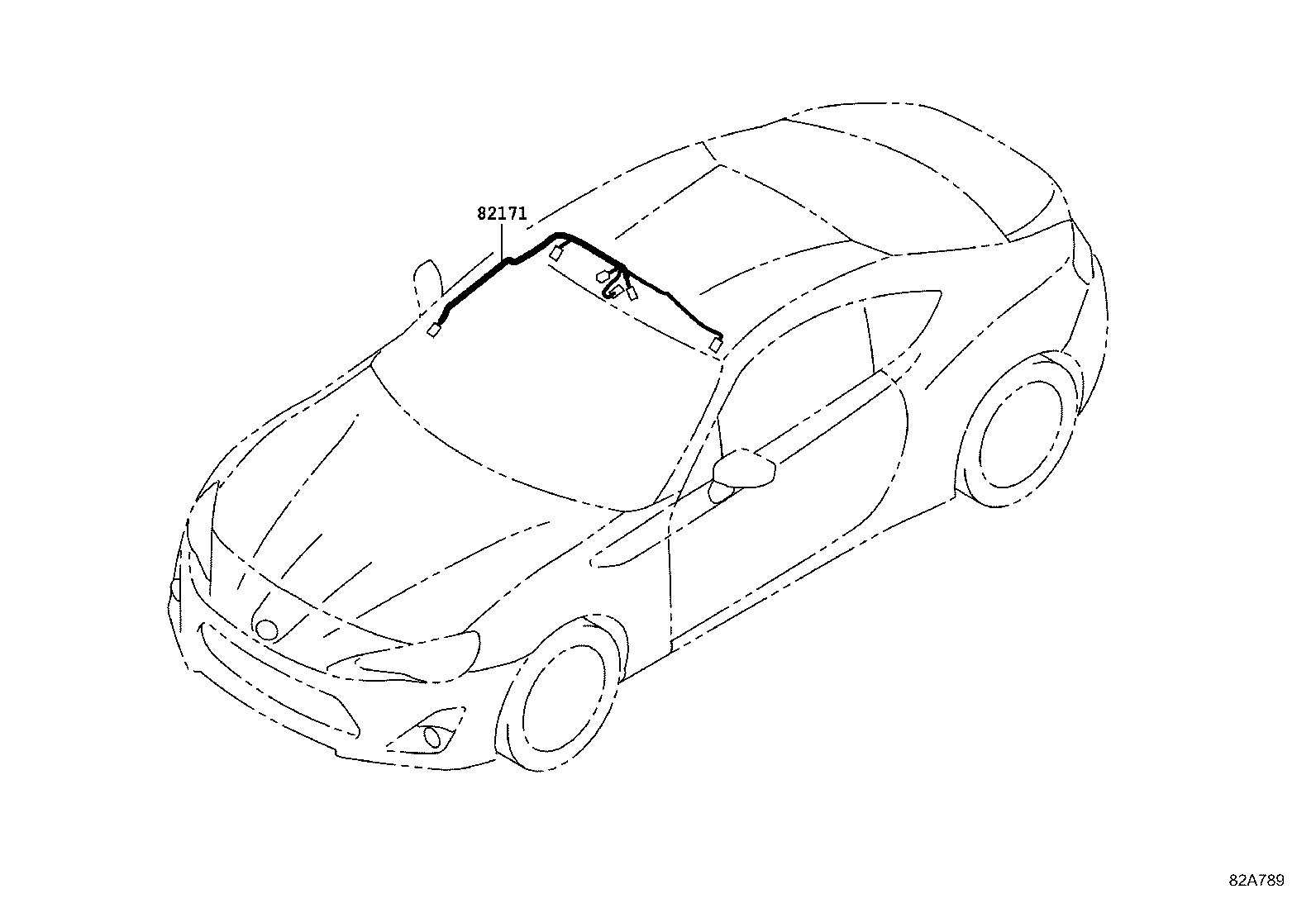

82171 Wire, Roof, NO.1

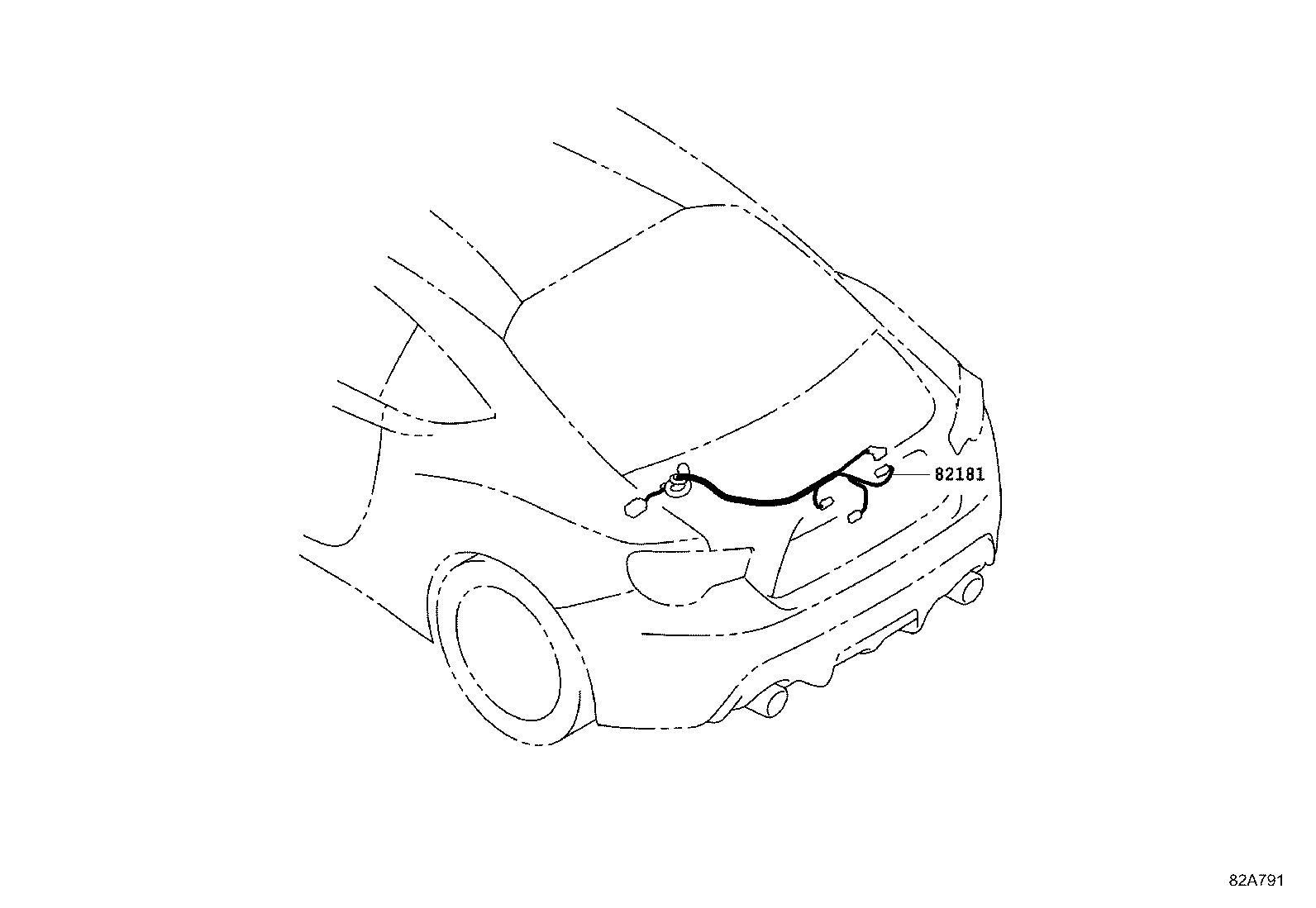

82181 Wire, Luggage Room, NO.1

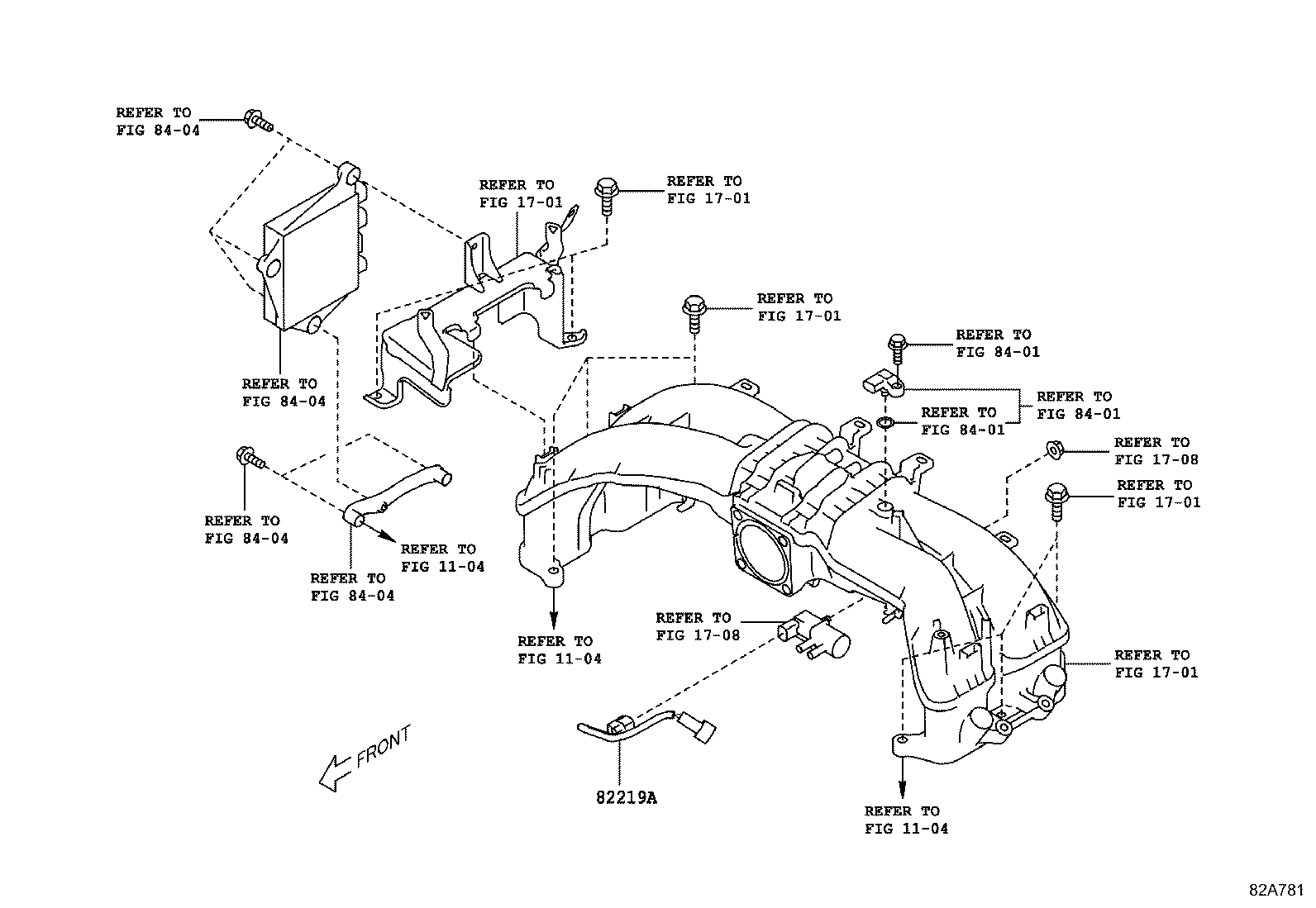

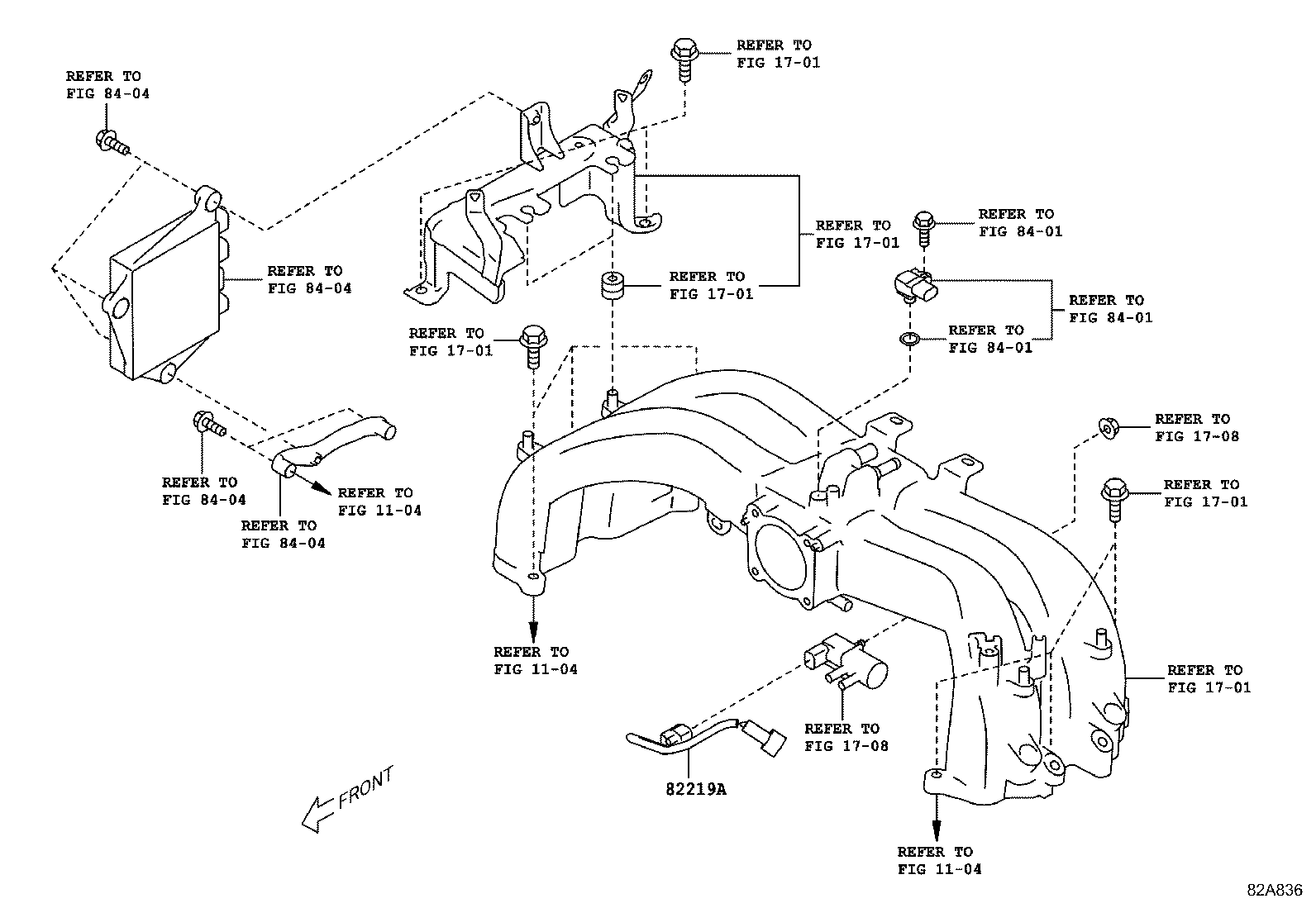

82219A Wire, Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
