Toyota 86

2016-08 → present · chassis ZN6 · catalogue 264220 · Europe

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

62 part groups · 20 illustrations

Illustrations

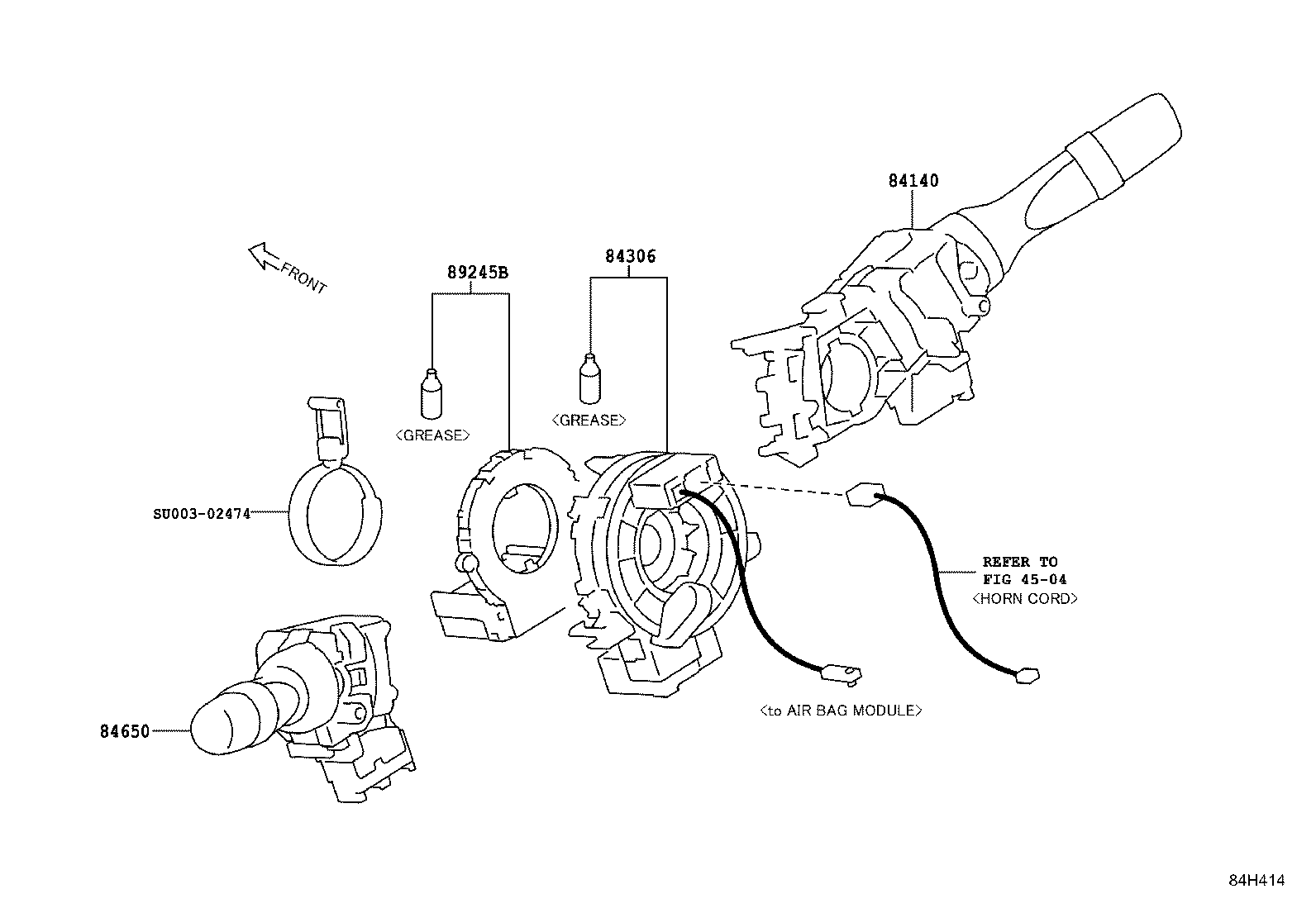

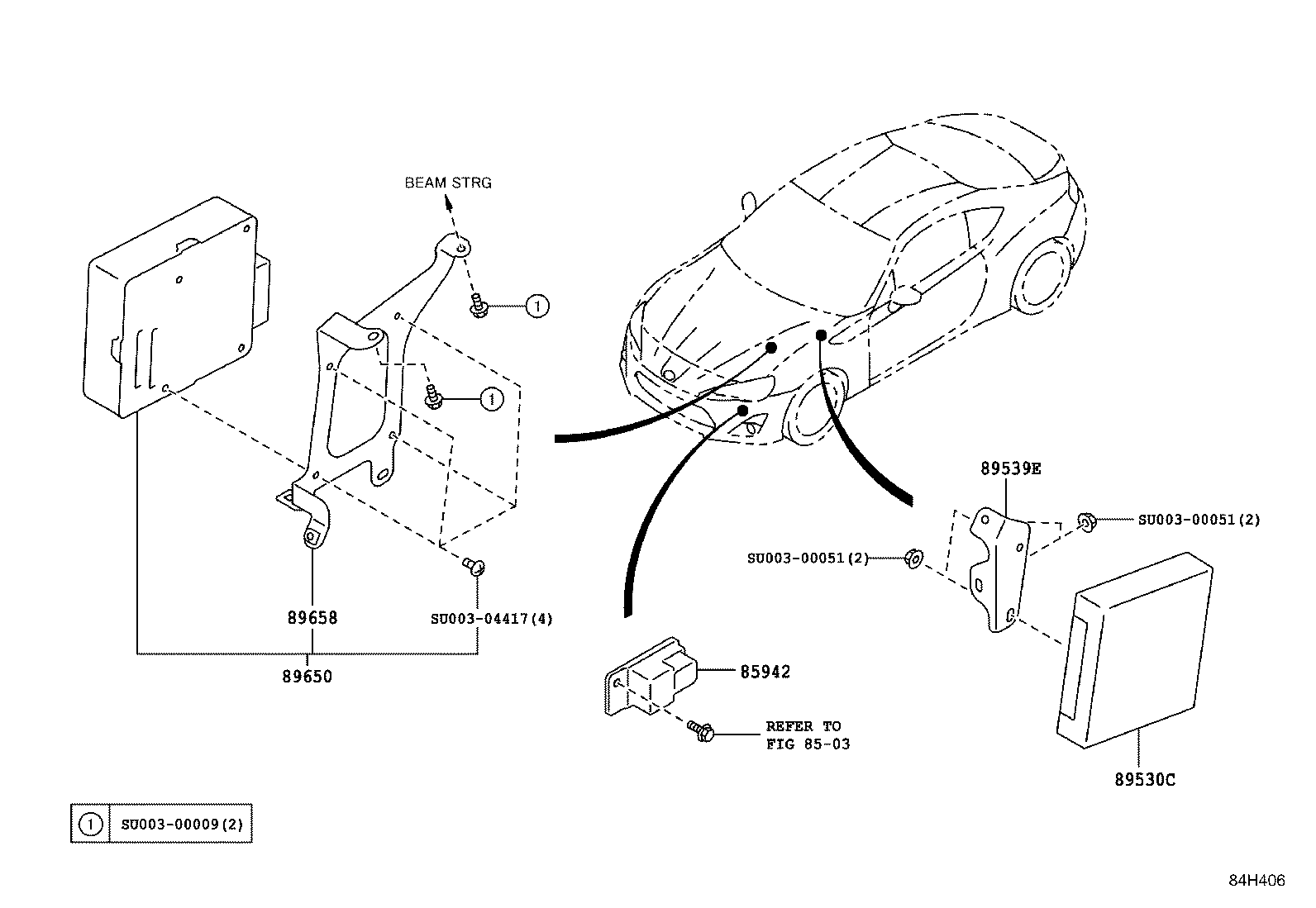

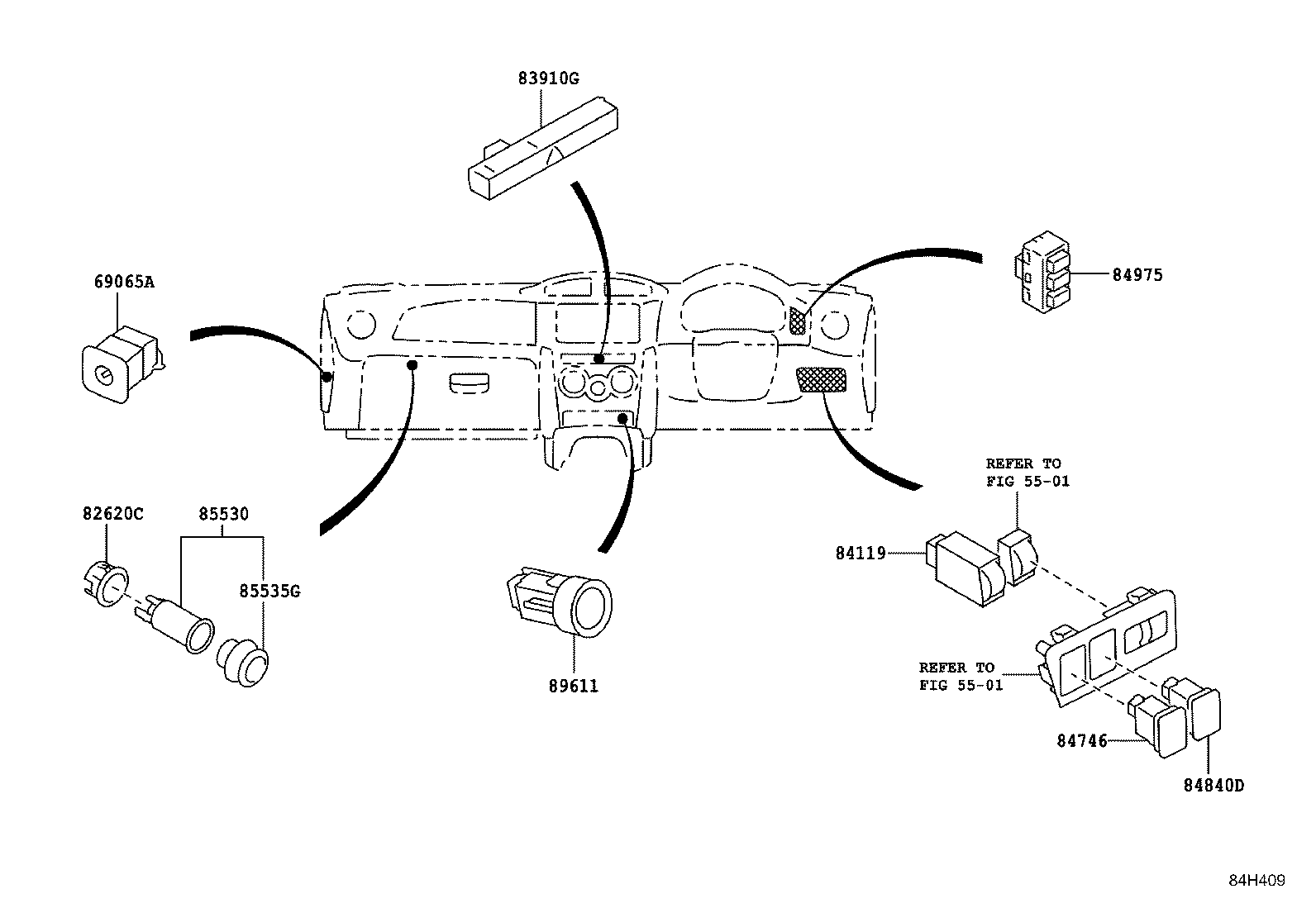

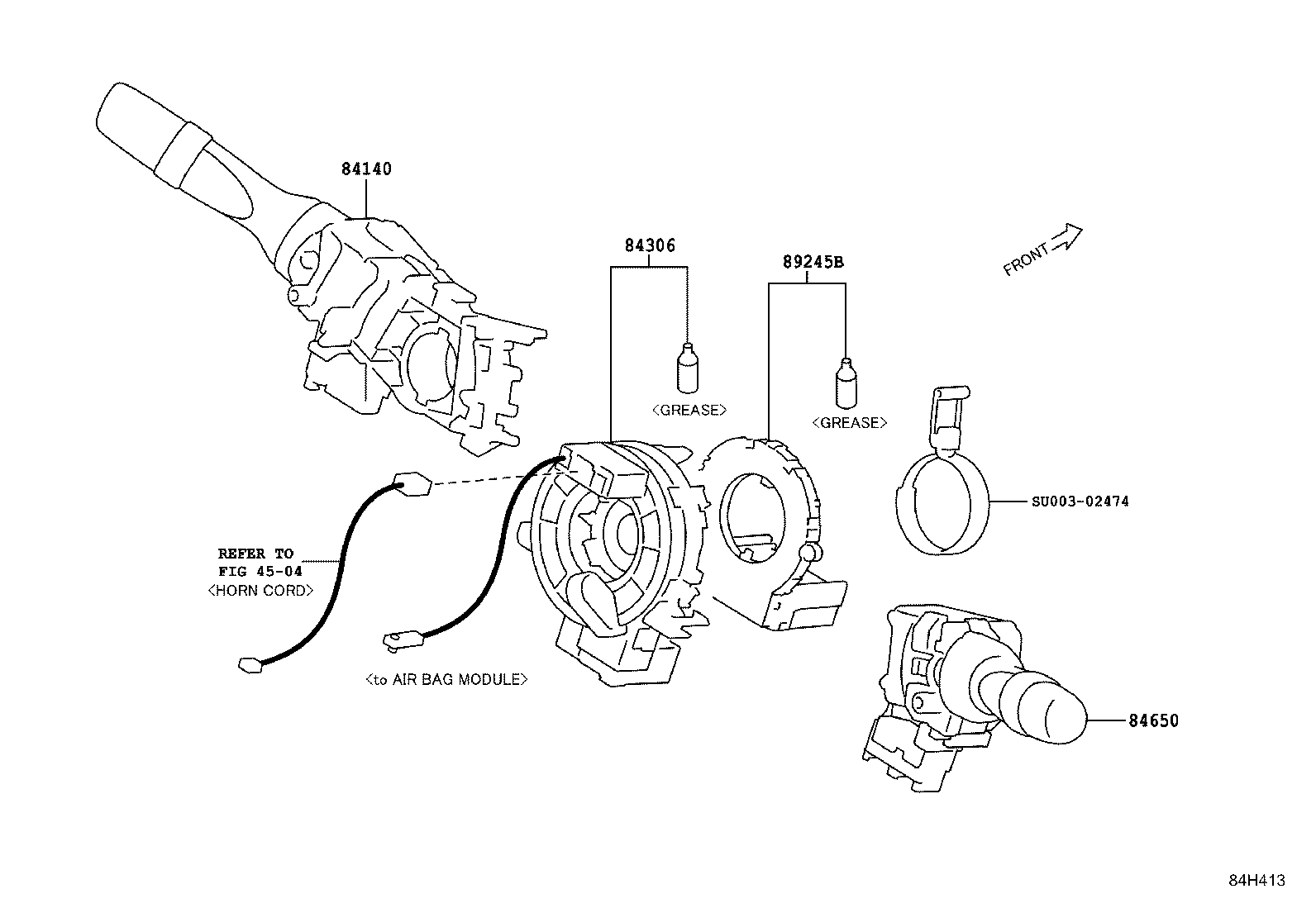

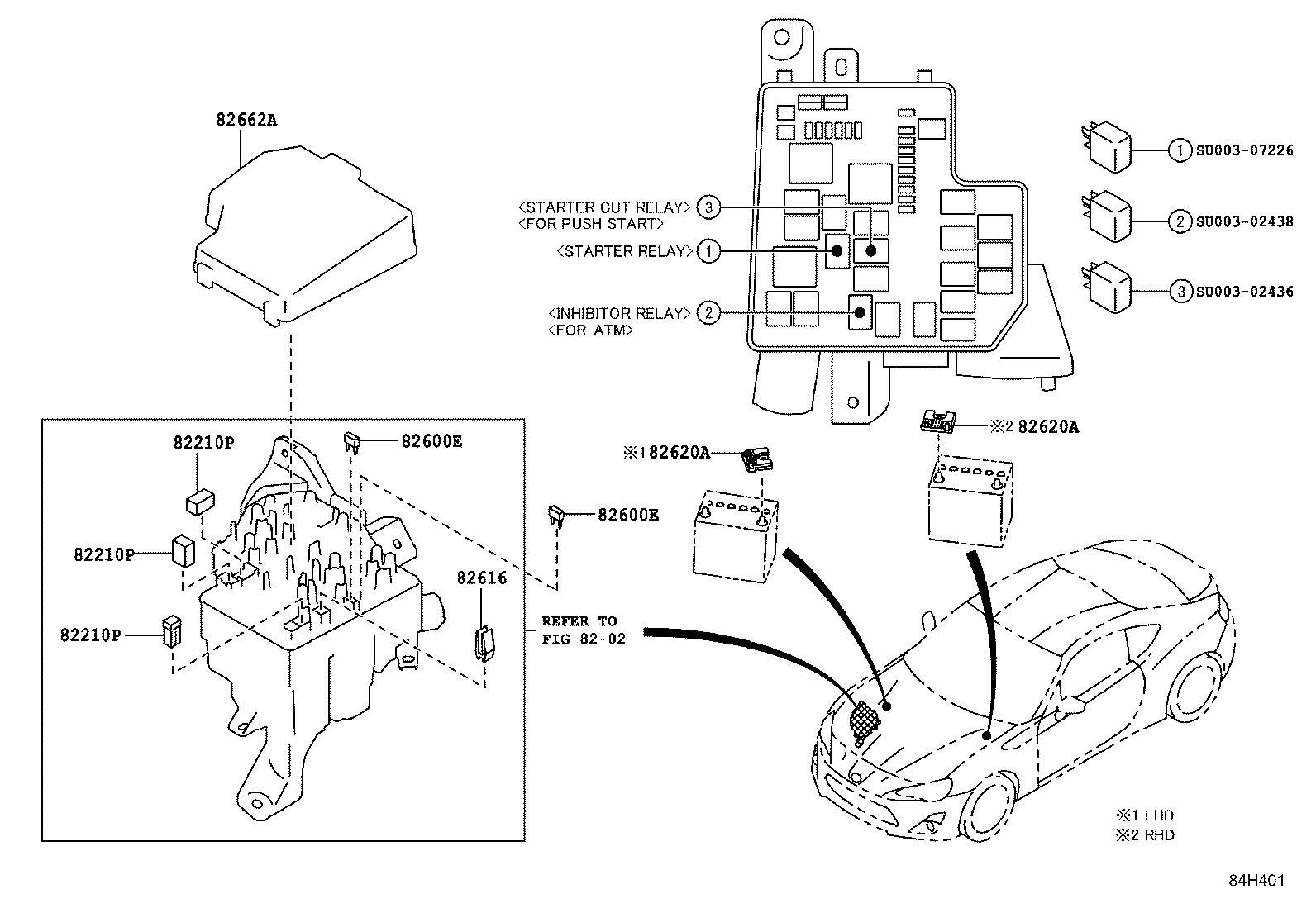

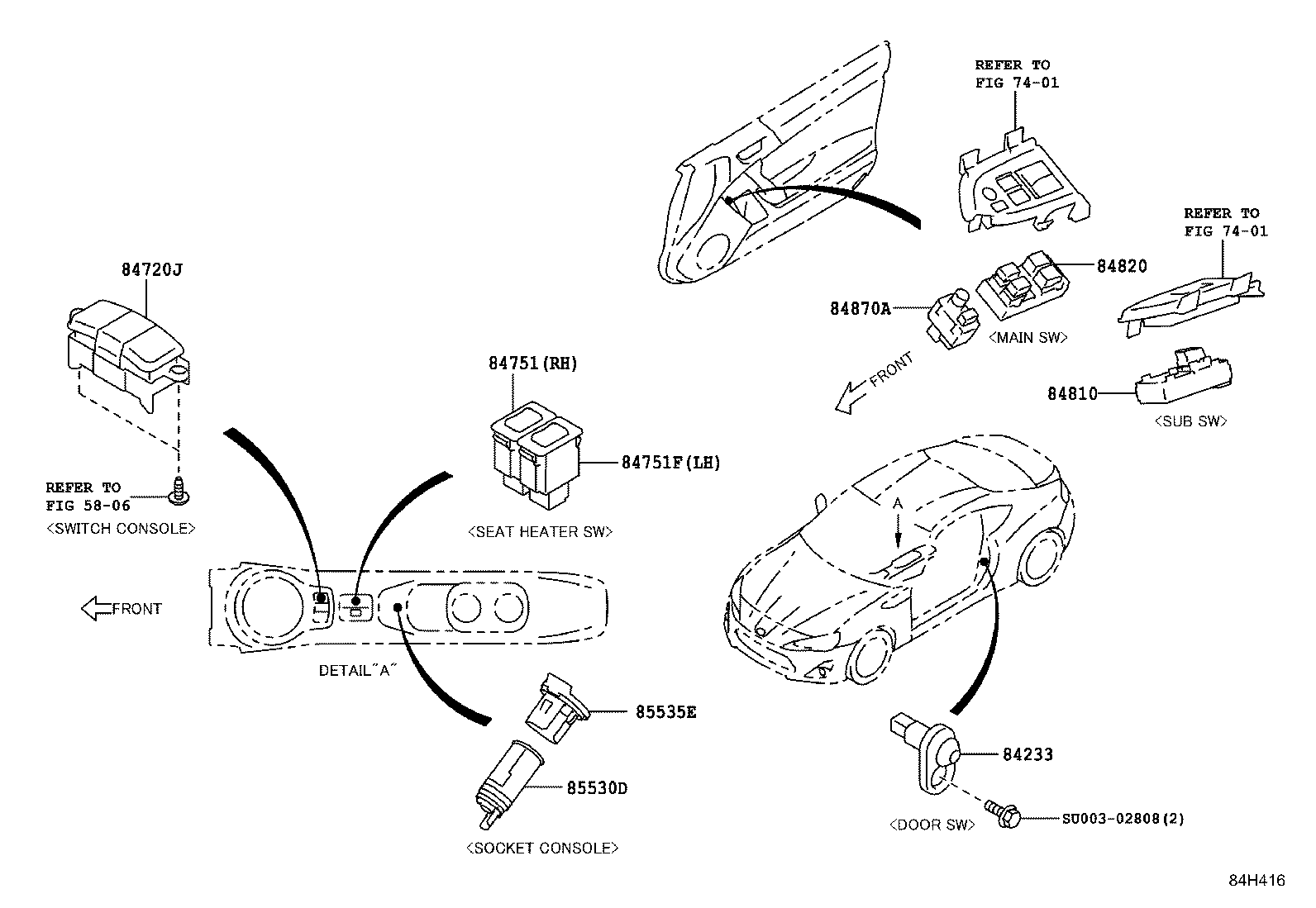

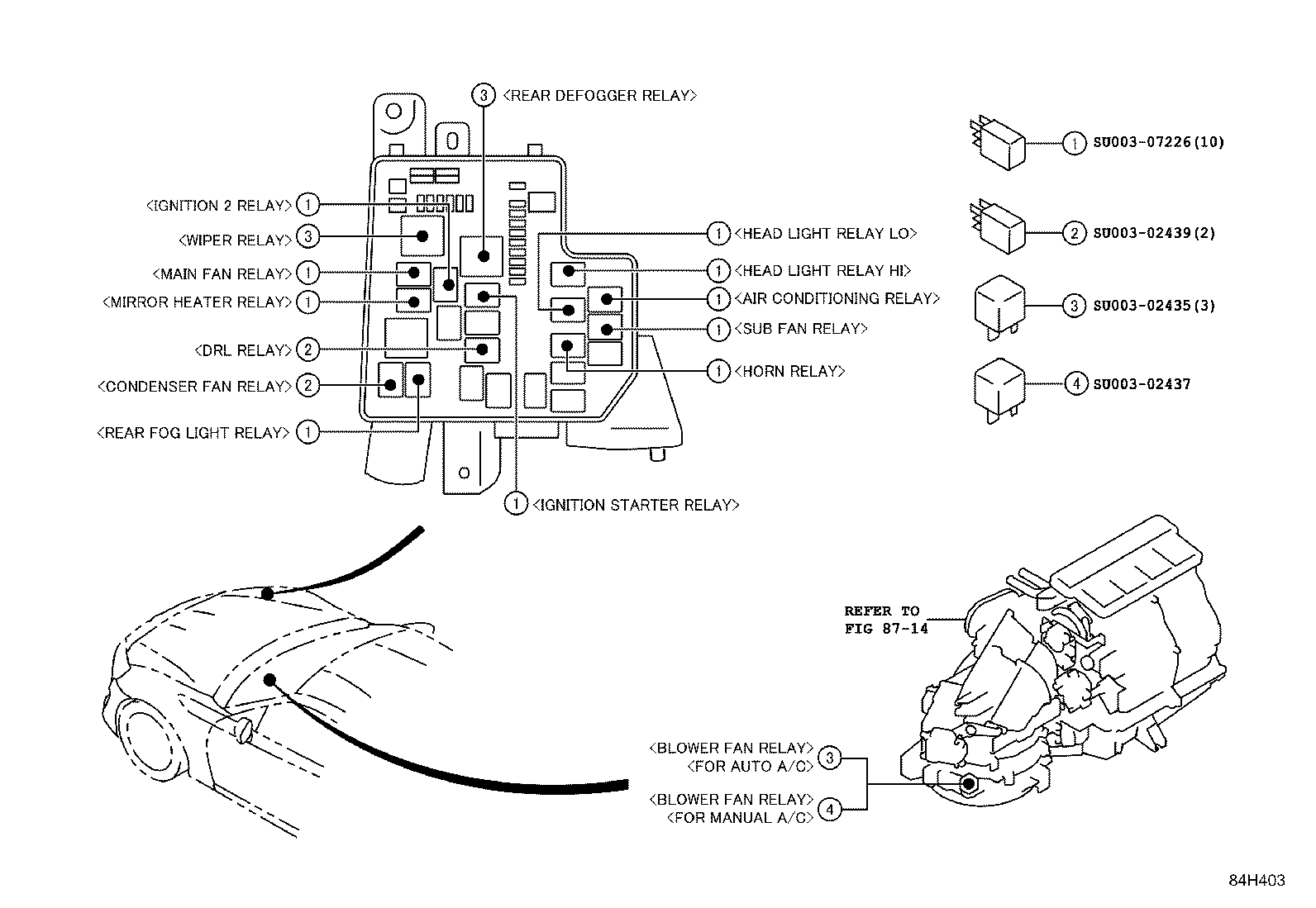

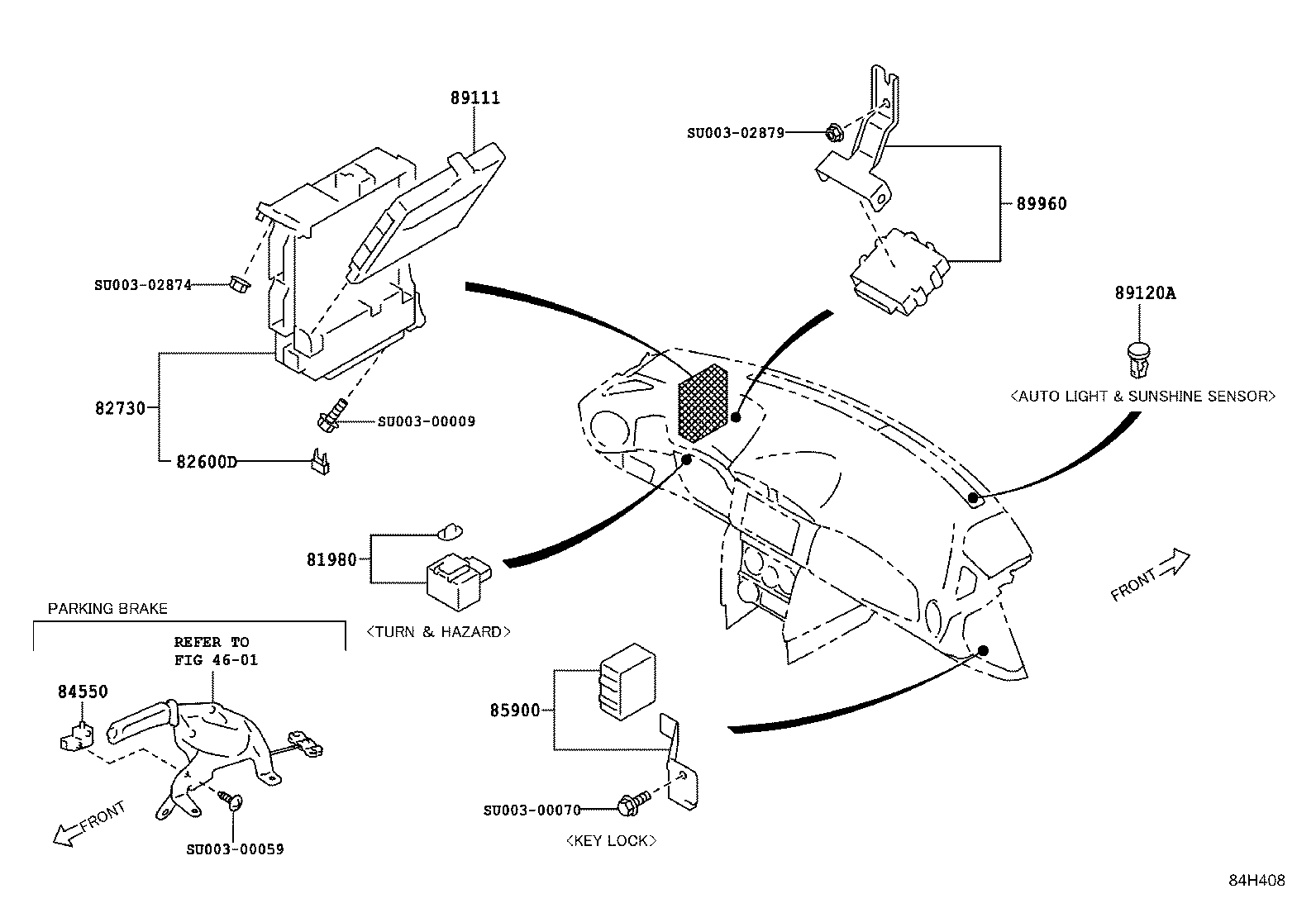

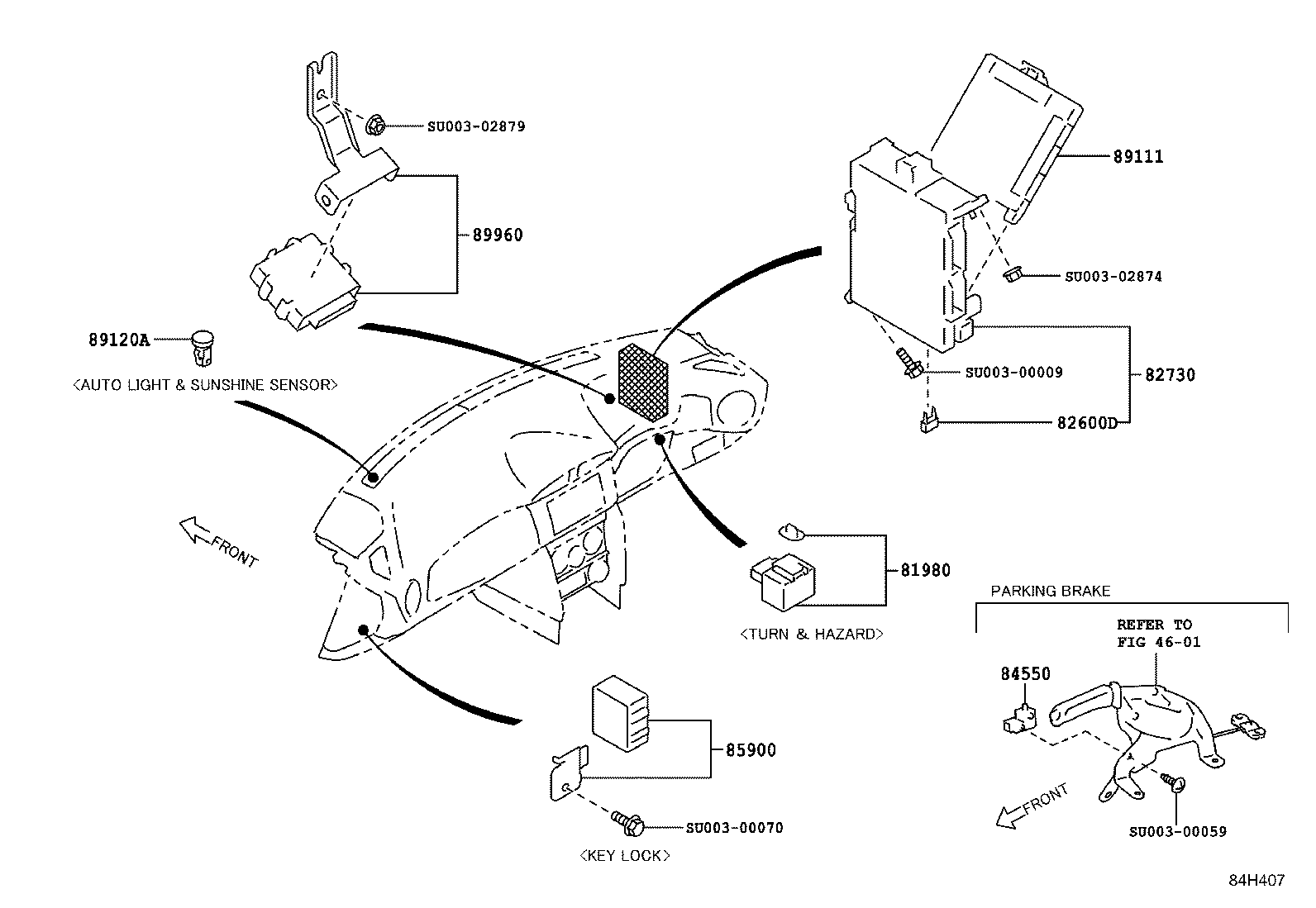

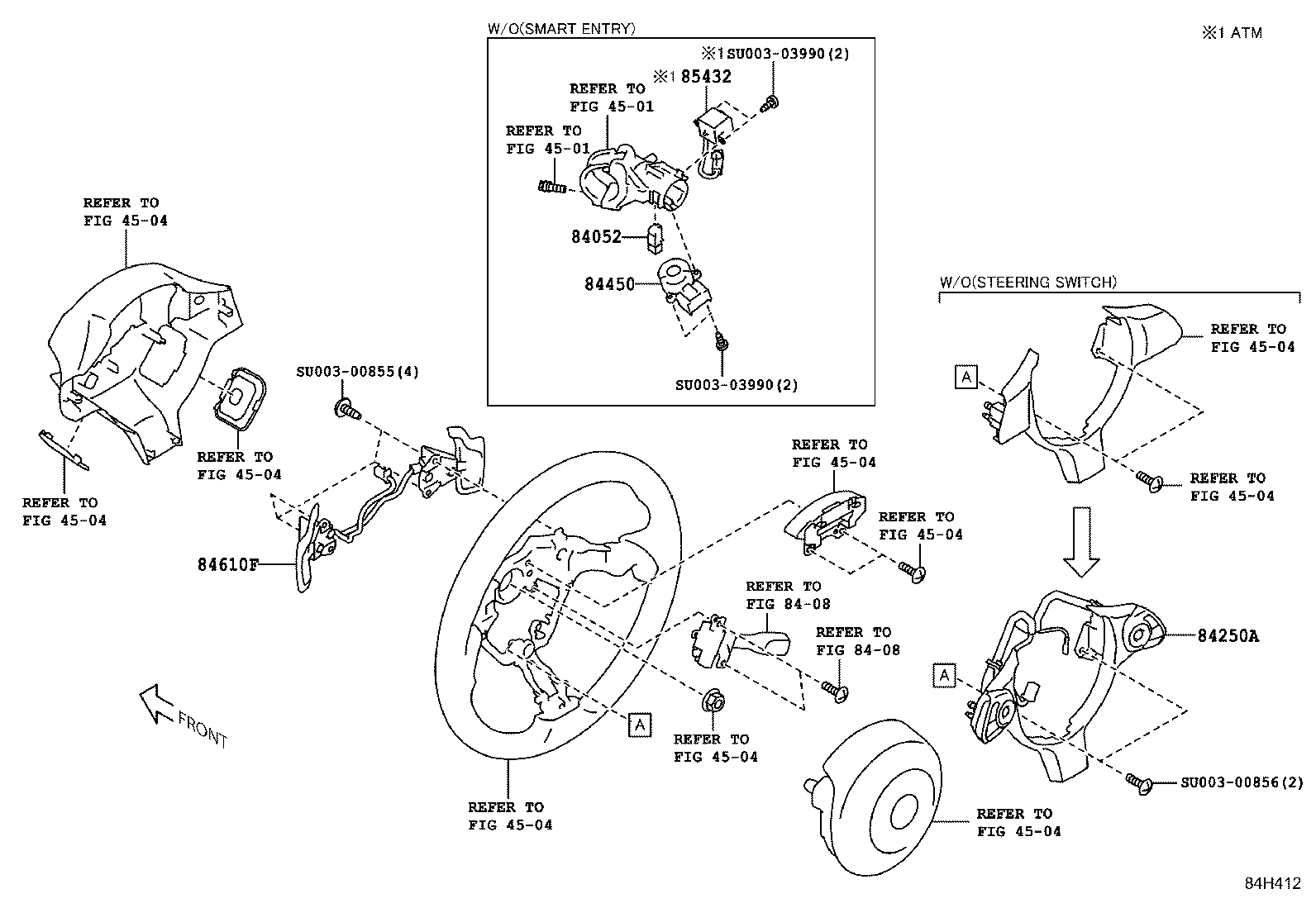

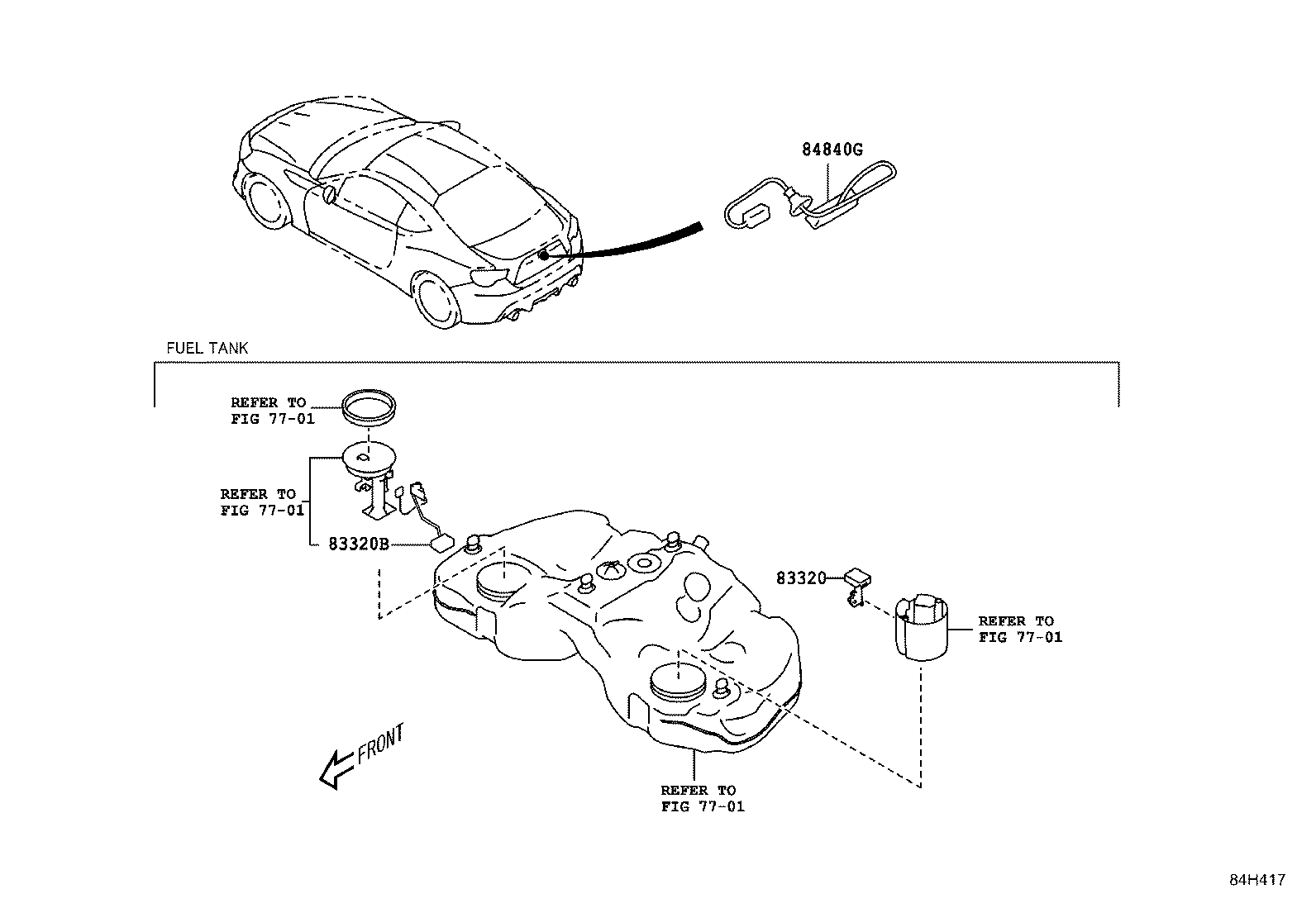

Figure 84H385C 84H385C 2016-08 → — Figure 84L622 84L622 2016-08 → — Figure 84H400A 84H400A 2016-08 → — Figure 84H401 84H401 2016-08 → — Figure 84H404 84H404 2016-08 → — Figure 84H403 84H403 2016-08 → — Figure 84H406 84H406 2016-08 → — Figure 84H405 84H405 2016-08 → — Figure 84H408 84H408 2016-08 → — Figure 84H407 84H407 2016-08 → — Figure 84H410 84H410 2016-08 → — Figure 84H409 84H409 2016-08 → — Figure 84H411 84H411 2016-08 → — Figure 84H392 84H392 2016-08 → — Figure 84H412 84H412 2016-08 → — Figure 84H413 84H413 2016-08 → — Figure 84H414 84H414 2016-08 → — Figure 84H415 84H415 2016-08 → — Figure 84H416 84H416 2016-08 → — Figure 84H417 84H417 2016-08 → —

Part groups

PNCDescription
69065A Cylinder Sub-assy, Airbag Cut Off Switch
81980 Flasher Assy, Turn Signal
82210P Engine Room Fusible Link
82223E Wire, Clutch Start Switch

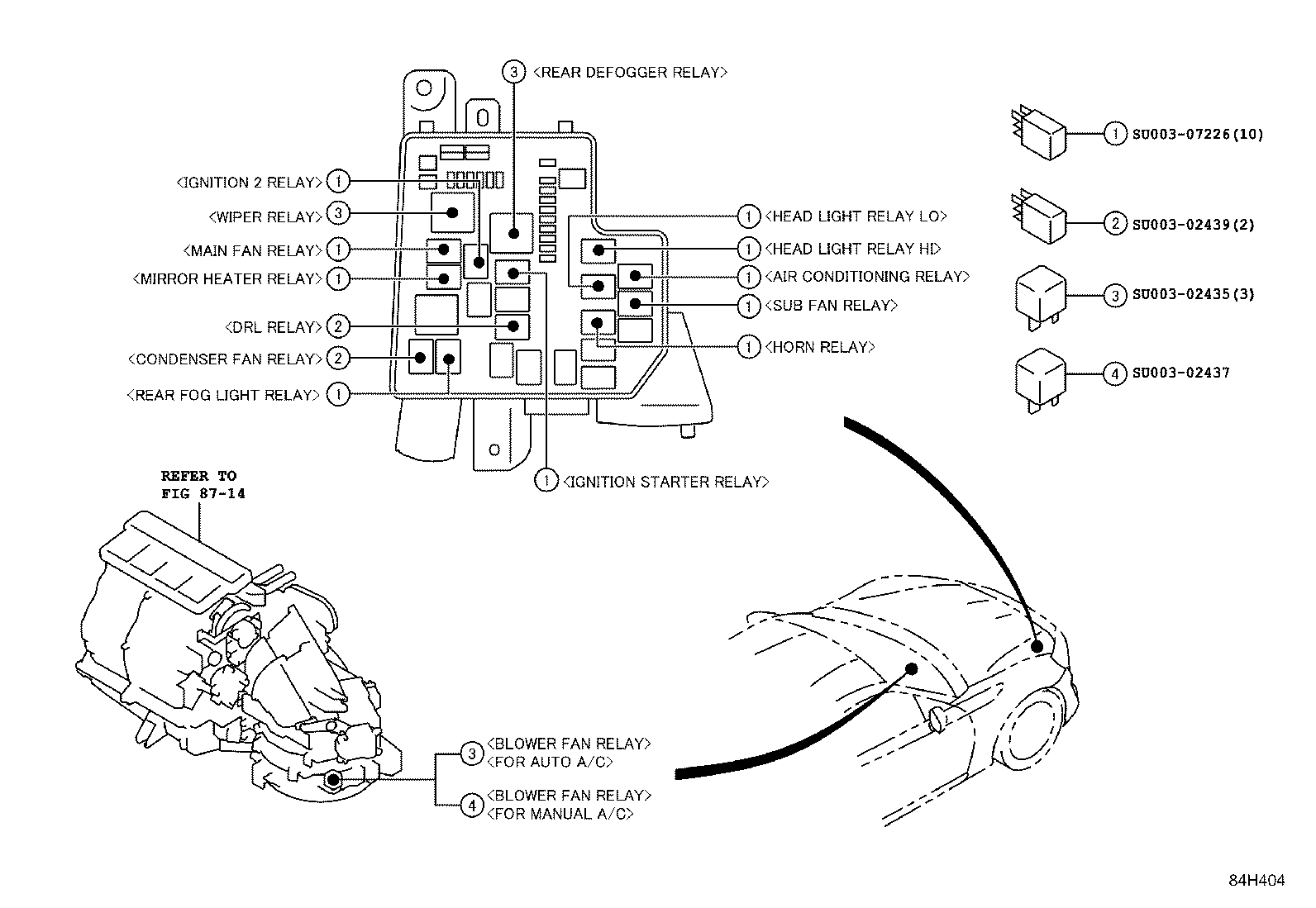

82600D Instrument Panel Fuse
82600E Engine Room Fuse
82616 Puller, Fuse
82620A Block Assy, Fusible Link
82620C Clip
82662A Cover, Relay Block, Upper, NO.1
82730 Block Assy, Instrument Panel Junction
83320 Gage Assy, Fuel Sender
83320B Gage Assy, Fuel Sender, NO.2
83530 Switch Assy, Oil Pressure (FOR ENGINE)

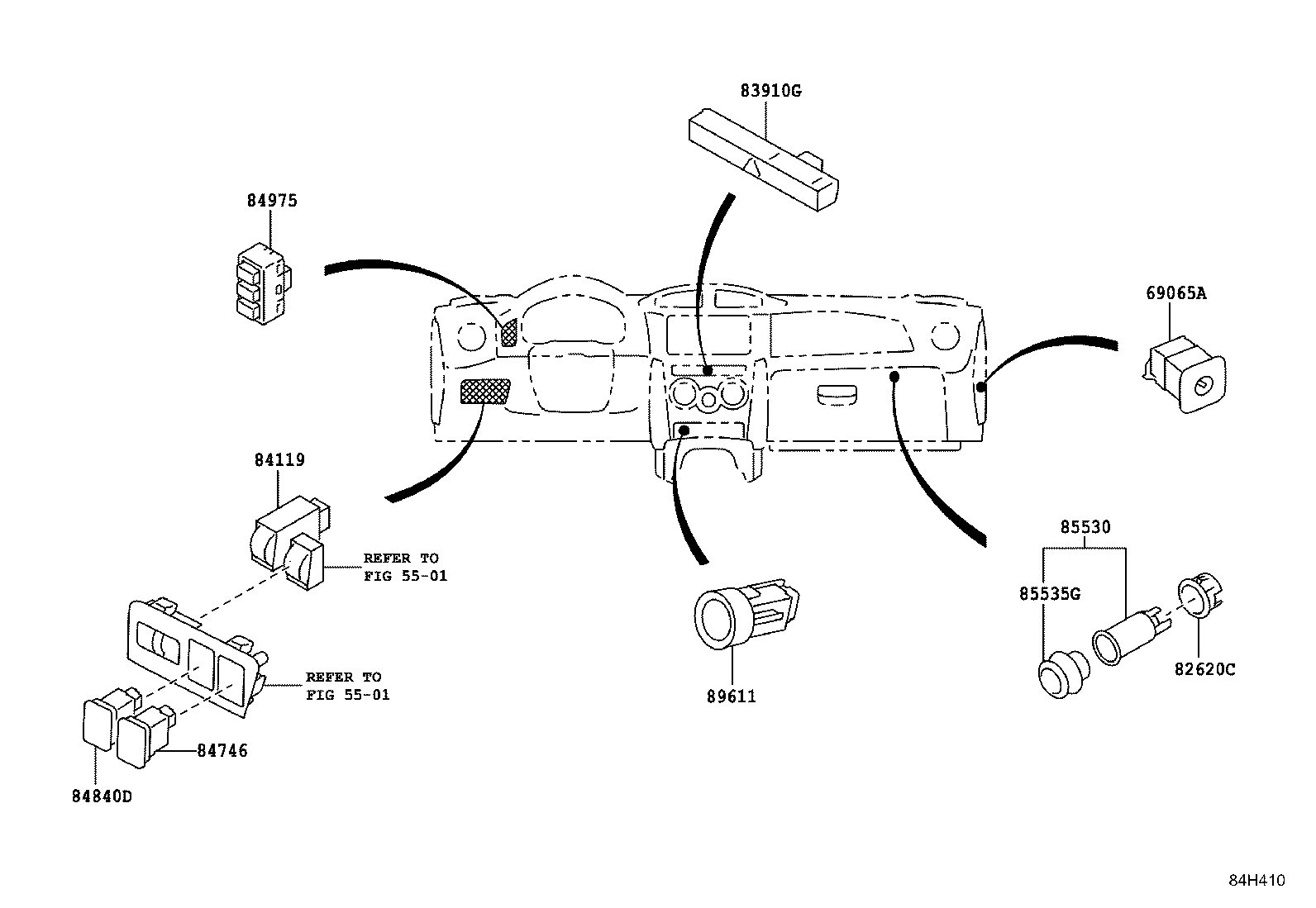

83910G Clock Assy
84052 Switch Assy, Un-lock Warning
84119 Rheostat, Light Control
84140 Switch Assy, Headlamp Dimmer

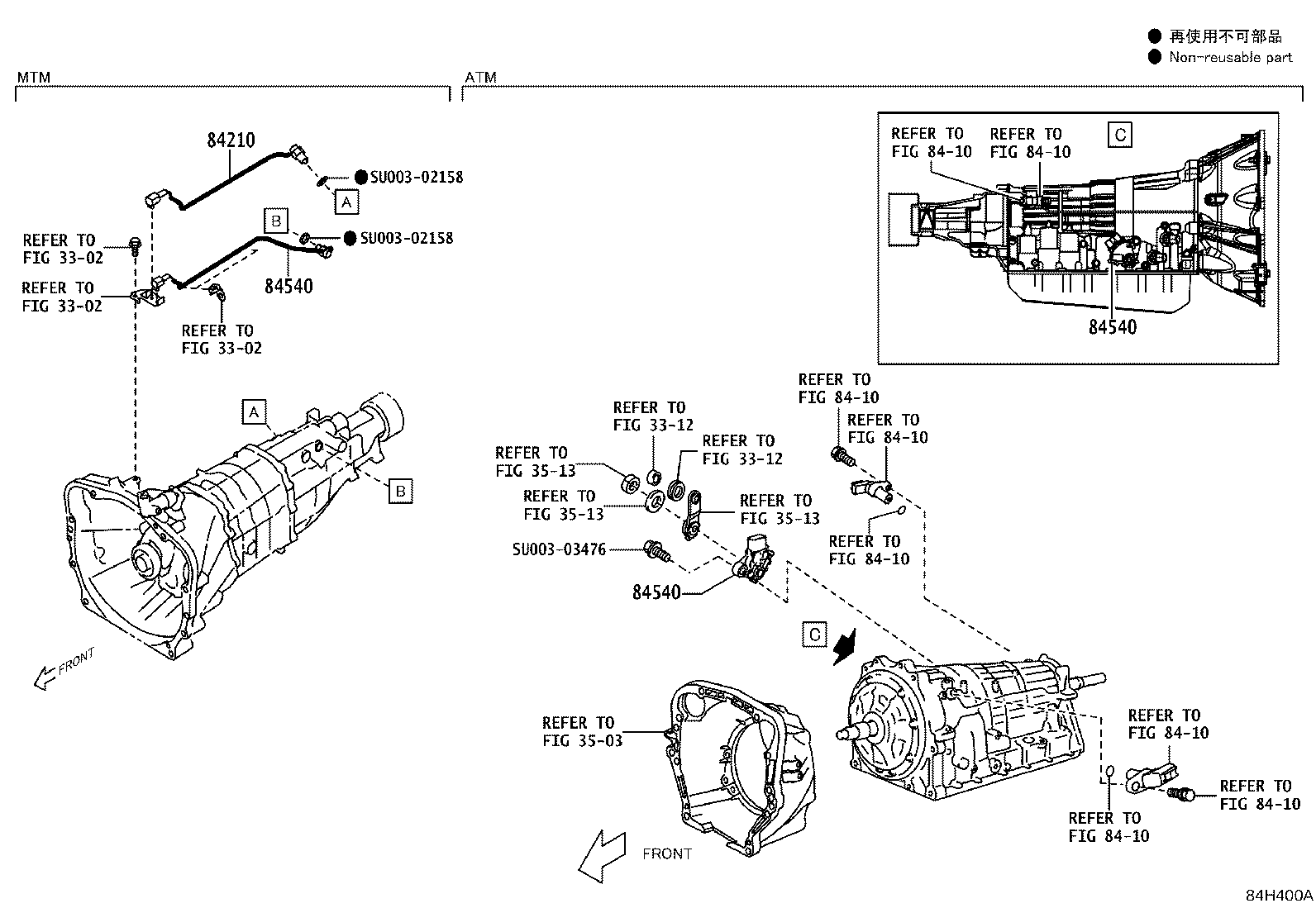

84210 Switch Assy, Back-up Lamp
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84250A Switch Assy, Steering Pad
84306 Cable Sub-assy, Spiral

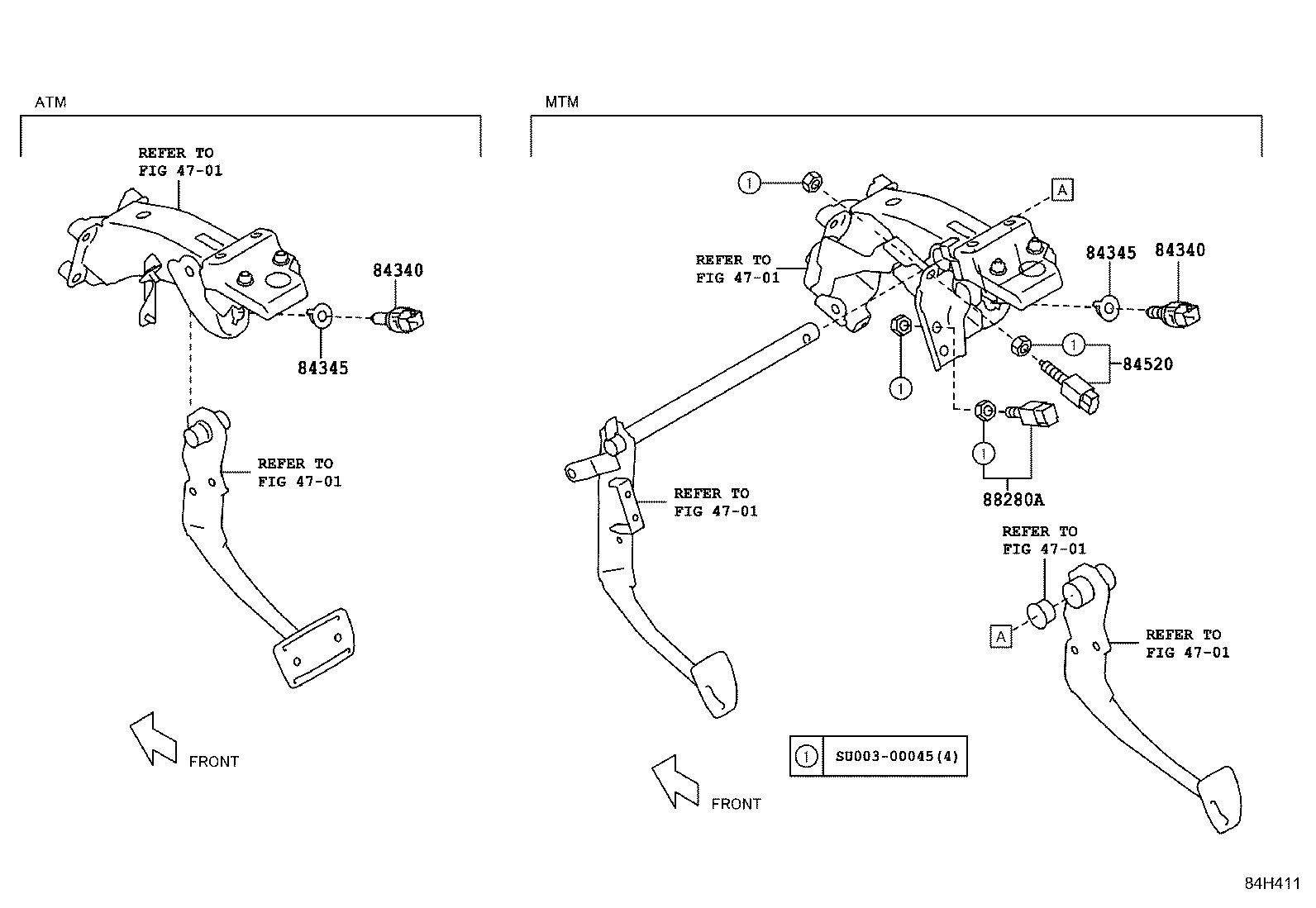

84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84450 Switch Assy, Ignition OR Starter

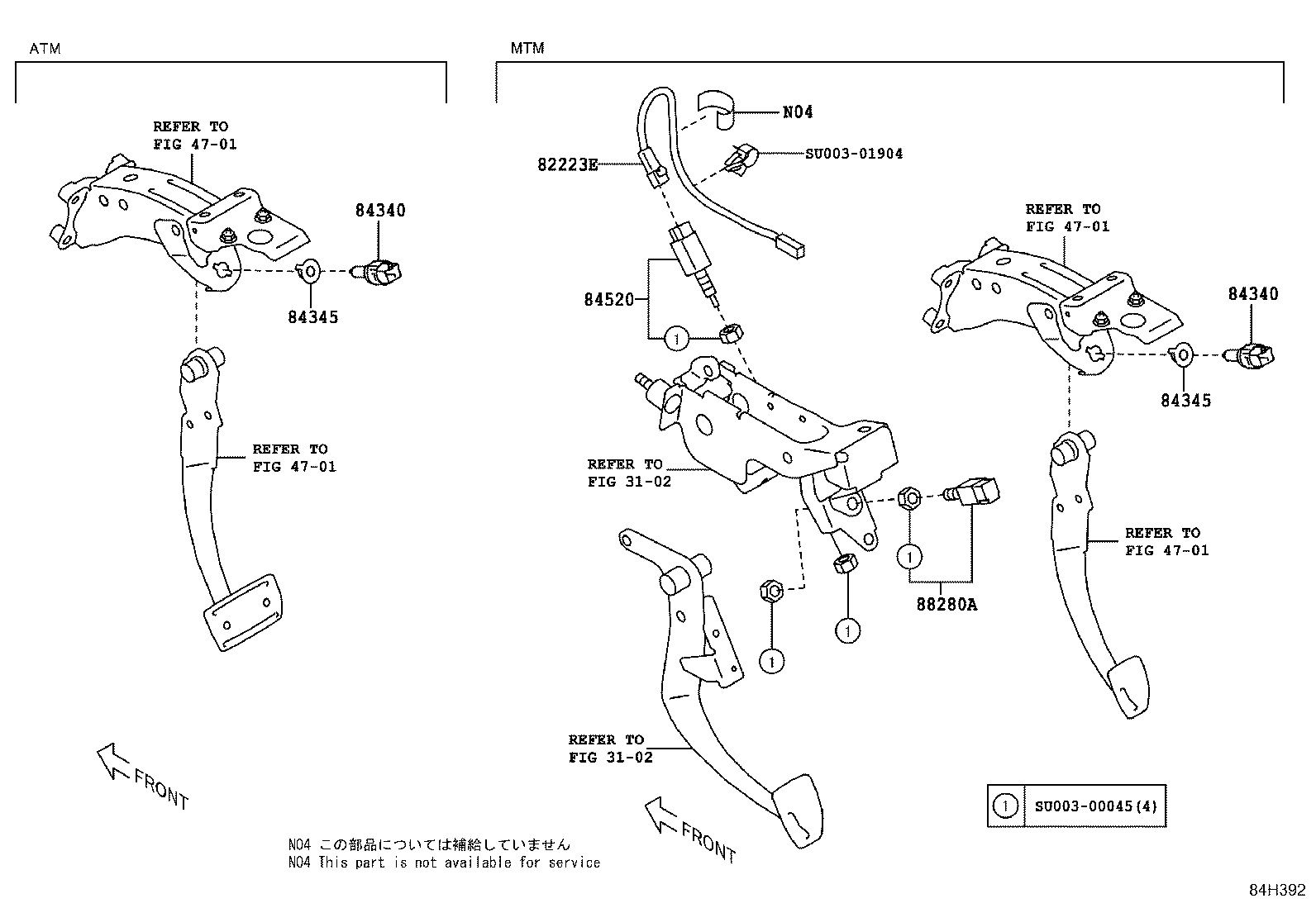

84520 Switch Assy, Clutch Start
84540 Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84610F Switch Assy, Transmission Shift
84650 Switch Assy, Windshield Wiper
84720J Switch Assy, Pattern Select
84746 Switch, Tire Pressure Warning
84751 Switch, Seat Heater
84751F Switch, Seat Heater

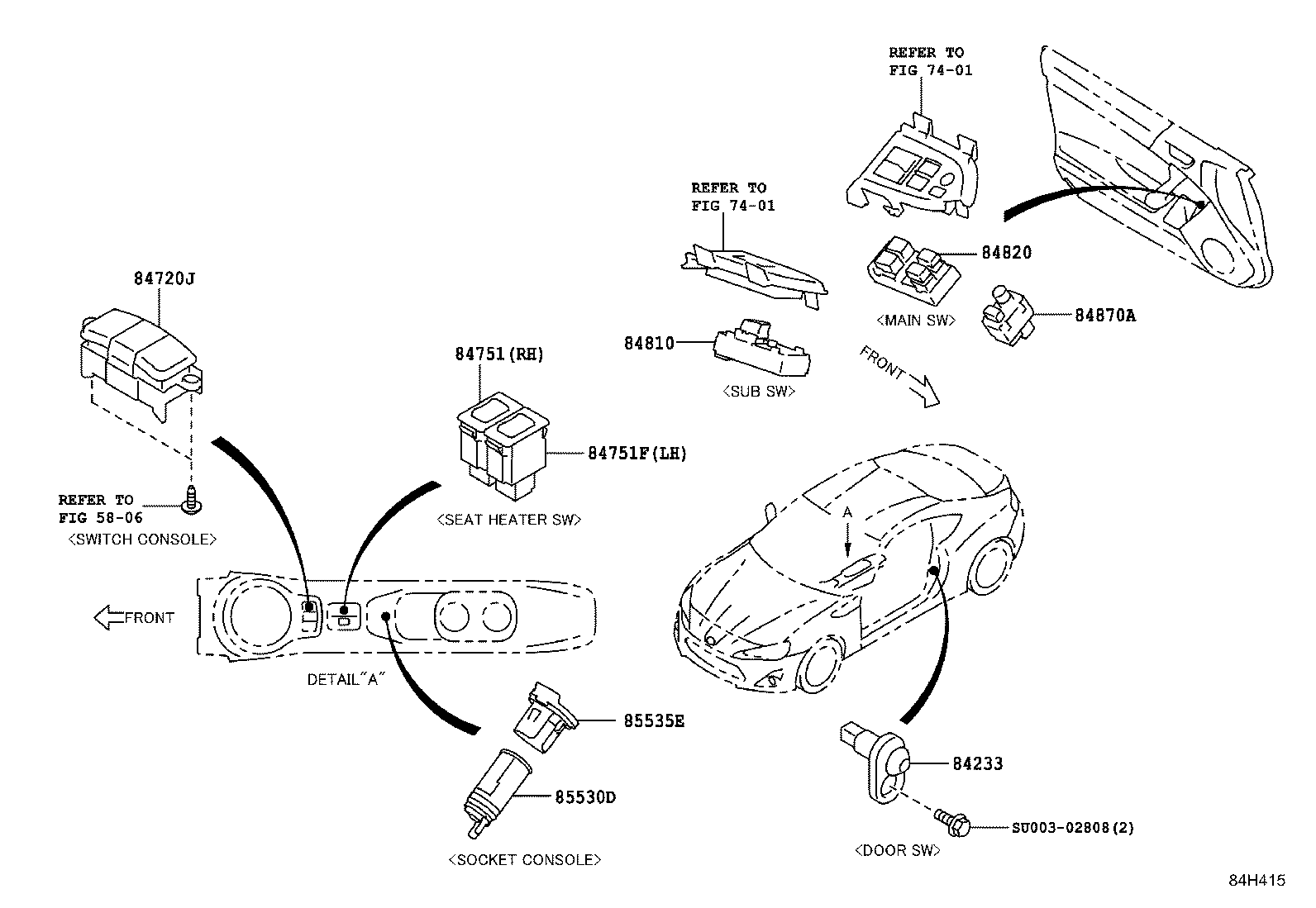

84810 Switch Assy, Power Window Regulator
84820 Master Switch Assy, Power Window Regulator
84840D Switch Assy, Luggage Door Opening
84840G Switch Assy, Back Door Opener
84870A Switch Assy, Outer Mirror
84975 Switch, Trip
85432 Solenoid, Key Interlock
85530 Socket Assy, Power Outlet, NO.1
85530D Socket Assy, Power Outlet, NO.2
85535E Cover, Power Outlet Socket, NO.2
85535G Cap, Power Outlet Socket
85900 Relay Assy, Control Unit
85942 Relay, Headlamp Cleaner Control
88280A Switch Assy, Clutch
89111 Computer, Network Gateway
89120A Sensor, Automatic Light Control
89245B Sensor, Steering

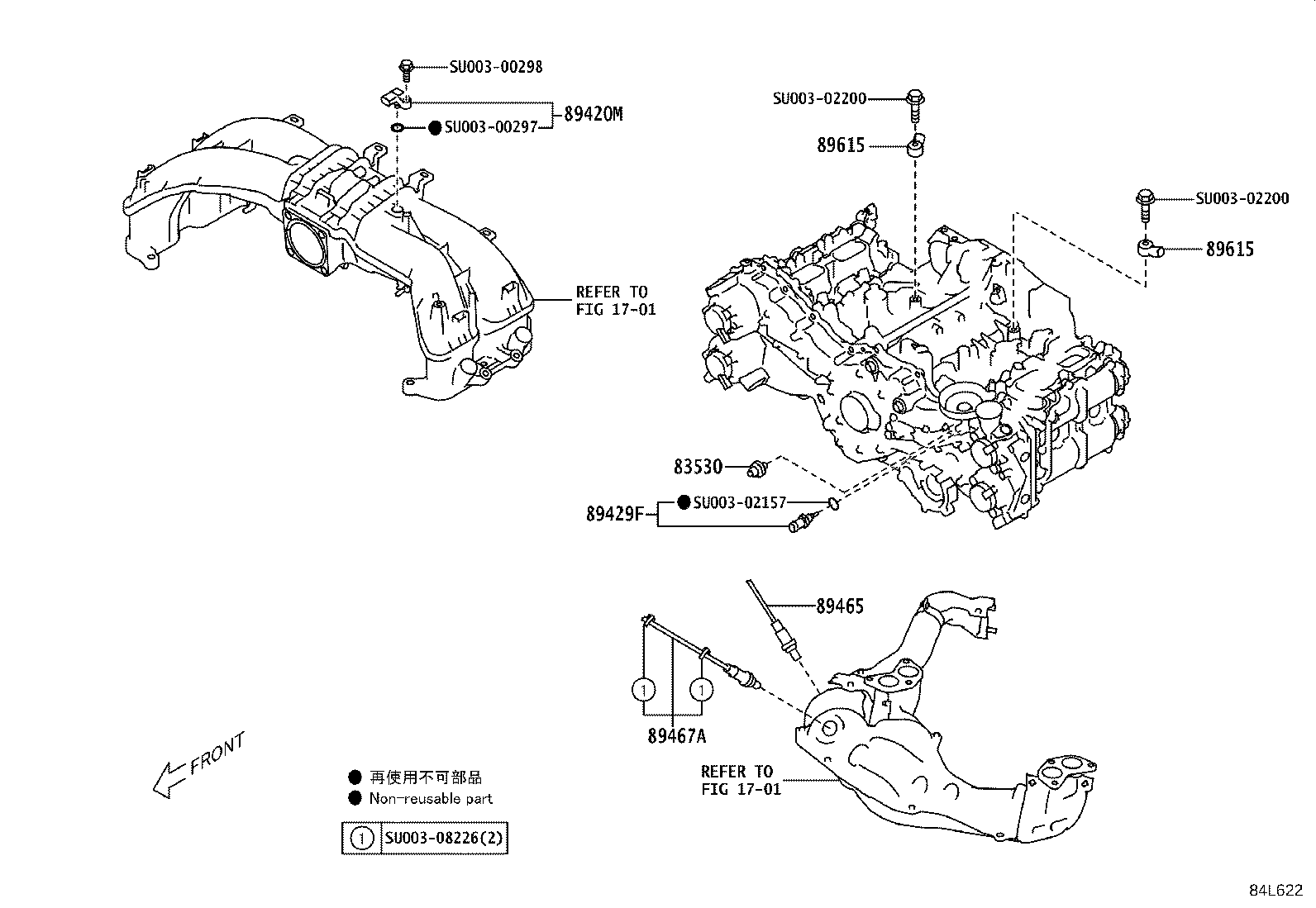

89420M Sensor Assy, Air Pressure
89429F Sensor, Temperature
89465 Sensor, Oxygen
89467A Sensor, Wide Range Air Fuel Ratio

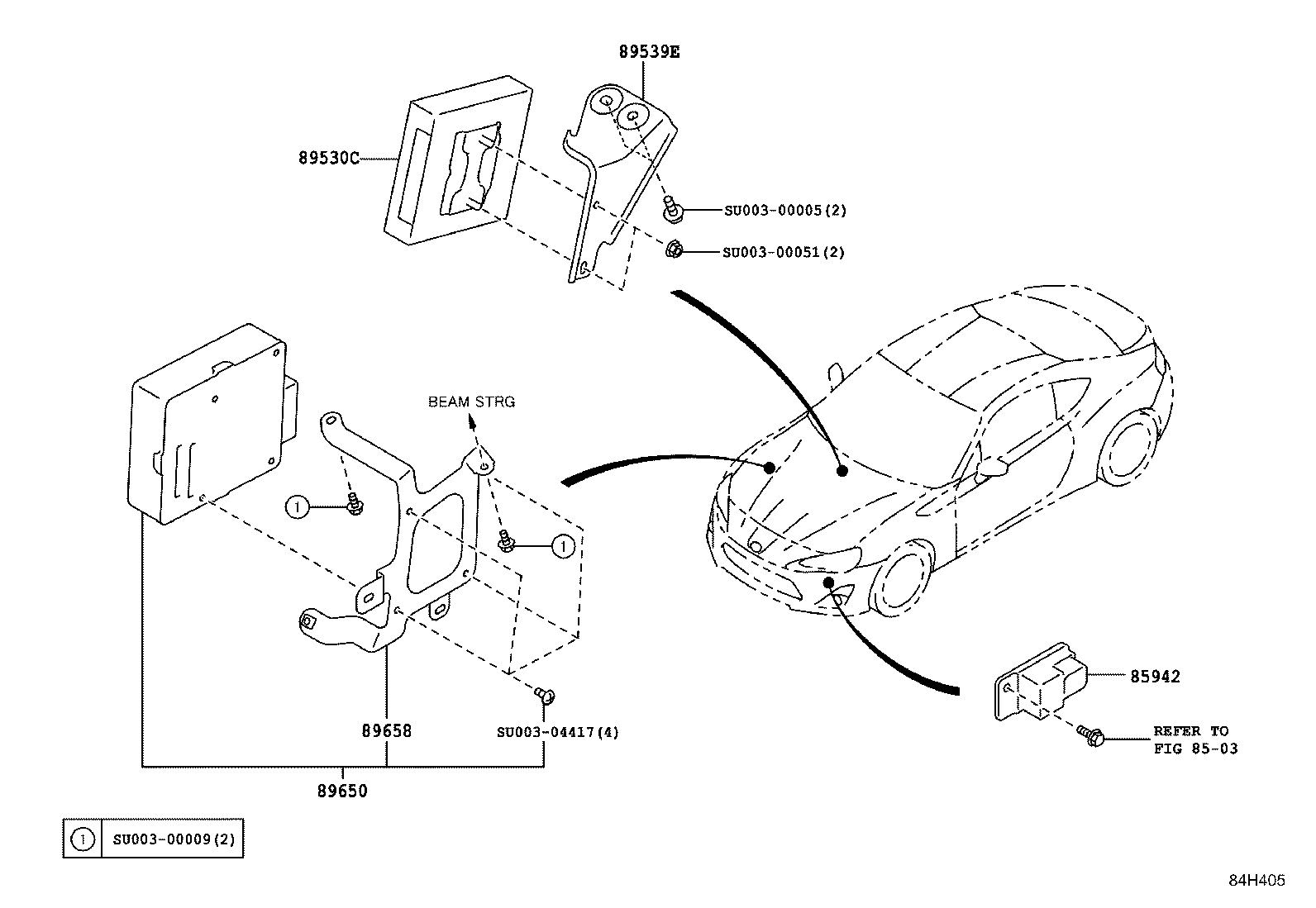

89530C Computer Assy, Transmission Control
89539E Bracket, Computer
89611 Switch, Push Start
89615 Sensor, Knock Control
89650 Computer Assy, Power Steering
89658 Bracket, Power Steering Computer
89960 Computer Assy, Headlamp Leveling
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
