Toyota GR 86

2022-03 → present · chassis ZN8 · catalogue 264230 · Europe

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

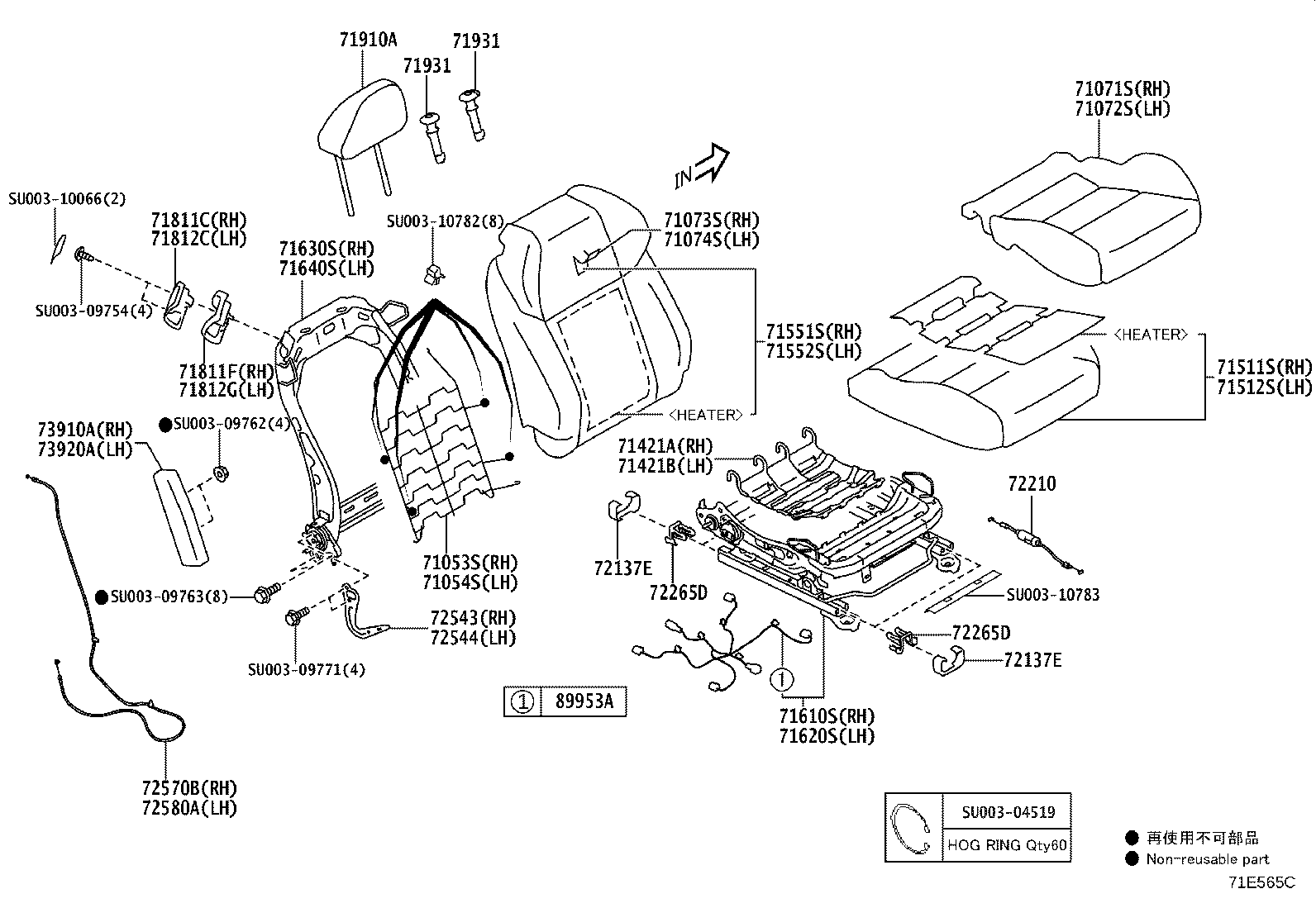

Exploded illustration 71E565C SU00304519 — not listed in this catalogue 71910A — HEADREST ASSY, FRONT SEAT (19 parts) 71931 — SUPPORT, FRONT SEAT HEADREST (8 parts) 71931 — SUPPORT, FRONT SEAT HEADREST (8 parts) 72137E — COVER, SEAT TRACK, NO.1 (4 parts) 72265D — COVER, SEAT TRACK UPPER RAIL (4 parts) 72137E — COVER, SEAT TRACK, NO.1 (4 parts) 89953A — SENSOR, BELT WARNING OCCUPANT DETECTION (4 parts) 72265D — COVER, SEAT TRACK UPPER RAIL (4 parts) 71811C — COVER, RECLINING ADJUSTER, RH (4 parts) 71812C — COVER, RECLINING ADJUSTER, LH (5 parts) 73910A — AIRBAG ASSY, FRONT SEAT, RH (4 parts) 73920A — AIRBAG ASSY, FRONT SEAT, LH (4 parts) 72570B — CABLE ASSY, RECLINING ADJUSTING, RH (4 parts) 72580A — CABLE ASSY, RECLINING ADJUSTING, LH (4 parts) 71811F — COVER, RECLINING ADJUSTER, RH (4 parts) 71812G — COVER, RECLINING ADJUSTER, LH (5 parts) 71630S — SPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE) (8 parts) 71640S — SPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE) (8 parts) 71073S — COVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE) (16 parts) 71074S — COVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE) (19 parts) 71071S — COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) (28 parts) 71072S — COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) (27 parts) 71511S — PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) (42 parts) 71512S — PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) (57 parts) 72210 — CABLE ASSY, SEAT TRACK CONTROL (4 parts) 71421A — SPRING, FRONT SEAT CUSHION (4 parts) 71421B — SPRING, FRONT SEAT CUSHION (4 parts) 71610S — SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) (22 parts) 71620S — SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) (30 parts) 72543 — PLATE, RECLINING CONTROL, RH (4 parts) 72544 — PLATE, RECLINING CONTROL, LH (4 parts) 71053S — SPRING SUB-ASSY, FRONT SEATBACK, RH (4 parts) 71054S — SPRING SUB-ASSY, FRONT SEATBACK, LH (4 parts) 71551S — PAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE) (8 parts) 71552S — PAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE) (8 parts) SU00310066 — not listed in this catalogue SU00309754 — not listed in this catalogue SU00310782 — not listed in this catalogue SU00309762 — not listed in this catalogue SU00309771 — not listed in this catalogue SU00309763 — not listed in this catalogue SU00310783 — not listed in this catalogue
71E565C · 35 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
374 parts on this figure
Part number Description Fitment Price
71053S — Spring Sub-assy, Front Seatback, RH
SU003-09779 Spring Sub-assy, Front Seatback, RH
2022-06 → 2023-10 ended
ZN8 B —
SU003-09779 Spring Sub-assy, Front Seatback, RH
2023-11 → —
ZN8 C —
SU003-09779 Spring Sub-assy, Front Seatback, RH
2024-08 → —
ZN8 D —
SU003-09779 Spring Sub-assy, Front Seatback, RH
2022-03 → 2022-06 ended
ZN8 —
71054S — Spring Sub-assy, Front Seatback, LH
SU003-09779 Spring Sub-assy, Front Seatback, LH
2022-03 → 2022-06 ended
ZN8 —
SU003-09779 Spring Sub-assy, Front Seatback, LH
2022-06 → 2023-10 ended
ZN8 B —
SU003-09779 Spring Sub-assy, Front Seatback, LH
2023-11 → —
ZN8 C —
SU003-09779 Spring Sub-assy, Front Seatback, LH
2024-08 → —
ZN8 D —
71071S — Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
SU003-10362 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2022-03 → 2022-06 ended
ZN8 RHD BASE —
SU003-10362 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2024-08 → —
ZN8 RHD BASE D —
SU003-10362 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2023-11 → —
ZN8 RHD BASE C —
SU003-10362 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 RHD BASE B —
SU003-10366 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2024-08 → —
ZN8 RHD HIGH D —
SU003-10366 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 RHD HIGH B —
SU003-10366 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2023-11 → —
ZN8 RHD HIGH C —
SU003-10366 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2022-03 → 2022-06 ended
ZN8 RHD HIGH —
SU003-10370 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2023-11 → —
ZN8 LHD BASE C —
SU003-10370 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 LHD BASE EUR +1 —
SU003-10370 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 BASE CHI B —
SU003-10370 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2022-03 → 2022-06 ended
ZN8 LHD BASE —
SU003-10370 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2024-08 → —
ZN8 LHD BASE D —
SU003-10374 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2023-11 → —
ZN8 LHD HIGH C —
SU003-10374 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2024-08 → —
ZN8 LHD HIGH D —
SU003-10374 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 LHD HIGH B —
SU003-10374 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2022-03 → 2022-06 ended
ZN8 LHD HIGH —
SU003-10377 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2024-08 → —
ZN8 RHD HIGH D —
SU003-10377 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 RHD HIGH B —
SU003-10377 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2023-11 → —
ZN8 RHD HIGH C —
SU003-10377 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2022-03 → 2022-06 ended
ZN8 RHD HIGH —
SU003-10381 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2023-11 → —
ZN8 LHD HIGH C —
SU003-10381 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 LHD HIGH B —
SU003-10381 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2022-03 → 2022-06 ended
ZN8 LHD HIGH —
SU003-10381 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2024-08 → —
ZN8 LHD HIGH D —
SU003-11143 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 RHD ORA —
SU003-11145 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 LHD ORA —
SU003-11845 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2024-08 → —
ZN8 GRA —
71072S — Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
SU003-10364 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 RHD BASE B —
SU003-10364 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2024-08 → —
ZN8 RHD BASE D —
SU003-10364 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2023-11 → —
ZN8 RHD BASE C —
SU003-10364 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-03 → 2022-06 ended
ZN8 RHD BASE —
SU003-10368 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-03 → 2022-06 ended
ZN8 RHD HIGH —
SU003-10368 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2024-08 → —
ZN8 RHD HIGH D —
SU003-10368 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 RHD HIGH B —
SU003-10368 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2023-11 → —
ZN8 RHD HIGH C —
SU003-10372 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 LHD BASE B —
SU003-10372 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2023-11 → —
ZN8 LHD BASE C —
SU003-10372 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-03 → 2022-06 ended
ZN8 LHD BASE —
SU003-10372 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2024-08 → —
ZN8 LHD BASE D —
SU003-10376 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2024-08 → —
ZN8 LHD HIGH D —
SU003-10376 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2023-11 → —
ZN8 LHD HIGH C —
SU003-10376 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 LHD HIGH B —
SU003-10376 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-03 → 2022-06 ended
ZN8 LHD HIGH —
SU003-10379 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2024-08 → —
ZN8 RHD HIGH D —
SU003-10379 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 RHD HIGH B —
SU003-10379 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2023-11 → —
ZN8 RHD HIGH C —
SU003-10379 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-03 → 2022-06 ended
ZN8 RHD HIGH —
SU003-10383 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2024-08 → —
ZN8 LHD HIGH D —
SU003-10383 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 LHD HIGH B —
SU003-10383 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-03 → 2022-06 ended
ZN8 LHD HIGH —
SU003-10383 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2023-11 → —
ZN8 LHD HIGH C —
SU003-11144 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 RHD ORA —
SU003-11146 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 LHD ORA —
SU003-11846 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2024-08 → —
ZN8 GRA —
71073S — Cover, Front Seatback, RH(FOR SEPARATE TYPE)
SU003-10386 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2024-08 → —
ZN8 BASE D —
SU003-10386 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2023-11 → —
ZN8 BASE C —
SU003-10386 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 RHD BASE B;ZN8 +3 —
SU003-10386 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 LHD BASE EUR +1 —
SU003-10386 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2022-03 → 2022-06 ended
ZN8 RHD BASE —
SU003-10386 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2022-03 → 2022-06 ended
ZN8 LHD BASE —
SU003-10390 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2022-03 → 2022-06 ended
ZN8 HIGH —
SU003-10390 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 HIGH B —
SU003-10390 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2024-08 → —
ZN8 HIGH D —
SU003-10390 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2023-11 → —
ZN8 HIGH C —
SU003-10393 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2024-08 → —
ZN8 HIGH D —
SU003-10393 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 HIGH B —
SU003-10393 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2023-11 → —
ZN8 HIGH C —
SU003-10393 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2022-03 → 2022-06 ended
ZN8 HIGH —
SU003-11147 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 ORA —
SU003-11847 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2024-08 → —
ZN8 GRA —
71074S — Cover, Front Seatback, LH(FOR SEPARATE TYPE)
SU003-10388 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2023-11 → —
ZN8 RHD BASE C —
SU003-10388 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2024-08 → —
ZN8 RHD BASE D —
SU003-10388 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2024-08 → —
ZN8 LHD BASE D —
SU003-10388 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2023-11 → —
ZN8 LHD BASE C —
SU003-10388 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 LHD BASE B —
SU003-10388 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 RHD BASE B —
SU003-10388 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2022-03 → 2022-06 ended
ZN8 RHD BASE —
SU003-10388 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2022-03 → 2022-06 ended
ZN8 LHD BASE —
SU003-10392 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 HIGH B —
SU003-10392 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2024-08 → —
ZN8 HIGH D —
SU003-10392 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2022-03 → 2022-06 ended
ZN8 HIGH —
SU003-10392 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2023-11 → —
ZN8 HIGH C —
SU003-10395 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2022-03 → 2022-06 ended
ZN8 HIGH —
SU003-10395 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2023-11 → —
ZN8 HIGH C —
SU003-10395 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 HIGH B —
SU003-10395 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2024-08 → —
ZN8 HIGH D —
SU003-11148 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 LHD ORA —
SU003-11148 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 RHD ORA —
SU003-11848 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2024-08 → —
ZN8 GRA —
71421A — Spring, Front Seat Cushion
SU003-09778 Spring, Front Seat Cushion
2022-03 → 2022-06 ended
ZN8 —
SU003-09778 Spring, Front Seat Cushion
2022-06 → 2023-10 ended
ZN8 B —
SU003-09778 Spring, Front Seat Cushion
2023-11 → —
ZN8 C —
SU003-09778 Spring, Front Seat Cushion
2024-08 → —
ZN8 D —
71421B — Spring, Front Seat Cushion
SU003-09777 Spring, Front Seat Cushion
2024-08 → —
ZN8 D —
SU003-09777 Spring, Front Seat Cushion
2023-11 → —
ZN8 C —
SU003-09777 Spring, Front Seat Cushion
2022-06 → 2023-10 ended
ZN8 B —
SU003-09777 Spring, Front Seat Cushion
2022-03 → 2022-06 ended
ZN8 —
71511S — Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
SU003-09759 note Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2022-03 → 2022-06 ended
ZN8 LHD BASE —
SU003-09759 note Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 LHD BASE EUR +1 —
SU003-09760 note Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2022-03 → 2022-06 ended
ZN8 LHD HIGH —
SU003-09760 note Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 LHD HIGH EUR +1 —
SU003-09933 Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2022-03 → 2022-06 ended
ZN8 RHD BASE —
SU003-09933 Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 RHD BASE B —
SU003-09933 Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2024-08 → —
ZN8 RHD BASE D —
SU003-09933 Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2023-11 → —
ZN8 RHD BASE C —
SU003-09934 Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 RHD (HIGH,ORA) B —
SU003-09934 Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2023-11 → —
ZN8 RHD HIGH C —
SU003-09934 Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2024-08 → —
ZN8 RHD (GRA,HIGH) D —
SU003-09934 Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2022-03 → 2022-06 ended
ZN8 RHD HIGH —
SU003-10086 Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2023-11 → —
ZN8 LHD BASE C —
SU003-10086 note Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 LHD BASE EUR +1 —
SU003-10086 note Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 LHD BASE EUR +1 —
SU003-10086 note Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 LHD BASE EUR +1 —
SU003-10086 note Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 LHD BASE EUR +1 —
SU003-10086 note Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 LHD BASE EUR +1 —
SU003-10086 Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2024-08 → —
ZN8 LHD BASE D —
SU003-10086 note Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 LHD BASE EUR +1 —
SU003-10086 Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 BASE CHI B —
SU003-10086 note Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2022-03 → 2022-06 ended
ZN8 LHD BASE —
SU003-10086 note Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2022-03 → 2022-06 ended
ZN8 LHD BASE —
SU003-10086 note Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2022-03 → 2022-06 ended
ZN8 LHD BASE —
SU003-10086 note Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2022-03 → 2022-06 ended
ZN8 LHD BASE —
SU003-10086 note Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2022-03 → 2022-06 ended
ZN8 LHD BASE —
SU003-10086 note Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2022-03 → 2022-06 ended
ZN8 LHD BASE —
SU003-10088 note Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2022-03 → 2022-06 ended
ZN8 LHD HIGH —
SU003-10088 Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2024-08 → —
ZN8 LHD HIGH D —
SU003-10088 Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2023-11 → —
ZN8 LHD HIGH C —
SU003-10088 note Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 LHD HIGH EUR +1 —
SU003-10088 note Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 LHD HIGH EUR +1 —
SU003-10088 note Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 LHD HIGH EUR +1 —
SU003-10088 note Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 LHD HIGH EUR +1 —
SU003-10088 note Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 LHD HIGH EUR +1 —
SU003-10088 note Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 LHD HIGH EUR +1 —
SU003-10088 Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 LHD ORA;ZN8 HIGH +2 —
SU003-10088 note Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2022-03 → 2022-06 ended
ZN8 LHD HIGH —
SU003-10088 note Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2022-03 → 2022-06 ended
ZN8 LHD HIGH —
SU003-10088 note Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2022-03 → 2022-06 ended
ZN8 LHD HIGH —
SU003-10088 note Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2022-03 → 2022-06 ended
ZN8 LHD HIGH —
SU003-10088 note Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2022-03 → 2022-06 ended
ZN8 LHD HIGH —
71512S — Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
SU003-09757 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2023-11 → —
ZN8 LHD BASE C —
SU003-09757 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2024-08 → —
ZN8 LHD BASE D —
SU003-09757 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 LHD BASE B —
SU003-09757 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2022-03 → 2022-06 ended
ZN8 LHD BASE —
SU003-09758 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2023-11 → —
ZN8 LHD HIGH C —
SU003-09758 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2022-03 → 2022-06 ended
ZN8 LHD HIGH —
SU003-09758 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 LHD (HIGH,ORA) B —
SU003-09758 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2024-08 → —
ZN8 LHD HIGH D —
SU003-09935 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 RHD BASE B —
SU003-09935 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2023-11 → —
ZN8 RHD BASE C —
SU003-09935 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 RHD BASE B —
SU003-09935 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 RHD BASE B —
SU003-09935 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2022-03 → 2022-06 ended
ZN8 RHD BASE —
SU003-09935 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2022-03 → 2022-06 ended
ZN8 RHD BASE —
SU003-09935 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2022-03 → 2022-06 ended
ZN8 RHD BASE —
SU003-09935 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2024-08 → —
ZN8 RHD BASE D —
SU003-10067 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 RHD (HIGH,ORA) B —
SU003-10067 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2022-03 → 2022-06 ended
ZN8 RHD HIGH —
SU003-10067 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2022-03 → 2022-06 ended
ZN8 RHD HIGH —
SU003-10067 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2023-11 → —
ZN8 RHD HIGH C —
SU003-10067 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2022-03 → 2022-06 ended
ZN8 RHD HIGH —
SU003-10067 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 RHD HIGH B —
SU003-10067 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 RHD HIGH B —
SU003-10067 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2024-08 → —
ZN8 RHD HIGH D —
SU003-10067 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2024-08 → —
ZN8 GRA —
SU003-10087 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2024-08 → —
ZN8 RHD BASE D —
SU003-10087 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2024-08 → —
ZN8 RHD BASE D —
SU003-10087 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2023-11 → —
ZN8 RHD BASE C —
SU003-10087 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2023-11 → —
ZN8 RHD BASE C —
SU003-10087 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2023-11 → —
ZN8 RHD BASE C —
SU003-10087 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2023-11 → —
ZN8 RHD BASE C —
SU003-10087 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2024-08 → —
ZN8 RHD BASE D —
SU003-10087 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2024-08 → —
ZN8 RHD BASE D —
SU003-10087 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 RHD BASE B —
SU003-10087 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 RHD BASE B —
SU003-10087 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 RHD BASE B —
SU003-10087 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2022-03 → 2022-06 ended
ZN8 RHD BASE —
SU003-10087 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2022-03 → 2022-06 ended
ZN8 RHD BASE —
SU003-10087 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 RHD BASE B —
SU003-10087 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2022-03 → 2022-06 ended
ZN8 RHD BASE —
SU003-10087 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2022-03 → 2022-06 ended
ZN8 RHD BASE —
SU003-10089 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 RHD (HIGH,ORA) B —
SU003-10089 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 RHD (HIGH,ORA) B —
SU003-10089 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2024-08 → —
ZN8 RHD HIGH D —
SU003-10089 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2024-08 → —
ZN8 RHD HIGH D —
SU003-10089 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2024-08 → —
ZN8 RHD HIGH D —
SU003-10089 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2024-08 → —
ZN8 RHD HIGH D —
SU003-10089 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2022-03 → 2022-06 ended
ZN8 RHD HIGH —
SU003-10089 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2022-03 → 2022-06 ended
ZN8 RHD HIGH —
SU003-10089 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2022-03 → 2022-06 ended
ZN8 RHD HIGH —
SU003-10089 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2023-11 → —
ZN8 RHD HIGH C —
SU003-10089 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2023-11 → —
ZN8 RHD HIGH C —
SU003-10089 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2023-11 → —
ZN8 RHD HIGH C —
SU003-10089 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2023-11 → —
ZN8 RHD HIGH C —
SU003-10089 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 RHD HIGH B —
SU003-10089 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 RHD (HIGH,ORA) B —
SU003-10089 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2022-03 → 2022-06 ended
ZN8 RHD HIGH —
71551S — Pad, Front Seatback, RH(FOR SEPARATE TYPE)
SU003-09764 Pad, Front Seatback, RH(FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 BASE B —
SU003-09764 Pad, Front Seatback, RH(FOR SEPARATE TYPE)
2024-08 → —
ZN8 BASE D —
SU003-09764 Pad, Front Seatback, RH(FOR SEPARATE TYPE)
2023-11 → —
ZN8 BASE C —
SU003-09764 Pad, Front Seatback, RH(FOR SEPARATE TYPE)
2022-03 → 2022-06 ended
ZN8 BASE —
SU003-09766 Pad, Front Seatback, RH(FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 (HIGH,ORA) B —
SU003-09766 Pad, Front Seatback, RH(FOR SEPARATE TYPE)
2023-11 → —
ZN8 HIGH C —
SU003-09766 Pad, Front Seatback, RH(FOR SEPARATE TYPE)
2022-03 → 2022-06 ended
ZN8 HIGH —
SU003-09766 Pad, Front Seatback, RH(FOR SEPARATE TYPE)
2024-08 → —
ZN8 (GRA,HIGH) D —
71552S — Pad, Front Seatback, LH(FOR SEPARATE TYPE)
SU003-09765 Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2022-03 → 2022-06 ended
ZN8 BASE —
SU003-09765 Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 BASE B —
SU003-09765 Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2023-11 → —
ZN8 BASE C —
SU003-09765 Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2024-08 → —
ZN8 BASE D —
SU003-09767 Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2022-03 → 2022-06 ended
ZN8 HIGH —
SU003-09767 Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2024-08 → —
ZN8 (GRA,HIGH) D —
SU003-09767 Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2023-11 → —
ZN8 HIGH C —
SU003-09767 Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 (HIGH,ORA) B —
71610S — Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
SU003-09775 note Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2022-03 → 2022-06 ended
ZN8 LHD —
SU003-09775 note Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 LHD (BASE,HIGH) EUR +1 —
SU003-09922 Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2022-03 → 2022-04 ended
ZN8 RHD —
SU003-10847 Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2024-08 → —
ZN8 LHD D —
SU003-10847 Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2023-11 → —
ZN8 LHD C —
SU003-10847 note Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 LHD (BASE,HIGH) EUR +1 —
SU003-10847 note Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 LHD (BASE,HIGH) EUR +1 —
SU003-10847 note Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 LHD (BASE,HIGH) EUR +1 —
SU003-10847 note Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 LHD (BASE,HIGH) EUR +1 —
SU003-10847 note Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 LHD (BASE,HIGH) EUR +1 —
SU003-10847 note Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 LHD (BASE,HIGH) EUR +1 —
SU003-10847 Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 LHD ORA;ZN8 (BASE,HIGH) +2 —
SU003-10847 note Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2022-03 → 2022-06 ended
ZN8 LHD —
SU003-10847 note Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2022-03 → 2022-06 ended
ZN8 LHD —
SU003-10847 note Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2022-03 → 2022-06 ended
ZN8 LHD —
SU003-10847 note Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2022-03 → 2022-06 ended
ZN8 LHD —
SU003-10847 note Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2022-03 → 2022-06 ended
ZN8 LHD —
SU003-10847 note Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2022-03 → 2022-06 ended
ZN8 LHD —
SU003-11025 Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2022-04 → 2022-06 ended
ZN8 RHD —
SU003-11025 Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2024-08 → —
ZN8 RHD D —
SU003-11025 Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2023-11 → —
ZN8 RHD C —
SU003-11025 Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 RHD B —
71620S — Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
SU003-08606 note Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2024-08 → —
ZN8 RHD (BASE,HIGH) D —
SU003-08606 Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2024-08 → —
ZN8 GRA —
SU003-08606 note Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2023-11 → —
ZN8 RHD C —
SU003-08606 note Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 RHD B —
SU003-08606 note Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 RHD (BASE,HIGH) B —
SU003-08606 note Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 RHD (BASE,HIGH) B —
SU003-08606 note Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-03 → 2022-06 ended
ZN8 RHD —
SU003-08606 note Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-03 → 2022-06 ended
ZN8 RHD —
SU003-08606 note Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-03 → 2022-06 ended
ZN8 RHD —
SU003-09738 Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-03 → 2022-04 ended
ZN8 LHD —
SU003-10848 note Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-03 → 2022-06 ended
ZN8 RHD —
SU003-10848 note Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2024-08 → —
ZN8 RHD (BASE,HIGH) D —
SU003-10848 note Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2024-08 → —
ZN8 RHD (BASE,HIGH) D —
SU003-10848 note Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2024-08 → —
ZN8 RHD (BASE,HIGH) D —
SU003-10848 note Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2024-08 → —
ZN8 RHD (BASE,HIGH) D —
SU003-10848 note Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2023-11 → —
ZN8 RHD C —
SU003-10848 note Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2023-11 → —
ZN8 RHD C —
SU003-10848 note Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2023-11 → —
ZN8 RHD C —
SU003-10848 note Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2023-11 → —
ZN8 RHD C —
SU003-10848 note Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 RHD B —
SU003-10848 note Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 RHD B —
SU003-10848 note Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 RHD B —
SU003-10848 note Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 RHD (BASE,HIGH) B —
SU003-10848 note Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-03 → 2022-06 ended
ZN8 RHD —
SU003-10848 note Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-03 → 2022-06 ended
ZN8 RHD —
SU003-10848 note Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-03 → 2022-06 ended
ZN8 RHD —
SU003-11026 Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 LHD B —
SU003-11026 Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2023-11 → —
ZN8 LHD C —
SU003-11026 Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-04 → 2022-06 ended
ZN8 LHD —
SU003-11026 Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2024-08 → —
ZN8 LHD D —
71630S — Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
SU003-09742 Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
2024-08 → —
ZN8 LHD D —
SU003-09742 Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
2023-11 → —
ZN8 LHD C —
SU003-09742 Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
2022-03 → 2022-06 ended
ZN8 LHD —
SU003-09742 Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 LHD B —
SU003-09923 Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 RHD B —
SU003-09923 Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
2022-03 → 2022-06 ended
ZN8 RHD —
SU003-09923 Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
2023-11 → —
ZN8 RHD C —
SU003-09923 Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
2024-08 → —
ZN8 RHD D —
71640S — Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
SU003-09741 Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
2024-08 → —
ZN8 LHD D —
SU003-09741 Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
2023-11 → —
ZN8 LHD C —
SU003-09741 Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
2022-03 → 2022-06 ended
ZN8 LHD —
SU003-09741 Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 LHD B —
SU003-09924 Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
2022-06 → 2023-10 ended
ZN8 RHD B —
SU003-09924 Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
2022-03 → 2022-06 ended
ZN8 RHD —
SU003-09924 Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
2023-11 → —
ZN8 RHD C —
SU003-09924 Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
2024-08 → —
ZN8 RHD D —
71811C — Cover, Reclining Adjuster, RH
SU003-09773 note Cover, Reclining Adjuster, RH
2023-11 → —
ZN8 C —
SU003-09773 note Cover, Reclining Adjuster, RH
2024-08 → —
ZN8 D —
SU003-09773 note Cover, Reclining Adjuster, RH
2022-06 → 2023-10 ended
ZN8 B —
SU003-09773 note Cover, Reclining Adjuster, RH
2022-03 → 2022-06 ended
ZN8 —
71811F — Cover, Reclining Adjuster, RH
SU003-09755 note Cover, Reclining Adjuster, RH
2022-03 → 2022-06 ended
ZN8 —
SU003-09755 note Cover, Reclining Adjuster, RH
2022-06 → 2023-10 ended
ZN8 B —
SU003-09755 note Cover, Reclining Adjuster, RH
2023-11 → —
ZN8 C —
SU003-09755 note Cover, Reclining Adjuster, RH
2024-08 → —
ZN8 D —
71812C — Cover, Reclining Adjuster, LH
SU003-09774 note Cover, Reclining Adjuster, LH
2022-03 → 2022-06 ended
ZN8 —
SU003-09774 note Cover, Reclining Adjuster, LH
2024-08 → —
ZN8 D —
SU003-09774 note Cover, Reclining Adjuster, LH
2023-11 → —
ZN8 C —
SU003-09774 note Cover, Reclining Adjuster, LH
2022-06 → 2023-10 ended
ZN8 RHD ORA —
SU003-09774 note Cover, Reclining Adjuster, LH
2022-06 → 2023-10 ended
ZN8 LHD B;ZN8 RHD +2 —
71812G — Cover, Reclining Adjuster, LH
SU003-09756 note Cover, Reclining Adjuster, LH
2022-03 → 2022-06 ended
ZN8 —
SU003-09756 note Cover, Reclining Adjuster, LH
2022-06 → 2023-10 ended
ZN8 RHD ORA —
SU003-09756 note Cover, Reclining Adjuster, LH
2022-06 → 2023-10 ended
ZN8 LHD B;ZN8 RHD +2 —
SU003-09756 note Cover, Reclining Adjuster, LH
2023-11 → —
ZN8 C —
SU003-09756 note Cover, Reclining Adjuster, LH
2024-08 → —
ZN8 D —
71910A — Headrest Assy, Front Seat
SU003-10355 note Headrest Assy, Front Seat
2022-03 → 2022-06 ended
ZN8 BASE —
SU003-10355 note Headrest Assy, Front Seat
2022-03 → 2022-06 ended
ZN8 BASE —
SU003-10355 note Headrest Assy, Front Seat
2023-11 → —
ZN8 RHD BASE C —
SU003-10355 note Headrest Assy, Front Seat
2022-06 → 2023-10 ended
ZN8 BASE EUR B —
SU003-10355 note Headrest Assy, Front Seat
2022-06 → 2023-10 ended
ZN8 BASE B —
SU003-10355 note Headrest Assy, Front Seat
2023-11 → —
ZN8 BASE C —
SU003-10355 note Headrest Assy, Front Seat
2024-08 → —
ZN8 BASE D —
SU003-10355 note Headrest Assy, Front Seat
2024-08 → —
ZN8 RHD BASE D —
SU003-10356 note Headrest Assy, Front Seat
2023-11 → —
ZN8 HIGH C —
SU003-10356 note Headrest Assy, Front Seat
2024-08 → —
ZN8 HIGH D —
SU003-10356 note Headrest Assy, Front Seat
2022-06 → 2023-10 ended
ZN8 HIGH B —
SU003-10356 note Headrest Assy, Front Seat
2022-03 → 2022-06 ended
ZN8 HIGH —
SU003-10358 note Headrest Assy, Front Seat
2024-08 → —
ZN8 HIGH D —
SU003-10358 note Headrest Assy, Front Seat
2023-11 → —
ZN8 HIGH C —
SU003-10358 note Headrest Assy, Front Seat
2022-03 → 2022-06 ended
ZN8 HIGH —
SU003-10358 note Headrest Assy, Front Seat
2022-06 → 2023-10 ended
ZN8 HIGH B —
SU003-11142 note Headrest Assy, Front Seat
2022-06 → 2023-10 ended
ZN8 ORA —
SU003-11142 note Headrest Assy, Front Seat
2022-06 → 2023-10 ended
ZN8 RHD ORA —
SU003-11844 note Headrest Assy, Front Seat
2024-08 → —
ZN8 GRA —
71931 — Support, Front Seat Headrest
SU003-10359 note Support, Front Seat Headrest
2022-03 → 2022-06 ended
ZN8 —
SU003-10359 note Support, Front Seat Headrest
2022-06 → 2023-10 ended
ZN8 B —
SU003-10359 note Support, Front Seat Headrest
2023-11 → —
ZN8 C —
SU003-10359 note Support, Front Seat Headrest
2024-08 → —
ZN8 D —
SU003-10360 note Support, Front Seat Headrest
2022-03 → 2022-06 ended
ZN8 —
SU003-10360 note Support, Front Seat Headrest
2022-06 → 2023-10 ended
ZN8 B —
SU003-10360 note Support, Front Seat Headrest
2023-11 → —
ZN8 C —
SU003-10360 note Support, Front Seat Headrest
2024-08 → —
ZN8 D —
72137E — Cover, Seat Track, NO.1
SU003-09739 Cover, Seat Track, NO.1
2023-11 → —
ZN8 C —
SU003-09739 Cover, Seat Track, NO.1
2024-08 → —
ZN8 D —
SU003-09739 Cover, Seat Track, NO.1
2022-06 → 2023-10 ended
ZN8 B —
SU003-09739 Cover, Seat Track, NO.1
2022-03 → 2022-06 ended
ZN8 —
72210 — Cable Assy, Seat Track Control
SU003-09745 Cable Assy, Seat Track Control
2022-03 → 2022-06 ended
ZN8 —
SU003-09745 Cable Assy, Seat Track Control
2022-06 → 2023-10 ended
ZN8 B —
SU003-09745 Cable Assy, Seat Track Control
2023-11 → —
ZN8 C —
SU003-09745 Cable Assy, Seat Track Control
2024-08 → —
ZN8 D —
72265D — Cover, Seat Track Upper Rail
SU003-09740 Cover, Seat Track Upper Rail
2022-03 → 2022-06 ended
ZN8 —
SU003-09740 Cover, Seat Track Upper Rail
2022-06 → 2023-10 ended
ZN8 B —
SU003-09740 Cover, Seat Track Upper Rail
2023-11 → —
ZN8 C —
SU003-09740 Cover, Seat Track Upper Rail
2024-08 → —
ZN8 D —
72543 — Plate, Reclining Control, RH
SU003-09772 Plate, Reclining Control, RH
2024-08 → —
ZN8 D —
SU003-09772 Plate, Reclining Control, RH
2022-06 → 2023-10 ended
ZN8 B —
SU003-09772 Plate, Reclining Control, RH
2022-03 → 2022-06 ended
ZN8 —
SU003-09772 Plate, Reclining Control, RH
2023-11 → —
ZN8 C —
72544 — Plate, Reclining Control, LH
SU003-10068 Plate, Reclining Control, LH
2022-03 → 2022-06 ended
ZN8 —
SU003-10068 Plate, Reclining Control, LH
2022-06 → 2023-10 ended
ZN8 B —
SU003-10068 Plate, Reclining Control, LH
2023-11 → —
ZN8 C —
SU003-10068 Plate, Reclining Control, LH
2024-08 → —
ZN8 D —
72570B — Cable Assy, Reclining Adjusting, RH
SU003-09744 Cable Assy, Reclining Adjusting, RH
2022-03 → 2022-06 ended
ZN8 —
SU003-09744 Cable Assy, Reclining Adjusting, RH
2022-06 → 2023-10 ended
ZN8 B —
SU003-09744 Cable Assy, Reclining Adjusting, RH
2023-11 → —
ZN8 C —
SU003-09744 Cable Assy, Reclining Adjusting, RH
2024-08 → —
ZN8 D —
72580A — Cable Assy, Reclining Adjusting, LH
SU003-09743 Cable Assy, Reclining Adjusting, LH
2024-08 → —
ZN8 D —
SU003-09743 Cable Assy, Reclining Adjusting, LH
2023-11 → —
ZN8 C —
SU003-09743 Cable Assy, Reclining Adjusting, LH
2022-06 → 2023-10 ended
ZN8 B —
SU003-09743 Cable Assy, Reclining Adjusting, LH
2022-03 → 2022-06 ended
ZN8 —
73910A — Airbag Assy, Front Seat, RH
SU003-08979 Airbag Assy, Front Seat, RH
2022-03 → 2022-06 ended
ZN8 —
SU003-08979 Airbag Assy, Front Seat, RH
2022-06 → 2023-10 ended
ZN8 B —
SU003-08979 Airbag Assy, Front Seat, RH
2023-11 → —
ZN8 C —
SU003-08979 Airbag Assy, Front Seat, RH
2024-08 → —
ZN8 D —
73920A — Airbag Assy, Front Seat, LH
SU003-08980 Airbag Assy, Front Seat, LH
2022-03 → 2022-06 ended
ZN8 —
SU003-08980 Airbag Assy, Front Seat, LH
2022-06 → 2023-10 ended
ZN8 B —
SU003-08980 Airbag Assy, Front Seat, LH
2023-11 → —
ZN8 C —
SU003-08980 Airbag Assy, Front Seat, LH
2024-08 → —
ZN8 D —
89953A — Sensor, Belt Warning Occupant Detection
SU003-08605 Sensor, Belt Warning Occupant Detection
2022-03 → 2022-06 ended
ZN8 —
SU003-08605 Sensor, Belt Warning Occupant Detection
2022-06 → 2023-10 ended
ZN8 RHD ORA;ZN8 (BASE,HIGH) +2 —
SU003-08605 Sensor, Belt Warning Occupant Detection
2023-11 → —
ZN8 RHD C —
SU003-08605 Sensor, Belt Warning Occupant Detection
2024-08 → —
ZN8 RHD D —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
