Toyota GR 86
2022-03 → present · chassis ZN8 · catalogue 264230 · Europe
Supported model
Data version 2024-10
Crankshaft & Piston
18 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 11711 | Bearing, Crankshaft |
| 11721 | Bearing, Crankshaft, NO.2 |
| 11731 | Bearing, Crankshaft, NO.3 |
| 13011 | Ring Set, Piston |
| 13101 | Piston Sub-assy, W/Pin |
| 13101A | Ring, Hole Snap(FOR PISTON PIN) |
| 13201 | Rod Sub-assy, Connecting |
| 13265 | Bolt, Connecting Rod |
| 13301 | Piston Sub-assy, W/Pin, LH |

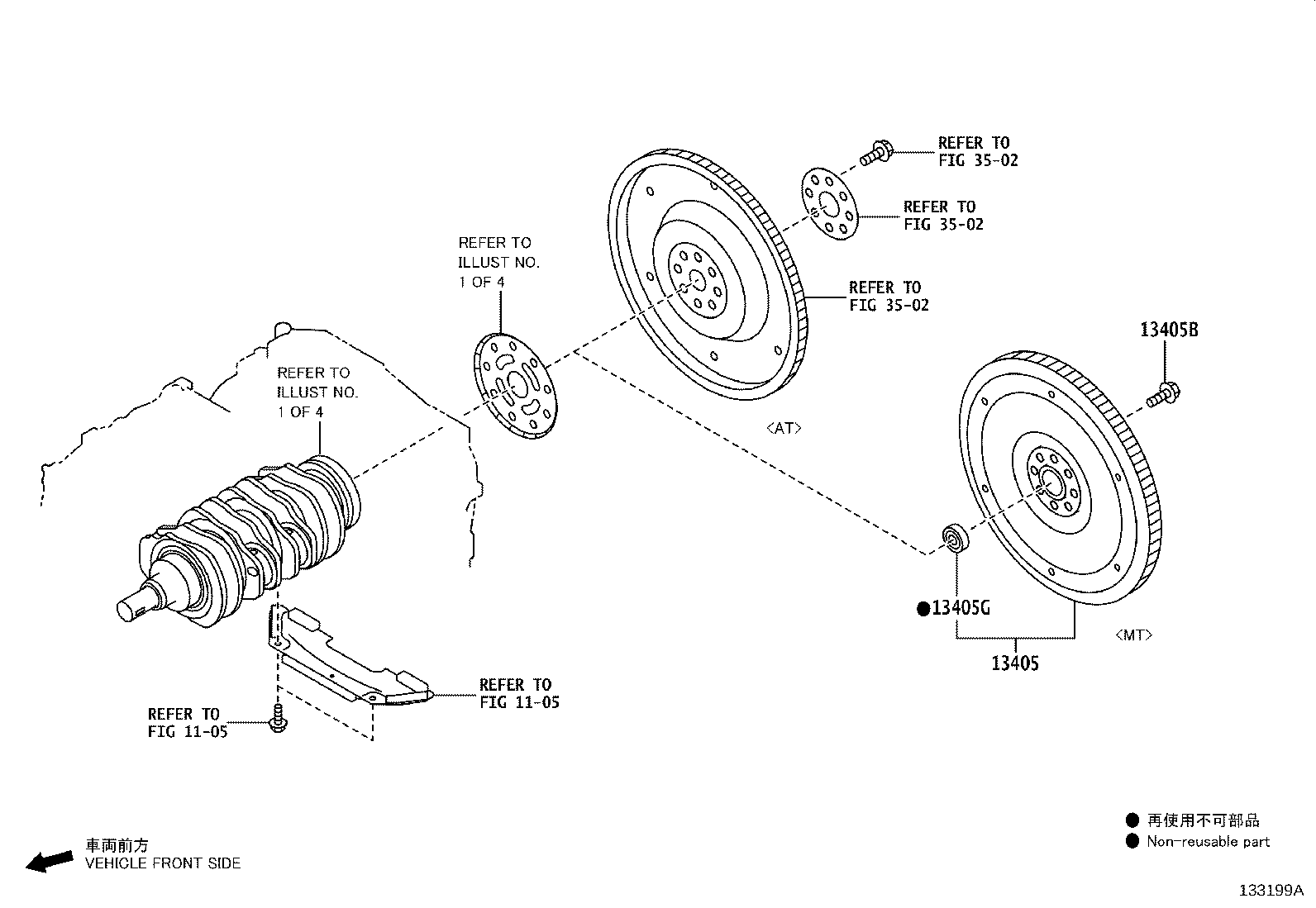

| 13405 | Flywheel Sub-assy |
| 13405B | Bolt, Flywheel Setting |
| 13405G | Bearing, Flyeel |
| 13411 | Crankshaft |

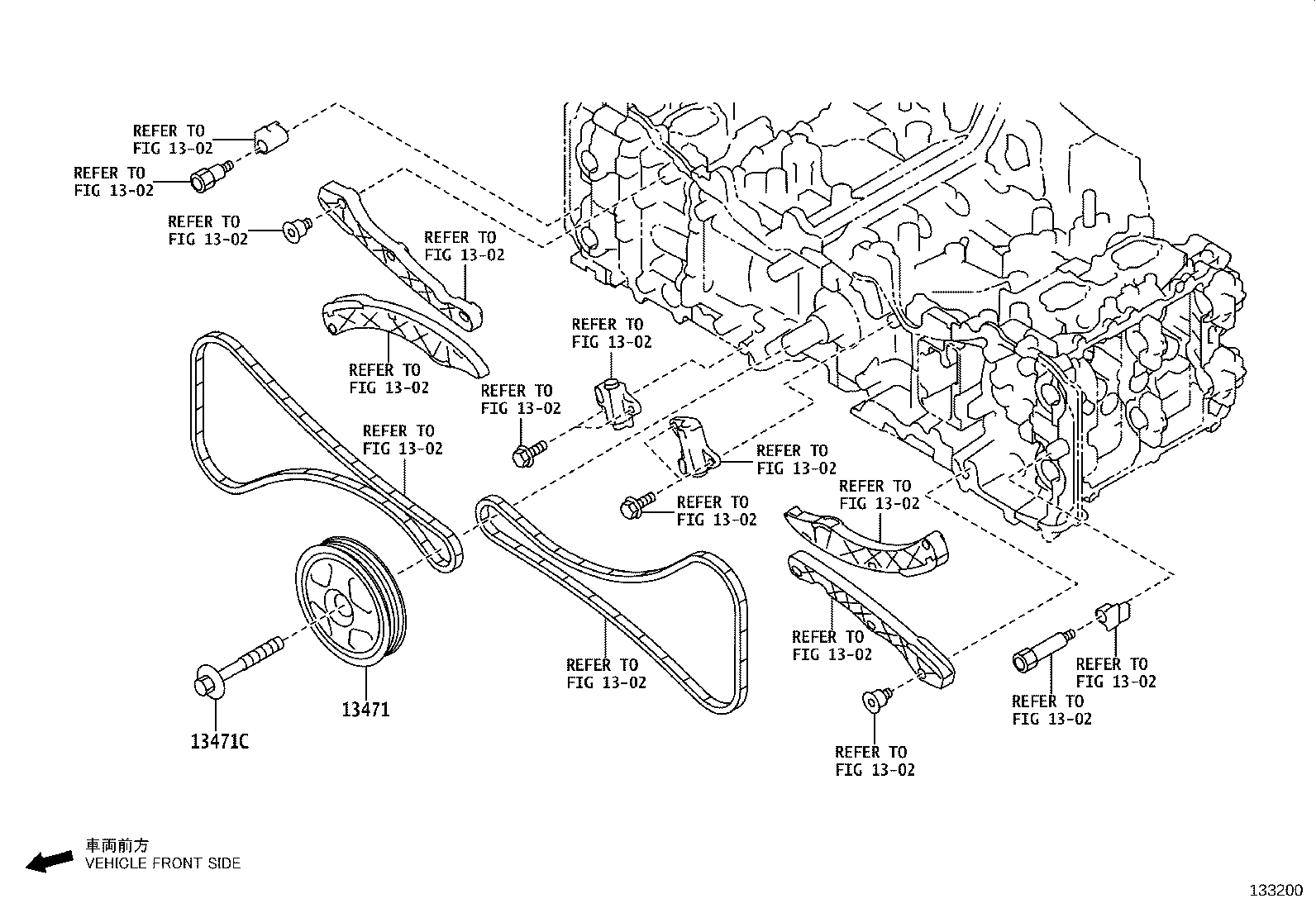

| 13471 | Pulley, Crankshaft |
| 13471C | Bolt(FOR CRANKSHAFT PULLEY SET) |
| 13521 | Gear OR Sprocket, Crankshaft Timing |
| 13521A | Key(FOR CRANKSHAFT TIMING GEAR) |
| 19315 | Plate, Crank Angle Sensor, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
