Toyota GR 86
2022-03 → present · chassis ZN8 · catalogue 264230 · Europe
Supported model
Data version 2024-10
Water Pump

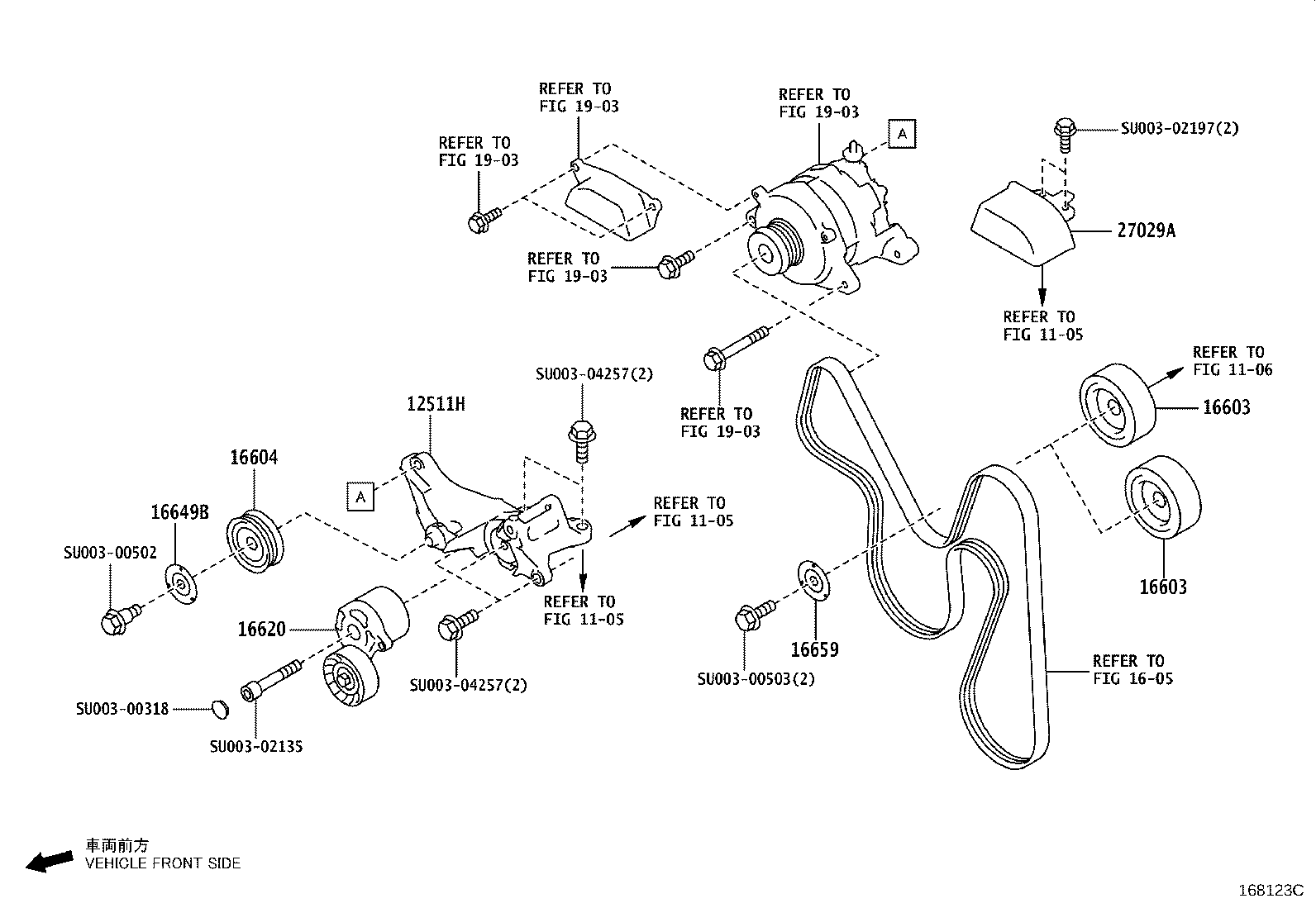

9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 12511H | Bracket, Alternator |
| 16100 | Pump Assy, Engine Water |
| 16173 | Pulley, Water Pump |
| 16603 | Pulley Sub-assy, Idler, NO.1 |
| 16604 | Pulley Sub-assy, Idler, NO.2 |
| 16620 | Tensioner Assy, V-ribbed Belt |
| 16649B | Plate, Idler Pulley Cover |
| 16659 | Plate, Idler Pulley Cover, NO.2 |
| 27029A | Cover, Belt Alternator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
