Toyota GR 86

2022-03 → present · chassis ZN8 · catalogue 264230 · Europe

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

14 part groups · 7 illustrations

Illustrations

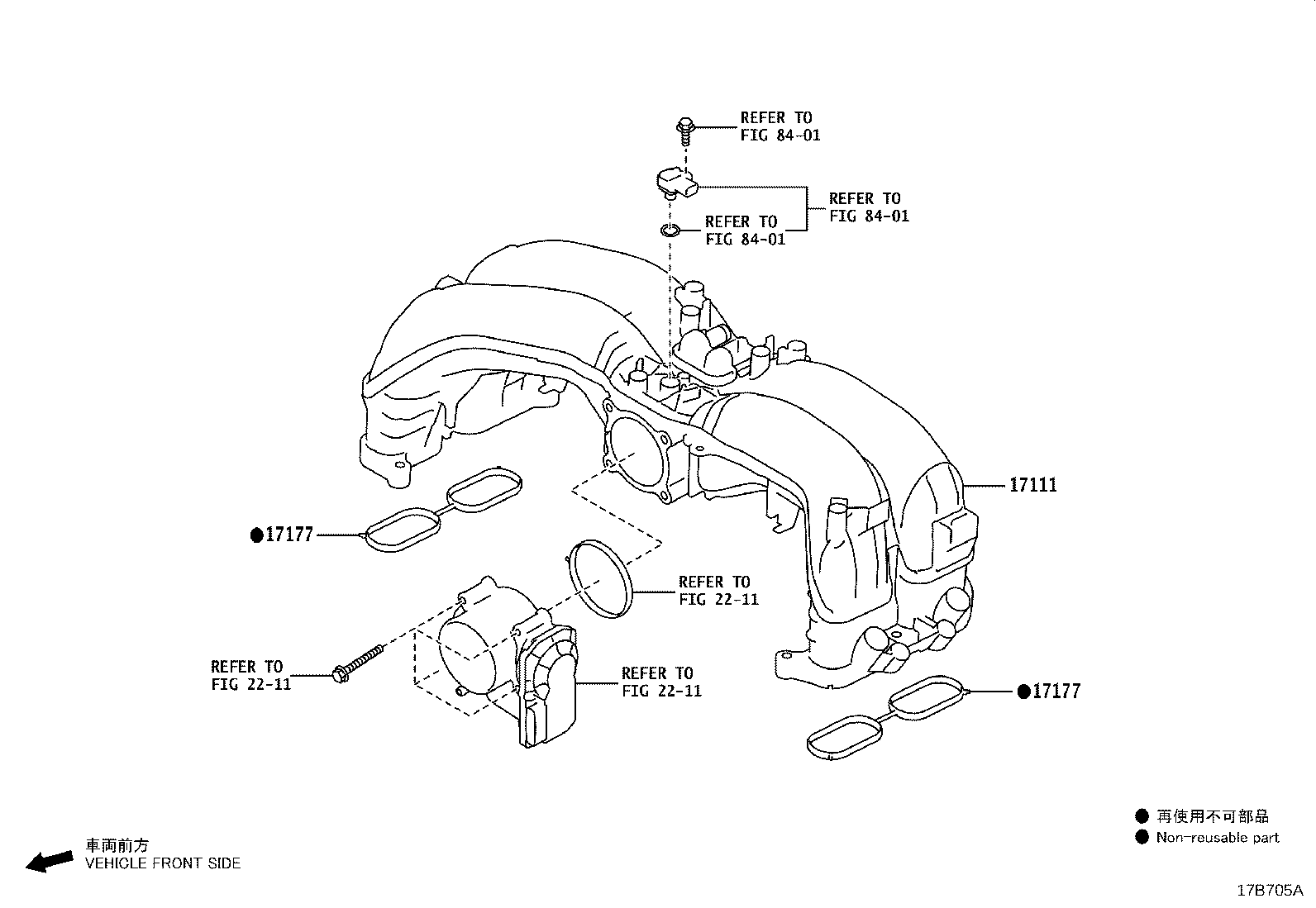

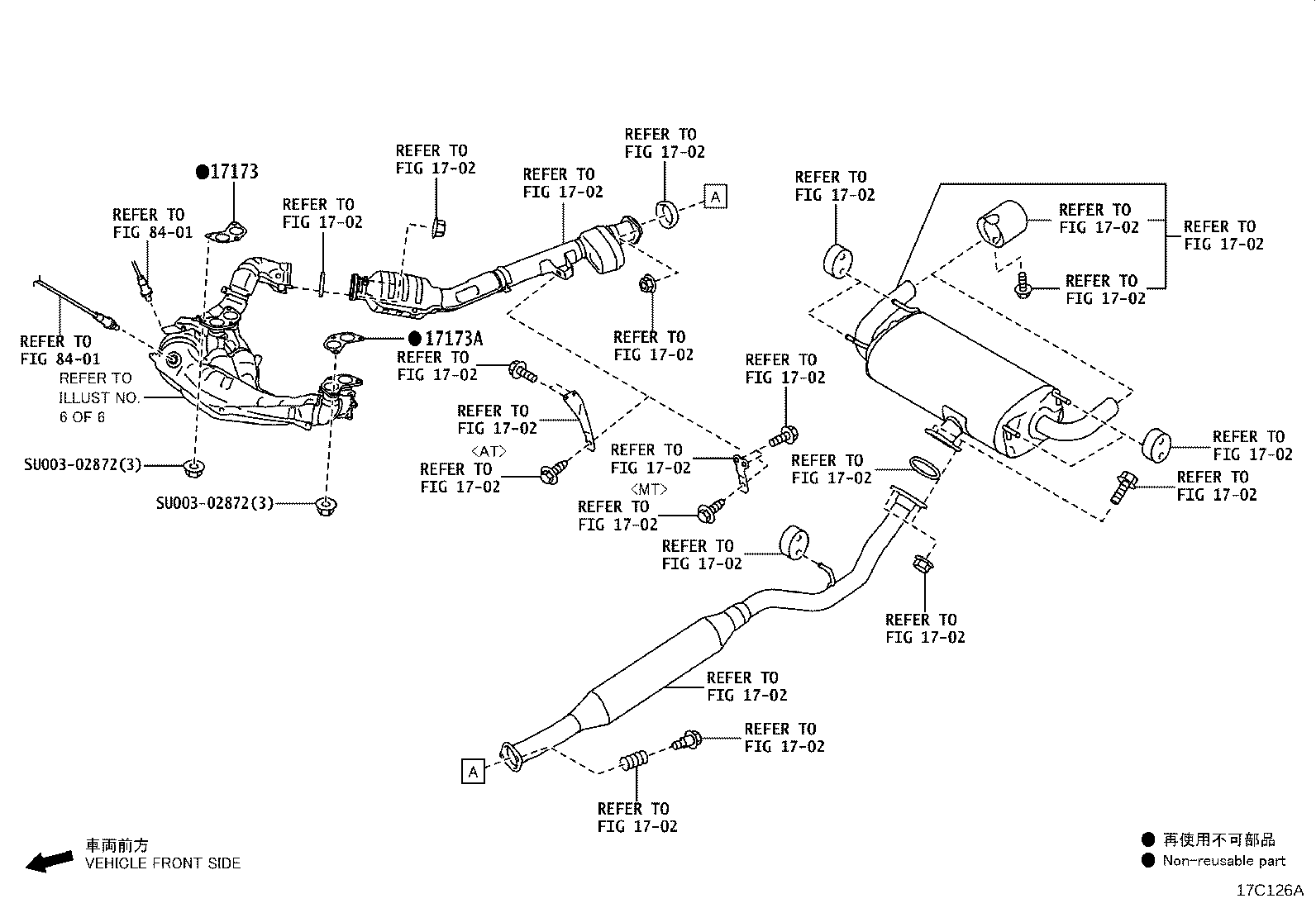

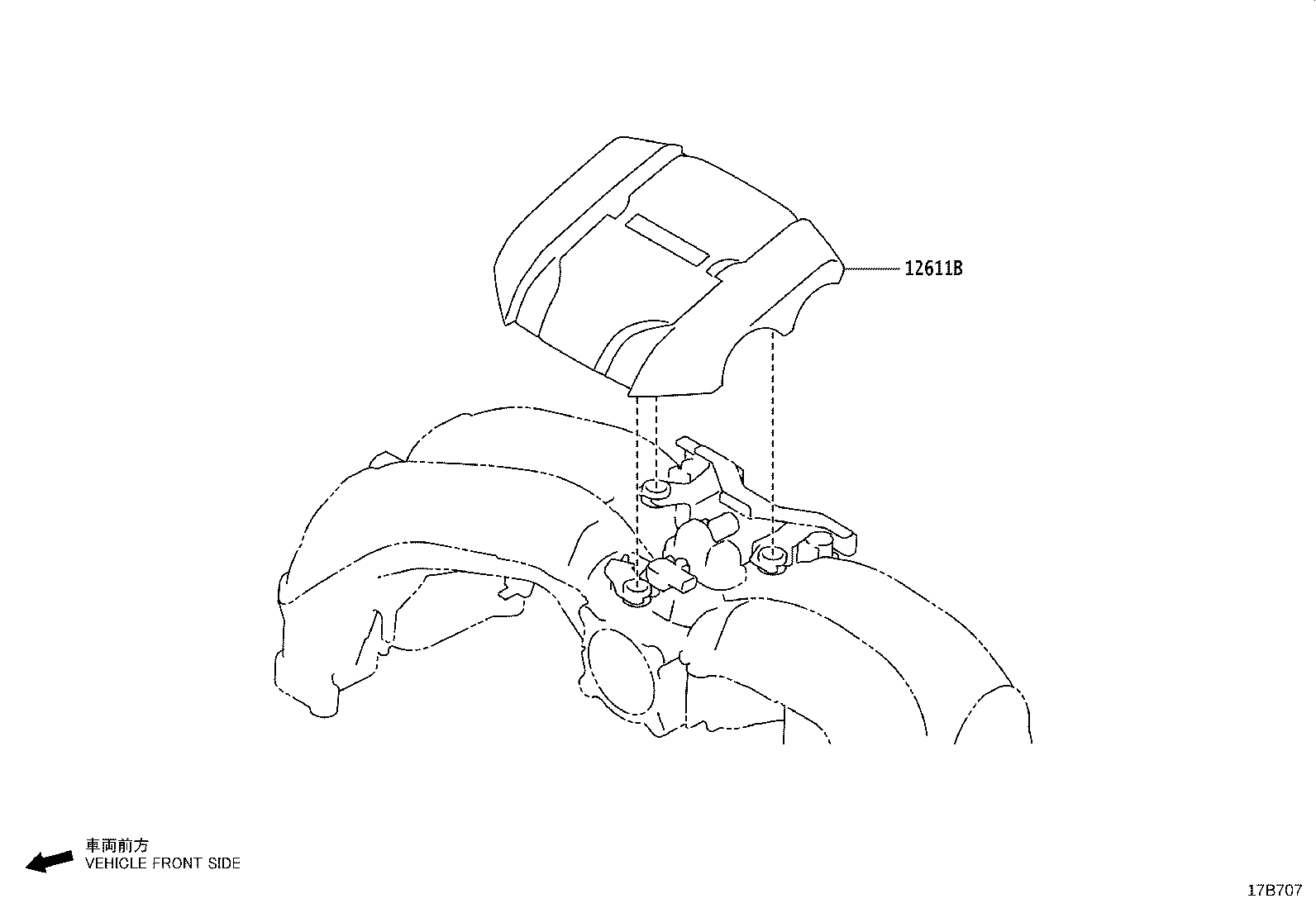

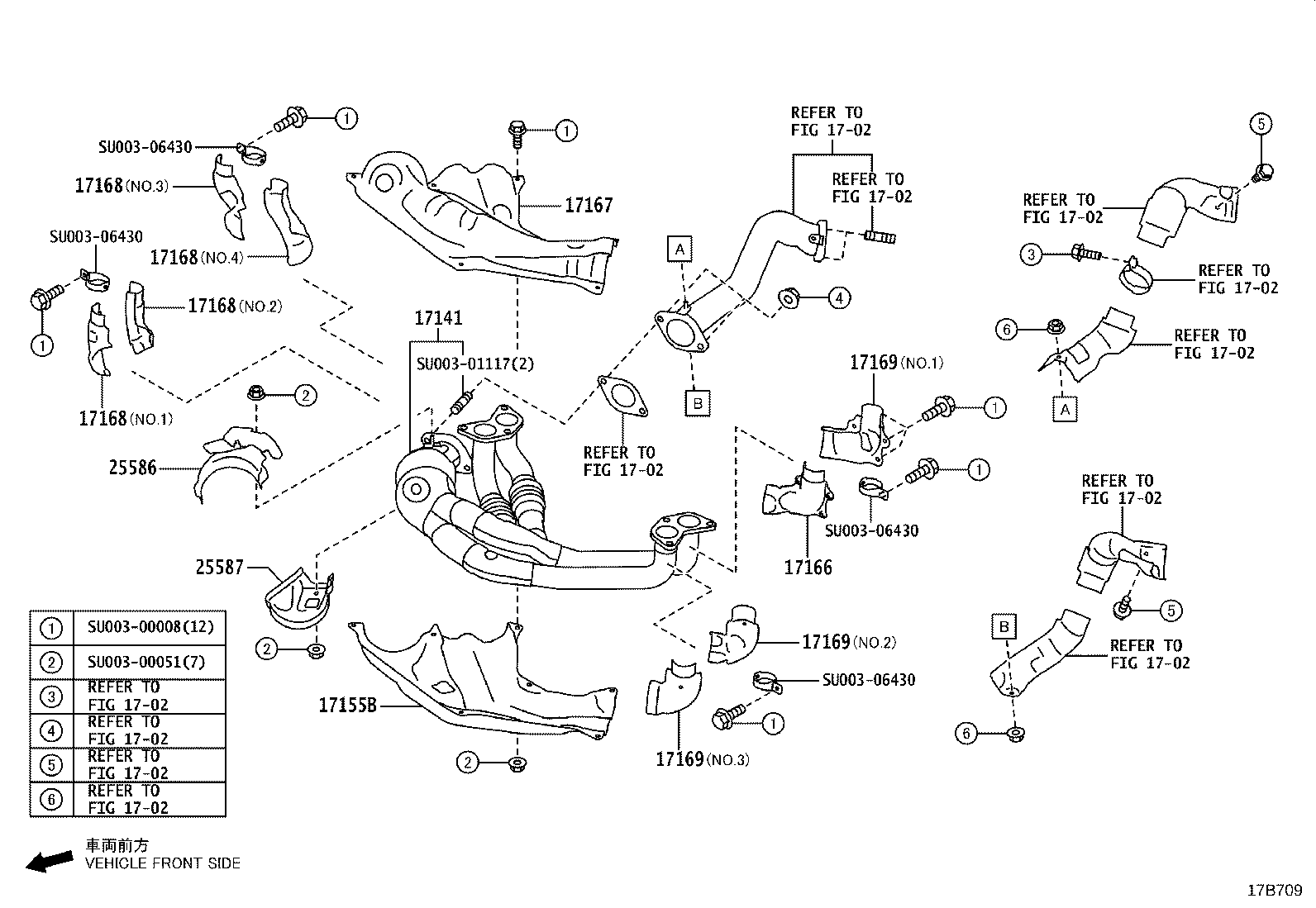

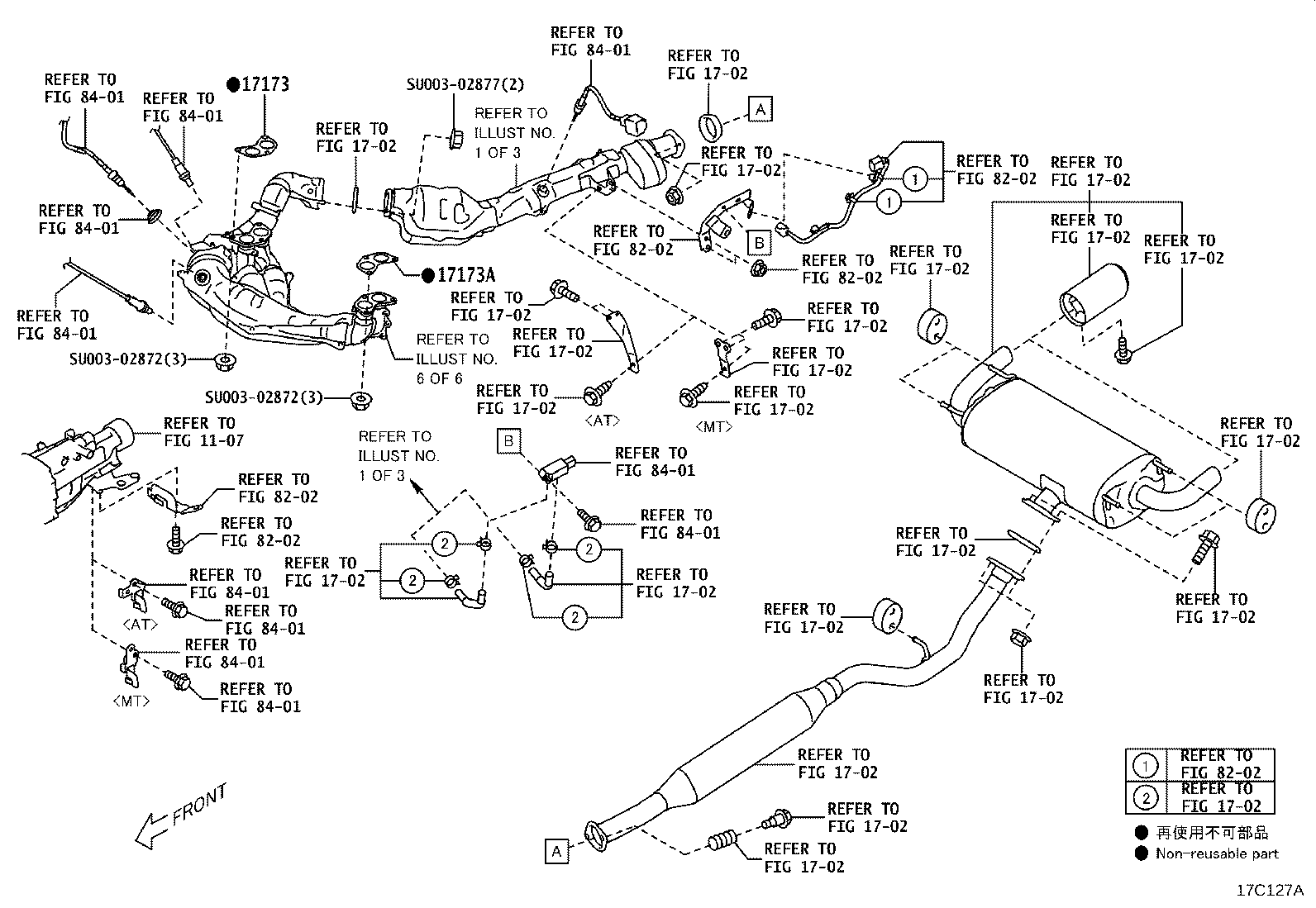

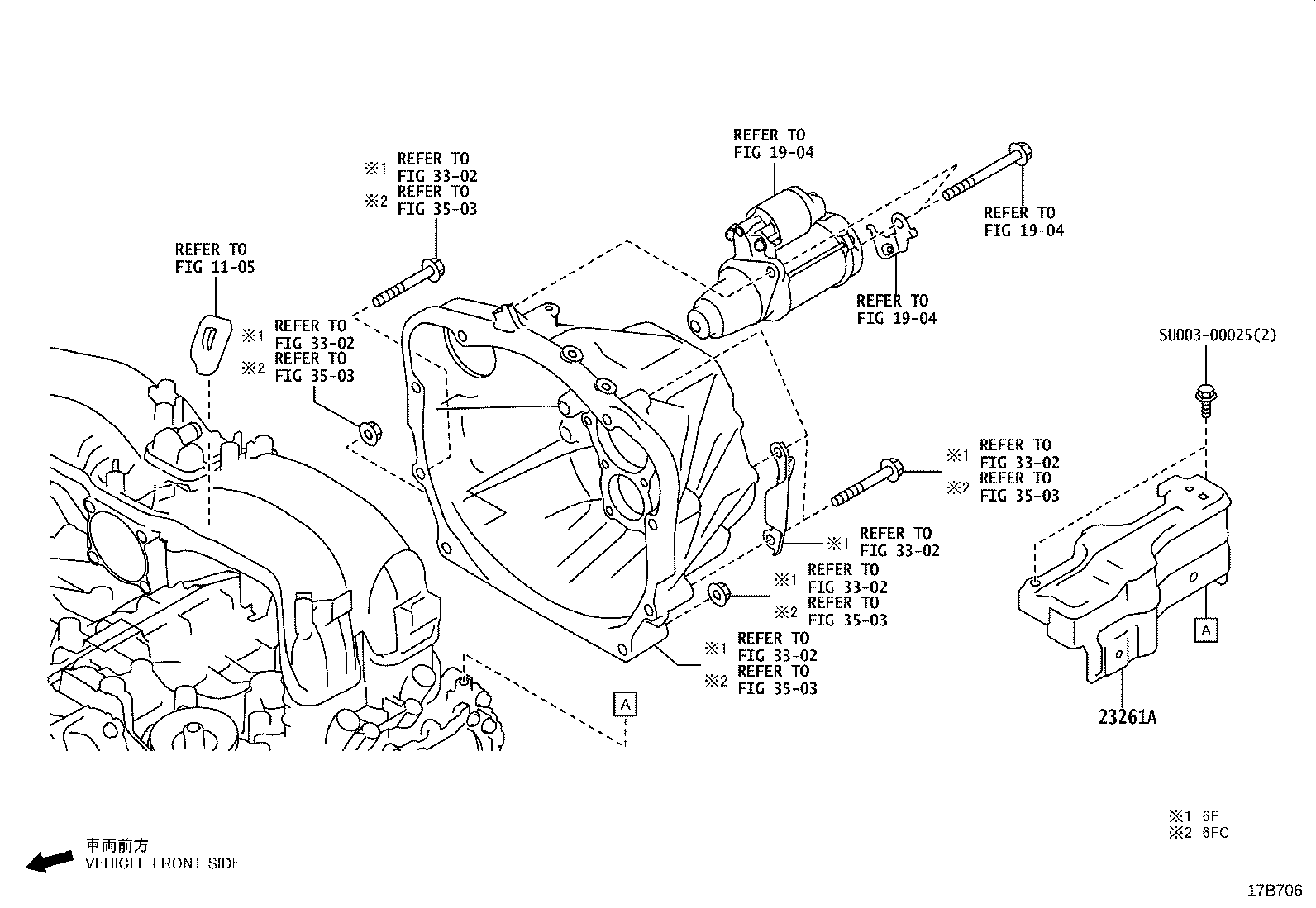

Figure 17B704 17B704 2022-03 → — Figure 17B705A 17B705A 2022-03 → — Figure 17B706 17B706 2022-03 → — Figure 17B707 17B707 2022-03 → — Figure 17C126A 17C126A 2022-03 → — Figure 17C127A 17C127A 2022-03 → — Figure 17B709 17B709 2022-03 → —

Part groups

PNCDescription
12611B Cover, Engine, NO.1
17111 Manifold, Intake
17141 Manifold, Exhaust
17155B Insulator, Exhaust Manifold Heat, NO.5
17166 Insulator, Exhaust Manifold Heat,NO.4
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17169 Insulator, Exhaust Manifold Heat, NO.3
17173 Gasket, Exhaust Manifold TO Head
17173A Gasket, Exhaust Manifold TO Head, LH
17177 Gasket, Intake Manifold TO Head, NO.1
23261A Cover, Injector
25586 Insulator, Manifold Converter, NO.1
25587 Insulator, Manifold Converter, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
