Toyota GR 86

2022-03 → present · chassis ZN8 · catalogue 264230 · Europe

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

23 part groups · 5 illustrations

Illustrations

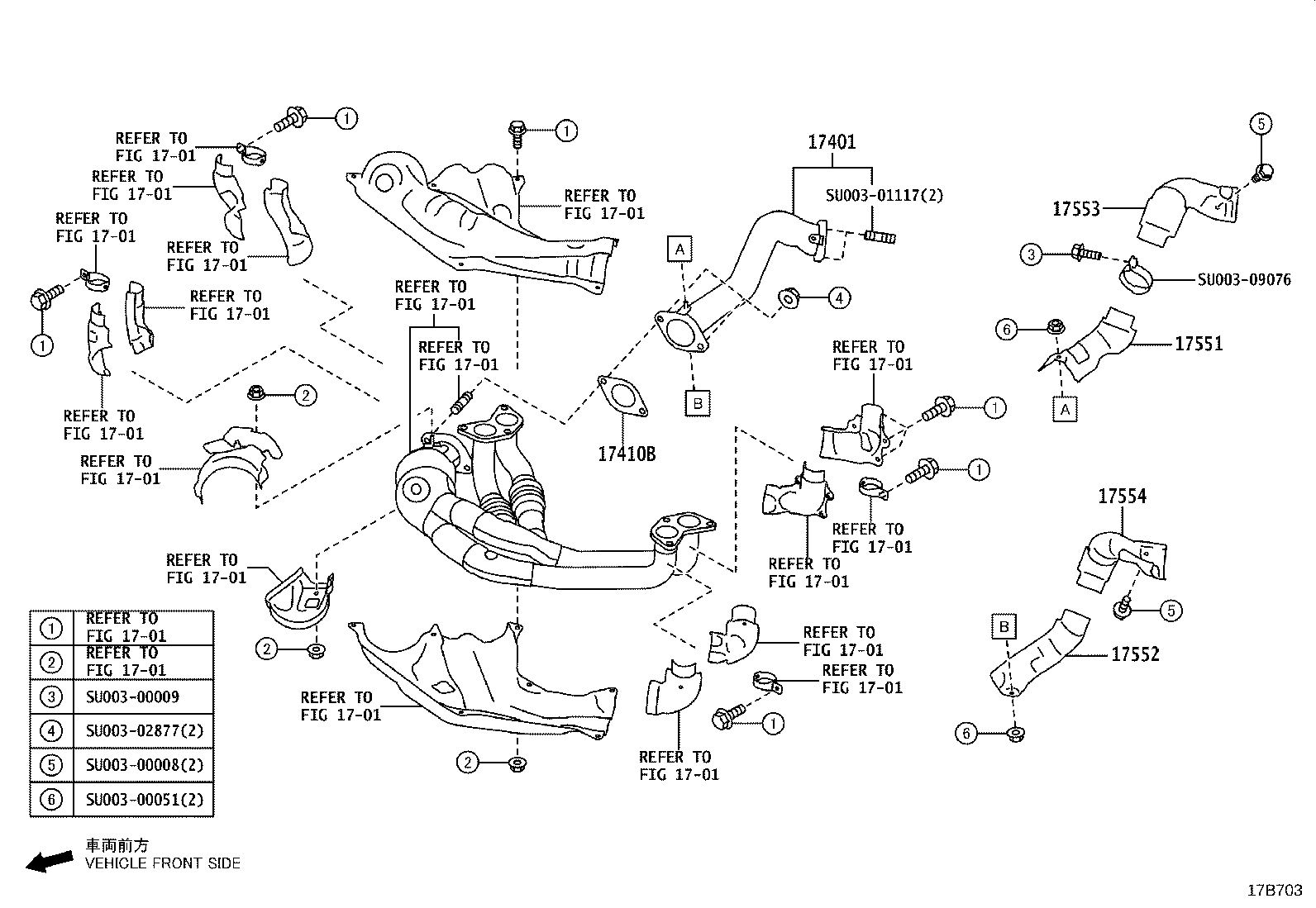

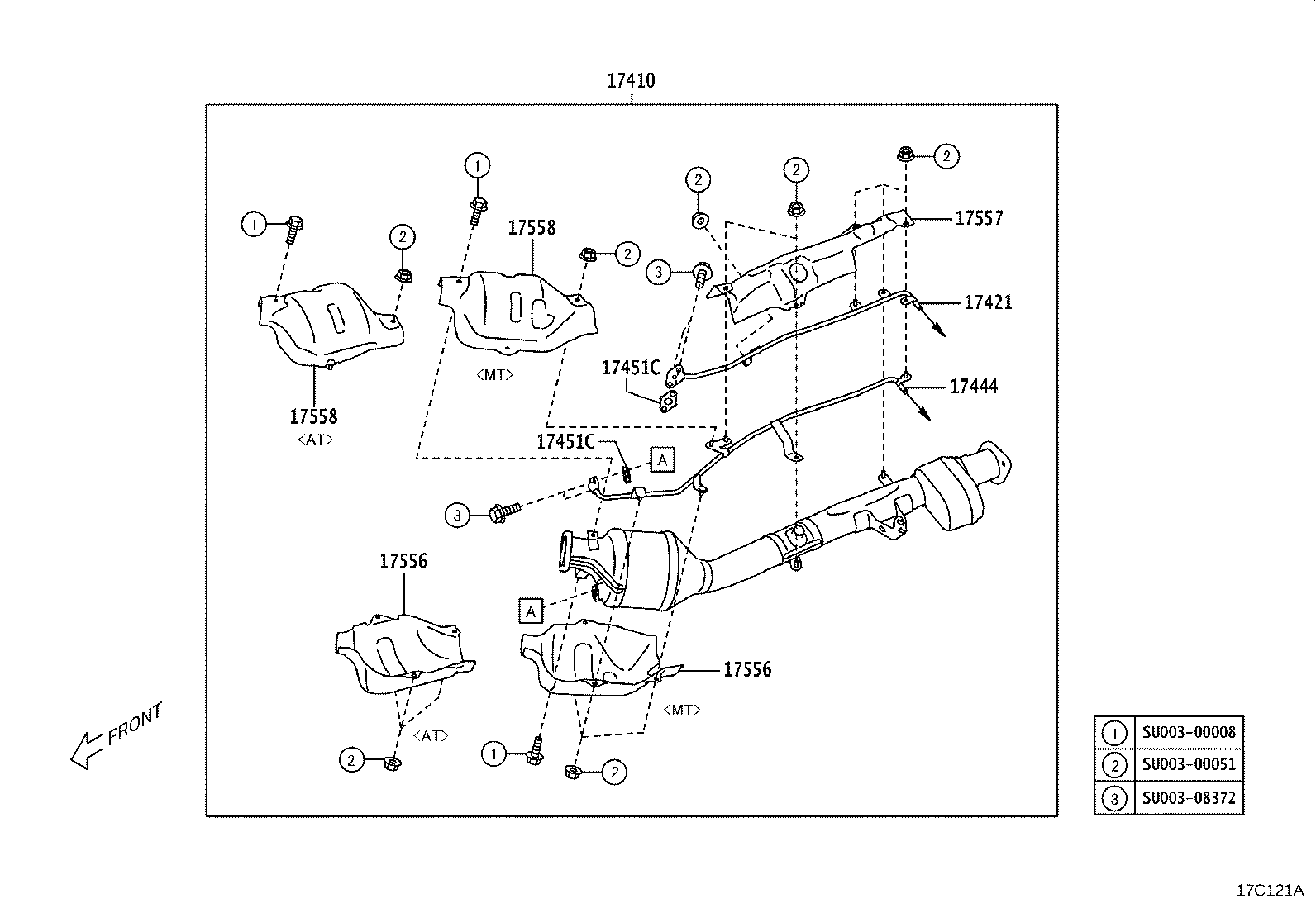

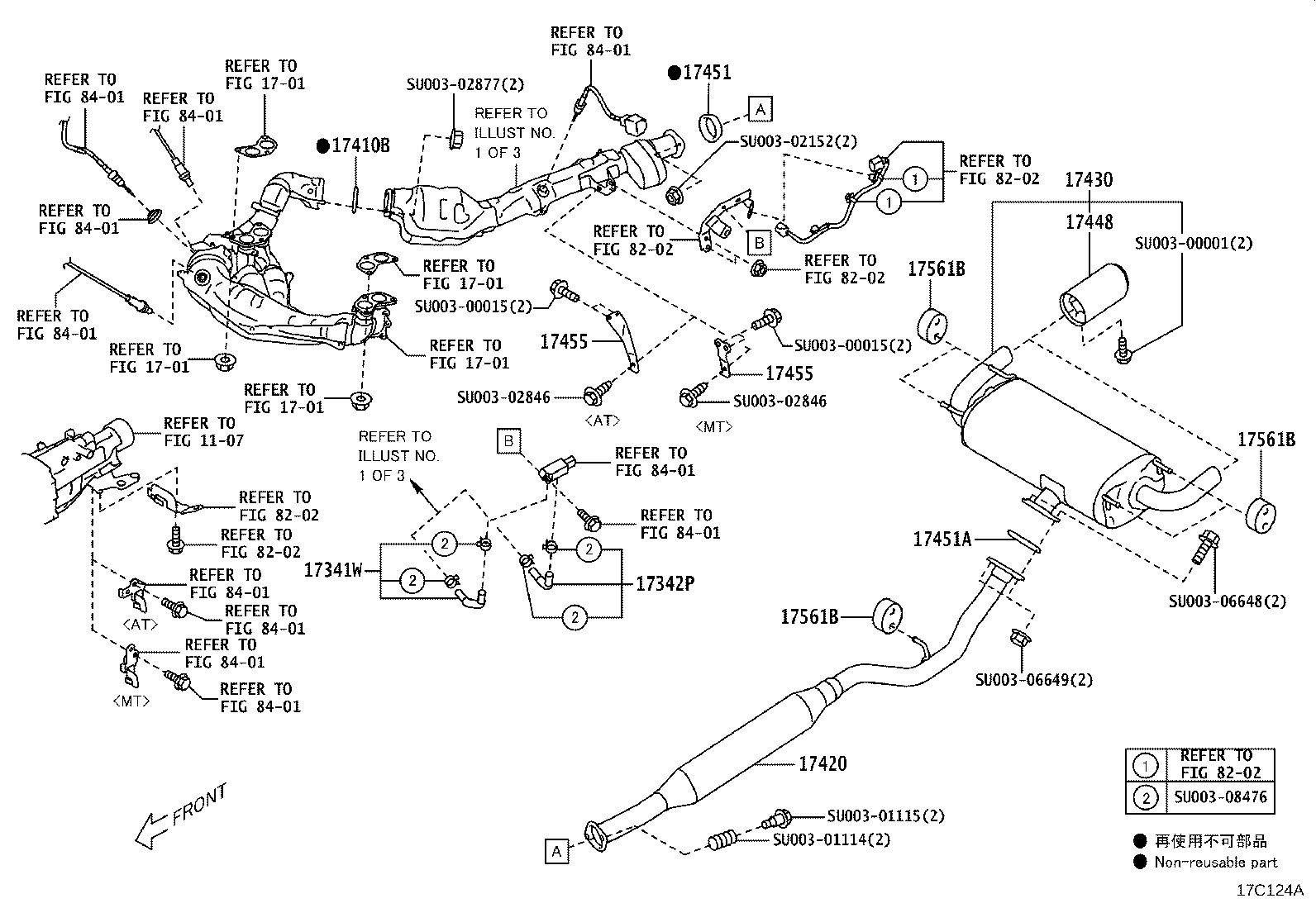

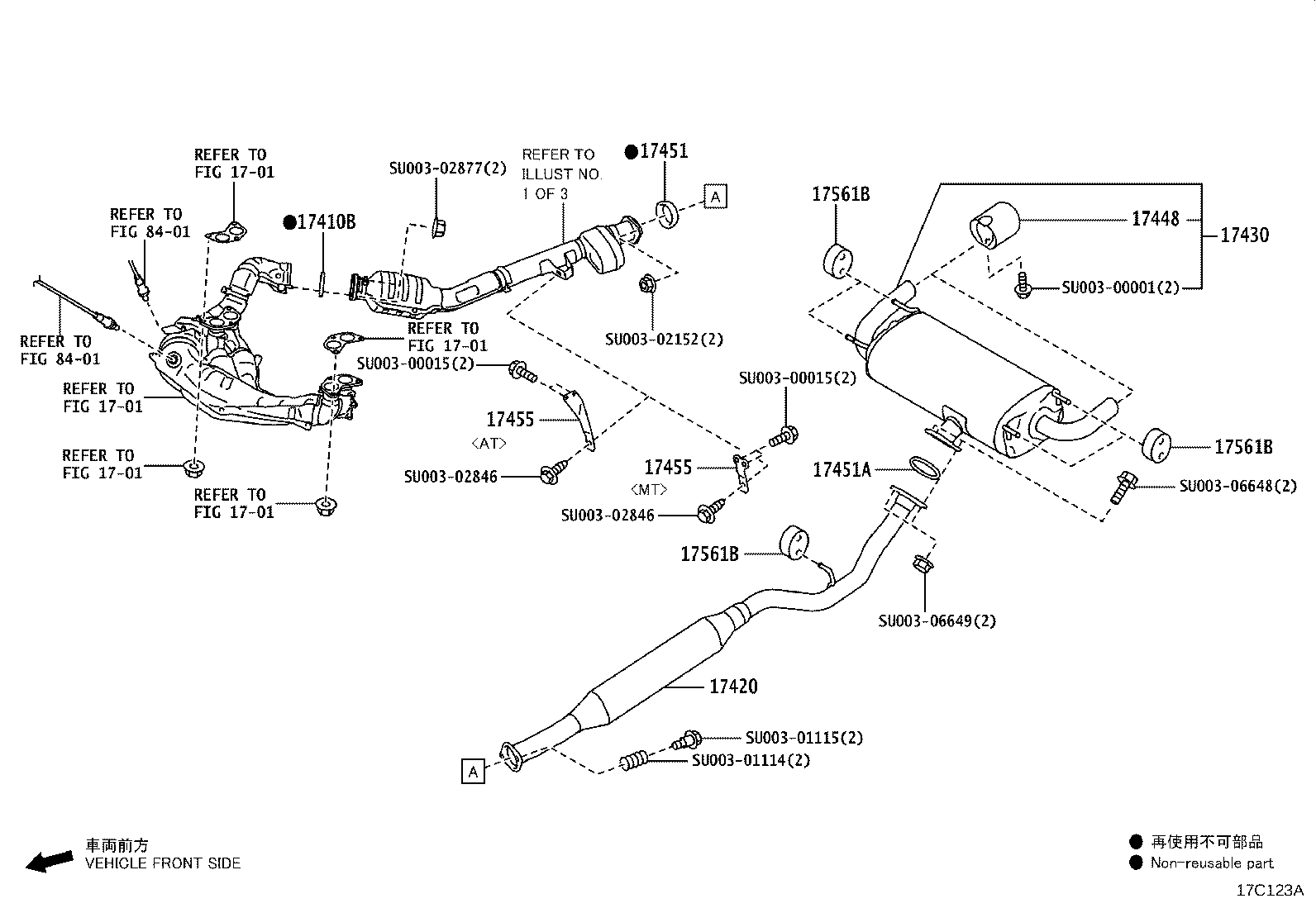

Figure 17B701 17B701 2022-03 → — Figure 17C121A 17C121A 2022-03 → — Figure 17C123A 17C123A 2022-03 → — Figure 17C124A 17C124A 2022-03 → — Figure 17B703 17B703 2022-03 → —

Part groups

PNCDescription
17341W Hose, Air, NO.1
17342P Hose, Air, NO.2
17401 Pipe Sub-assy, Exhaust, Front
17410 Pipe Assy, Exhaust, Front
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17421 Pipe, Exhaust, NO.2
17430 Pipe Assy, Exhaust, Tail
17444 Pipe, Exhaust, NO.4
17448 Baffle, Tailpipe
17451 Gasket, Exhaust Pipe
17451A Gasket, Exhaust Pipe, NO.2
17451C Gasket, Exhaust Pipe, NO.3
17455 Bracket, Exhaust Pipe
17551 Insulator, Exhaust Pipe Heat, NO.1
17552 Insulator, Exhaust Pipe Heat, NO.2
17553 Insulator, Exhaust Pipe Heat, NO.3
17554 Insulator, Exhaust Pipe Heat, Front
17555 Insulator, Exhaust Pipe Heat, NO.5
17556 Insulator, Exhaust Pipe Heat, NO.6
17557 Insulator, Exhaust Pipe Heat, NO.7
17558 Insulator, Exhaust Pipe Heat, NO.8
17561B Support, Exhaust Pipe, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
