Toyota GR 86
2022-03 → present · chassis ZN8 · catalogue 264230 · Europe
Supported model
Data version 2024-10
Starter
16 part groups · 2 illustrations

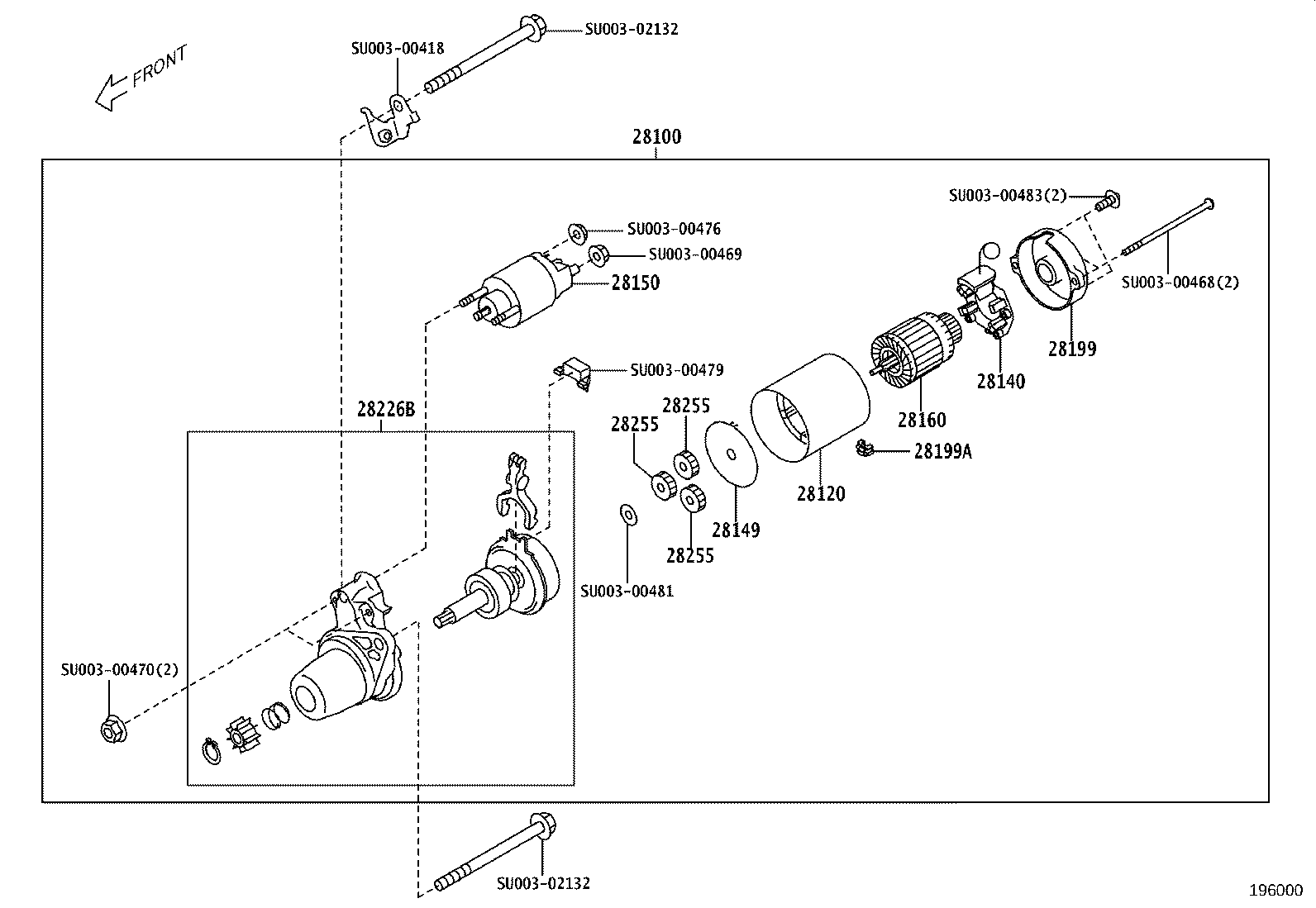

Part groups
| PNC | Description |
|---|---|
| 28011 | Clutch Sub-assy, Starter |
| 28100 | Starter Assy |
| 28110 | Housing Assy, Starter Drive |
| 28113 | Lever, Starter Pinion Drive |
| 28120 | Yoke Assy, Starter |
| 28140 | Holder Assy, Starter Brush |
| 28149 | Plate, Starter |
| 28150 | Switch Assy, Magnet Starter |
| 28160 | Armature Assy, Starter |
| 28199 | Cover, Starter |
| 28199A | Protector, Dust Starter |
| 28209 | Shaft Sub-assy, Starter |
| 28226B | Starter Kit, Repair Service |
| 28252 | Gear, Starter Idle |
| 28255 | Gear, Planet |
| 28256 | Gear, Starter Internal |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
