Toyota GR 86
2022-03 → present · chassis ZN8 · catalogue 264230 · Europe
Supported model
Data version 2024-10
Fuel Injection System
26 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

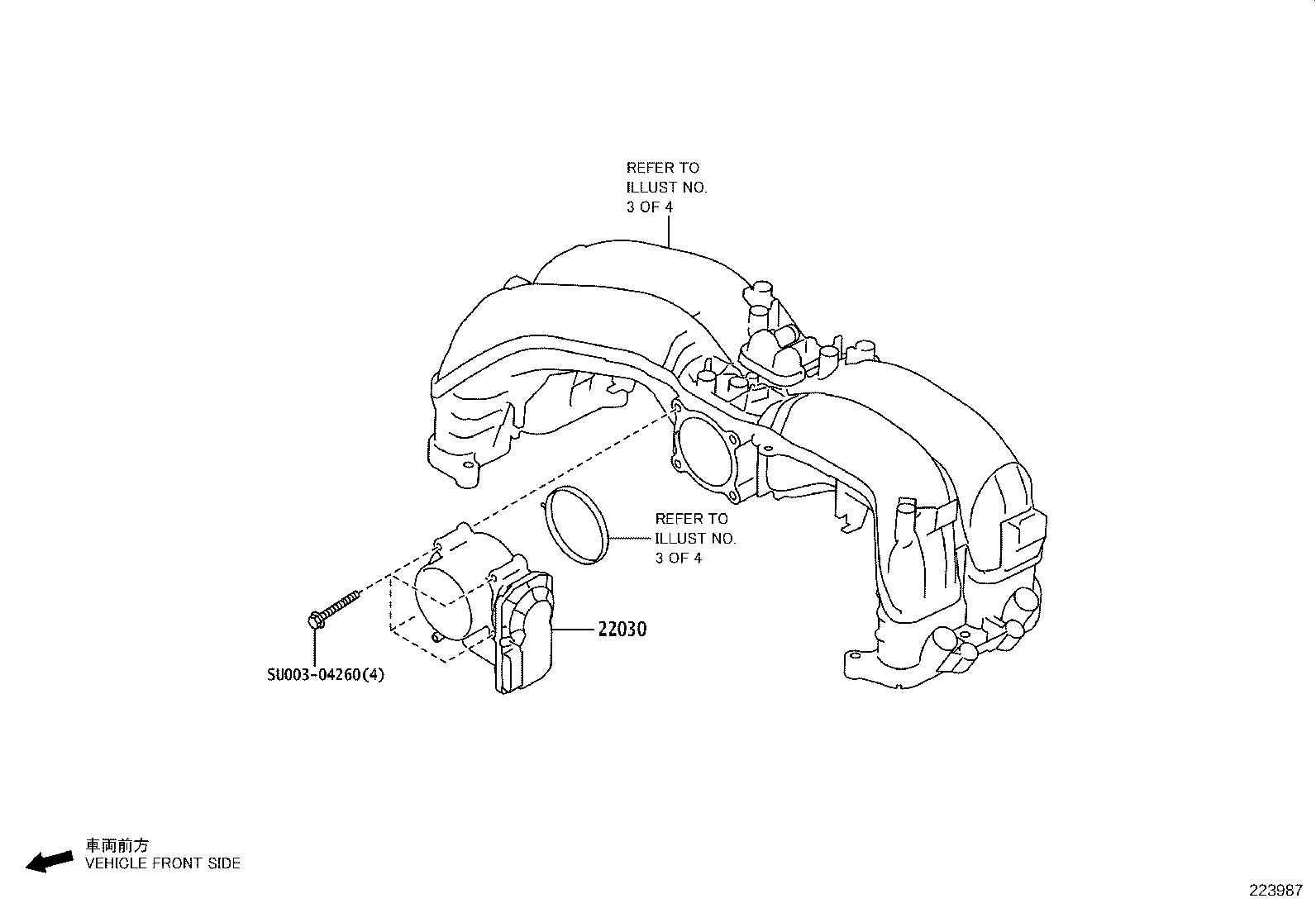

| 22030 | Body Assy, Throttle W/Throttle Position Sensor |

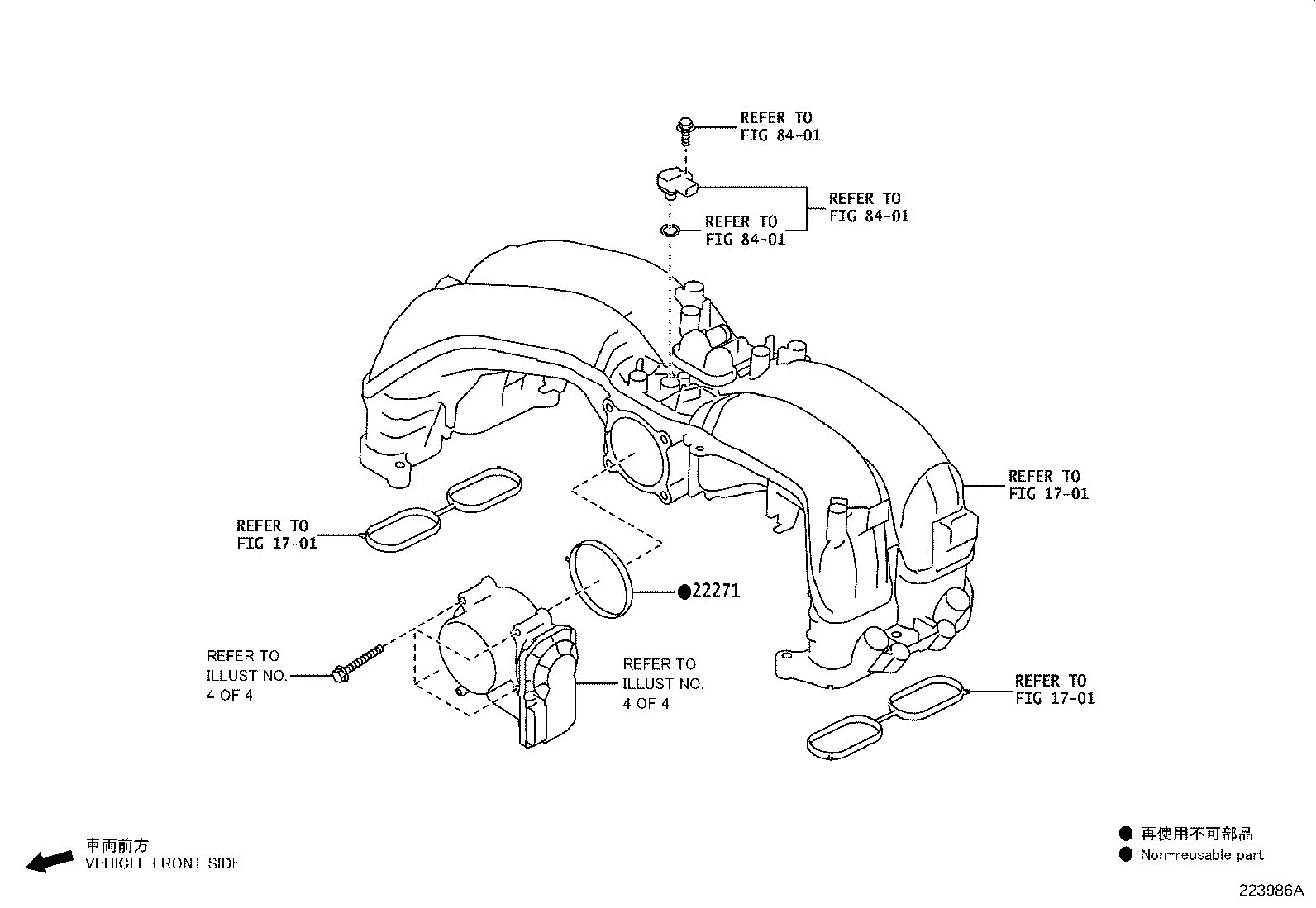

| 22271 | Gasket, Throttle Body |

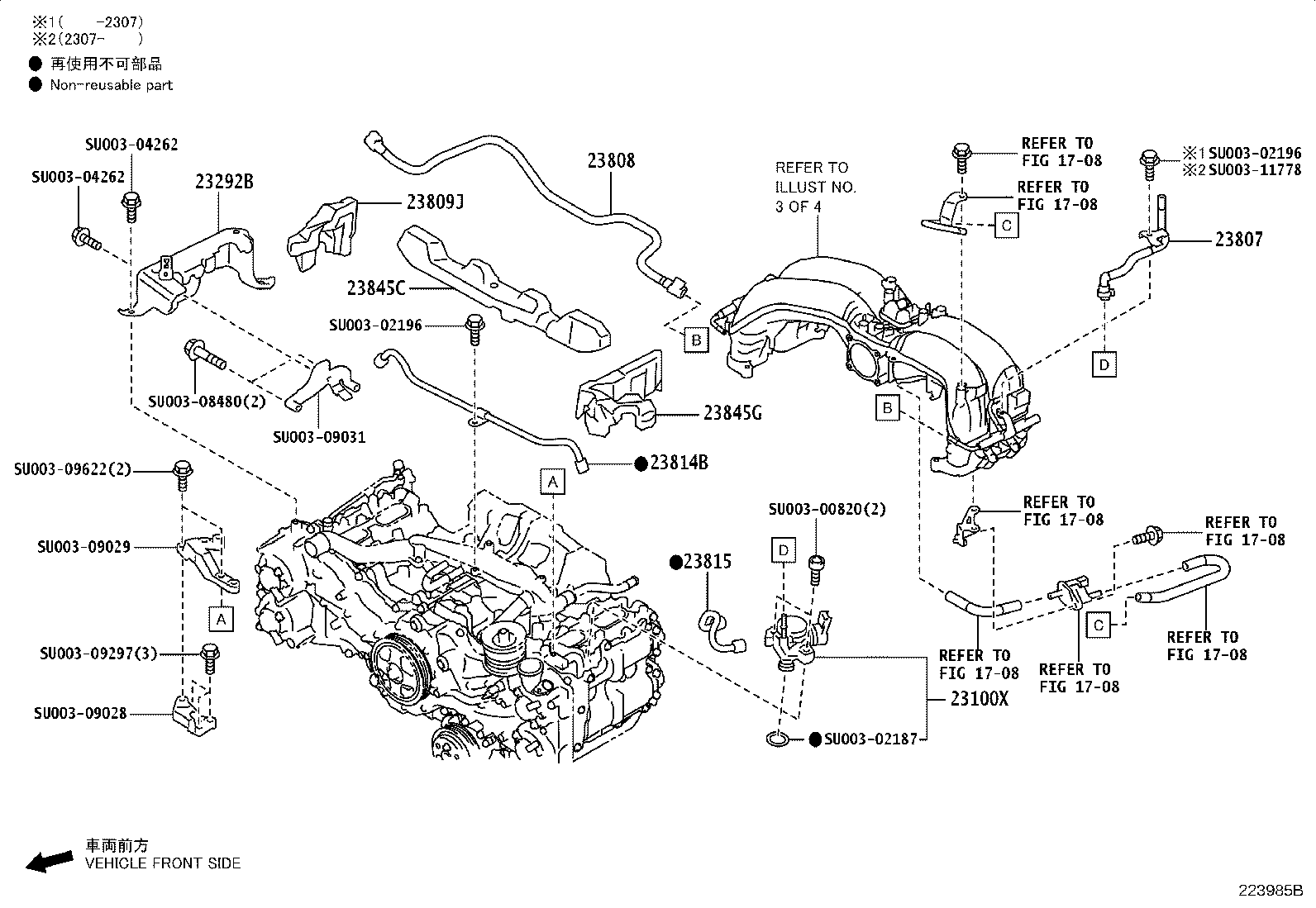

| 23100X | Pump Assy, Fuel (ENGINE ROOM SIDE) |
| 23250B | Ring, O(FOR FUEL INJECTOR) |
| 23250C | Grommet(FOR FUEL INJECTOR) |
| 23250E | Injector Assy, Fuel(FOR DIRECT) |
| 23250F | Injector Assy, Fuel(FOR PORT) |
| 23255A | Seal, Fuel Injector |
| 23256 | Ring, Fuel Injector Back-up, NO.1 |
| 23257 | Ring, Fuel Injector Back-up, NO.2 |
| 23258 | Ring, Fuel Injector Back-up, NO.3 |
| 23270 | Damper Assy, Fuel Pressure Pulsation |
| 23270D | Gasket(FOR PULSATION DAMPER) |
| 23292B | Protector, Fuel Hose |
| 23295 | Holder, Injector, NO.1 |
| 23801P | Pipe Sub-assy, Fuel, NO.1 |
| 23802B | Pipe Sub-assy, Fuel, NO.2 |
| 23807 | Pipe Sub-assy, Fuel Delivery |
| 23808 | Pipe Sub-assy, Fuel Delivery, NO.2 |
| 23809J | Insulator, Fuel Pipe Support |
| 23814B | Pipe, Fuel Delivery |
| 23814E | Pipe, Fuel Delivery, RH |
| 23815 | Pipe, Fuel Delivery, NO.2 |
| 23815E | Pipe, Fuel Delivery, LH |
| 23845C | Insulator, Fuel Pipe |
| 23845G | Insulator, Fuel Delivery |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
