Toyota GR 86
2022-03 → present · chassis ZN8 · catalogue 264230 · Europe
Supported model
Data version 2024-10
Clutch Pedal & Flexible Hose
19 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

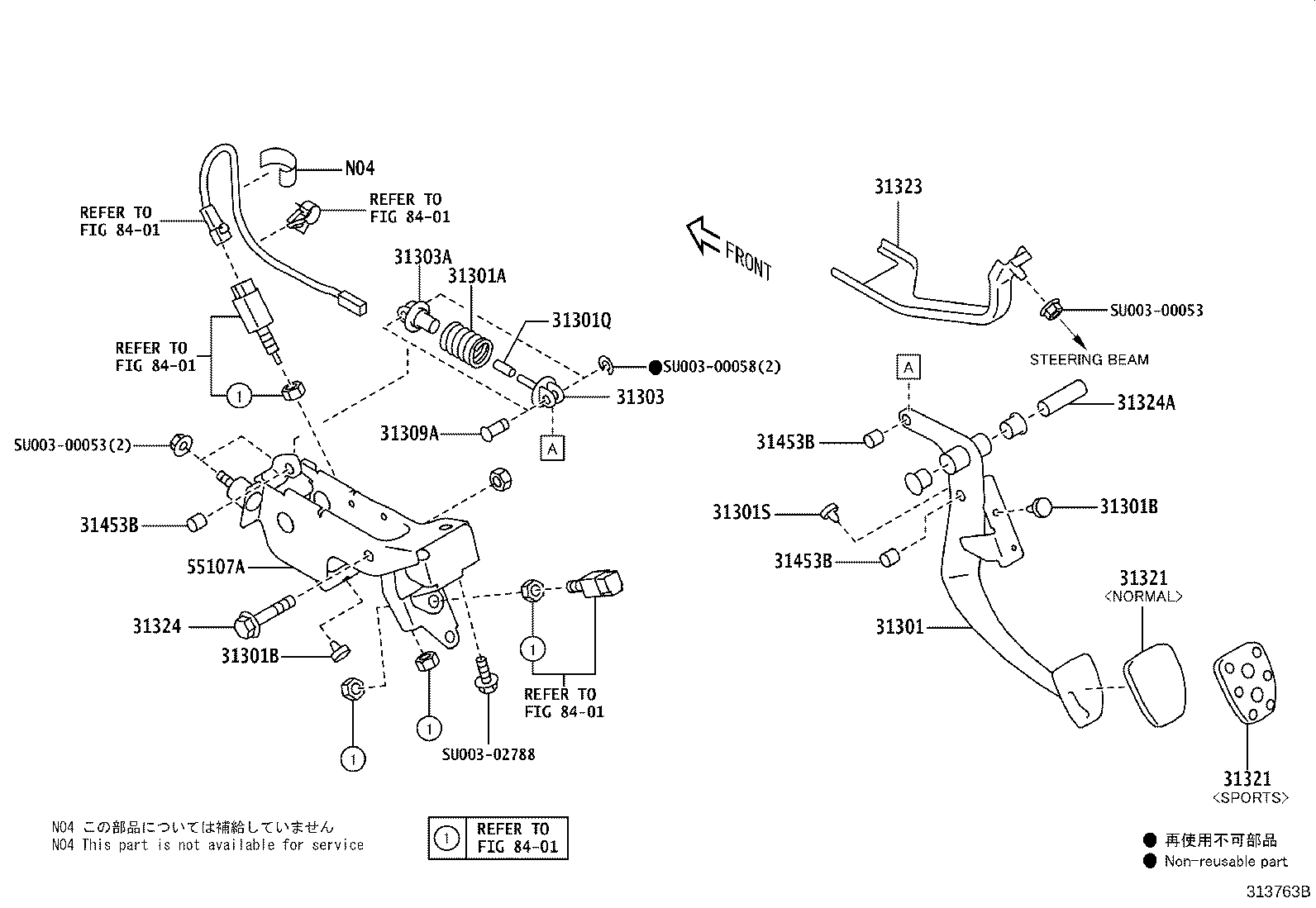

| 31301 | Pedal Sub-assy, Clutch |
| 31301A | Spring(FOR CLUTCH PEDAL) |
| 31301B | Cushion, NO.1(FOR CLUTCH PEDAL) |
| 31301Q | Bush(FOR CLUTCH PEDAL SPRING) |
| 31301S | Cushion, NO.2(FOR CLUTCH PEDAL) |
| 31303 | Rod Sub-assy, Pedal Return Spring |
| 31303A | Rod Sub-assy, Pedal Return Spring |
| 31309A | Pin, W/Hole(FOR PEDAL RETURN SPRING CLEVIS) |
| 31321 | Pad, Clutch Pedal |
| 31323 | Bracket, Clutch Pedal |
| 31324 | Shaft, Clutch Pedal |
| 31324A | Collar, Clutch Pedal Shaft |
| 31354A | Bush(FOR CLUTCH PEDAL SPRING SEAT UPPER) |
| 31453A | Pin, W/Hole(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) |
| 31453B | Bush(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) |

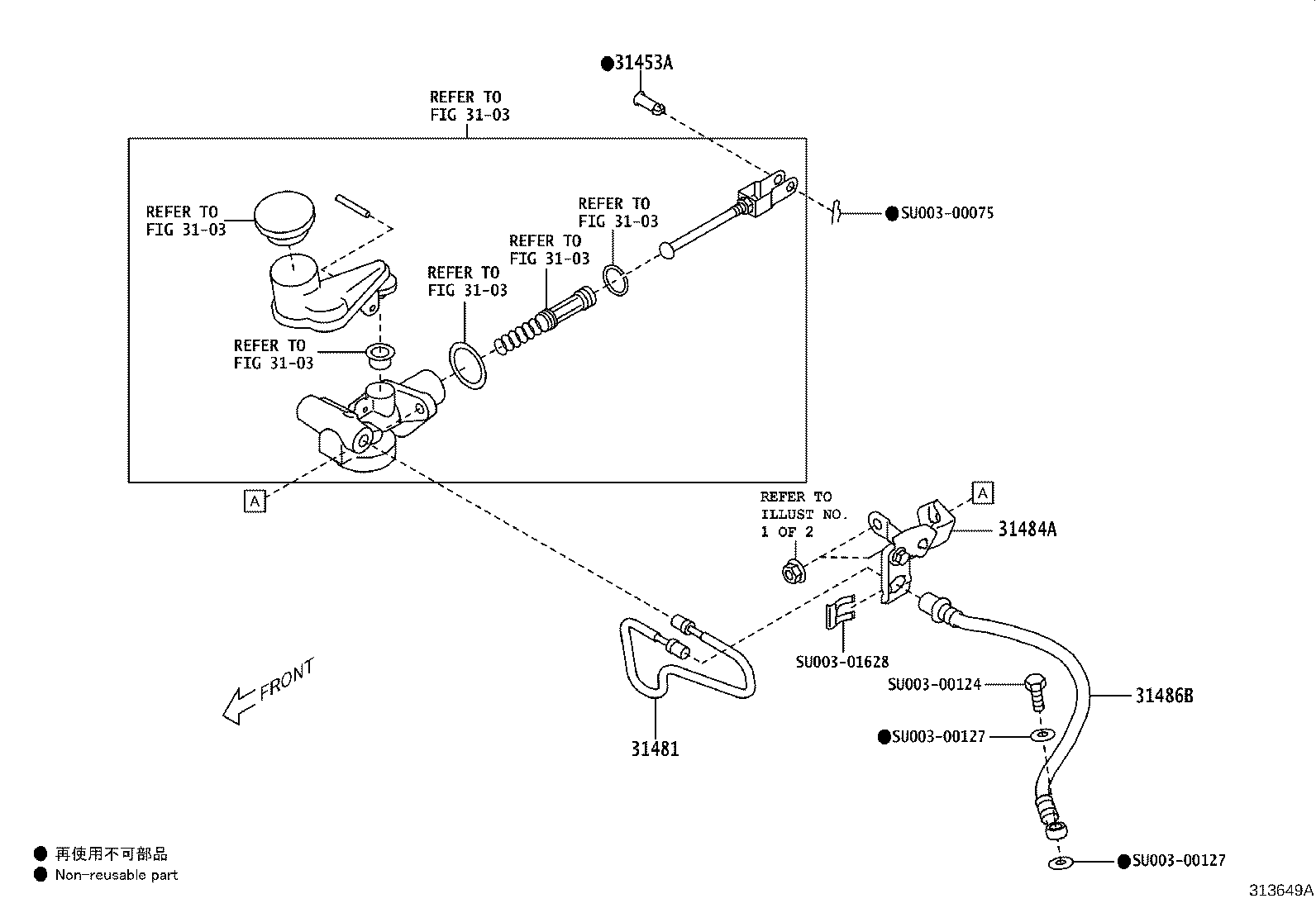

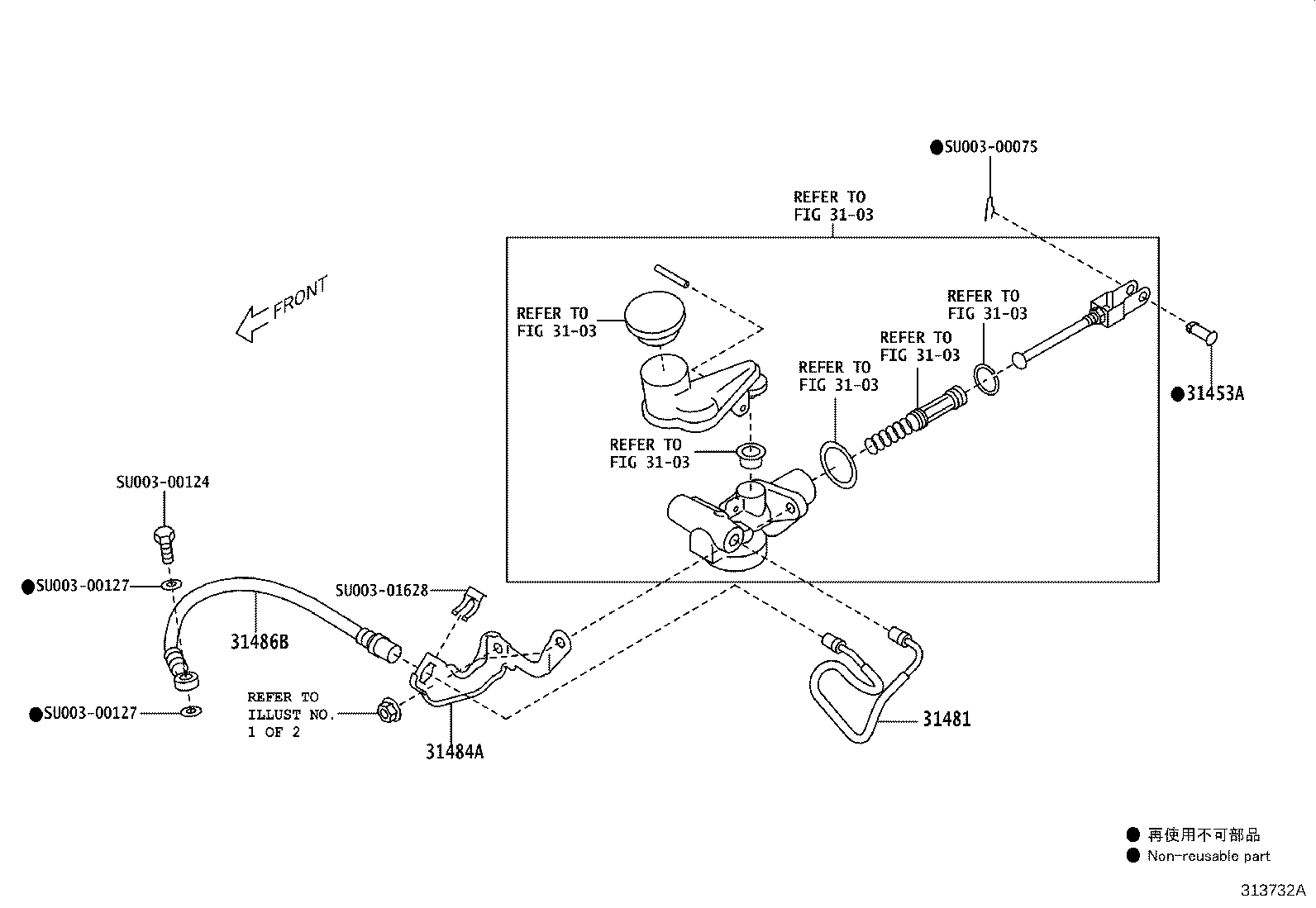

| 31481 | Tube, Clutch Master Cylinder TO Flexible Hose |
| 31484A | Bracket, Flexible Hose, NO.1(FOR CLUTCH) |
| 31486B | Hose, Master Cylinder TO Release Cylinder |
| 55107A | Support Sub-assy, Clutch Pedal |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
