Toyota GR 86

2022-03 → present · chassis ZN8 · catalogue 264230 · Europe

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Torque Converter, Front Oil Pump & Chain (ATM)

8 part groups · 2 illustrations

Illustrations

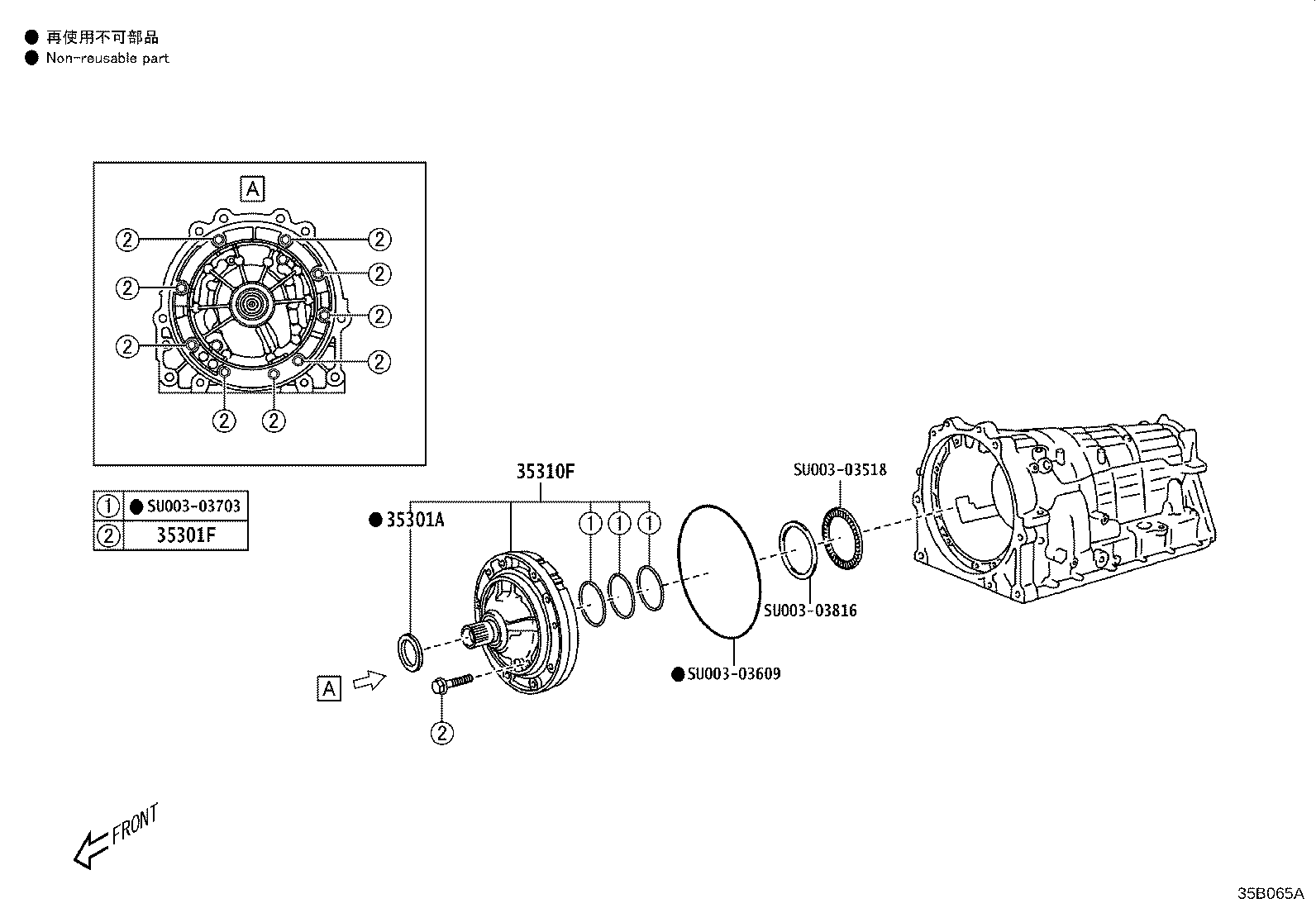

Figure 35A886A 35A886A 2022-03 → — Figure 35B065A 35B065A 2022-03 → —

Part groups

PNCDescription
32000 Converter Assy, Torque
32101 Gear Sub-assy, Drive Plate & Ring
32101A Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
32101C Bolt, Hexagon(FOR DRIVE PLATE SETTING)
32117 Spacer, Drive Plate, Rear
35301A Seal, Oil (FOR FRONT OIL PUMP)
35301F Bolt (FOR FRONT OIL PUMP SETTING)
35310F Pump Assy, Front Oil
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
