Center Support & Planetary Sun Gear (ATM)

30 part groups · 3 illustrations

Illustrations

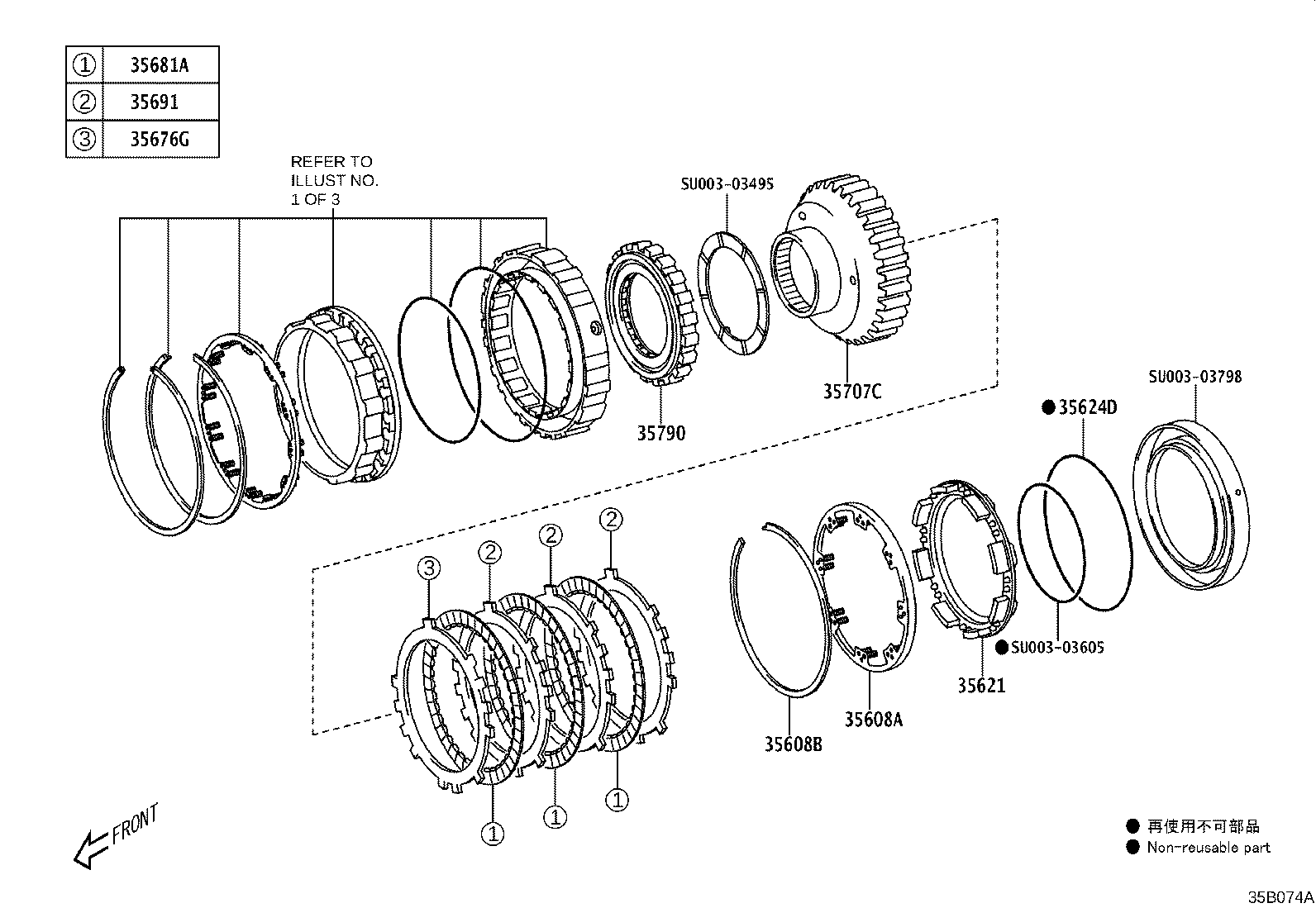

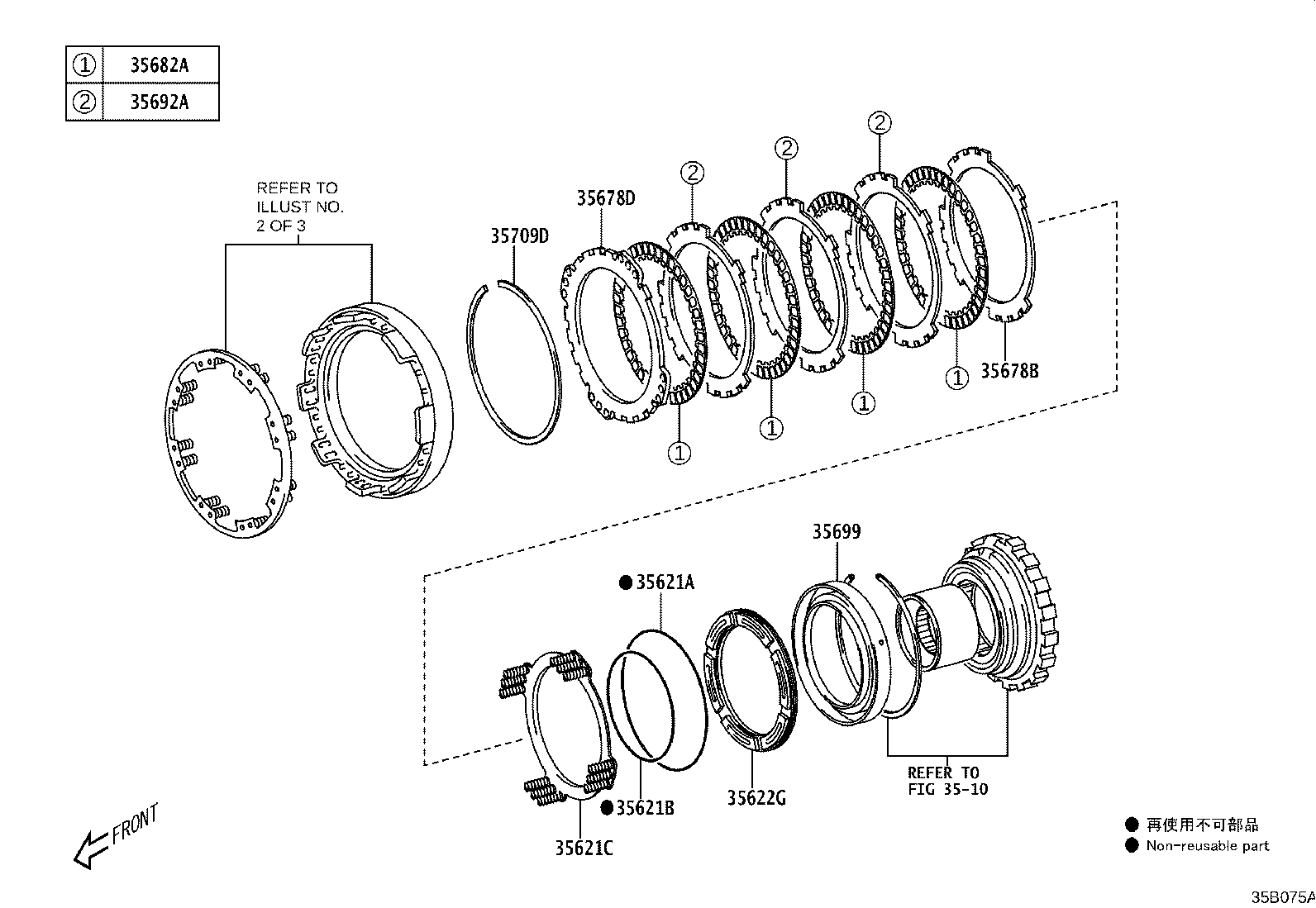

Figure 35B073A 35B073A 2022-03 → — Figure 35B074A 35B074A 2022-03 → — Figure 35B075A 35B075A 2022-03 → —

Part groups

PNCDescription
35066A Disc Set, Brake, NO.1
35608A Spring Sub-assy, Brake Piston Return
35608B Ring, Hole Snap (FOR BRAKE PISTON RETURN SPRING)
35608J Spring Sub-assy, Brake Piston Return
35620E Ring, Hole Snap (FOR BRAKE PISTON RETURN SPRING)
35620F Ring, Hole Snap (FOR BRAKE NO.1 FLANGE)
35621 Piston, Brake, NO.1
35621A Ring, O (FOR BRAKE PISTON OUTER)
35621B Ring, O (FOR BRAKE PISTON INNER)
35621C Spring (FOR BRAKE PISTON RETURN)
35621V Piston, Brake, NO.1
35621X Ring, O (FOR BRAKE PISTON NO.1)
35622G Piston, Brake, NO.2
35622H Ring, O (FOR BRAKE PISTON NO.2)
35624D Ring, O (FOR BRAKE PISTON NO.4)
35676B Flange, Brake, NO.1
35676G Flange, Brake, NO.1
35678B Flange, Brake, NO.2
35678D Flange, Brake, NO.2
35681A Disc, Brake, NO.1
35682A Disc, Brake, NO.2
35691 Plate, Brake, NO.1
35692A Plate, Brake, NO.2
35698 Cylinder, Brake, NO.1
35699 Cylinder, Brake, NO.2
35707C Race Sub-assy, 1 Way Clutch, Inner
35709D Ring, Hole Snap
35709E Washer (FOR CENTER SUPPORT)
35780B Clutch Assy, 1 Way N0.2
35790 Clutch Assy, 1 Way
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
