Oil Cooler & Tube (ATM)

13 part groups · 2 illustrations

Illustrations

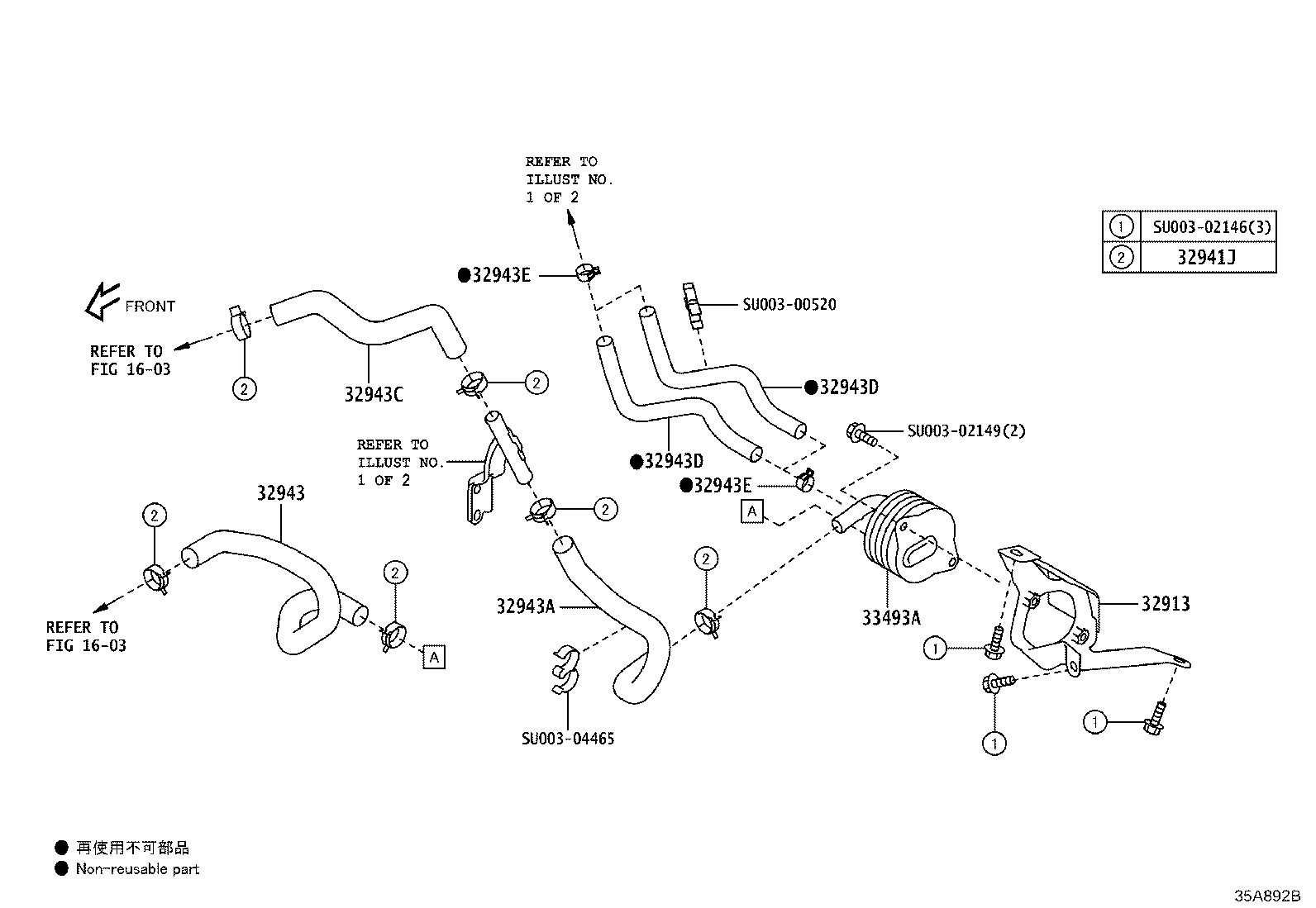

Figure 35A891B 35A891B 2022-03 → — Figure 35A892B 35A892B 2022-03 → —

Part groups

PNCDescription
32906 Tube Sub-assy, Oil Cooler
32907A Tube, Oil Cooler
32913 Bracket, Oil Cooler
32921U Elbow(FOR OIL COOLER TUBE)
32941J Clip, NO.1(FOR OIL COOLER HOSE)
32943 Hose, Transmission Oil Cooler, NO.1
32943A Hose, Transmission Oil Cooler, NO.2
32943C Hose, Transmission Oil Cooler, NO.3
32943D Hose, Transmission Oil Cooler, NO.4
32943E Clip, NO.3(FOR OIL COOLER HOSE)
32943F Hose, Transmission Oil Cooler, NO.5
32943H Clip, NO.4(FOR OIL COOLER HOSE)
33493A Cooler, Transmission Oil(ATF WARMER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
