Toyota GR 86

2022-03 → present · chassis ZN8 · catalogue 264230 · Europe

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

7 part groups · 5 illustrations

Illustrations

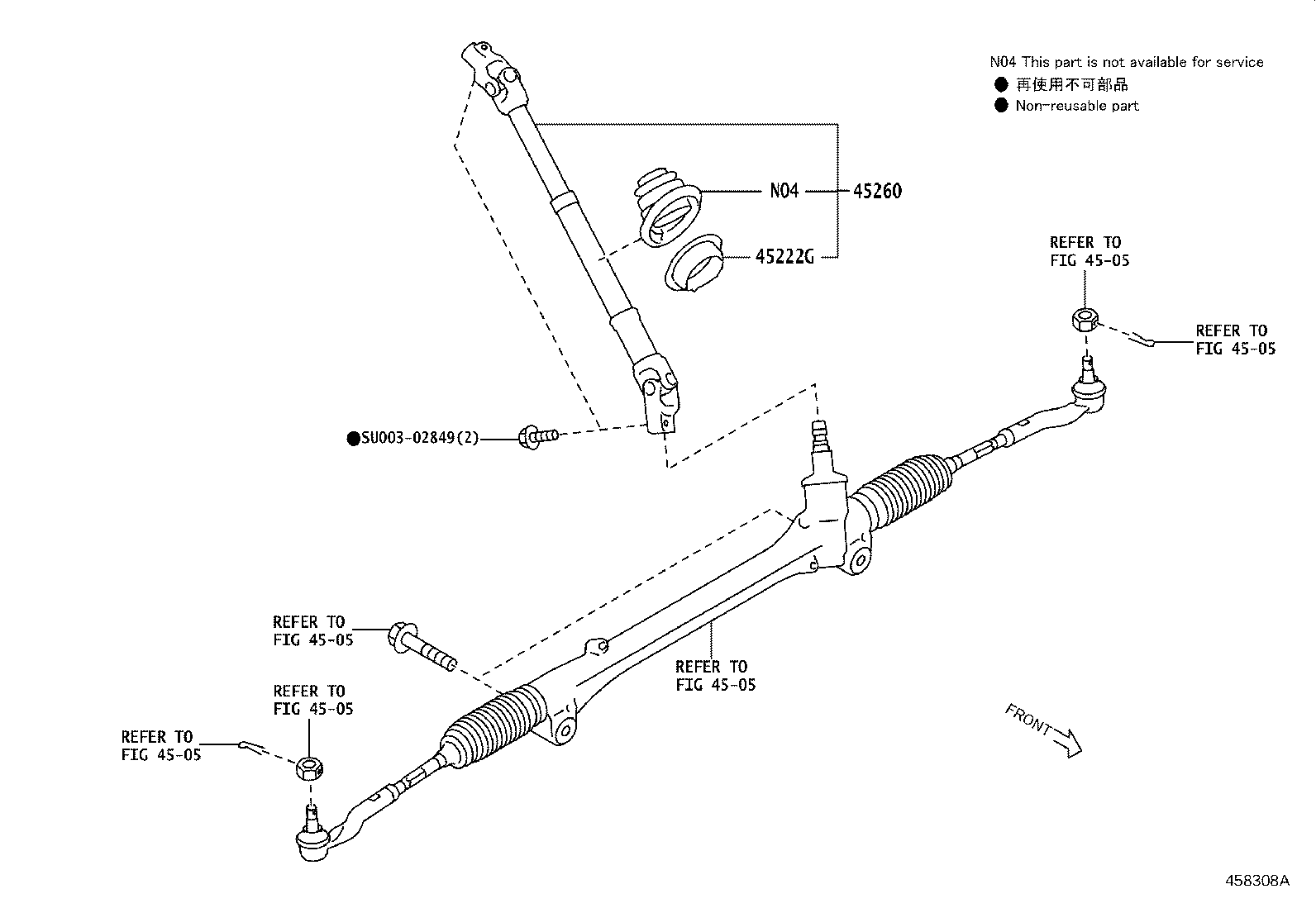

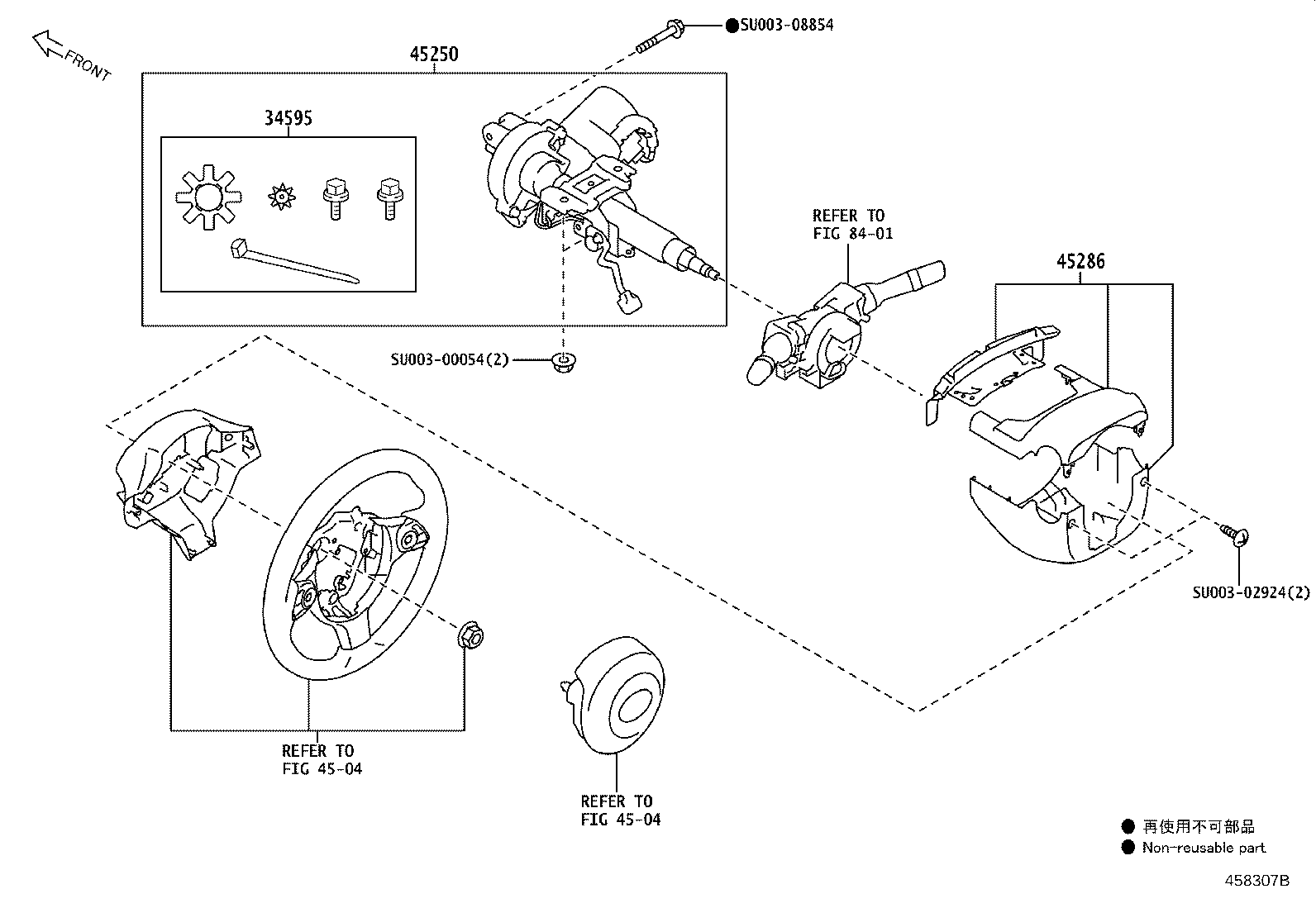

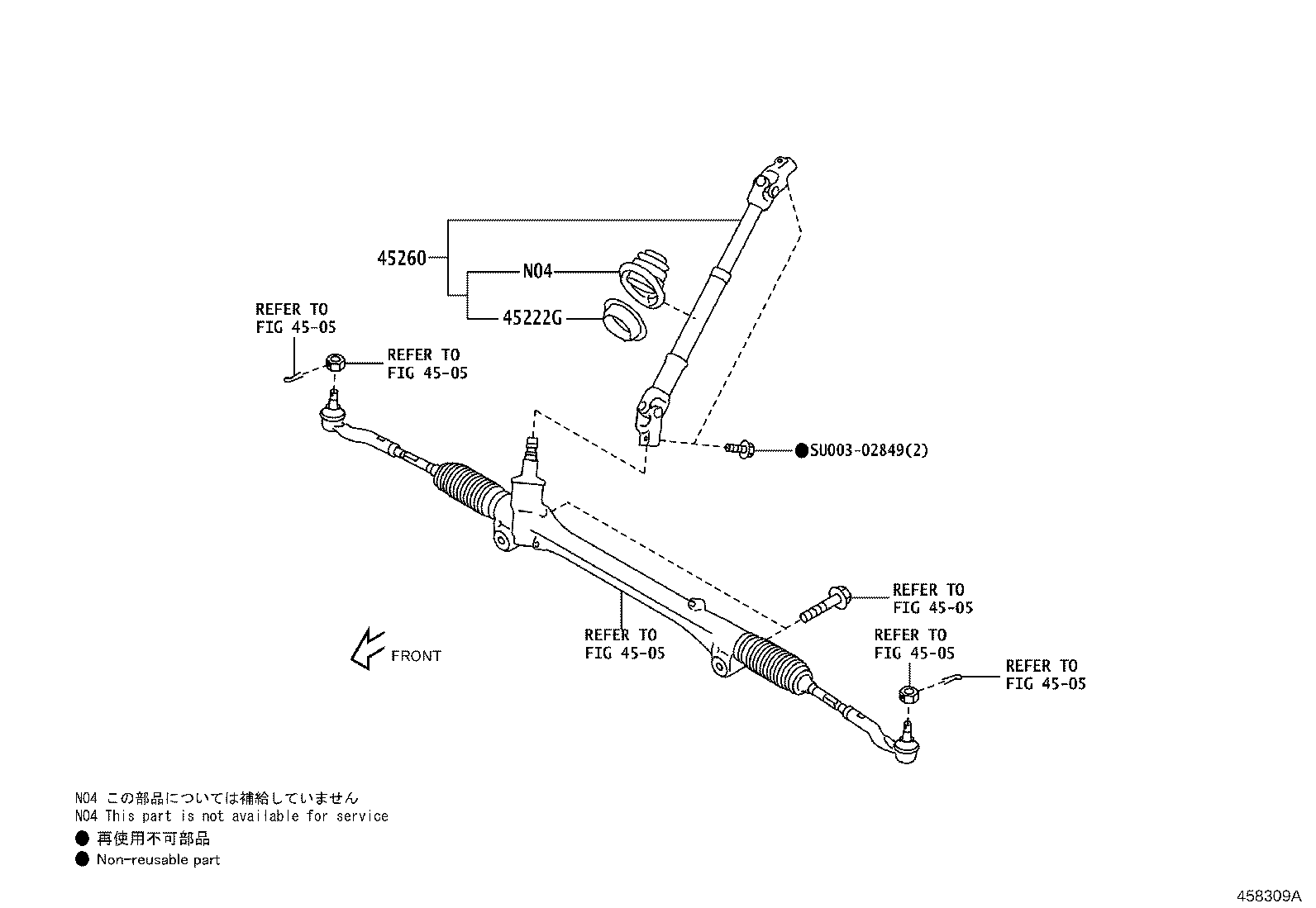

Figure 458306B 458306B 2022-03 → — Figure 458307B 458307B 2022-03 → — Figure 458308A 458308A 2022-03 → — Figure 458309A 458309A 2022-03 → — Figure 458310A 458310A 2022-03 → —

Part groups

PNCDescription
34595 Repair Kit, Damper
45020A Actuator Assy, Steering Lock
45222G Clip, Dust Cover
45250 Column Assy, Steering
45260 Shaft Assy, Steering Intermediate, NO.2
45286 Cover, Steering Column
45897 Bolt, Steering Lock Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
