Toyota GR 86
2022-03 → present · chassis ZN8 · catalogue 264230 · Europe
Supported model
Data version 2024-10

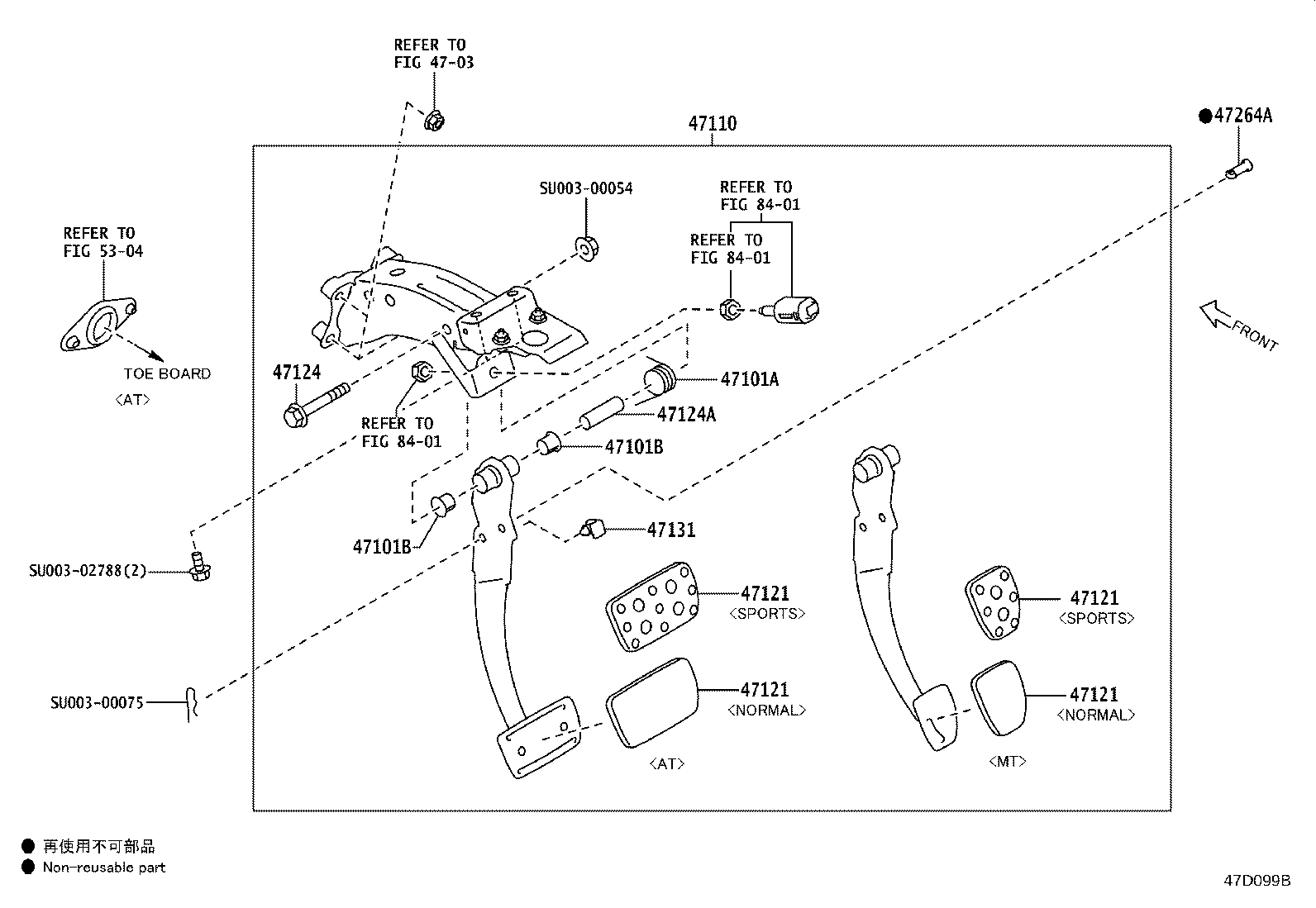

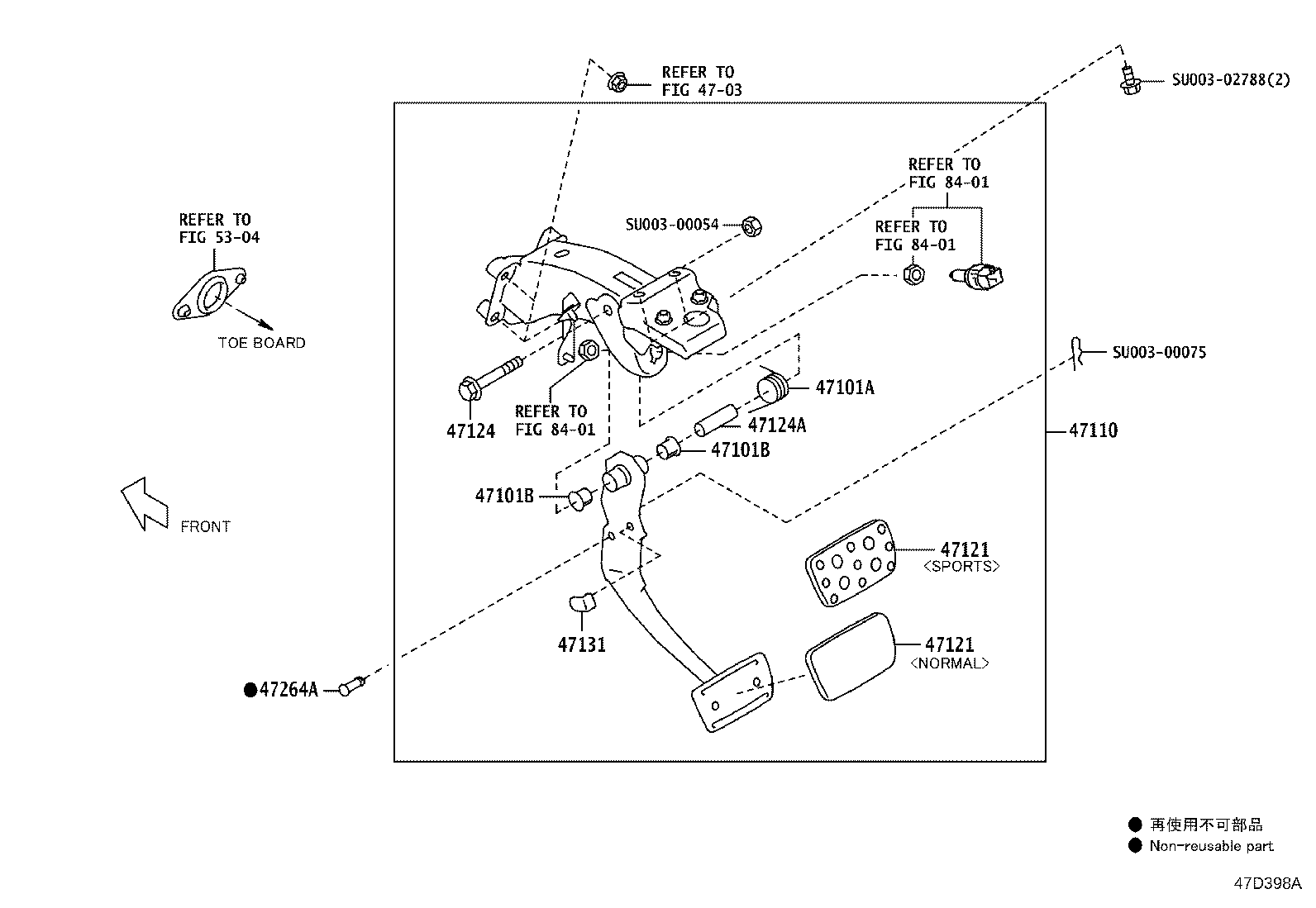

Brake Pedal & Bracket
8 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 47101A | Spring(FOR BRAKE PEDAL RETURN) |
| 47101B | Bush(FOR BRAKE PEDAL) |
| 47110 | Support Assy, Brake Pedal |
| 47121 | Pad, Brake Pedal |
| 47124 | Shaft, Brake Pedal |
| 47124A | Collar(FOR BRAKE PEDAL SHAFT) |
| 47131 | Cushion(FOR STOP LAMP SWITCH) |
| 47264A | Pin(FOR PUSH ROD) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
