Toyota GR 86

2022-03 → present · chassis ZN8 · catalogue 264230 · Europe

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Master Cylinder

9 part groups · 2 illustrations

Illustrations

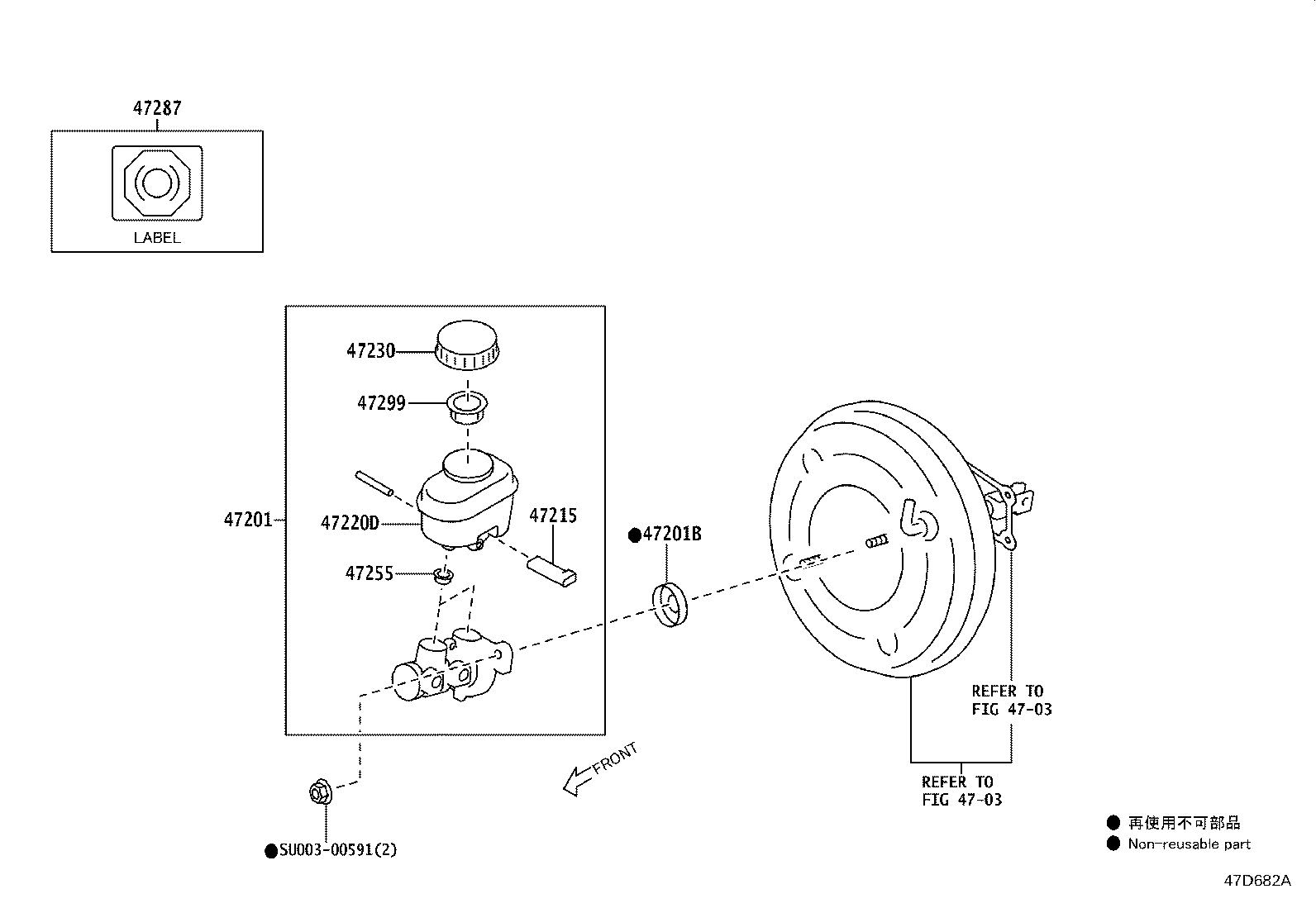

Figure 47D681C 47D681C 2022-03 → — Figure 47D682A 47D682A 2022-03 → —

Part groups

PNCDescription
47201 Cylinder Sub-assy, Brake Master
47201B Ring, O(FOR BRAKE MASTER CYLINDER)
47215 Indicator, Brake Fluid
47220D Reservoir Assy, Brake Master Cylinder
47230 Cap Assy, Brake Master Cylinder Reservoir Filler
47255 Grommet, Master Cylinder Reservoir
47287 Label, Brake Fluid Information
47299 Strainer, Brake Master Cylinder Reservoir
74571C Label, Brake Fluid Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
