Toyota GR 86
2022-03 → present · chassis ZN8 · catalogue 264230 · Europe
Supported model
Data version 2024-10

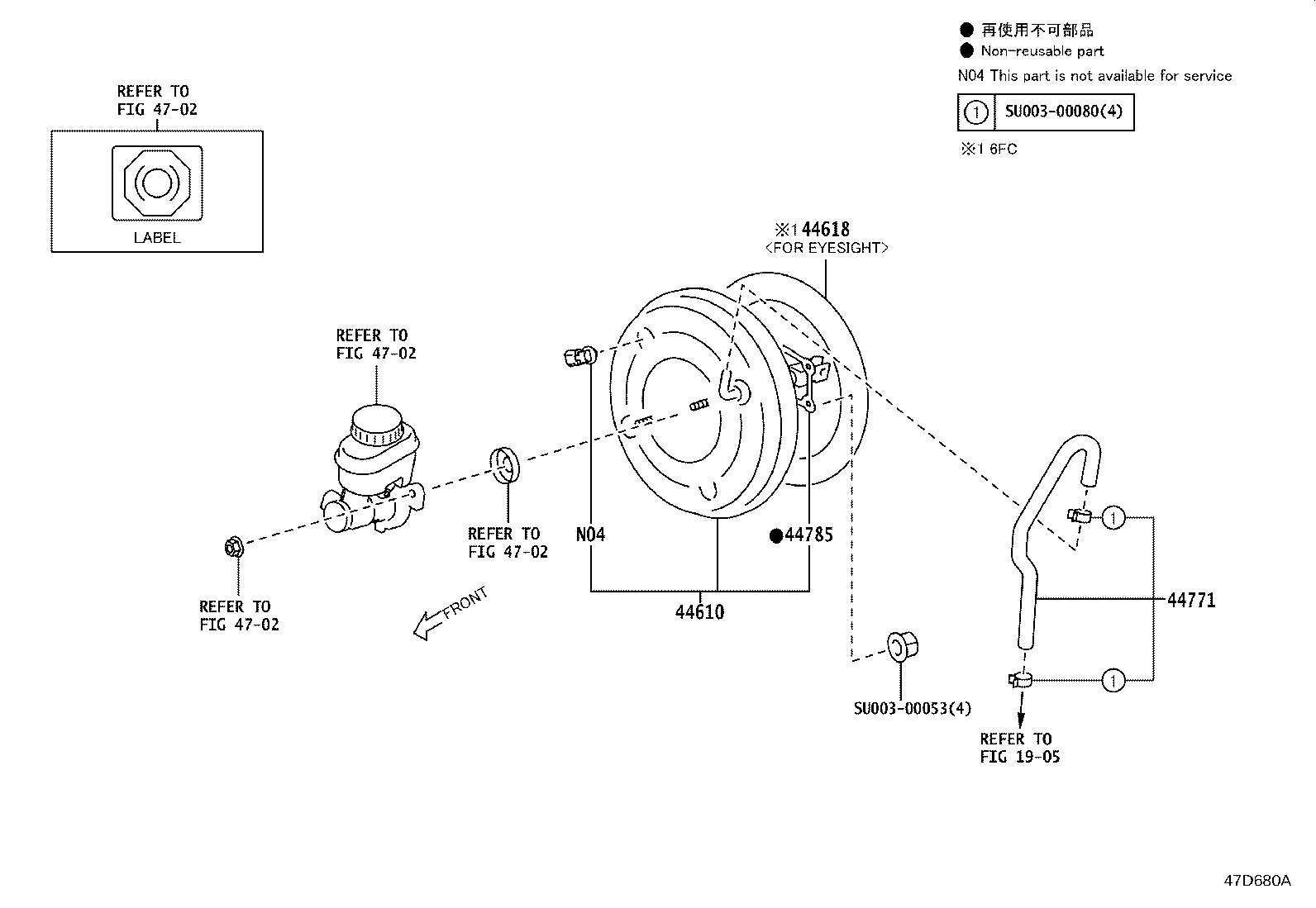

Brake Booster & Vacuum Tube
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 44610 | Booster Assy, Brake |
| 44618 | Seal, Booster Body |
| 44661 | Tube, Booster Vacuum |
| 44675 | Hose, Booster Vacuum |
| 44688D | Hose, Booster Vacuum |
| 44771 | Hose, Vacuum Tube Connector |
| 44785 | Gasket, Brake Booster |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
