Toyota GR 86

2022-03 → present · chassis ZN8 · catalogue 264230 · Europe

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

21 part groups · 5 illustrations

Illustrations

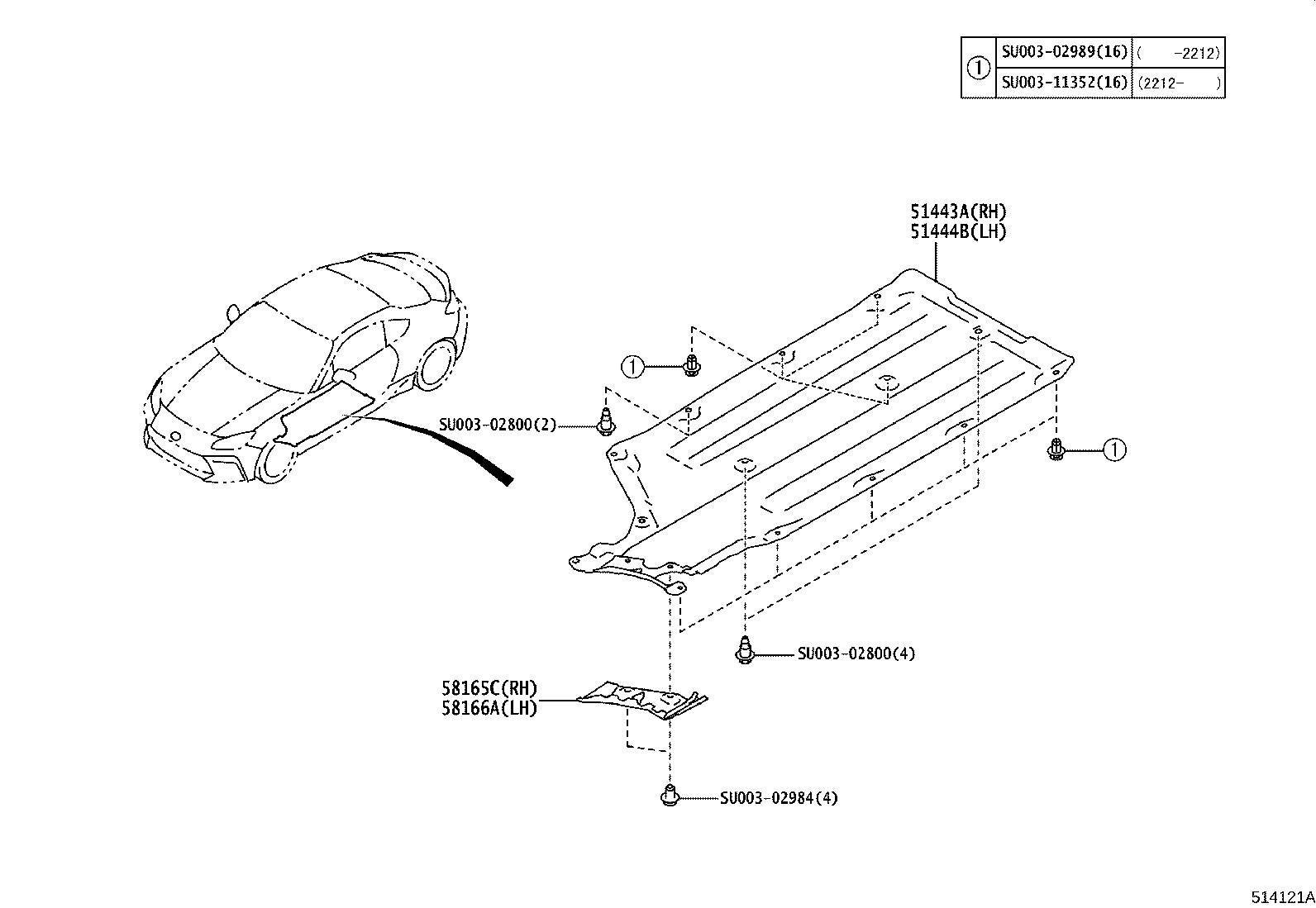

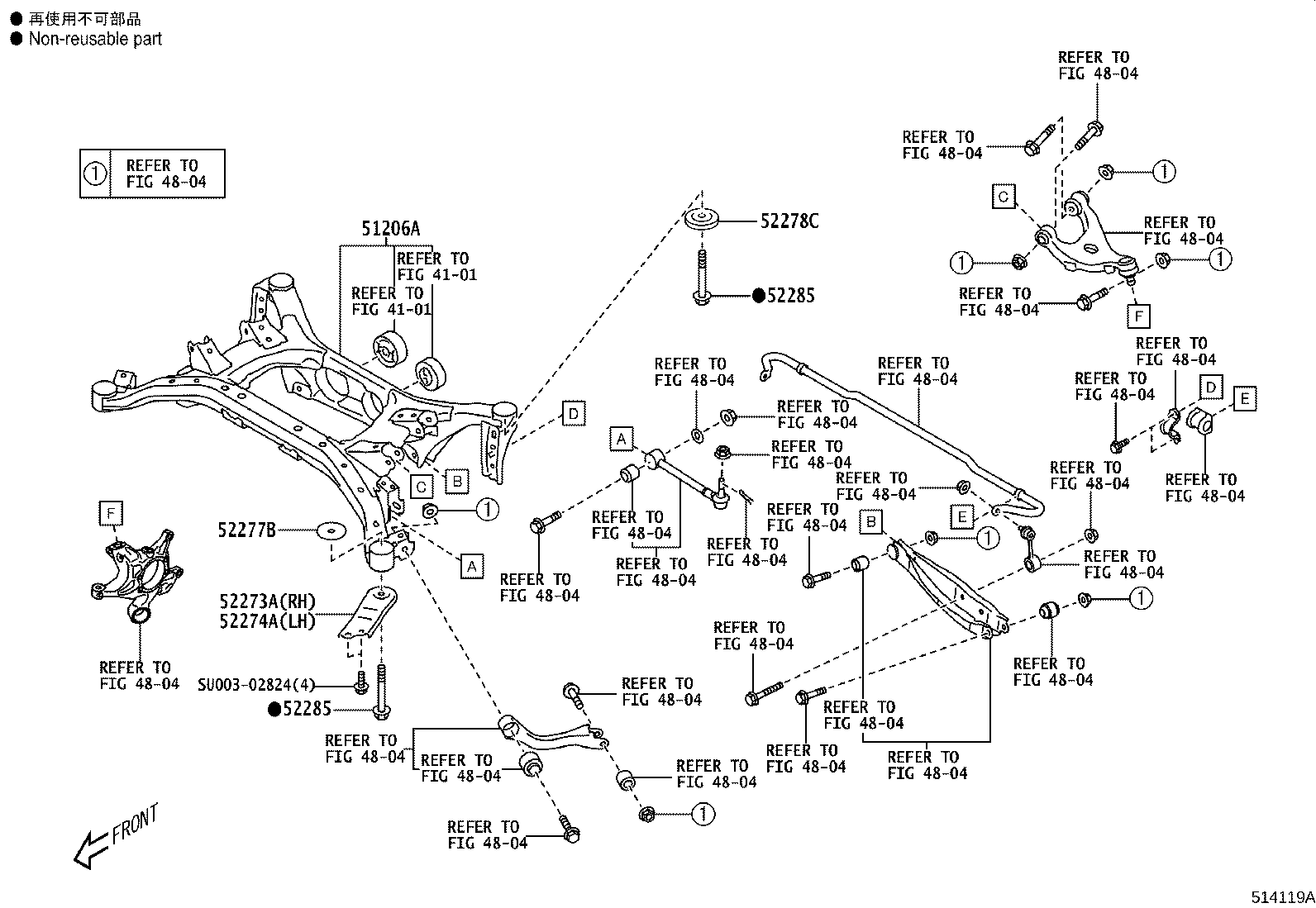

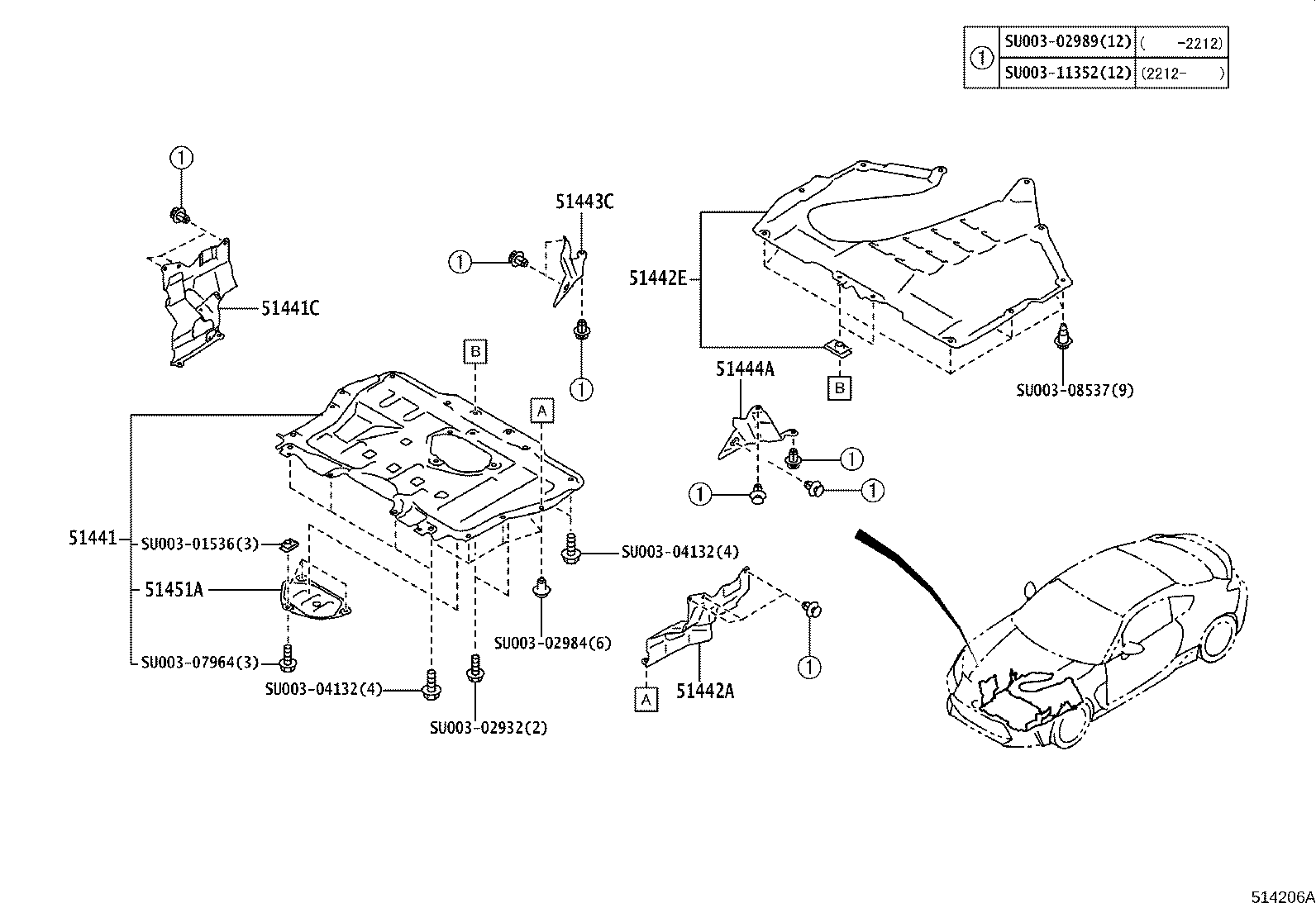

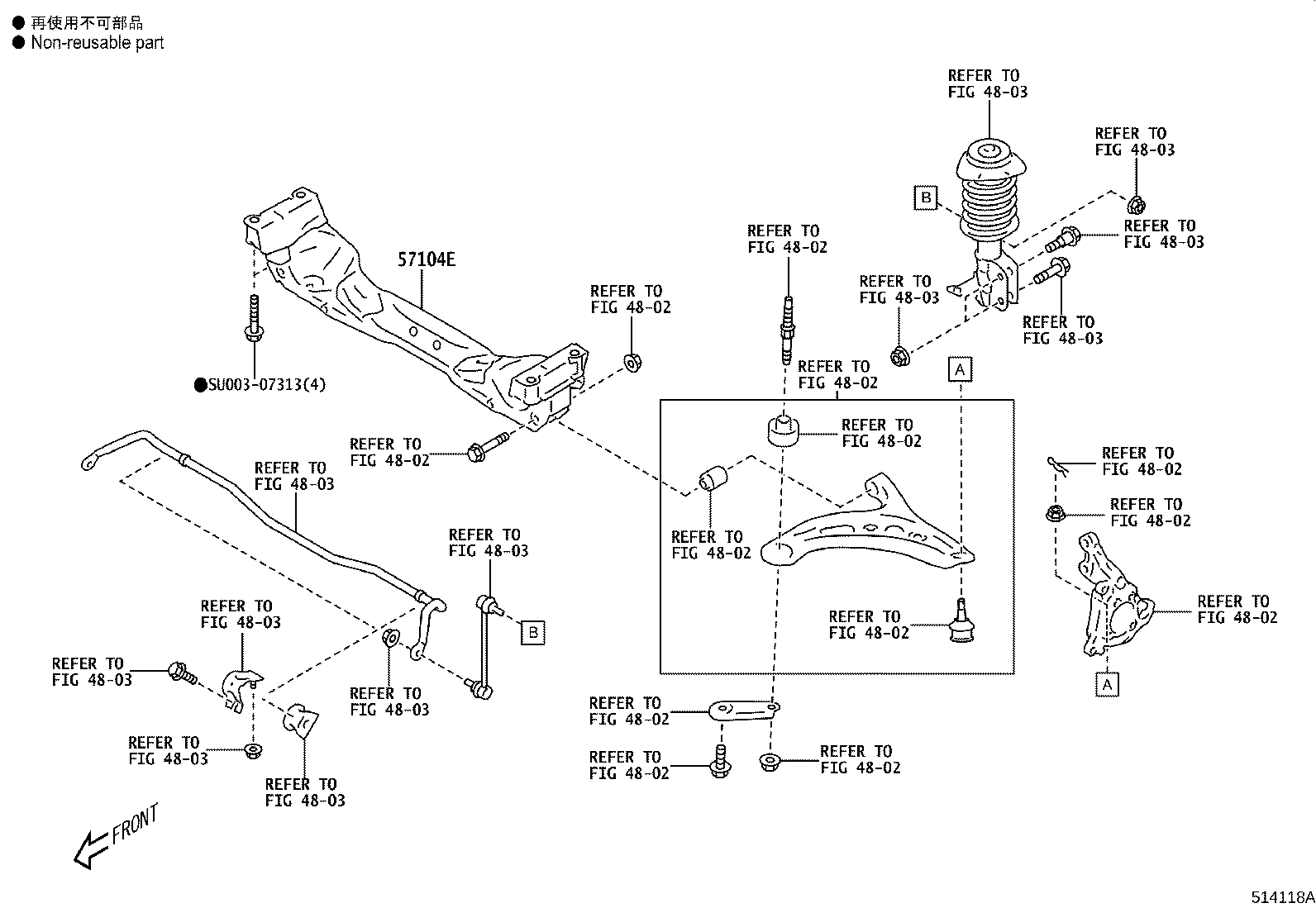

Figure 514117A 514117A 2022-03 → — Figure 514118A 514118A 2022-03 → — Figure 514119A 514119A 2022-03 → — Figure 514206A 514206A 2022-03 → — Figure 514121A 514121A 2022-03 → —

Part groups

PNCDescription
51206A Member Sub-assy, Rear Suspension
51441 Cover, Engine Under, NO.1
51441C Cover, Engine Under, RH
51442A Cover, Engine Under, Front NO.3
51442E Cover, Engine Under, NO.2
51443A Cover, Engine Under, Rear
51443C Cover, Engine Under, Rear RH
51444A Cover, Engine Under, Rear LH
51444B Cover, Engine Under, Rear LH
51451A Cover, Engine Under, Center
52205H Cushion Sub-assy, Body Mounting, Rear RH
52206C Cushion Sub-assy, Body Mounting, Rear LH
52212A Cushion, Body Mounting, NO.2
52273A Stopper, Rear Suspension Member, Lower RH
52274A Stopper, Rear Suspension Member, Lower LH
52277B Stopper, Rear Suspension Member, Rear Upper
52278C Stopper, Rear Suspension Member, Rear Lower
52285 Bolt, Differential Support Member Mounting, NO.1
57104E Member Sub-assy, Front Cross
58165C Cover, Front Floor, RH
58166A Cover, Front Floor, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
