Toyota GR 86

2022-03 → present · chassis ZN8 · catalogue 264230 · Europe

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

21 part groups · 2 illustrations

Illustrations

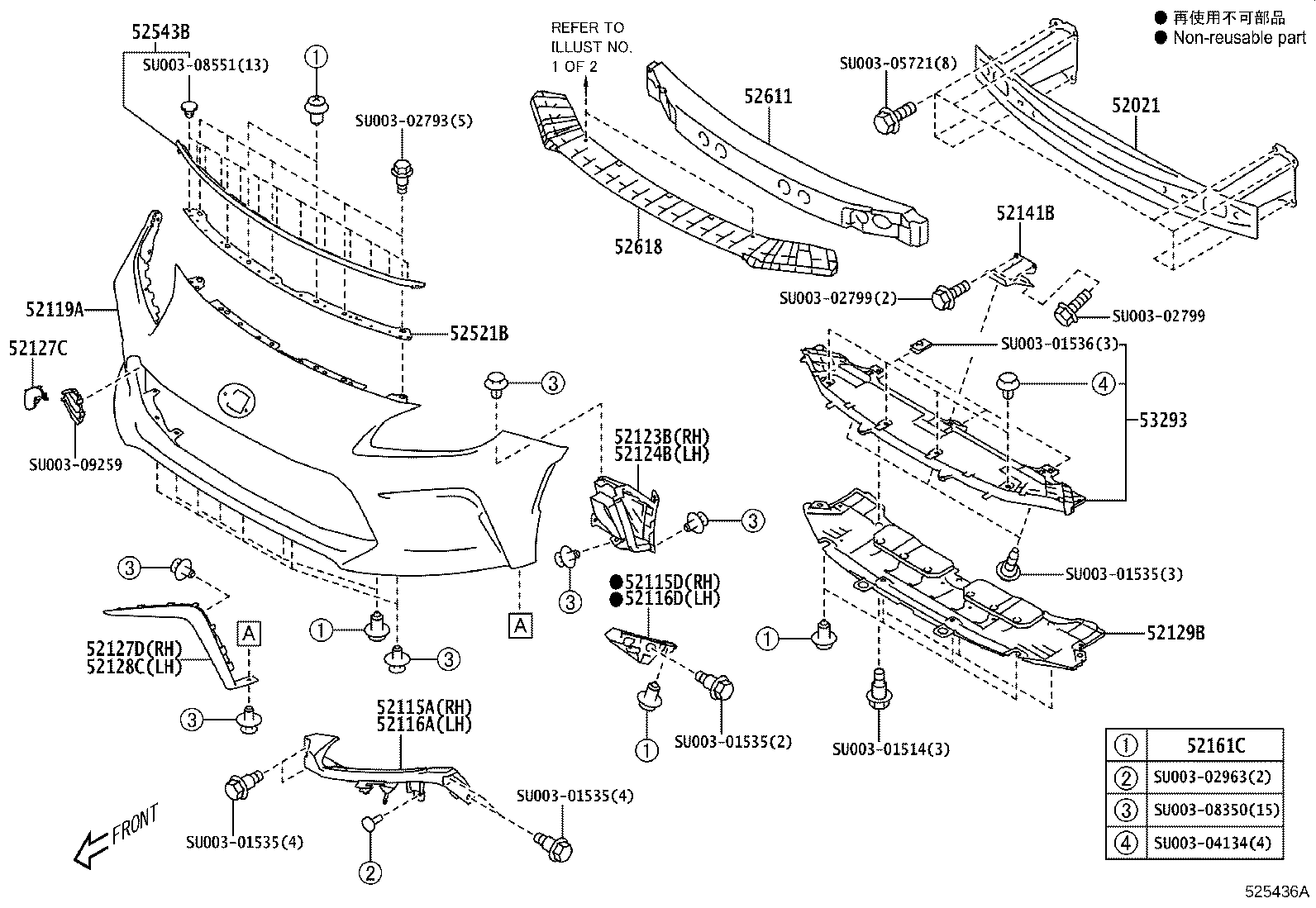

Figure 525435A 525435A 2022-03 → — Figure 525436A 525436A 2022-03 → —

Part groups

PNCDescription
52021 Reinforcement Sub-assy, Front Bumper
52114A Bracket, Front Bumper Extension Mounting
52115A Support, Front Bumper Side, RH
52115D Support, Front Bumper Side, NO.2 RH
52116A Support, Front Bumper Side, LH
52116D Support, Front Bumper Side, NO.2 LH
52119A Cover, Front Bumper
52123B Plate, Front Bumper Reinforcement, RH
52124B Plate, Front Bumper Reinforcement, LH
52127C Cover, Front Bumper Hole
52127D Cover, Front Bumper Hole, RH
52128C Cover, Front Bumper Hole, LH
52129B Cover, Front Bumper, Lower
52141B Stay, Front Bumper
52161C Piece, Front Bumper
52521B Retainer, Front Bumper, Upper
52543B Seal, Front Bumper
52611 Absorber, Front Bumper Energy
52618 Absorber, Front Bumper, Lower
53112E Grille, Radiator, Lower NO.1
53293 Bracket, Front Bumper Stay
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
