Toyota GR 86

2022-03 → present · chassis ZN8 · catalogue 264230 · Europe

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood Lock & Hinge

10 part groups · 2 illustrations

Illustrations

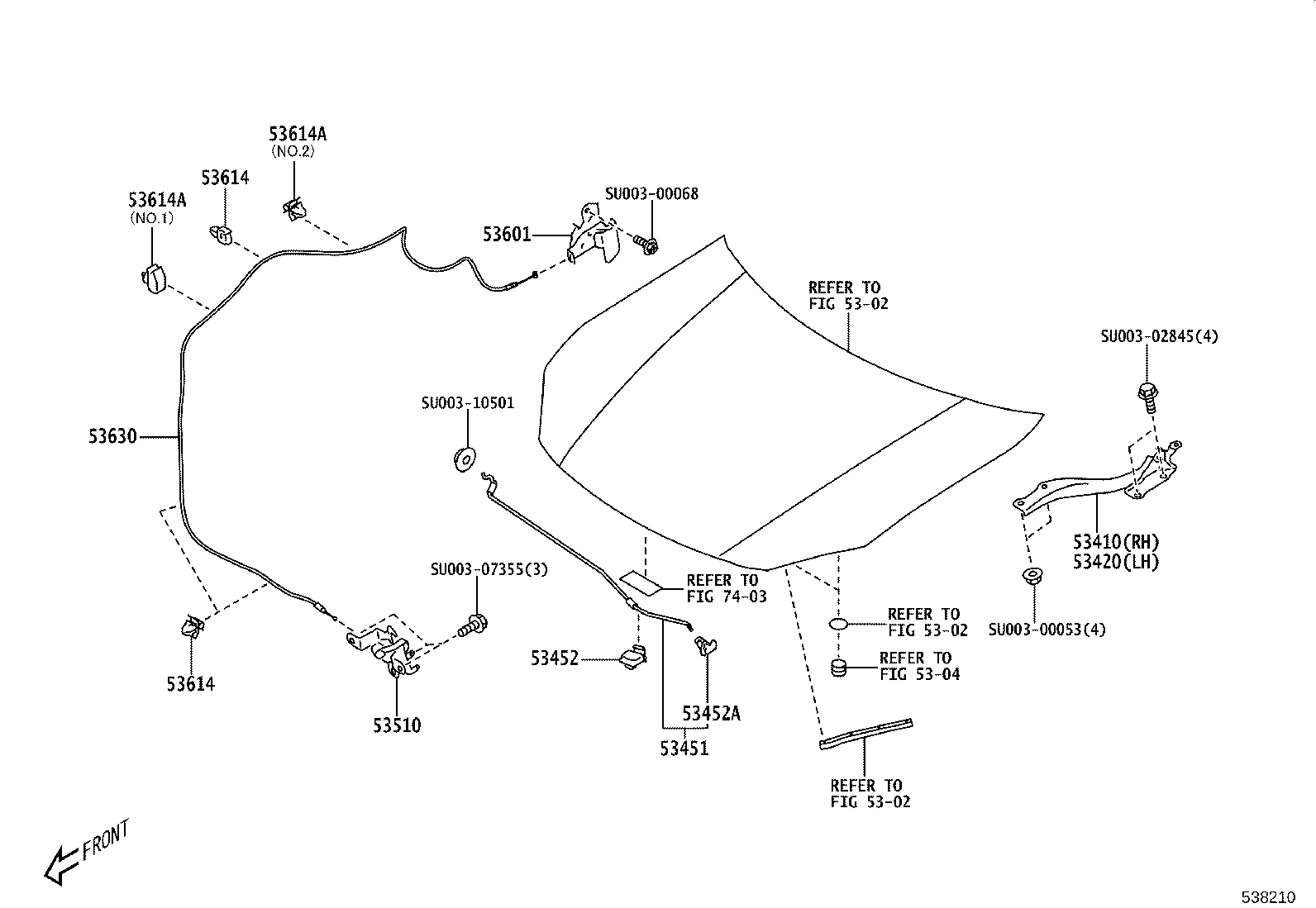

Figure 538209 538209 2022-03 → — Figure 538210 538210 2022-03 → —

Part groups

PNCDescription
53410 Hinge Assy, Hood, RH
53420 Hinge Assy, Hood, LH
53451 Rod, Hood Support
53452 Holder, Hood Stay
53452A Holder, Hood Stay
53510 Lock Assy, Hood
53601 Lever Sub-assy, Hood Lock Control
53614 Clamp, Hood Lock Control Cable
53614A Clamp, Hood Lock Control Cable, NO.1
53630 Cable Assy, Hood Lock Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
