Toyota GR 86
2022-03 → present · chassis ZN8 · catalogue 264230 · Europe
Supported model
Data version 2024-10
Floor Pan & Lower Back Panel
36 part groups · 4 illustrations
Part groups

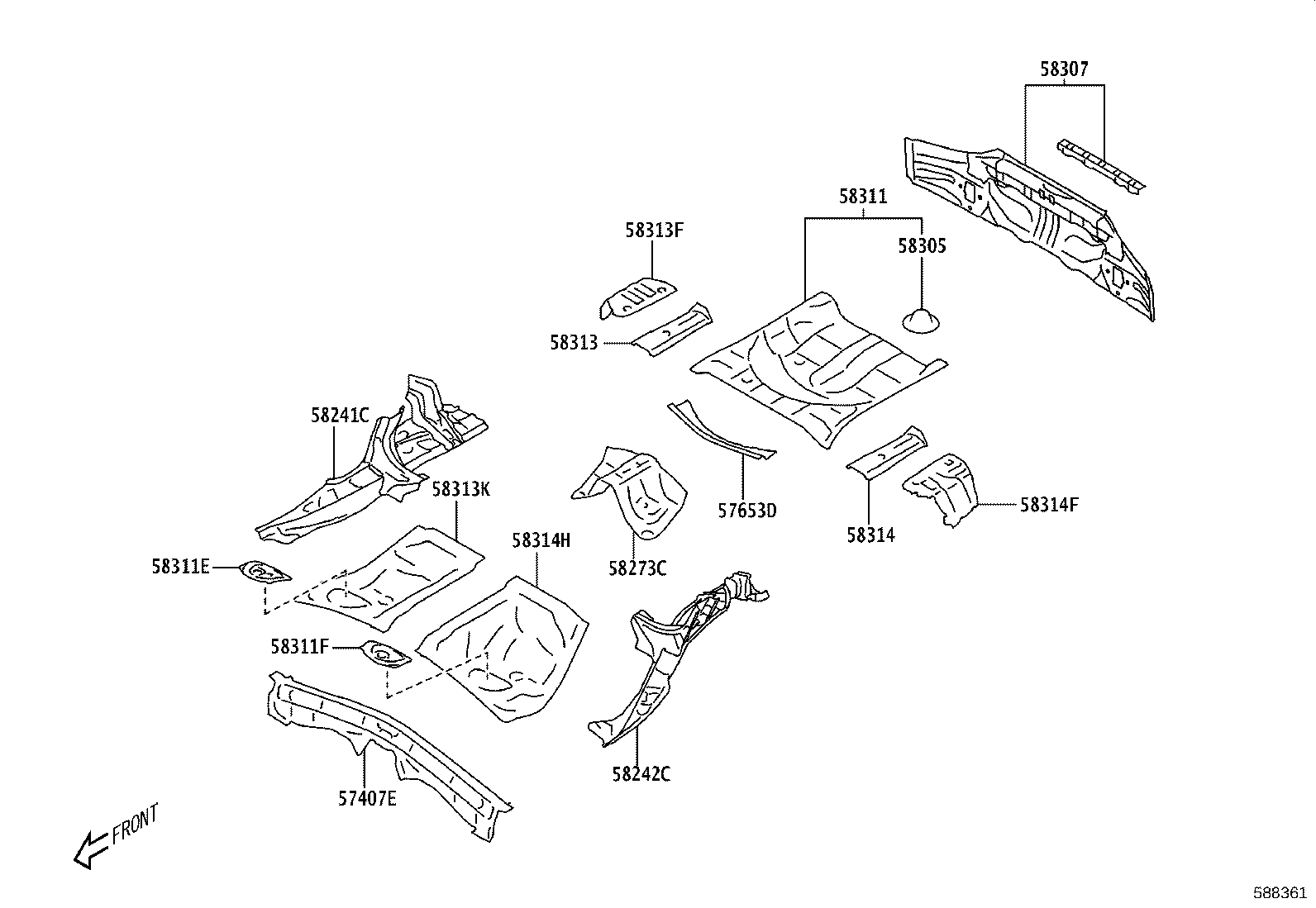

| PNC | Description |
|---|---|
| 57051A | Member Sub-assy, Front Floor Cross, RH |
| 57052A | Member Sub-assy, Front Floor Cross, LH |
| 57053 | Reinforcement Sub-assy, Front Floor Crossmember, RH |
| 57054A | Reinforcement Sub-assy, Front Floor Crossmember, LH |
| 57169C | Patch, Front Floor, Rear |
| 57407C | Member Sub-assy, Center Floor Cross, NO.1 |
| 57407E | Member Sub-assy, Center Floor Cross |
| 57423 | Bracket, Front Floor Reinforcement, RH |
| 57424 | Bracket, Front Floor Reinforcement, LH |
| 57427D | Reinforcement, Front Floor, NO.3 RH |
| 57428C | Reinforcement, Front Floor, NO.3 LH |
| 57451A | Member, Front Floor Cross, RH |
| 57452C | Member, Front Floor Cross, LH |
| 57455A | Bracket, Front Floor Crossmember |
| 57535 | Brace, Front Floor, RH |
| 57536 | Brace, Front Floor, LH |
| 57653D | Member, Rear Floor Cross, NO.2 |
| 57663C | Member, Rear Floor Cross, Center |
| 58111A | Pan, Front Floor, RH |
| 58112A | Panel, Front Floor, LH |
| 58113A | Panel, Front Floor, Center |
| 58241C | Panel, Floor Side, RH |
| 58242C | Panel, Floor Side, LH |

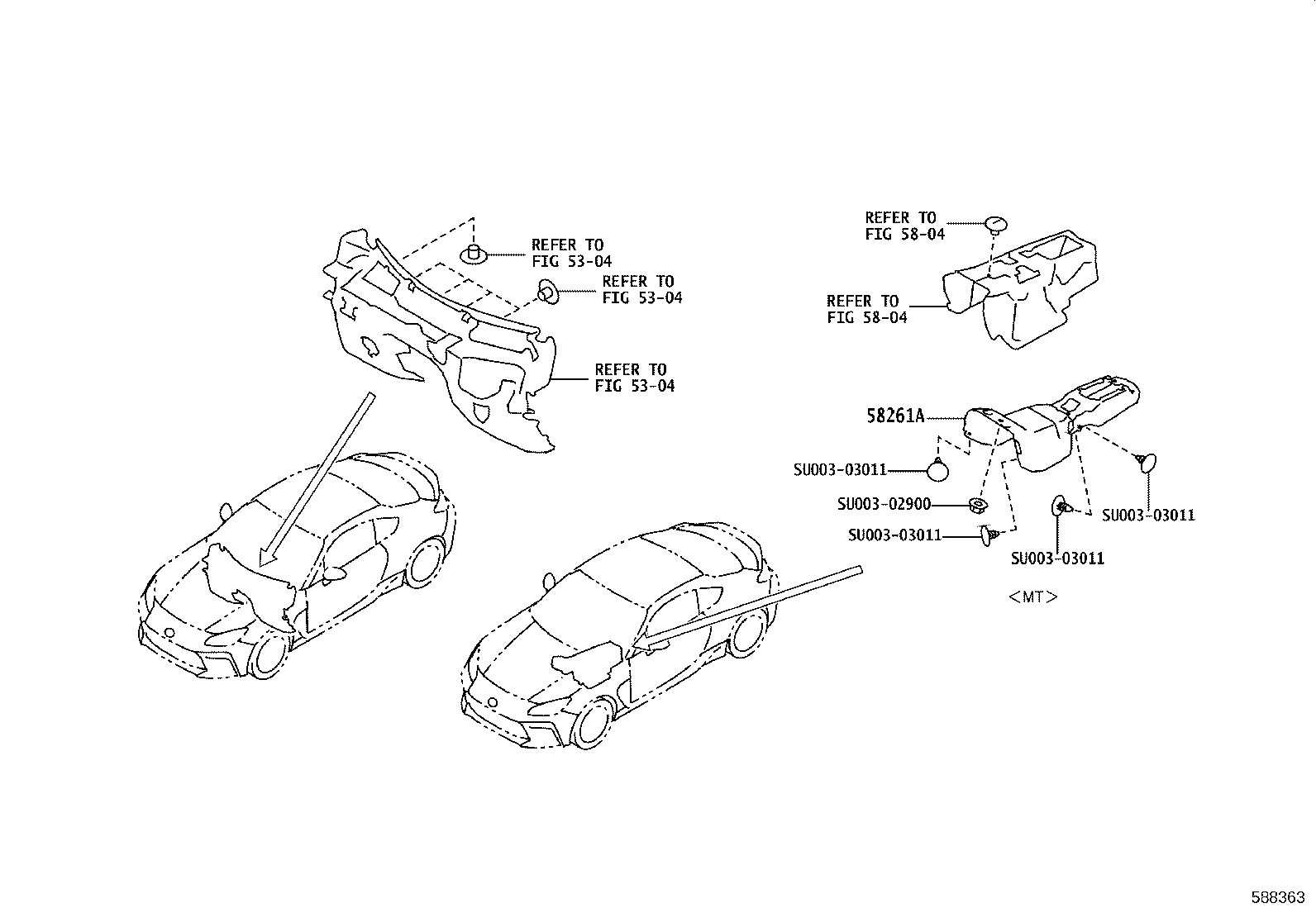

| 58261A | Cover, Transmission |
| 58273C | Reinforcement, Belt Anchor TO Center Floor |
| 58305 | Bracket Sub-assy, Spare Wheel Clamp |
| 58307 | Panel Sub-assy, Body Lower Back |
| 58311 | Pan, Rear Floor |
| 58311E | Cover, Rear Floor Service Hole |
| 58311F | Cover, Rear Floor Service Hole, NO.2 |
| 58313 | Panel, Rear Floor Side, RH |
| 58313F | Extension, Rear Floor Pan TO Quarter Panel, RH |
| 58313K | Panel, Rear Floor, RH |
| 58314 | Panel, Rear Floor Side, LH |
| 58314F | Extension, Rear Floor Pan TO Quarter Panel, LH |
| 58314H | Panel, Rear Floor, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
