Toyota GR 86

2022-03 → present · chassis ZN8 · catalogue 264230 · Europe

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

18 part groups · 5 illustrations

Illustrations

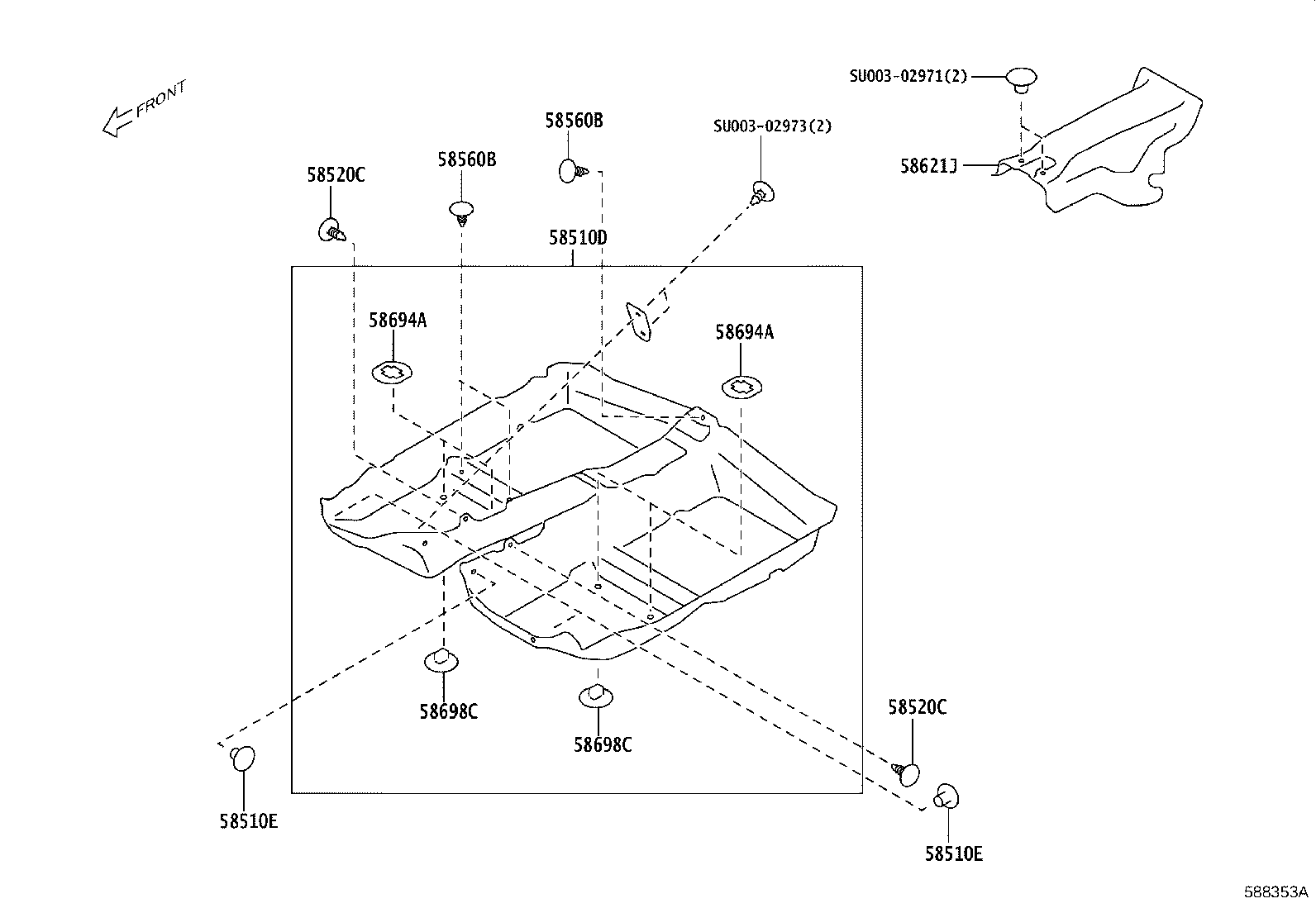

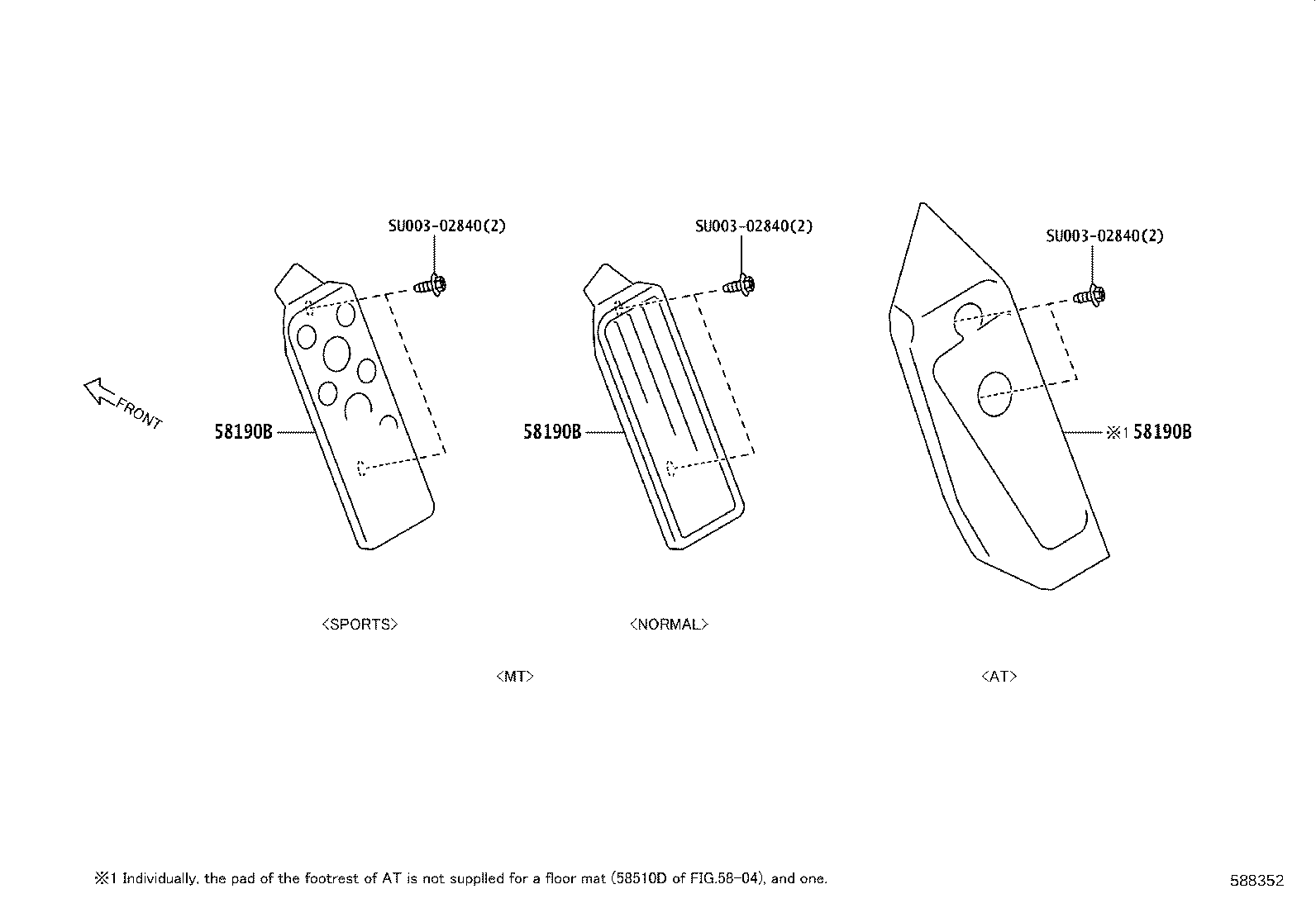

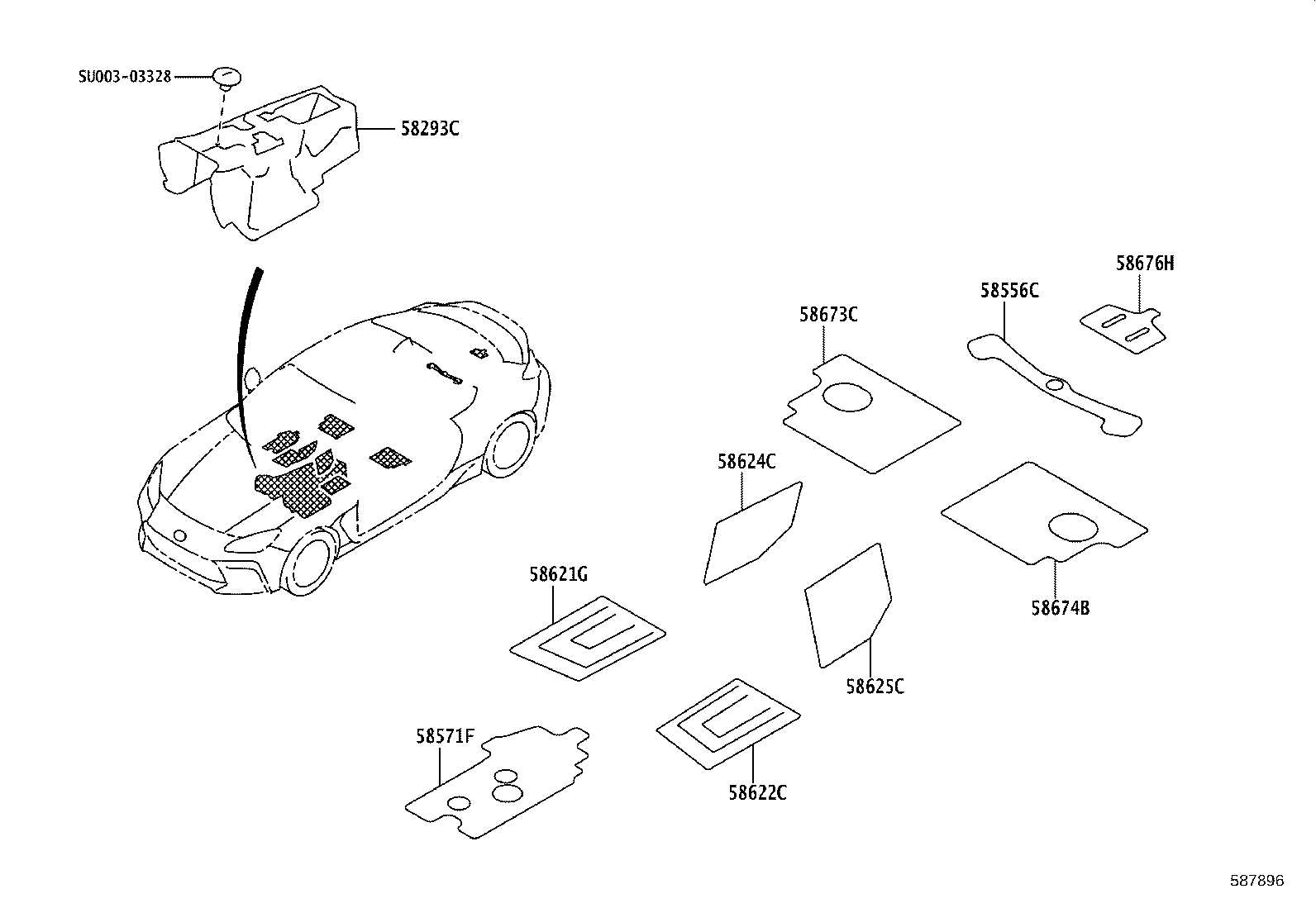

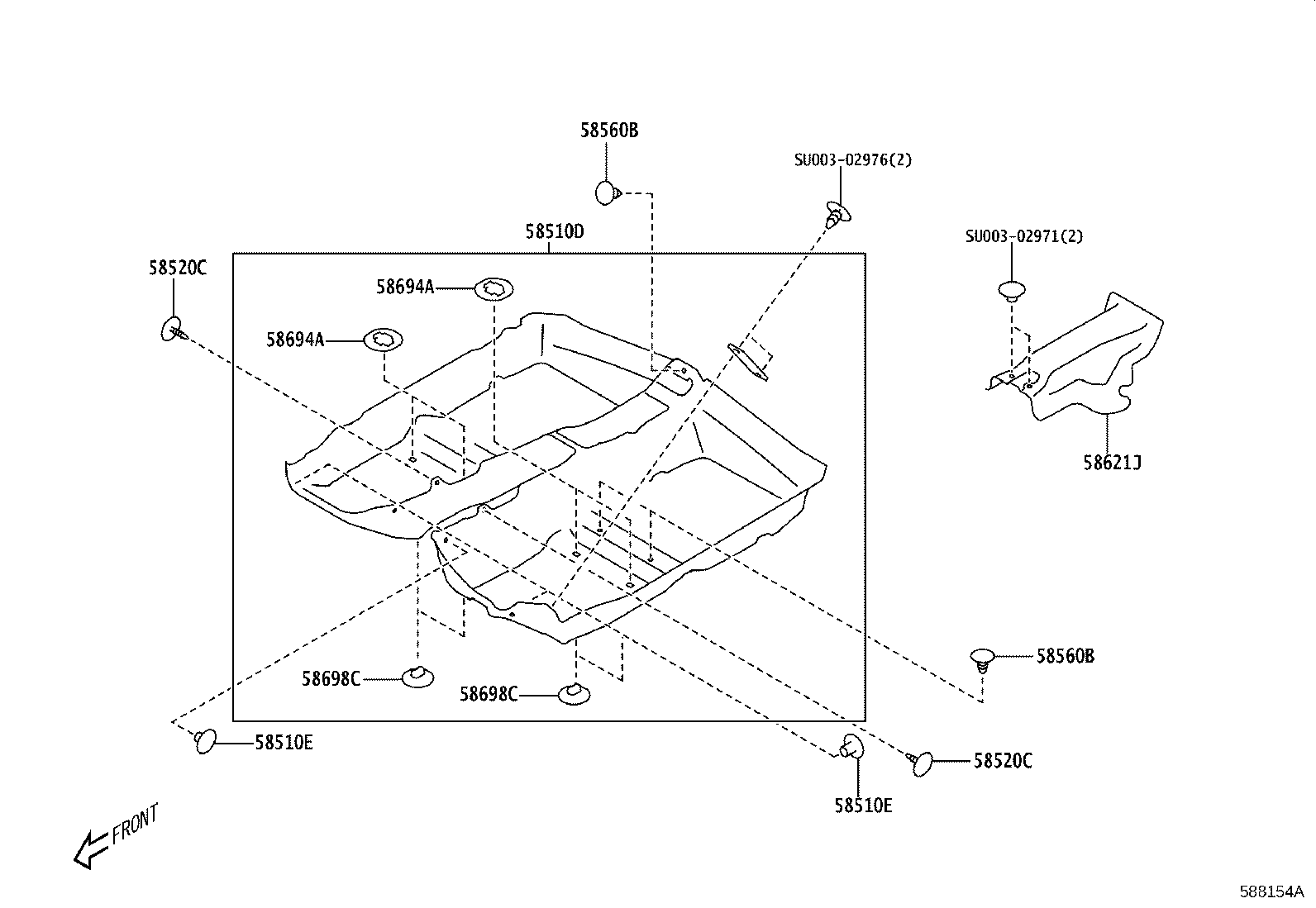

Figure 588153 588153 2022-03 → — Figure 588352 588352 2022-03 → — Figure 588154A 588154A 2022-03 → — Figure 588353A 588353A 2022-03 → — Figure 587896 587896 2022-03 → —

Part groups

PNCDescription
58190B Rest Assy, Front Floor Foot
58293C Pad, Front Floor
58510D Carpet Assy, Floor, Front
58510E Retainer, Floor Carpet
58520C Clip(FOR FRONT FLOOR CARPET)
58556C Silencer, Rear Floor
58560B Clip(FOR FLOOR CARPET, REAR)
58571F Pad, Front Floor, Front
58621G Pad, Front Floor Silencer, RH
58621J Silencer, Center Console, NO.1
58622C Pad, Front Floor Silencer, LH
58624C Pad, Center Floor Silencer, RH
58625C Pad, Center Floor Silencer, LH
58673C Pad, Rear Floor Silencer, NO.1
58674B Pad, Rear Floor Silencer, NO.2
58676H Pad, Rear Floor Silencer
58694A Plate, Mat Set, Upper
58698C Plate, Mat Set, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
